Hunter 90405 Manuel utilisateur
OscillatingOscillatingOscillating
Form# 44086-01
20101102
©2010 Hunter Fan Co.
Stand Fan
Owner’s Manual
Model
90405
90434
90435
English
2
©2010 Hunter Fan Co. 44086-01 20101102
TABLE OF CONTENTS
Introduction ............................................................. 3
Safety and Warnings ................................................ 3
Grounding ............................................................... 5
Fused Plug ............................................................... 6
Unpacking ............................................................... 7
Base Assembly ......................................................... 7
Motor Assembly ....................................................... 8
Grill Assembly ......................................................... 9
Operation.............................................................. 11
Off / Speed Selection 11
Oscillation 11
Adjustment 11
Maintenance .......................................................... 12
Technical Support ................................................... 13
Warranty ............................................................... 13
Products ................................................................ 15
3
©2010 Hunter Fan Co. 44086-01 20101102
INTRODUCTION
To reduce the risk of fire or electrical shock, DO NOT use
this fan with any solid-state speed control device.
When using electrical appliances, basic precautions
should always be taken to reduce the risk of fire, electric
shock and personal injury:
Read all instructions before using this fan.
1. Improper installation may result in the risk of fire,
electric shock or personal injury.
2. To prevent the risk of fire and electric shock, DO
NOT use the unit near windows. Rain and moisture
may create an electrical hazard.
3. The power plug must be removed from the power
socket when not in use, before cleaning, servicing,
maintenance and before moving to another location.
4. DO NOT put fan in a damp place or where humidity
is high-such as a bathroom.
5. The fan should be placed on a flat, stable surface or
tabletop to avoid overturning.
6. Use fan only for intended use, as described in this
instruction manual.
7. To protect against electrical shock, DO NOT immerse
unit, plug or cord in water or spray with liquids.
8. Close supervision is necessary when any appliance
is used by or near children.
9. NEVER insert fingers, pencils or any other objects
Thank you for choosing the Hunter Oscillating Stand
Fan. This manual gives you complete instructions for
assembling and using your fan. Here are some the
features you will enjoy with your fan:
3An attractive design that enhances any decor
3A powerful motor for maximum air flow
3Three speeds to adjust your comfort level
3All metal construction
SAFETY AND WARNINGS
4
©2010 Hunter Fan Co. 44086-01 20101102
through the grill when the fan is running.
10. DO NOT operate any appliance with a damaged
cord or plug, after the appliance malfunctions or has
been dropped or damaged in any manner.
11. To disconnect, grip plug and pull from wall outlet.
NEVER yank on cord.
12. ALWAYS use on a dry surface.
13. This product is intended for household use only and
not for commercial or industrial use.
14. DO NOT operate fan in the presence of explosive
and/or flammable fumes.
15. DO NOT place fan or any parts near an open flame,
cooking or any other heating appliances.
16. DO NOT use near curtains, plants, window
treatments, etc.
17. This appliance has a grounded three-prong plug
and is suitable for grounded receptacle use only.
An adapter is available for connecting three-blade
grounding-type plugs to two-slot receptacles. The
adapter must be properly grounded. DO NOT
attempt to defeat the purpose of this safely feature.
18. The rubber ring on this product may interact with
wood and cause damage to furniture. Do not place
on fine wood furniture.
5
©2010 Hunter Fan Co. 44086-01 20101102
Figure 1.
is appliance is for household use only and may be plugged
into any 120-volt AC electrical outlet (ordinary household cur-
rent). DO NOT use any other type of outlet.
is unit is suitable for grounded receptacle use only.
The power cord has a grounded plug as shown in Figure
1, and must be used with an electrical outlet that can
accommodate the grounding pin. If your electrical outlet
can not accommodate the grounding pin, then you must
purchase and install one of the two types of adapters
shown in Figure
NOTE: The adapters ARE NOT supplied with this fan.
Read, follow, and save the instructions that are included
with the adapter you choose. Do not use an adapter if
your electrical outlet can accommodate the grounding
pin.
LINE CORD SAFETY TIPS
1. NEVER pull or yank on the cord or the appliance.
2. To insert plug, grasp it firmly and guide it into the outlet.
3. To disconnect the appliance, grasp the plug and remove it
from the outlet.
4. Before each use, inspect the line cord for cuts and/or
abrasion marks. If any are found, the appliance should be
serviced and the line cord replaced. Please return it to our
Service Department or to an authorized service representa-
tive.
5. NEVER wrap the cord tightly around the appliance, as this
could place undue stress on the cord where it enters the ap-
pliance and could cause it to fray and break.
6. DO NOT operate appliance if the line cord shows any dam-
age, if the appliance works intermittently or stops working
entirely.
Grounded
Plug
Grounding Pin Grounded Outlet
Box Cover
WARNING
Figure 2.
Grounded Outlet
Box Cover
Metal
Screw
Adapter
Grounding
Means
GROUNDING
6
©2010 Hunter Fan Co. 44086-01 20101102
Figure 1.
This plug is a safety feature. It contains a safety device
(fuse) that should not be removed. Discard product if the
attachment plug is damaged. To reduce the risk of fire,
electric shock and personal injury, DO NOT remove,
replace, repair or tamper with the originally supplied
plug. If the Fan does not function properly, it may be due
to the safety device incorporated in this plug.
If the fuse fails, it is generally due to a short circuit or
circuit overload. Replace the fuse as per the instructions
below. If the replacement fuse fails, immediately
unplug the unit and contact our technical support
department for assistance.

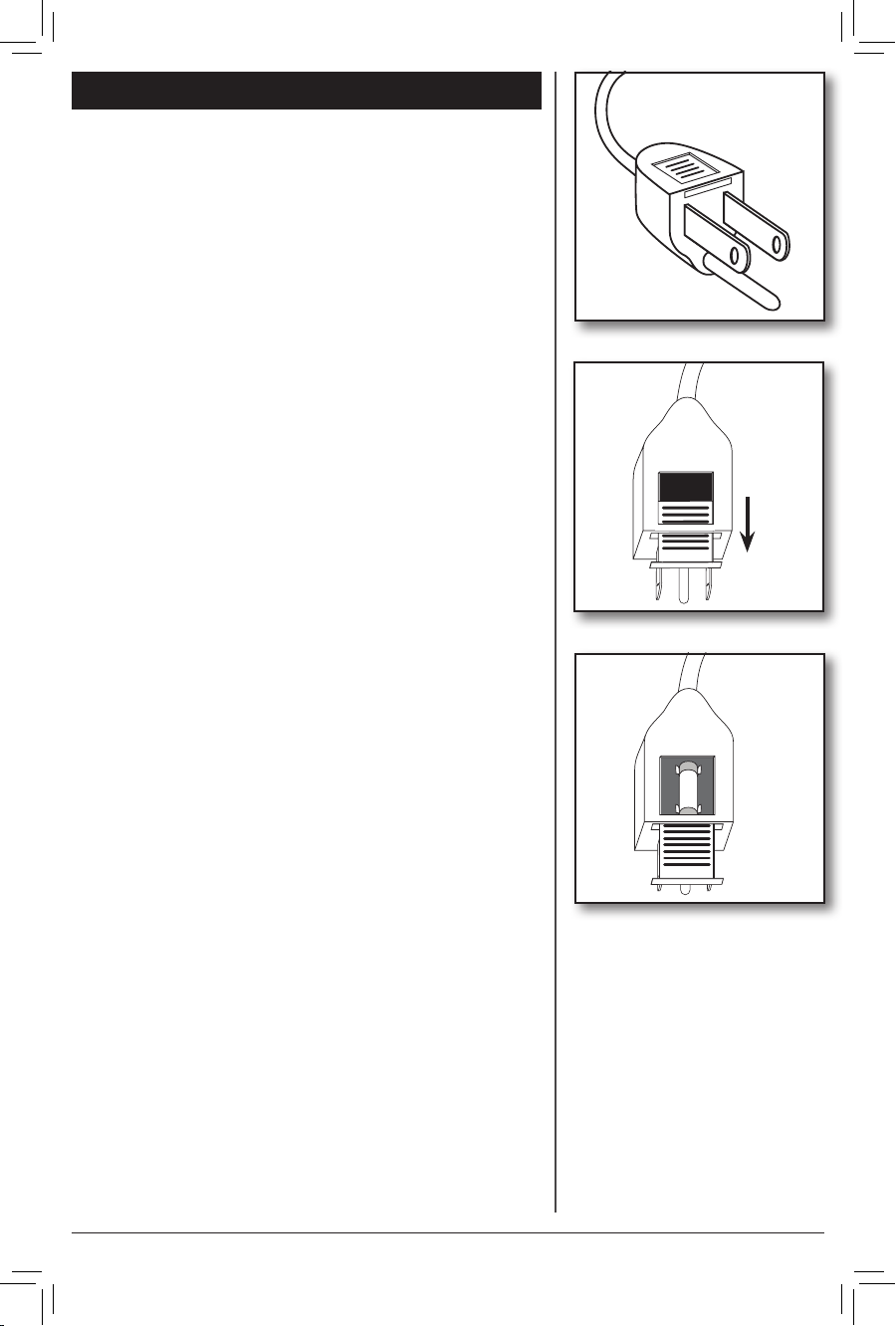

Fuse Replacement:
1. To replace the fuse, first turn the unit it off and unplug
it from the wall. Locate the door on top of the plug.
Figure 1.
2. Slide the door on top of the plug towards the blades.
Figure 2.
3. Carefully remove the fuse from the clips holding it on
the top and bottom. Figure 3.
Warning! Electrical Hazard! Only replace with a
fuse type and rating matching what was removed from
the product.
4. Gently push the fuse back into the pins that will hold
it in place.
Note: If the fuse is not seated properly, the unit will not
function.
5. Slide the Door back over the fuse box in the plug.
6. Plug the fan back in and resume use.
FUSED PLUG
Figure 2.
Figure 3.
7
©2010 Hunter Fan Co. 44086-01 20101102
BASE ASSEMBLY Figure 3.
Figure 4.
Figure 5.
1. Insert the Weight(1) into the Base Cover(2). Figure 3.
2. Insert the base of the Telescoping Pole(3) into the top
of the Base Cover(2) and attach to the Base Weight(1)
by turning clockwise on the Screw(4) in the center of
the Base Weight(1). Figure 4.
3. Turn the Base on it’s side and turn the handle of the
Screw(4) on the bottom of the Weight until secure.
Figure 3.
4. Tip the Base back upright. Figure 5.
Figure 6.
UNPACKING
As you unpack the fan, save the carton and packing
materials in case you want to move or ship the unit in the
future. Carefully remove all items from the box.
NOTE: It is best to have someone hold the box while
you lift the fan and the protective packaging out of the
carton. Make sure all shipping materials are removed
from fan before operating. (1) Base Weight
(2) Base Cover
(2) Base Cover
(3) Telescope
Pole
(4) Screw
(4) Screw
8
©2010 Hunter Fan Co. 44086-01 20101102
Figure 9.
MOTOR ASSEMBLY
1. Grasp the Telescope Pole firmly and twist the
Adjustment Knob Counter Clockwise to loosen.
Figure 7.
2. Raise the Inner Pole and tighten the Adjustment Knob
by twisting Clockwise until secure.
3. Remove the Motor Knob(7), Motor Bolt(6), and Tilt
Adjustment Knob(8). Loosen the screw above the
Motor Knob(7).
4. Set the Motor(5) on top of the Pole(3), Figure 8.,
and Secure using the Motor Bolt(6) and Knob(7).
Retighten the screw above the motor knob in the slot
to secure motor. Figure 9.
Note: The Motor Bolt has a square cut on the inside of the
head, ensure this fits securely into the square hole in the
Pole. Do not overtighten the Motor Knob, as this could
make it difficult to tilt the motor later.
After securing the motor(5), Screw in the Tilt Adjustment
Knob(8) securely. Figure 10. This Knob allows you to
adjust the fans angle.
Figure 7.
Figure 8.
Figure 10.
(5) Motor
(3) Telescope Pole
(6) Motor
Bolt
(7) Motor
Knob
(8) Tilt Adjustment
Knob
(7) Motor
Knob
(6) Motor
Bolt
(8) Tilt
Adjustment
Knob
Screw
9
©2010 Hunter Fan Co. 44086-01 20101102
Figure 11.
Figure 12.
Figure 13.
Figure 14.
GRILL ASSEMBLY
13a.
1. Place the back grill against the motor housing(5),
Figure 11., and line up the 4 tabs on the back of the
grill(9) to the 4 screws holes on the front of the motor.
Caution: Make sure the Handle on the back of the Back
Grill is facing up.
2. Attach the Back Grill(9) to the Motor(5) using the 4
Grill Mount Screws. Figure 12.
Note:1 screw will have a star washer on it, for grounding
purposes. The other 3 screws will not have a washer.
3. Loosen the Screw on the back of the Fan Blade(10),
13a., and slide the Fan Blade onto the post on the
Motor(5). Figure 13.
4. Tighten the Screw on the Blade(10( to secure it to the
Motor(5). Figure 14.
Caution: Ensure when tightening the screw on the back
of the fan blade, you tighten it on the flat part of the post.
(5) Motor
(9) Back Grill
Screw Holes
(5) Motor
(10) Fan Blade
Handle
10
©2010 Hunter Fan Co. 44086-01 20101102
Figure 16.
Figure 15.
Figure 17.
GRILL ASSEMBLY CONT.
1. Remove the Grill Ring from the Front Grill(11) by
loosening the screw holding it.
2. Place the Front Grill(11) against the Back Grill(9) so
the Hunter logo faces right side up and push together
until the tabs on the grills hold them together. Figure
15.
3. Slide the Grill Ring over both Front(11) and Back(9)
Grills turning it so the screw that will secure it is on
the bottom. Figure 16.
4. Tighten the Screw to secure the Grill Ring over the
Front and Back Grills.
5. Straighten the Cord from the Motor along the
Telescoping Pole and Snap the Cord Clip over the
cord onto the Pole so the cord rests in the notch on
the Clip. Figure 18.
(11)Front Grill
Hunter Logo
(12) Grill Ring
Screw
(9) Back Grill
Figure 18.
(13) Cord Clip
Cord
Notch
Autres manuels pour 90405
1
Ce manuel convient aux modèles suivants
4
Table des matières
Autres manuels Hunter Ventilateur
Hunter
Hunter 50257 Manuel utilisateur
Hunter
Hunter Bristol 20495 Manuel d'instructions
Hunter
Hunter Sonic Manuel d'instructions
Hunter
Hunter 59126 Manuel utilisateur
Hunter
Hunter Bayview Manuel utilisateur
Hunter
Hunter 21705 Manuel
Hunter
Hunter Bryn Manuel utilisateur
Hunter
Hunter Highbury 52008 Manuel d'instructions
Hunter
Hunter Bridgeport Outdoor Manuel utilisateur
Hunter
Hunter Savoy Manuel utilisateur
Hunter
Hunter Builder Plus Manuel d'instructions
Hunter
Hunter Windbound Manuel utilisateur
Hunter
Hunter Sencillo Manuel utilisateur
Hunter
Hunter Type 2 Models Manuel d'instructions
Hunter
Hunter Saturn 90058 Manuel
Hunter
Hunter Caribbean Breeze 54094 Manuel d'instructions
Hunter
Hunter Type 5 Models Manuel d'instructions
Hunter
Hunter FSQ-MF09F Manuel utilisateur
Hunter
Hunter 52420 Manuel utilisateur
Hunter
Hunter 43041-01 Manuel utilisateur
