Hunter 82040 Manuel utilisateur

142936-01 10/17/2007

Installation Guide

Energy Star Bath Fan Light Models 82040, 82041, 82042

READ and SAVE THESE INSTRUCTIONS

ENGLISH

See page 2

ESPAÑOL

Vea la página 19

42936-01 10/17/2007

1) Read all instructions before attempting to install or use this appliance. This appliance is for general

ventilating use only. Do not use this appliance for ventilating hazardous or explosive materials. Follow

the heating equipment manufacturer’s guideline and safety standards, such as those published by

the National Fire Prevention Association (NFPA), and the American Society for Heating, Refrigeration

and Air-Conditioning Engineers (ASHRAE), and the local code authorities.

Use this appliance only as

described in this manual. Any other use not recommended by the manufacturer may cause

fire, electric shock, or injury to persons. SAVE THESE INSTRUCTIONS.

Before installing, servicing, or cleaning the unit, disconnect the power by turning o the circuit

breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers

in the o position, securely attach a prominent warning device, such as a tag, to the service panel.

This unit must be grounded.

This appliance is not suitable for tub or shower installation, and must not be installed within a

minimum of 3 feet from the tub or shower opening. See Figure A.

Do not install this appliance lower than 7 feet (2.13 m) above the floor in the ceiling. See Figure A.

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING:

Continued

3 ft. min.

(0.91 m)

Bath Fan

Tub or Shower area

NOTE: This illustration is not

to scale

7 ft. min.

(2.13 m)

Figure A

342936-01 10/17/2007

Never place a switch where it can be reached from a tub or shower. Do not install this appliance in

a tub or shower enclosure.

Installation work and electrical wiring must be done by qualified person(s) in accordance with all

applicable codes and standards, including fire-rated construction codes and standards.

When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden

utilities.

9) Do not install this product in a wall. This product is designed for installation in ceilings up

to a 12/12 pitch (45 degrees). Ductwork must point upward.

10)

Ducted fans must always be vented to the outdoors. Keep ducting as short and as straight as pos-

sible.

11) Extreme caution is necessary when this appliance is used by or near children or invalids

and whenever the is left operating and unattended.

12) To avoid motor bearing damage and noisy/unbalanced blower wheel, keep drywall spray,

construction dust, etc. off power unit.

13) Read specification label on product for further information and requirements.

14) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this

may cause an electric shock or fire, or damage the unit.

15)

Do not use this appliance with a dimmer switch or a fan speed controller.

16) To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control

device.

17) To prevent a possible fire, do not block air intakes or exhaust in any manner.

42936-01 10/17/2007 4

97518-01-000

03242-07-133

97118-02-000

97134-01-000

74508-03-133

Housing

Wiring Cover

Fan Assembly

3/8” Cable Connector

Light Fixture

Wiring Cover Screw

Check all the parts. If damaged, call

1-888-830-1326 for replacement.

Mounting Screws

Fan Mounting Screws

NOTE: Strain relief (not supplied) cable

connector must be installed.

Attachment Screws

97932-01-262

97118-03-000

97118-04-000

Strain Relief Bracket

Strain Relief Bracket Screw

65872-01-000

74508-53

75184-01-133

Light Fixture Thumbnuts

Lens

87259-01-000

95044-01-000

Mounting Rails

Turn off the power source.

Tools Needed. (Not supplied.)

Estimated assembly time: 30 to 60 minutes

Before Installation

Included.

Loosen the fan mounting screws.

42936-01 10/17/2007

Loosen the wiring cover screw.

Remove the fan assembly from the housing.

Remove the wiring cover.

Choose Installation Option

For New Construction - attaching to joist, go to step A1, page 5.

For New Construction - suspended between, joists go to step B1, page 7.

For Existing Construction - accessible from above, go to step C1, page 9.

For Existing Construction - accessible only from below, go to step D1, page 12.

42936-01 10/17/2007 6

Section A - New Construction - attaching to joist

Drive mounting screws (supplied) into joist or framing.Position the correct depth mark at the bottom edge of

the joist based upon the the thickness of your sheetrock.

5/8

1/2

5/8

1/2

Pop out a wiring access slug.

Install the wiring and the strain relief into the wiring

access hole you made earlier.

Run the power supply wire through the strain relief, leav-

ing 3” between the end of the wire and the strain relief.

Tighten the strain relief around the wire.

3”

42936-01 10/17/2007

Connect 4” duct and vent to the outside. Use duct tape to

secure joints. If ducting does not fit securely, an adapter

may need to be purchased.

Go to

Section E -

Final Installation

on page 14.

Section B - New Construction – suspended between joists

Pop out a wiring access slug.

Slide the mounting rails into brackets. Note the orienta-

tion of of the outer ends of the rails.

Position the correct depth mark at the bottom edge of

the joist based upon the the thickness of your sheetrock.

5/8

1/2

5/8

1/2

42936-01 10/17/2007 8

Mark position of screws by using holes as a template. Drill a pilot hole at the TOP of each outline.

1/16” bit

Insert mounting screws, leaving space between the

screw head and the joist. (Screws are supplied.) Attach the rails onto the screws.

Tighten screws. Run the power supply wire through the strain relief, leav-

ing 3” between the end of the wire and the strain relief.

Tighten the strain relief around the wire.

3”

42936-01 10/17/2007

B10

Install the wiring and the strain relief into the wiring

access hole you made earlier.

B11

Connect 4” duct and vent to the outside. Use duct tape to

secure joints. If ducting does not fit securely, an adapter

may need to be purchased.

Go to

Section E -

Final Installation

on page 14.







Remove an existing fan and check to make sure the

opening is large enough to accommodate the new fan

housing. The opening needs to be 11”x 9 5/8”.

Section C - Existing Construction – accessible from above

NO EXISTING FAN

42936-01 10/17/2007 10

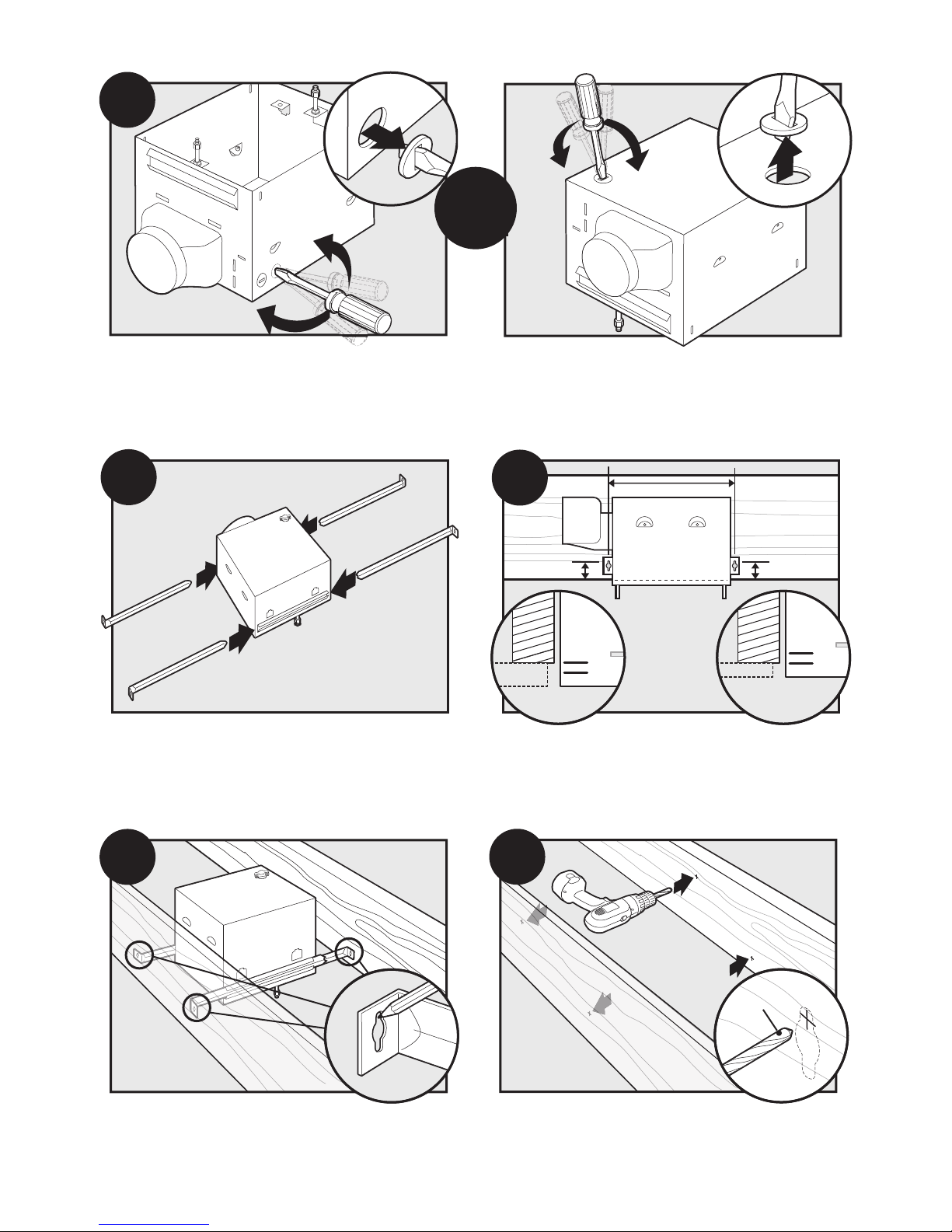

Slide the mounting rails into brackets.

5/8

1/2

5/8

1/2

Using the depth markings on the housing, position the

bottom edge of the housing so that it will be flush with

the sheetrock.

Pop out a wiring access slug.

1/16” bit

Mark position of screws by using holes as a template. Drill a pilot hole at the TOP of each outline, AS SHOWN.
