HuntCam HC-300M Manuel utilisateur

User Manual

HC-300M

Contents

Instructions...........................................................................................................1

1.1

GeneralDescription..............................................................................................1

1.2

CameraBodyInterface.........................................................................................1

1.3

Cameracomponentsandfeatures........................................................................1

1.4

RemoteControl.....................................................................................................1

1.5

ShootingInformationDisplay...............................................................................2

1.6

Brief IntroductionforSIM cardand Signal...........................................................2

1.7

Supported Format.................................................................................................2

EasyOperation......................................................................................................2

2.1

PowerSupply........................................................................................................2

2.2

InserttheMICROSD-cardandtheSIM-card.........................................................3

2.3

EnterintotheTEST Mode.....................................................................................3

2.3

.1 UserSettings.........................................................................................................3

2.3.2

Manual Capturing.................................................................................................3

2.3.3

ViewImagesorVideos.........................................................................................3

2.4

Poweron andEnterintotheONMode................................................................4

2.5

PowerOff..............................................................................................................4

Advanced Operations............................................................................................4

3.1

Settings Menu.......................................................................................................4

3.1.1

PhotoSetting........................................................................................................4

3.1.2

Video Setting........................................................................................................4

3.1.3

SystemSetting.......................................................................................................5

3.1.4

MMSMenu Setting...............................................................................................5

3.1.5

SMTPMenuSetting..............................................................................................5

3.2

MMS/SMTP Settings.............................................................................................6

3.2.1

Preparation...........................................................................................................6

3.2.2

MMSsetting:.........................................................................................................6

3.2.3

SMTPsetting.........................................................................................................6

3.3

SMSCommandCode............................................................................................7

Cautions................................................................................................................8

Specifications.........................................................................................................9

Whathavein thebox.............................................................................................9

1. Instructions

1.1 General Description

This digital trailcamerawith MMSfunctioncanworkautomaticallydayand night.Itcan

betriggeredbyanymovement ofhuman(oranimals)inacertainregionmonitoredby

motionsensor,andthenautomaticallycapturespictures(upto12Mpixels)orrecords

1080p orHD videoclips(WVGA orQVGA).

Duringdaytimeitbeginstotakecolorphotosandvideotilllightisnotenough,thenit

beginsto takemonochromephotosandvideo.

It supports2G/GSM/MMS/SMTP/SMS.And it iswaterproof IP54.

1.2 CameraBodyInterface

Ithasthefollowinginterfaces:USBconnector,MICROSD-CardSlot,SIMcardslot,TV

output and externalDCpowerconnector.

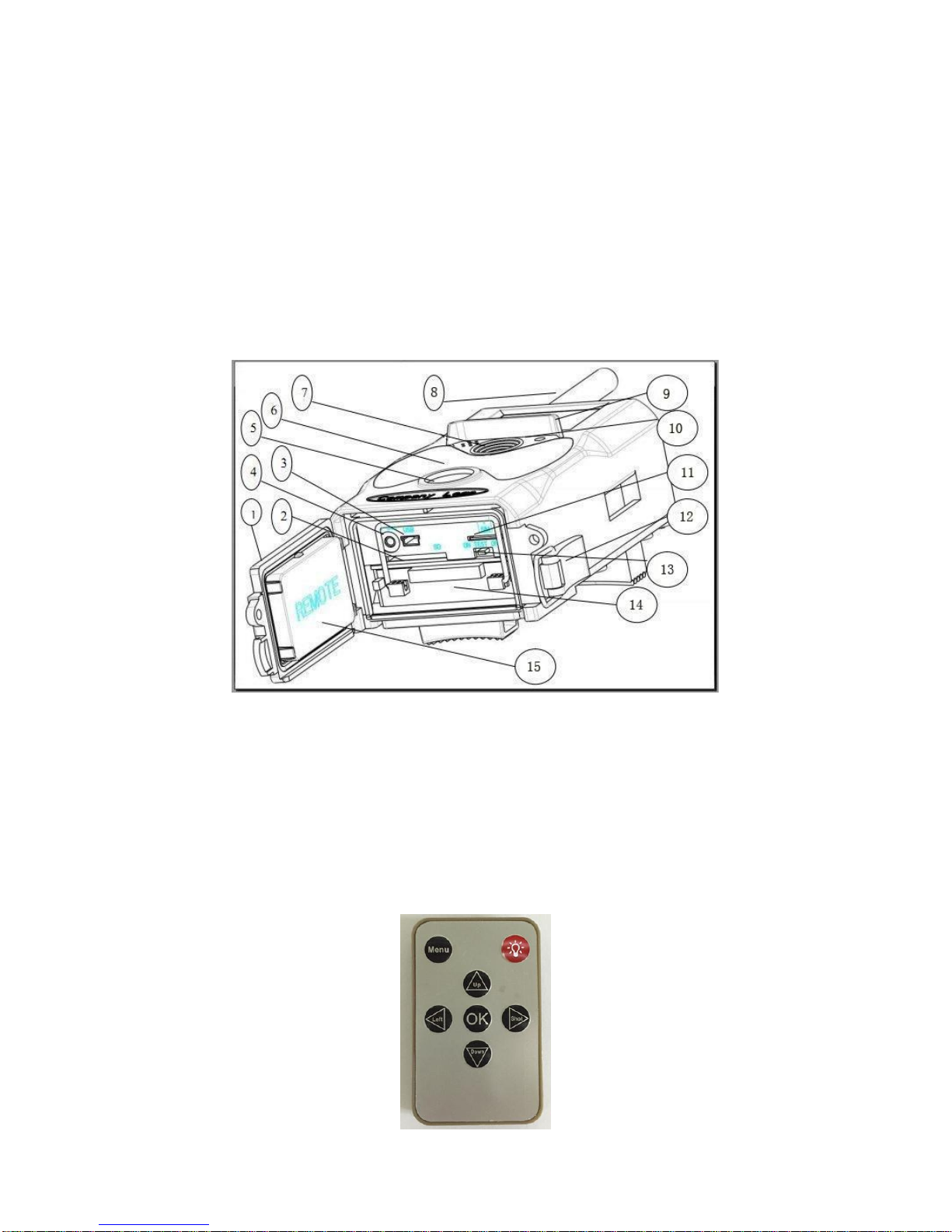

1.3 Cameracomponentsand features

1) BottomCover

2) Micro SD-CardSlot

3) USBConnector

4) TV Outconnector

5) PIR

6) InfraredFlash

7) Lens

8) GSM Antenna

9) 2 inchcolorLCD Display

10)Soundrecorder

11)SIM cardslot

12)Lock

13)Powerwitch

14)BatteryDepot

15)Portableremotecontroller

1.4 RemoteControl

Theremotecontrolisprimarilyusedformenu settings andpassword input.This is

wireless remotecontrol.Themaximumremotedistanceis 9meters.

Note: Press the punctuation ” forlaserlight.

Note(UnderTESTmode):

1.Press Shot”directly,the camerawill takepictureorvideodirectly.

2.Press OK”directly,the pictureorvideorecordedcanbe viewed.

3.Viewingpicture, press Up”or Down”.

4.Viewingvideo,press Left”tostart, again tostop,press OK”toreturn.

ShootingInformation Display

Whenpowerswitchis turntoTESTposition,theshootinginformationwill bedisplayed

in themonitor.

1.5 Brief Introduction for SIMcard and Signal

TherearetwoSIMcardicons. ItmeanstheSIMcardis insertedand itcanwork

well. It meansthenetworksignal inyourlocal placeis verygood.

1.6 SupportedFormat

Item Format

Photo JPG

Video AVI

2. Easy Operation

2.1 Power Supply

To supplypowerforthecamera, 8XAAbatteriesareneeded.

Thefollowingbatterieswith 1.5V output can beused:

1.High-densityandhigh-performancealkalinebatteries(Recommended)

2.Rechargeablealkalinebatteries

3.RechargeableNIMHbatteries

WheninTestMode,camerawill beautomaticallyshutdownto savepowerif without

anyoperation within3 minutes;itcouldbewakedup byanymovement detection.

Wheninlow powerstate,camerawill alsoautomaticallyshutdown.Pleasechangethe

batteriesintime.

2.2 InserttheMICROSD-card and theSIM-card

InsertMicro SD-card andSIM card intothecard slot.

WhenuseMMS/E-mailfunction,besuretoinsertSIMcardintotheSIM-cardslot

correctly.

Slot 1

Slot 2

Slot 3

Slot 4

2.3 EnterintotheTEST Mode

Turn thepowerswitch totheTEST positionto enterintotheTEST mode.There aresome

functionsinTEST mode:usersetting/manuallycapturing/preview.

2.3.1 User Setting

PresstheMENUbutton.Thecameracanbeset (mode,interval,pictureresolution,video

resolution&length,etc.) thedetailed operationswill bedescribed infollowingchapter.

2.3.2 Manual Capturing

PressOKto manuallycapturephotosorrecord video.

2.3.3 View ImagesorVideos

Therearetwo waysto viewthecapturedimagesorvideos:

1. LCD screen on camera

2. TV monitorswhich connectstocamerawith TV cable

Pressright arrowtoviewcapturedfiles, thelatest imagewill beshown intheLCDscreen

orTVmonitor.Press UPto view thelastandpress DOWNforthenext.Thedetailed

operationslikedeletingimagesorvideoswill bedescribed in AdvancedOperations”

chapter.

2.4 Power onand Enterinto theONMode

Before switchingon,pleasepayattentionto thefollowingitems:

1.Donotfacelight sourcedirectly.whichmaycausefalsetriggers

2.Theheightfromgroundforplacingshouldbe1-2 meters.Forexamplefordeerheight

is good sizeappropriately.

AfterswitchtoONmode,theredlightwill flashforabout 10s.thenyoucanlockthe

bottomcoveranddeployyourcamera.

PowerOff:Slidethepowerswitch to OFF positiontoturnoff thecamera.

Pleaseremovethebatteryifthecamerawill notbeusedforalongtime.

3.AdvancedOperations

UsersettingcanonlybedoneinTEST modeand theremotecontrolis needed.

3.1 SettingsMenu

PressMENUwhencameraintheTEST mode.Thesettings menuwill beshown onthe

LCD ortheexternal TV monitor.

3.1.1 PhotoSetting

3.1.2 VideoSetting

3.1.3 System Setting

3.1.4 MMS Menu Setting

3.1.5 SMTPMenu Setting

This camerawill send picturesinstantlytousermobilevia MMS.Sobeforeusingthis

functionuserneedstofinishthesettingsmms inMMSCONFIG.

3.2 MMS/SMTPSettings

3.2.1 Preparation

1.2G/GSMMobileOperatorService

2.format 2GB+Micro SDorSD card

3.computer(Vista,Windows7,windows8 system)

4.OneSIMcardwithoutPIN lock

5.TheSIM cardshouldbeableto sendimagesvia2G/GSM/GPRS/MMSnetwork

6.6V power(8XAABatteries, or6V inputpowersupply)

7.MMSCONFIGProgram inCD

8.Users canasktheprovider2GMMSdata(APN+Account+Password,MMSC+IP+PORT),

orfindthis infoonproviders homepage.

9.2GGPRSdataforSMTP settingfromprovider(APN+Account+Password)

10. SenderEmailserverinfo(server+port+email+password)

3.2.2 MMS setting:

1. Insert TFcardandSIMcardtocamera,put batteriesincam,screwtheantenna, and

thenturncameratotestmode,checkthereare and onthecamera screen.

ThenconnectthecameratothePCwith theincludedUSBcableinsertCDtocomputer,

openandthendoubleclick

2. Choose or in

,Goto table,select

3. Insert and

4. Fill in and or

5. Go to ,choose

6. Click button and saveasParameter.dattoMicroSD card

7. PlugUSBcablefromcamera

8. Goto incamera menu,checkthesubsettingisthe

samewithabovesetting

9. Turncamera toonmode

3.2.3 SMTPsetting

1.Insert card andSIMto camera, putbatteriesin cam, screwantennato itthenturn

camera to testmode,checktherearesignalbarand ''SIM'' onthecamera screen.Then

connectthecamera tothePCwith theincludedUSBcableinsert CDto computer, open

and thendoubleclick

2.Choose or ,Goto

table,select

3.Insertall

4.Fill in senderemail infoin and

5.Go to table,choose

6.Click button and saveasParameter.dattoMICROSD card

7.PlugUSBcablefromcamera

8.Go to in cammenu,checkthesub

settingis thesamewith abovesetting

9.Turncamera toonmode

10. Productoperation video link: https://www.youtube.com/watch?v=fhniN3up2dE

3.3 SMS Command Code

mms/smtpneedtobeset on'modebeforeusing thessmscommand

*500* takepicture

(bothmms andsmtp mode)

*505* takepictureandsendtothemobilewho sendssms

*520* checkthepicturequantityand batterystatus

(bothmms andsmtp mode)

*530* turnoncamera

(bothmms andsmtp mode)

*531* turncamera tosleepingmode

(Can workin both mmsand smtpmode)

4. Cautions

1.Theexternalpowervoltageshouldbe6.0V.

2.PleaseunlockandformattheMicro SD card whenyoufirstuseit.

3.InserttheMicro SD card whenthepowerswitch is at OFF position.

4.Donotinsertortakeout theMicroSDcard whenthepowerswitch is atON position.

5.Pleaseensurepowerisgoodenoughwhenfirmwareupgrade,otherwisetheupgrade

process couldbestopped.

6.Ascommunicationsnetworksmayvarywecan’tguarantee100%MMSand GPRScan

workfine
