Humminbird CoastMaster Manuel utilisateur



Humminbird® CoastMaster™ chart cards are compatible with HELIX

G3/G3N and G4/G4N control heads with chartplotting capabilities and

all APEX™ and SOLIX

control heads. To review the latest compatibility

information and to download a detailed CoastMaster Chart Card user

guide, visit our Web site at humminbird.com.

This quick start guide and the CoastMaster user guide contain

instructions that apply to your Humminbird control head(s) as follows:

•APEX Series

•SOLIX Series

•HELIX Series

H CM C C

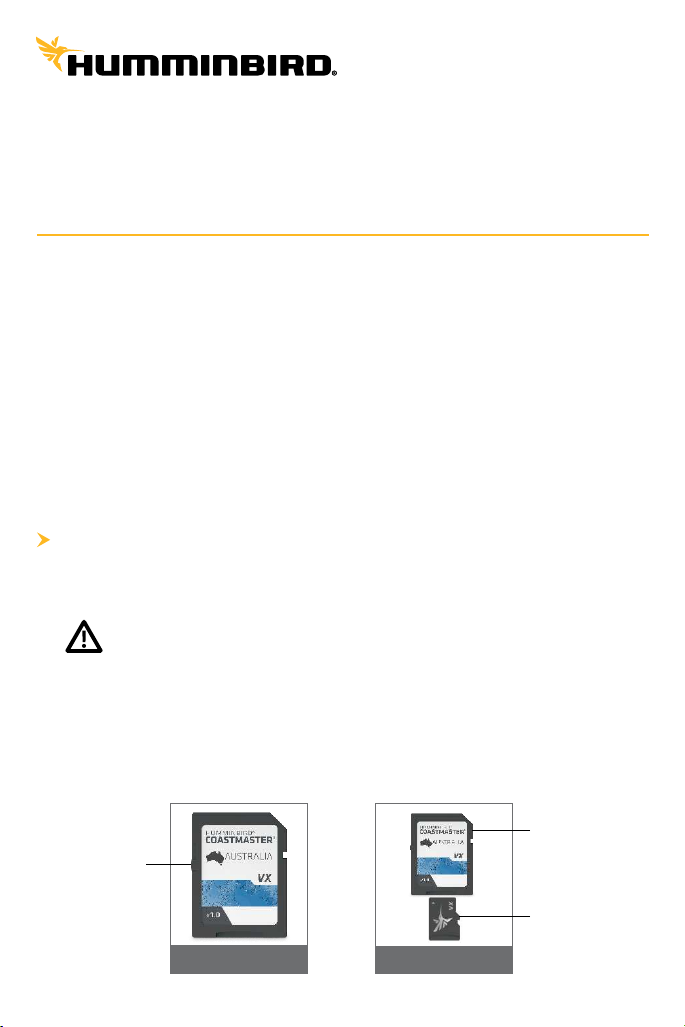

Your control head is compatible with either an SD card or a microSD

card. It is important to note the following guidelines:

WARNING! Do NOT delete or change the contents of your chart card.

Changing the card will permanently damage it.

• Conﬁrm the chart card is locked (see the illustrations below).

•Do not force the card into the slot. The card should click easily into place.

• Do not leave the card slot cover open. Close the slot cover to prevent

water damage to the unit.

switch in

locked

position

SD  SD 

microSD card

adapter

microSD

card

™

  

532791-1AU_C

 

P O

1. Press the POWER key.

2. Choose your startup mode. If you are on the water with GPS

reception, select Normal mode. If you are oﬀ the water without GPS

reception, select Simulator mode.

C  C S V

It is important to install the latest software update to enable the

Humminbird CoastMaster chart card on your control head.

CoastMaster requires the following software versions:

APEX and SOLIX: 4.020 and later

HELIX: 2.660 and later

To download the latest software, go to our Web site at humminbird.com

and slick Support > Software updates. For complete details about the

software update process, see your control head manual.

U  B (HELIX O)

CoastMaster requires the following basemap versions to operate on

HELIX control heads:

HELIX 7 and 8: 2.010 (released 07/2020) and later

All other compatible HELIX models: 1.031 (released 07/2020) and later

To download the latest software, go to our Web site at humminbird.com

and slick Support > Software updates. For complete details about the

software update process, see your control head manual.

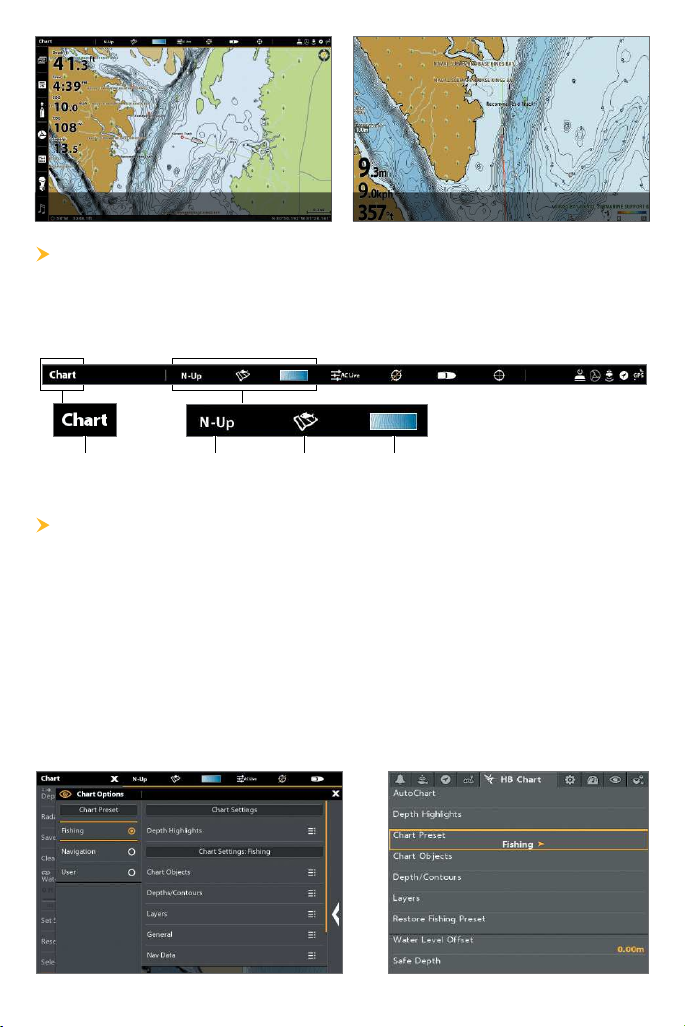

O C V

APEX/SOLIX:

1. Press the HOME key.

2. Select Chart View from the Favorites bar.

HELIX:

1. Press the VIEW key until Chart View is displayed on-screen.

Press and hold the VIEW key to open the Views X-Press Menu. Select

Chart > Chart View.

  (/)   ()

U  S B (APEX  SOLIX O)

The status bar is located at the top of the screen. It changes to match

the on-screen view. You can tap the icons in the status bar to open and

close a menu or make a selection.

Tap to open the

X-Press Menu

chart

orientation

chart

preset

depth color

palette

S C P

Use Chart Presets to quickly alternate between settings. You can use the

default Fishing or Navigation settings provided, or you can create a

custom User preset with your preferences. The Fishing and Navigation

presets are also fully customizable. You can restore each preset back to

its default settings at any time.

APEX/SOLIX: Chart X-Press Menu > Chart Options > Chart Preset

HELIX: Main Menu >HB Chart tab >Chart Preset

APEX/SOLIX HELIX

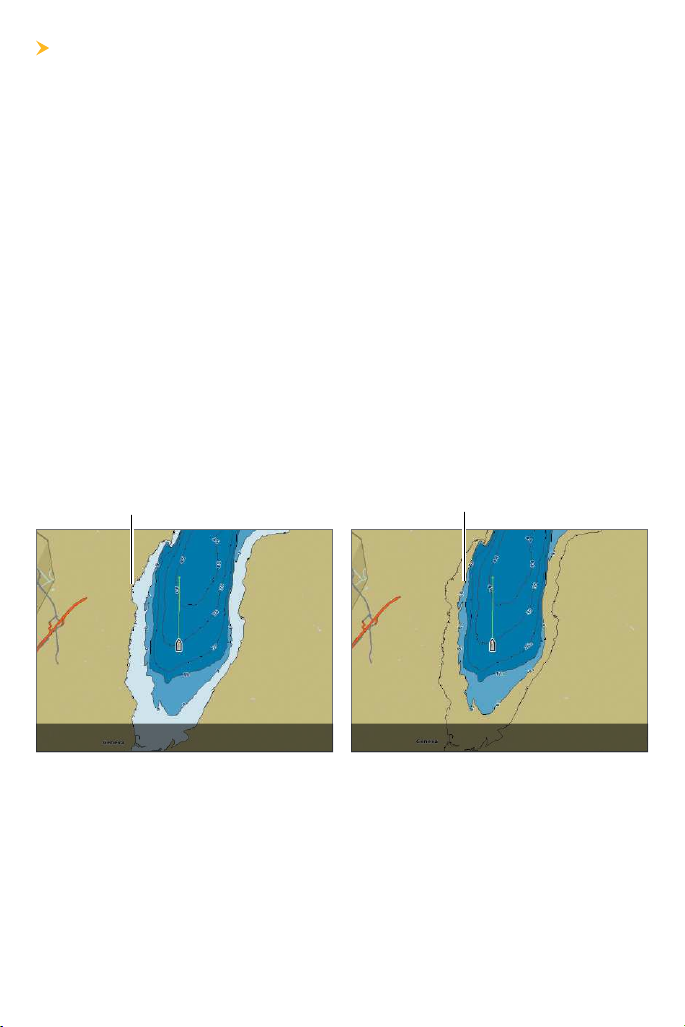

S  W L O

Your CoastMaster card includes chart data for select inland lakes and

rivers.

It is important to note if the water level is higher or lower than normal.

For example, if you know that the tide is 3 feet lower than normal (or that

a lake's water level is down 3 feet), set the Water Level Oﬀset to -3. Depth

labels on the Contour Lines will adjust based on the Water Level Oﬀset

setting.

•If the water level is higher than normal, set a positive amount.

•If the water level is lower than normal, set a negative amount.

•If the water level has not changed (normal): For APEX and SOLIX,

turn Water Level Offset off. For HELIX, set the Water Level Offset

to 0.

APEX/SOLIX: Home > Settings > Chart > Water Level Oﬀset

HELIX: Main Menu >HB Chart tab > Water Level Oﬀset

   ()    ()

shoreline new shoreline with Water Level Offset set to -3

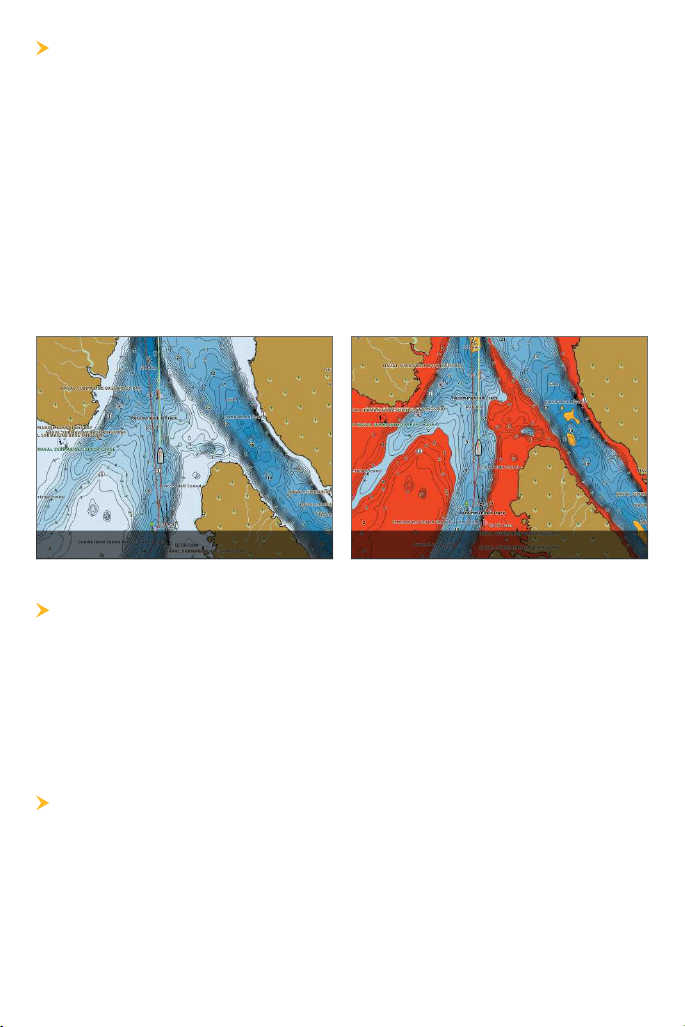

S D H

Highlight deep and shallow waters in Chart View and Chart Combo Views

using the following CoastMaster features. Highlight colors are customizable.

• Depth Highlights allow you to select up to four depth ranges to be

highlighted on the chart.

• Shallow Water Highlight identiﬁes shallow waters when the depth is

equal to or less than the level you set.

APEX/SOLIX: Chart X-Press Menu > Chart Options > Depth Highlights

HELIX: Main Menu >HB Chart tab > Depth Highlights

  ()   ()

S S D L

Use the Safe Depth feature to set the minimum depth level for your

vessel and to turn on highlights for hazards shallower than that level.

APEX/SOLIX: Home > Settings > Chart > Safe Depth

HELIX: Main Menu > HB Chart tab > Safe Depth

S/H S S

Spot Soundings are depth measurements shown on the chart.

APEX/SOLIX: Chart X-Press Menu > Chart Options > Chart Objects >

Navigation > Spot Soundings

HELIX: Main Menu > HB Chart tab > Chart Objects > Spot Soundings

   

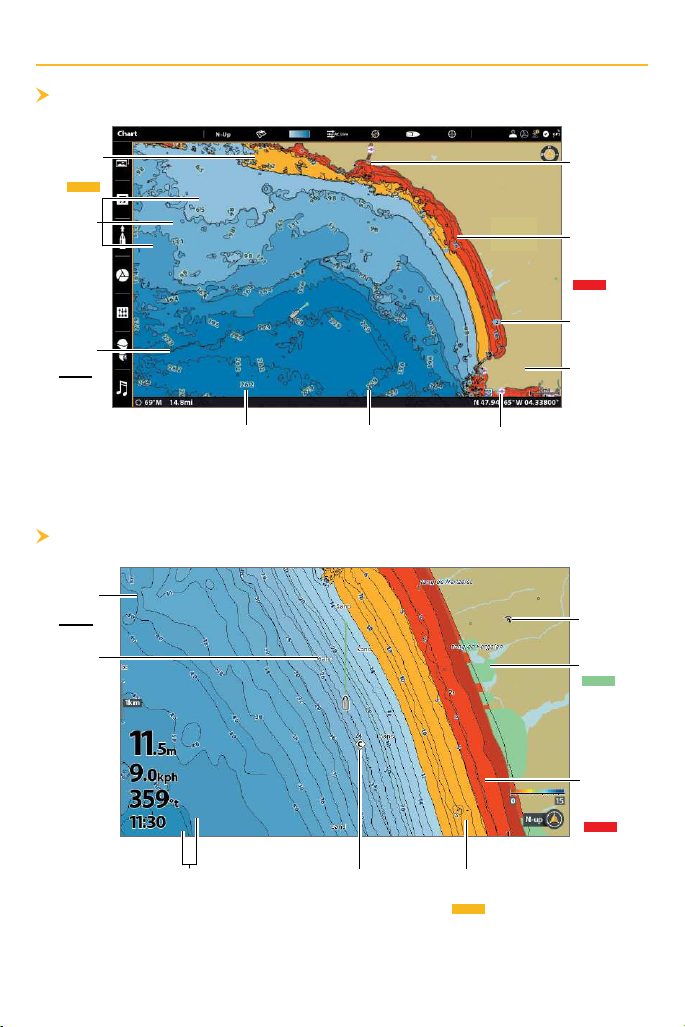

APEX/SOLIX

contour

lines

shallow

water

highlight

chart object

(harbour facility)

depth label

(depth of

contour)

depth

palette

colors

land

chart object

(obstruction)

spot

sounding

label

chart object

(rock)

depth

highlight 1

HELIX

depth

palette

colors

shallow

water

highlight

contour

lines

labels

(sand)

drying

areas

current

station

landmark

depth

highlight 1

    

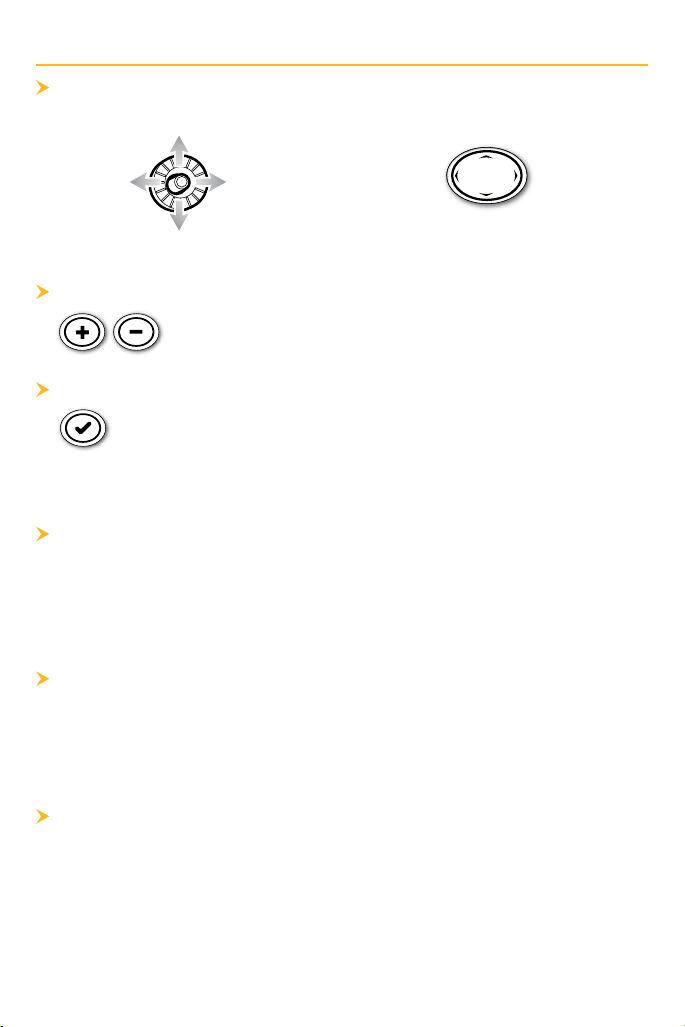

M A  C

APEX/SOLIX: HELIX

Move the Joystick.

Press any arrow on the

4-Way Cursor Control key.

S M   C

Zoom in (+) and Zoom out (-) to see more of the chart

display (contour lines, depth colors, etc.).

V M I

Move the cursor to an icon (buoy, marker, etc.), contour line, or

position on the chart, and press the CHECK/INFO key. If you

have an APEX or SOLIX control head, press the CHECK/INFO key

a second time or select Map Info from the Info Menu.

D  H C L

Hide Contour Lines to see more details on the chart.

APEX/SOLIX: Chart X-Press Menu > Chart Options > Depth/Contours

HELIX: Main Menu > HB Chart tab > Depth/Contours

C  C O

Select your display preference: North-Up, Head-Up, Course-Up, etc.

APEX/SOLIX: Chart X-Press Menu > Chart Options > General > Orientation

HELIX: Main Menu > Chart tab > Chart Orientation

S Y M

Search the area for ports, tide stations and current stations. If you have

an APEX or SOLIX, you can also search for other points of interest,

services, and the nearest waypoints, routes, and tracks.

APEX/SOLIX: Chart X-Press Menu > Info > Find Nearest

HELIX:

Without an active cursor on the screen, press the CHECK/INFO key.

  

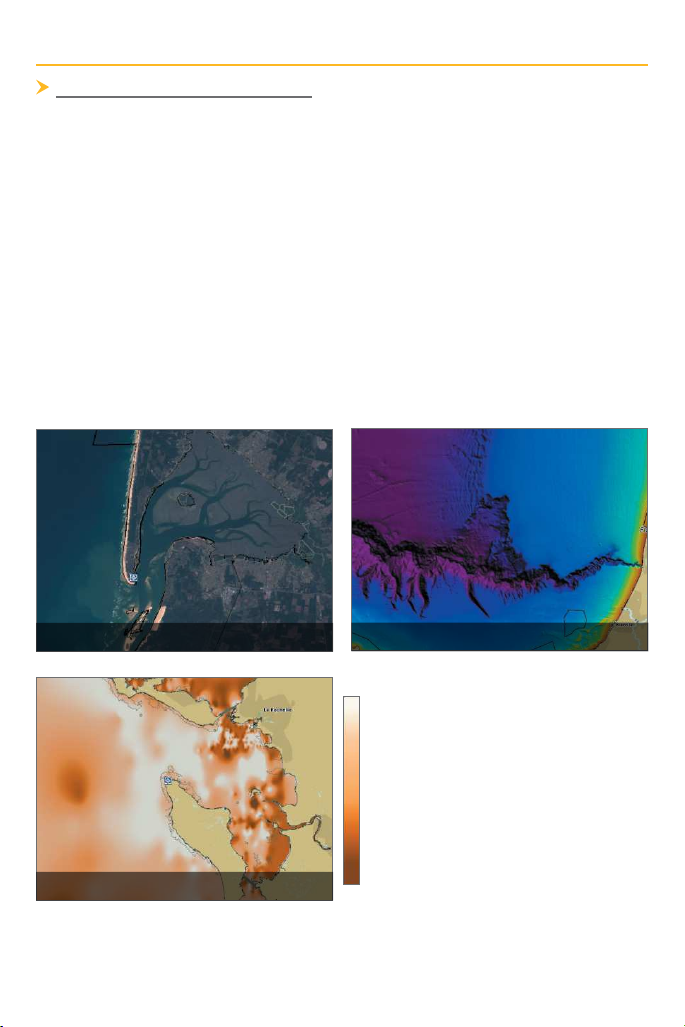

CM P: C L

If you have a CoastMaster Premium chart card, you can display layers that

show aerial imagery or shaded relief in Chart View and Chart Combo Views.

The transparency of these layers is customizeable.

• Aerial Imagery can be applied to land only or to both land and water.

• Bottom Hardness highlights the composition of the seabed, with light

colors indicating a harder bottom (rock, coral, etc.) and dark colors

indicating a softer bottom (muck, mud, etc.).

•Shaded Relief uses shadows to show features of the seaﬂoor.

APEX/SOLIX: Chart X-Press Menu > Chart Options > Layers

HELIX: Main Menu >HB Chart tab > Layers

 

  (  )

 

coral/rock

hard bottom

soft bottom

mud/muck

silt

clay

sand/shells



The map is not displayed in Chart View.

1. Confirm GPS reception.

2. Confirm the control head software is up to date.

3. Confirm compatibility on our Web site at humminbird.com.

How can I view maps on my control head when I am not on the water?

1. Power on the control head. Select Start Simulation (APEX/SOLIX) or

Simulator (HELIX). Open a chart view and move the cursor to your

desired position on the chart.

APEX/SOLIX: Chart X-Press Menu > Set Simulation Position

HELIX: Main Menu > Chart Menu Tab > Set Simulation Position

an I view the Humminbird CoastMaster chart card on my computer?

No, the Humminbird CoastMaster chart card is not compatible with your

computer. It is only compatible with your Humminbird control head.

Installing the Humminbird CoastMaster chart card in a computer could

corrupt the map files.

The map displays, but seems to redraw slowly as you move across the

water.

1. Press the ZOOM (-) key to zoom out of the Chart View.

2. Confirm the control head software is up to date.

For additional questions, see the FAQ page at humminbird.com or

contact Humminbird Technical Support through our Help Center at

https://humminbird-help.johnsonoutdoors.com/hc/en-us.



P W  R P

Johnson Outdoors warrants this product against defects in material and

workmanship for 1 year from the date of purchase. Defects in materials or

workmanship that occur within 1 year of purchase, substantiated by a sales

receipt, will either be repaired or replaced without charge at Johnson Outdoors’

discretion. THIS REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY

AVAILABLE FOR ANY DEFECT CONCERNING THE PRODUCT OR FOR ANY LOSS OR

DAMAGE RESULTING FROM ANY OTHER CAUSE WHATSOEVER. JOHNSON

OUTDOORS WILL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANYONE FOR

ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL OR OTHER INDIRECT DAMAGES OF

ANY KIND.

This warranty does not apply when: 1. the product has been altered, adjusted or

handled in a manner other than in accordance with the instructions furnished

with this product: 2. any defect, problem, loss or physical damage has resulted

from any misuse, negligence or carelessness.

R  D P

If you purchased this product in Australia or New Zealand, please return to the

retailer from whom you purchased it, or directly to BLA. Returned products

must have a Return Authorization (RA) number clearly displayed on the outside

of the package. Contact BLA customer service by calling 1300 252 725 or by

emailing servic[email protected] within 14 days of purchase to obtain an RA.

When you return the product, include a valid sales receipt, a return address and

a phone or email contact information. The RA is valid for 30 days from date

issued. Product should be returned to: BLA, 131 Rivergate Pl Murarrie,

Queensland, 4172, Australia.

Johnson Outdoors reserves the right to examine the product when we receive

it to determine if the defect or malfunction is due to a defect in materials or

workmanship. Johnson Outdoors will duplicate the original data on all repaired

or replaced products. Products that are defective due to any other cause will

not be repaired or replaced. Damaged products, not covered by or that are out

of warranty may be eligible for repair for a service fee, contact Johnson

Outdoors for more information. WARNING: Never format a Humminbird SD card.

Formatting the card will permanently erase the map data. Never use a

Humminbird SD card to store or transfer data as this may damage the card.

Table des matières

Autres manuels Humminbird Équipement marin

Humminbird

Humminbird 700 series Manuel utilisateur

Humminbird

Humminbird LCR 4x6 Manuel utilisateur

Humminbird

Humminbird Fishin' Buddy MAX Manuel utilisateur

Humminbird

Humminbird HDR 650 Manuel utilisateur

Humminbird

Humminbird TS1-3 Manuel utilisateur

Humminbird

Humminbird 1158c Combo Manuel utilisateur

Humminbird

Humminbird i-PILOT LINK Manuel utilisateur

Humminbird

Humminbird 500 series Manuel utilisateur

Humminbird

Humminbird 532769-3_A Manuel utilisateur

Humminbird

Humminbird PiranhaMAX Portable 150 PT Manuel utilisateur

Humminbird

Humminbird HDR 600 Manuel utilisateur

Humminbird

Humminbird HDR 400I Manuel utilisateur

Humminbird

Humminbird LCR 2000 Manuel utilisateur

Humminbird

Humminbird Helix Series Manuel utilisateur

Humminbird

Humminbird HELIX 9 Manuel utilisateur

Humminbird

Humminbird SOLIX series Manuel utilisateur

Humminbird

Humminbird Side Imaging Transducer Manuel utilisateur

Humminbird

Humminbird MEGA 360 UNIVERSAL Manuel utilisateur

Humminbird

Humminbird HELIX GPS Manuel utilisateur

Humminbird

Humminbird Trolling Motor 360 Imaging Manuel utilisateur

Humminbird

Humminbird MEGA Live Manuel utilisateur

Humminbird

Humminbird HELIX 5 G2 SERIES Manuel utilisateur

Humminbird

Humminbird Helix Series Manuel utilisateur

Humminbird

Humminbird PiranhaMAX 155 Manuel utilisateur

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Furuno

Furuno FE-800 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur
