Humanscale Float Instructions d'installation

Tools RequiredComponents for Breakdown

Safety Glasses

Pliers

Feet

Removing Top

Inner Mechanisms

Counterbalance

Mechanism

Torx Driver

Phillips Screwdriver

Tin Snips

Mallet

Pin Punch

Power Drill with 11/64” bit

Steel

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 1

Bring table to highest height possible

Step 2

Adjust counterbalance counter clockwise

until all pre-tension is released, and handle

can no longer turns easily. Load Indicator

should be at “min”

Tools Required

Safety Glasses

Page 1

Tension Scale

Release Handle

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 3

Remove screws from under table top to unfasten

from legs. Remove screws from release paddle and

crank. Remove table top.

Tools Required

Safety Glasses Torx Driver Flat Screwdriver

Page 2

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 4

Remove release and crank from table assembly

Tools Required

Safety Glasses

Page 3

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 5 - Release Assembly

Remove pin and disassemble release assembly

Tools Required

Safety Glasses Pliers

ABS

>ABS< Steel

Page 4

POM

>POM<

Mallet Pin Punch

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 6 - Crank Assembly

Remove all pins and completely disas-

semble crank assembly

Tools Required

ABS

>ABS<

ABS

>ABS<

ABS

>ABS<

Aluminum

Steel

Page 5

POM

>POM<

Safety Glasses Pliers

Mallet Pin Punch

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Step 7

Drill out rivets on back left side

Recommended drill bit size is 11/64”.

If rivet starts to spin, drill at an angle

Tap it with a mallet to detach

the mechanism

Tools Required

Safety Glasses

Rivets

Page 6

DO NOT begin step 7 until all previous steps are completed.

Not following these steps can result in serious injury.

Power Drill with 11/64” bit

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Tools Required

Safety Glasses

Step 8

Remove torque screws on top to release cover

Step 9

Tip table onto it’s side to continue. Further

disassembly will cause legs to fail.

Page 7

Steel

Torx Driver

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Tools Required

Safety Glasses

Step 10

Use tin snips to cut the metal bands in 3 locations

(a,b,c) , as indicated. Metal bands should be cut on

both sides of brake.

Step 11

Remove all screws and completely disassemble

Page 8

Tin Snips

Torx Driver Flat Screwdriver

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.

Tools Required

Safety Glasses

Step 12

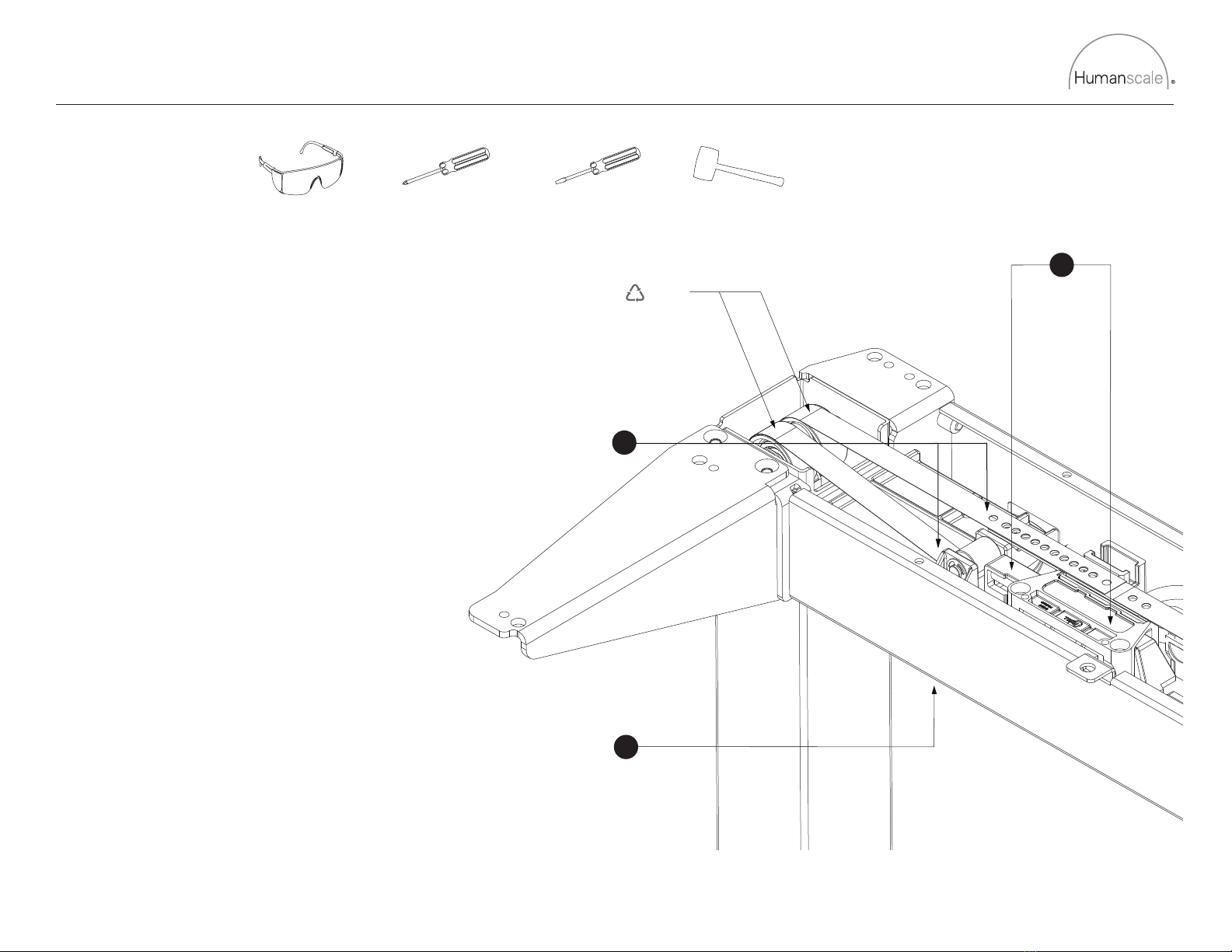

A - Unscrew brake assembly

B - Knock the brake assembly and cable reel loose

C - Remove the cables by the cable reel and the brake

Page 9

Cable Reel

Brake

Steel

Torx Driver Flat Screwdriver

Mallet

Disassembly InstructionsFloat Table

REV-00

Some components may not be recyclable in your area.
