REMOVING THE MASSAGER

1. Power off the chair and unplug it.

Use the footrest lever to fully deploy the foot and calf massager (Fig.1).

. Standing in front of the foot and calf massager, detach the upholstered flap

that

covers the massager

frame, then detach the seat pad from the chair base

(Fig.2)

4. Locate the hinge pin that secures the footrest actuator (cylinder) to the front of the chair frame (Fig.3).

5. Using a needle-nosed pliers, remove the C-clamp from the right-hand side of the pin (as you’re facing the foot

and calf massager).

(Fig.3).

6. While supporting the foot and calf massager, use a pliers to pull the pin to the left,

out of the

footrest actuator (cylinder)

, and remove it

(Fig.3)

. The

footrest actuator (cylinder)

drops down, away

from the foot and

calf massager frame.

Seat padSeat pad

Upholstered flapUpholstered flap

(Fig.2)

REPLACING THE FOOT AND CALF MASSAGER

May-04-2009

Tools Required:

Phillips-head screwdriver, flat-head screwdriver, vice grip, small hammer, pliers, nail clipper or other instrument suitable for cutting zip ties, new zip ties

NOTE:

SAVE ALL PARTS FOR USE DURING REASSEMBLY.

To ensure that Human Touch

products are repaired in a manner that is fully consistent with the practices used during the manufacturing process, Human Touch requires that all

product repairs are performed using only factory-new parts and in accordance with these product repair instructions.

SERVICE LEVEL:

ootrest actuator

(cylinder)

(Fig.1)

(Fig.3)

Massager

HingeHinge

pinpin

C-ClampC-Clamp

Bottom view

. Locate the connector box on the bottom right-hand side of the chair (Fig.4).

8. Using a Phillips-head screwdriver, remove the two screws that secure the

connector box cover, remove the

cover, then disconnect the

foot and calf massager connector.

. Using a nail clipper, or other suitable instrument, cut any zip ties that secure

the cable that runs from the

backrest to

the foot and calf massager, to free the cable from the chair base.

NOTE:

Be careful not to cut

the wire casing.

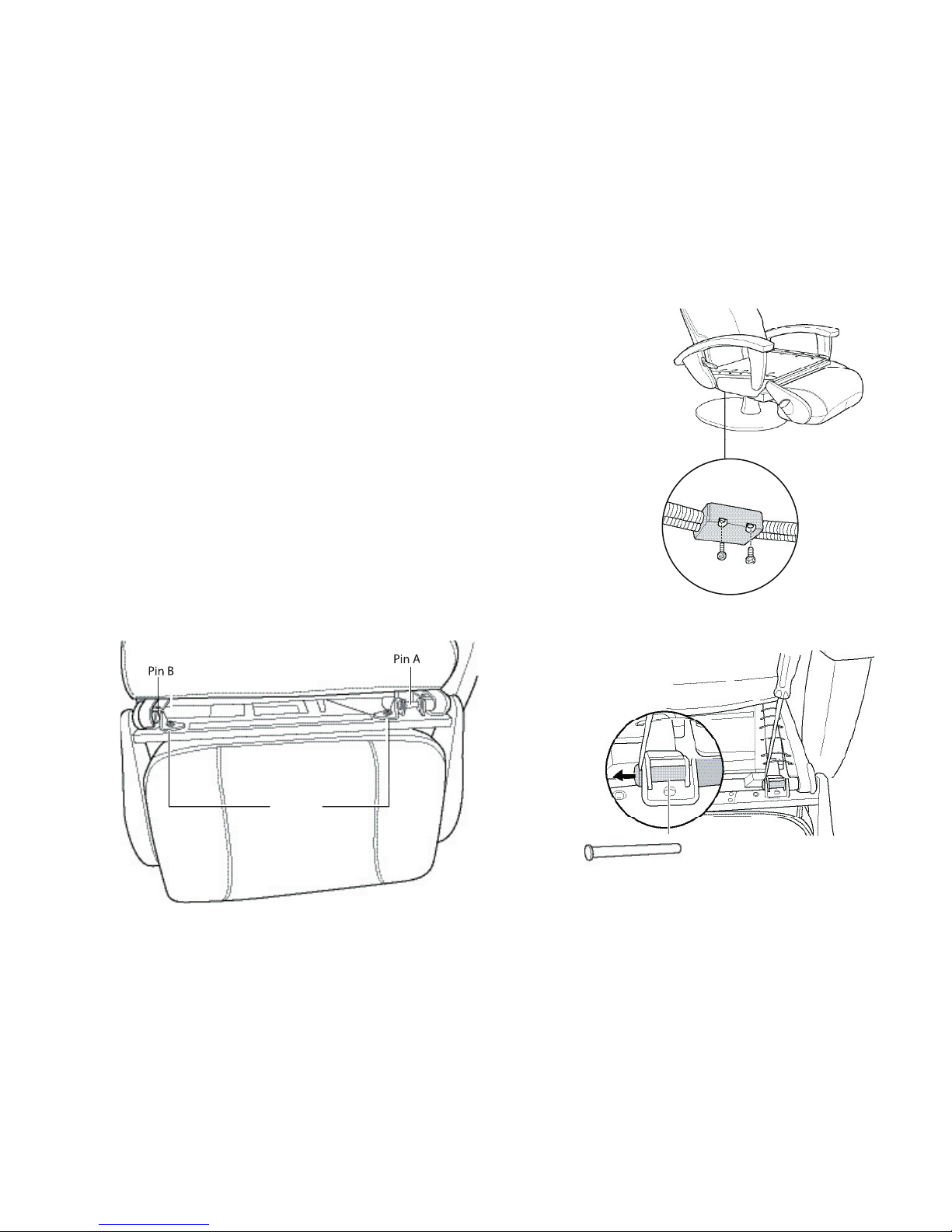

. Locate the two brackets on the top of the foot and calf massager frame

(Fig.5)

. Using a vice-grip, turn each

bracket screw counter-clockwise just enough to break the torque (approximately 1/4 turn).

11. Using a Phillips-head screwdriver, remove both screws and their washers from the brackets, then remove

the brackets.

12.

Locate Pin A, then

use a flat-head screwdriver to loosen the pin, by inserting the screwdriver between the

pin head and the bracket then using the screwdriver as leverage to push the pin head away from the

bracket (Fig.6).

Pin B

Brackets

(Fig.5)

(Fig.6)

Connector

box

(Fig.4)

. Using a pliers, remove Pin A from the bracket

(Fig.7)

. As the pin is removed, a washer installed on the right-hand end of the pin (as you’re facing the foot

and calf massager) will fall to the floor. Be sure to save this washer for use during reassembly.

14. Repeat steps 12 and 13 to remove Pin B from its bracket.

Using a nail clipper or other suitable instrument, cut and remove any remaining zip ties that secure the foot and calf massager

cabling to the chair.

16. Remove the massager from the chair

(Fig.8)

Massager

(Fig.7)

(Fig.8)

Plastic

asher

INSTALLING THE NEW MASSAGER

1. Place the new massager into position, then insert pin A

(Fig.9).

2. Insert the

astic

washer between the chair frame and the inside of the foot and calf massager side panel.

(Fig.9).

Repeat steps 1 and 2 to install Pin B

4. Use a small hammer to completely install Pin A and Pin B until both pins are flush with the bracket.

5. Using a Phillips-head screwdriver, replace the two brackets on the front of the massager frame and secure them using the screws and washers

you removed earlier

(Fig.10).

6. Pull the

footrest actuator (cylinder)

back into position, aligning it with the mounting point.

7. Replace the pin that holds the

footrest actuator (cylinder)

in place, then replace the C-clamp on the left-hand end of the pin (as you’re facing the foot and calf massager)

to secure it.

8. Reinstall the upholstered flap, by wrapping it around the massager frame and

securing it using the hook and loop fasteners.

9. Reconnect the connector on the bottom right-hand side of the chair.

Replace the connector box cover and secure it, using a Phillips-head screwdriver and the two screws.

11. Install new zip ties to replace those you removed earlier, to secure the massager

cabling to the chair base, out of sight.

Bracket

(Fig.10)

Please send any questions or comments regarding these instructions to:

[email protected]

2009

uman Touch

LLC

(Fig.9)

Plastic

asher
