Human care Altair Manuel utilisateur

Page 1

www.humancaregroup.com

Description

The Human Care Altair overhead lift is a lightweight portable lift with a discreet and modern design. Its portability ensures that asset investment is

greatly reduced as the same lift easily can be used in multiple rooms. The Altair features an advanced technology platform that allows tracking of lift

usage and visualization of collected data. Altair features a unique telescoping hanger bar that offers different widths in one product to fit any patient and

resulting in a comfortable sitting position. The lift is available in three weight capacities, 150kg, 220kg and 300kg, and can be used with either a 2, 3 or

4-point suspension.

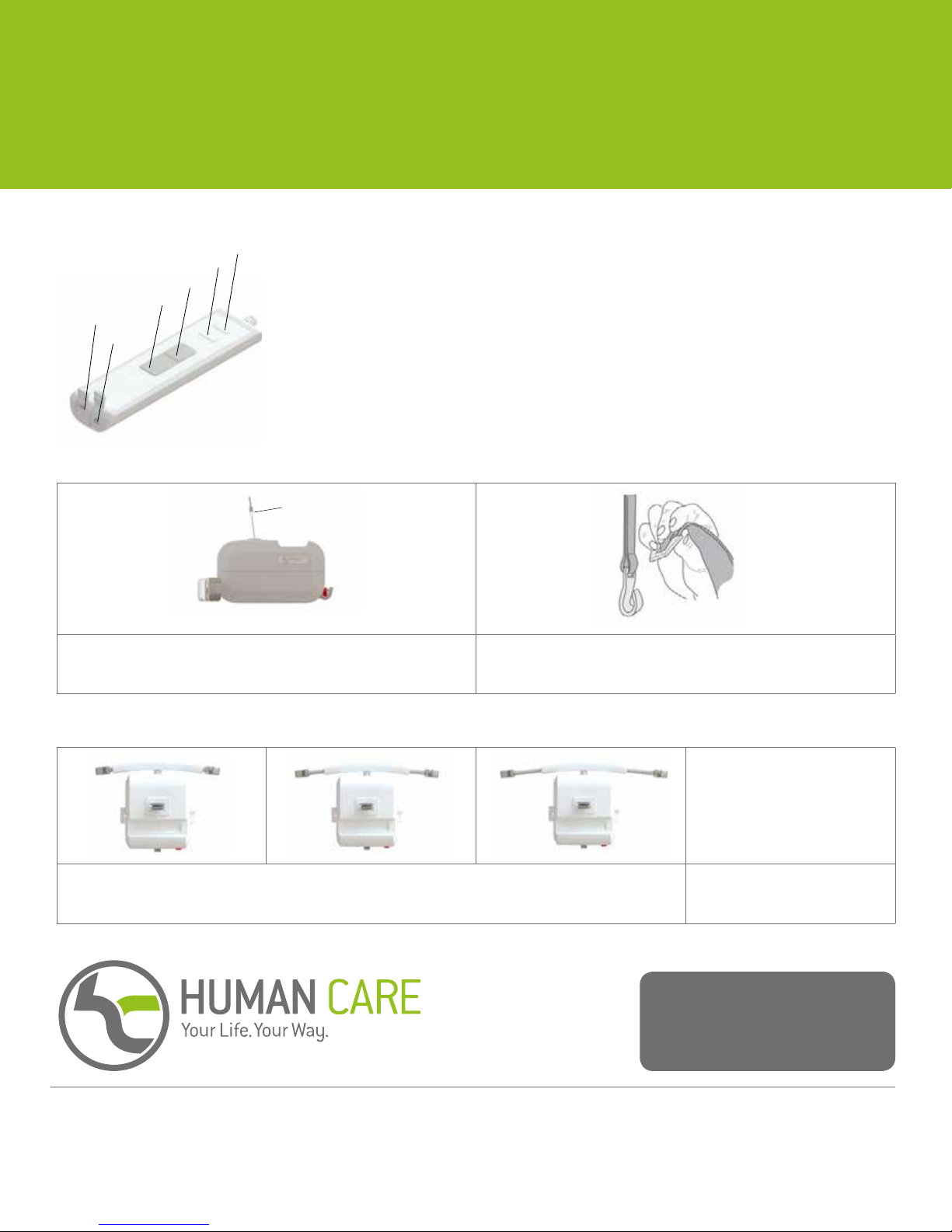

Quick Reference Guide

– Altair

Part no:

Altair 150kg/330lbs:

North America: 550030-NA

Europe: 55030-EU

Australia: 55030-AU

Great Britain: 55030-GB

Japan: 55030-JP

Altair 220kg/484lbs:

North America: 55040-NA

Europe: 55040-EU

Australia: 55040-AU

Great Britain: 55040-GB

Japan: 55040-JP

Altair 300kg/661lbs:

North America: 55050-NA

Europe: 55050-EU

Australia: 55050-AU

Great Britain: 55050-GB

Japan: 55050-JP

Emergency stop

Indicator

Emergency lowering

button

Secondary

control panel

Leg

hook

Hand control

Lift belt

Telescopic

hanger bar

Helpful Troubleshooting Tips!

The lift will not work while plugged in and/or if emergency stop is engaged

Using the lift

Select and position sling

around the patient according

to sling instructions.

Use hand control to position

carry bar directly above the

patient.

Attach the head sling loops to

carry bar first, than leg straps

to leg hooks.

Raise the patient (up on hand

control) and as raises check

to ensure straps are firmly

in place.

Raise the patient up until

obstacles are clear, hold sling

and position/move patient as

needed.

Lower patient (down on hand

control) until in desired posi-

tion. Continue to lower until

all straps are slack to remove

Page 2

IMPORTANT! This quick reference

guide does not replace the user

manual which can be downloaded

at www.humancaregroup.com

AUSTRALIA

Unit 9, 271 Wells Road

Chelsea Heights, Victoria 3196

Phone:- +61 3 8773 1111

Fax:- +61 3 9773 4008

Email: info.au@humancaregroup.com

CANADA

10-155 Colonnade Road

Ottawa, ON K2E 7K1

Phone:- 613.723.6734

Fax:- 613.723.1058

Email: info.ca@humancaregroup.com

SWEDEN

Årstaängsvägen 21C

117 43 Stockholm

Phone:- +46 8 665 35 00

Fax:- +46 8 665 35 10

Email: info.se@humancaregroup.com

UNITED STATES

4210 S. Industrial Drive, Suite 160

Austin, TX 78744

Phone:- 512.476.7199

Fax:- 512.476.7190

Email: info.us@humancaregroup.com

Quick Reference Guide

– Altair

Suspending the lift from the rail

Place the lift on a suitable surface. Feed out enough of the belt by pulling gently

on the hook on the lift belt (2) while at the same time keeping the Down button on

the hand control or on the control panel of the lift pressed in.

Hook onto the hook on the distance strap hanging from the rail roller diagonally

from above (see fig) Switch on at the mains and the lift is ready for use.

99587-Quick reference guide-Altair-Rev01 (2015-07-24)

The telescopic hanger bar

Important! Do not hold on

to the telescopic bar or the

hooks when performing a lift.

The hooks on the telescopic bar have three adjustable positions (40, 50 and 60 cm). To change position, turn the hooks

1/4 turn while pushing or pulling the hooks to the desired position. The hooks will automatically fall into place in the posi-

tion, and so it is necessary to repeat the turn (1/4 turn) when passing the middle position (position 2) (See fig).

Hand control

On/off

Down

Emergency lowering

Charge

Mini USB oThe covers for the USB input and

the charging input must be closed

for the hand control’s water protection

(IPX5) to be valid.
