USER GUIDE

Sigma 5 Battery Charger

HOW TO USE

Connect the clamps/eyelets

to the charger and to your

battery.

Plug the charger into an

electrical outlet.

Select the appropriate charge

mode for your battery.

Press Conﬁrm button or

wait 10 seconds to start the

charging process.

BUTTON OPERATION

STEP 1

BUTTON OPERATION

STEP 1 STEP 3 STEP 4

Press to cycle through "12V, 12V AGM, 12V Lithium, 6V, 6V AGM" modes.

Press & hold for 2 seconds to enter “12V Repair” mode.

Press & hold for 1 second to go back to "Standby" mode when charging.

Press & hold for 1 second to go back to "Standby" mode when is flashing.

Press it to start the charging process.

ERROR INDICATIONS

ICON SOLUTIONREASON

1.) Charger will automatically resume

function once the it's internal temperature

drops to -4°F~104°F.

1.) Charger internal temperature is too high.

2.) Charger ambient temperature is too low.

Battery voltage is too high for the selected charge mode.

Reverse Polarity

Bad Battery

Reverse the battery clamps/eyelets.

Check the battery and conﬁrm the appropriate charge

mode for your battery

2.) Charger will automatically resume

function once the it's ambient temperture

rises to -4°F~104°F.

1.) Connect the positive (red) clamp/eyelet terminal

connector to the positive (POS,P,+) battery terminal.

2.) Connect the negative (black) clamp/eyelet terminal

connector to the negative (NEG,N,-) battery terminal.

Battery will not hold a charge. Get the battery checked

by a professional.

Menu Button

Conﬁrm Button

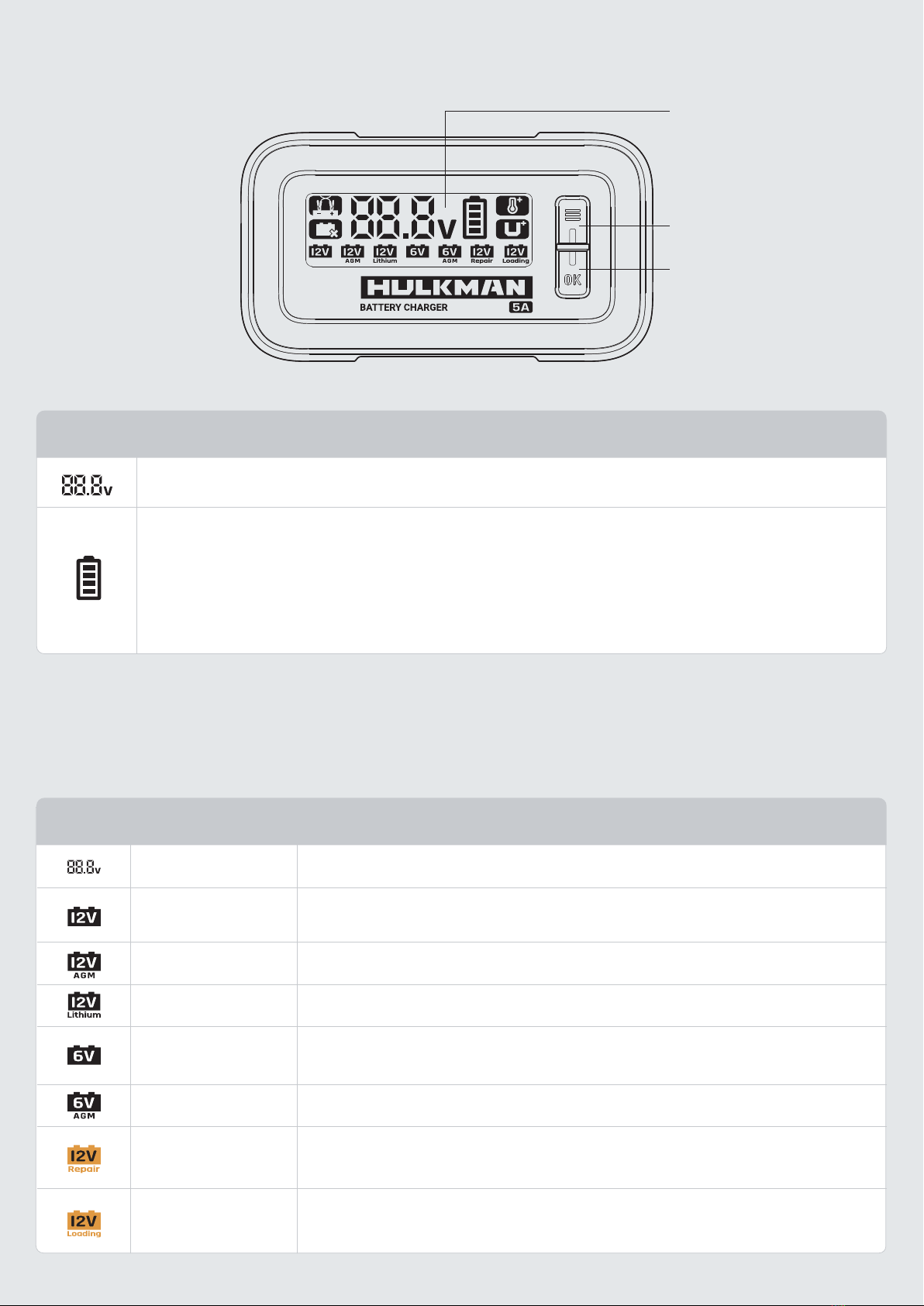

DISPLAY & OPERATION

7 CHARGING MODES

ICON EXPLANATIONRELATED MODE

In Standby mode, the charger is not charging or providing any power to the battery.Standby

For charging 12-volt Wet Cell, Gel Cell, Enhanced Flooded,

Maintenance-Free and Calcium batteries.

12V

For charging 12-volt AGM batteries.12V AGM

For charging 12-volt Lithium batteries.12V Lithium

For charging 6-volt Wet Cell, Gel Cell, Enhanced Flooded,

Maintenance-Free and Calcium batteries.

For charging 6-volt AGM batteries.

An intelligent battery recovery mode for repairing and restoring sulfated, old, idle, damaged,

or stratiﬁed 12-volt batteries.

For charging 12-volt lead-acid batteries with a low voltage between 0.3V and 2V.

6V AGM

12V Repair

12V Loading

(Force mode)

ICON EXPLANATION

In "12V, 12V AGM, 12V Lithium, 6V, 6V AGM, 12V Loading" mode, this icon Indicates the charging

level of the connected battery. The four bars from bottom to top indicate battery levels from 25% to 100%.

The Sigma 5 has seven (7) charging modes: 12V, 12V AGM, 12V LITHIUM, 6V, 6V AGM, 12V Repair and 12V Loading (Force mode).

It is important to understand the differences and purpose of each charge mode. Please always check with battery manufacturer to conﬁrm the right charge mode

for your speciﬁc battery. Do not operate the charger until you conﬁrm the appropriate charge mode for your battery. Below is a brief description:

In "12V Repair" mode, these four bars from bottom to top indicate the repair time of 1h to 4h.

Flashing bars change to constant bars when the most recent stage is completed.

Battery Voltage. This icon indicates the voltage of the connected battery.

Battery Level or Repair Time.

Display Screen

Menu Button

Confirm Button

CHARGING TIMES

CAUTION

TIME (HOURS-H)

BATTERY SIZE

(AMP HOURS-AH) 6V

3.6

3.3

6.6

17.6

26.4

2.2

5.5

18.3

2.2

4.5

7.5

12V 6V 12V

6Ah

15Ah

30Ah

50Ah

80Ah

120Ah

EMPTY BATTERY TO 80% CHARGE 50% DOD BATTERY TO FULL CHARGE

TECHNICAL SPECIFICATIONS WHAT'S INCLUDED

WARRANTY

This HULKMAN product carries a 3-year hassle-free warranty

against defects in material and workmanship under normal use

starting from the date of purchase. In order to keep the warranty

valid, this product must be handled as described in this manual.

CONTACT HULKMAN

ADDRESS: 4500 Great America Pkwy, Suite 100 #110

Santa Clara, California 95054

TEL: +1 (877) 892-9703

EMAIL: [email protected]

WEBSITE: www.hulkman.com

Input Voltage AC: 100-240VAC, 50-60Hz, 85W

Output: 12VDC 5A; 6VDC, 1.8A

Back Current Drain: 2mA

Operating Temperature: -4°F to +104°F

Storage Temperature: -40°F to +140°F

Type of Batteries: 6V/12V Lead-Acid & 12V Lithium

Battery Capacity: 15-120Ah(12V modes), 6-50Ah(6V modes)

Ingress Protection: IP67

Dimensions (L x W x H) : 5.5 x 3.1 x 1.9 inches

Weight: 1.88pounds

HULKMAN Sigma 5

Battery Charger

Battery Clamps

Battery Eyelets

21 inches

70 inches55 inches

User Manual & Warranty Card

12V Repair can take up to four (4) hours to complete the recovery process and for use on 12-volt lead-acid batteries with a voltage higher than 2V

only. Please note that not all batteries can be recovered. The effectiveness of the repair will depend greatly on the degree of damage to the battery.

In general, the more severe the damage to the battery, the more difﬁcult, if not impossible, the repair will be.
