Huawei RTN 905 V100 Manuel utilisateur

HUAWEI TECHNOLOGIES CO., LTD.

RTN 905 V100

IDUQuick InstallationGuide(Indoor)

Issue: 01

Date:2018-10-30

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitutea warranty of any kind, express or implied.

BeforeYouStart

Installation Process

PrecautionsPage 2

Start

Precautions for

Handling RTN 905

1A/1C/1E IF Jumpers

and IF Cables

Page 4

Precautions for Handling

the RTN 905 2A/2E

Toggle Lever Switch

Page 5

Precautions for

Handling RTN 905

2A/2E/2F IF Jumpers

Page 6

Introduction to the

IDU 905 Equipment

Page 8-10

Installing the IDU 905

Pages

11 to 16

Optional: Installing the

E1 Panel

Pages

16 to 17

Installing IDU Cables

Pages

18 to 29

Checking the

Installation

Page 35

End

Installing Power

Cables

Pages

18 to 19

Installing Fibers

Pages

20 to 21

Installing E1 CablesPage 19

Installing IF Cables

Page

Installing Ethernet

ServiceCables

Page 21

Installing NMS CablesPage 25

Installing Cascade

Cables

Page 23 to

Preparing and

Installing External

AlarmCables

Page 26

Preparing and

Installing External

Clock Cables

Page 28

Preparing and

Installing Synchronous

Data Cables

Page 27

Cable LayoutPage 29

Installing the Chassis

in a 19-Inch Cabinet

Pages

11 to 12

Installing the Chassis

in an ETSI Cabinet

Pages

12 to 13

Wall Mounting

the Chassis

Pages

14 to 15

Desk Mounting

the Chassis

Page 16

Installation ToolsPage 7

Precautions for

Handling RTN 905

2A/2E/2F IF Cables

Page 6

Precautions for

Handling

Pow er Cables

Page 3

From V100R11C00,the RTN 9051C is not supported.

Commissioning Process

PoweringOn the

Equipment

Page 30

Start

Configuring NE Data

(Using the Web LCT)

Page 31

Aligning Antennas

Pages

32 to 34

Checking the Status of

Radio Links

Page 34

Aligning Single-

Polarized Antennas

Pages

32 to 33

Aligning Dual-

Polarized Antennas

Pages 33

to 34

End

Configuring NE Data

(Using the Hand-Held

Tool)

Page 31

Precautions

This documentprovides guidelinesforquickhardwareinstallation.

This documentdoes notdescribeassemblyofequipmentpriortodelivery; it onlydescribes procedures

for onsiteinstallation.

Electrostatic Discharge

To prevent damagetosensitivecomponentscausedbyelectrostaticdischarge,wearESDgloves or an

ESD wriststrap when handlingtheequipment,boards,orIC chips.Ensurethatthe ESD wriststrapis

properlygrounded.

Binding Cables

Bindfibers or cables insideacabinetatintervals of not morethan 250mm and usercables atintervals of

not more than 200 mm.

Bindfibers,cables,or corrugatedpipes outsideacabinetat intervals equalto the distancebetweentwo

horizontalbeams.Ifthe cabletroughdoes not have any beams,theintervals shouldnotexceed250mm.

Pre-installation Check

Before beginningtheinstallation,checktheequipmentroom,cabinet,powersupply,groundcables,

fibers,and associatedfacilitiestoconfirm thatall preparations are complete.

ESD

OptiX RTN 905

Power Supply

The equipmentusesa-48V/-60 V DC powersupply.An AC powersupplyor a high-voltage power

supplymaycauseequipmentdamageoreven humaninjuriesandthereforeis forbidden.

CAUTION

Prior to installing powercablesontheRTN 905,confirm that the following conditions aremet.

The groundpointon the columnofthe cabinetor the indoorground baris properlygrounded.

The power cables are connected correctlyto the positive and negative terminals of the power supplydevice.

If a powercableis connectedto the positive terminalof the RTN 905and the negative terminal ofthe

powersupplydevice, there willbe a shortcircuitthat damagesthepowercable anddevices.To prevent

shortcircuits,install acircuit breakeron each negative terminal of the powersupplydevice. The

recommended fusecapacityis 10A (1A/2A/1C/1E/2F) or 16 A (2E).

The positive terminals ofthe powersupplydevice connectedto the RTN 905 are grounded.If terminals are

not properlygrounded,the devices maybe damaged.

PSU

PGND

Precautions for Handling Power Cables

ESD

OptiX RTN 905

RTNB

(+)

NEGB

(-)

RTNA

(+)

NEGA

(-)

A1(+)

A2(-)

B1(+)

B2(-)

......

DC powerport

To the ground pointon the columnofthe cabinetor the indoorground bar

Precautions for HandlingRTN9051A/1C/1EIF JumpersandIF Cables

Poweroff the RTN 905 1A/1C/1E beforeyou removeor connect anIF jumperonthe IDU.

Do not removeor connectany IF jumperwhilethe RTN 9051A/1C/1E is poweredon.

Poweroff the RTN 9051A/1C/1E beforeyou removeor connect an IF cableon the ODU.

Do not removeor connectany IF cablewhilethe RTN 905 1A/1C/1E is poweredon.

OptiX RTN 905 STAT

SRV

PWRA

(+)(-) (-)

NEGA RTNA NEGB RTNB

(+)

-48V-60V

TURN OFF POWER BEFORE

WARNING

-48V OUTPUT

DISCONNECTING IF CABLE

ODU

LINK1 L/A5

L/A6

USB

NMS/COM CLK/TOD/MON

GE2

GE1GE3

EXT/S1 ALMI/ALMO GE4

ODU-2

PULL

ODU-1

PULL

NMS/COM

EXT/S1

CLK/TOD/MON

ALMI/ALMO

GE1

GE2

GE3

OUT

GE5GE6 TDMA TDMB

OptiX RTN 905

2 A

STAT

SRV

PWRA

PWRB

LINK1

ACT1

LINK2

ACT2

L/A5

L/A6

USB

ESD

RTNB

(+)

NEGB

(-)

RTNA

(+)

NEGA

(-)

-48V -60V

OFF OFF

IN OUT IN

GE4

116

Position and Description of the Toggle Lever Switch

Turning on the switch

Precautions for HandlingtheRTN 9052A/2E Toggle LeverSwitch

You mustfirstpull out the toggle lever switch

beforeturningit.

I: ON

O: OFF

Turning off the switch

Pull the switchout gently. Turn the switch. Releasethe switch.

Pull the switch out gently. Turn the switch. Release theswitch.

Power off the ODU. Installor removean IF fiberconnectedto the ODU.

Precautions for HandlingRTN9052A/2E/2F IF Jumpers

Poweroff the ODU beforeyou removeor installan

IF jumperconnectedtothe ODU. Do not remove or installan IF jumperconnected to

the ODU while the ODU is poweredon.

Poweroff the ODU before you removeor

installanIF cable connectedto the ODU. Do not remove or install anIF cableconnected to

the ODU while the ODU is poweredon.

Power off the ODU. Installor removean IF cableconnectedto the ODU.

Precautions for HandlingRTN9052A/2E/2F IF Cables

1 2

To cut offthe powersupplyto the ODU of the RTN 905 2F, perform related operations on theNMS.

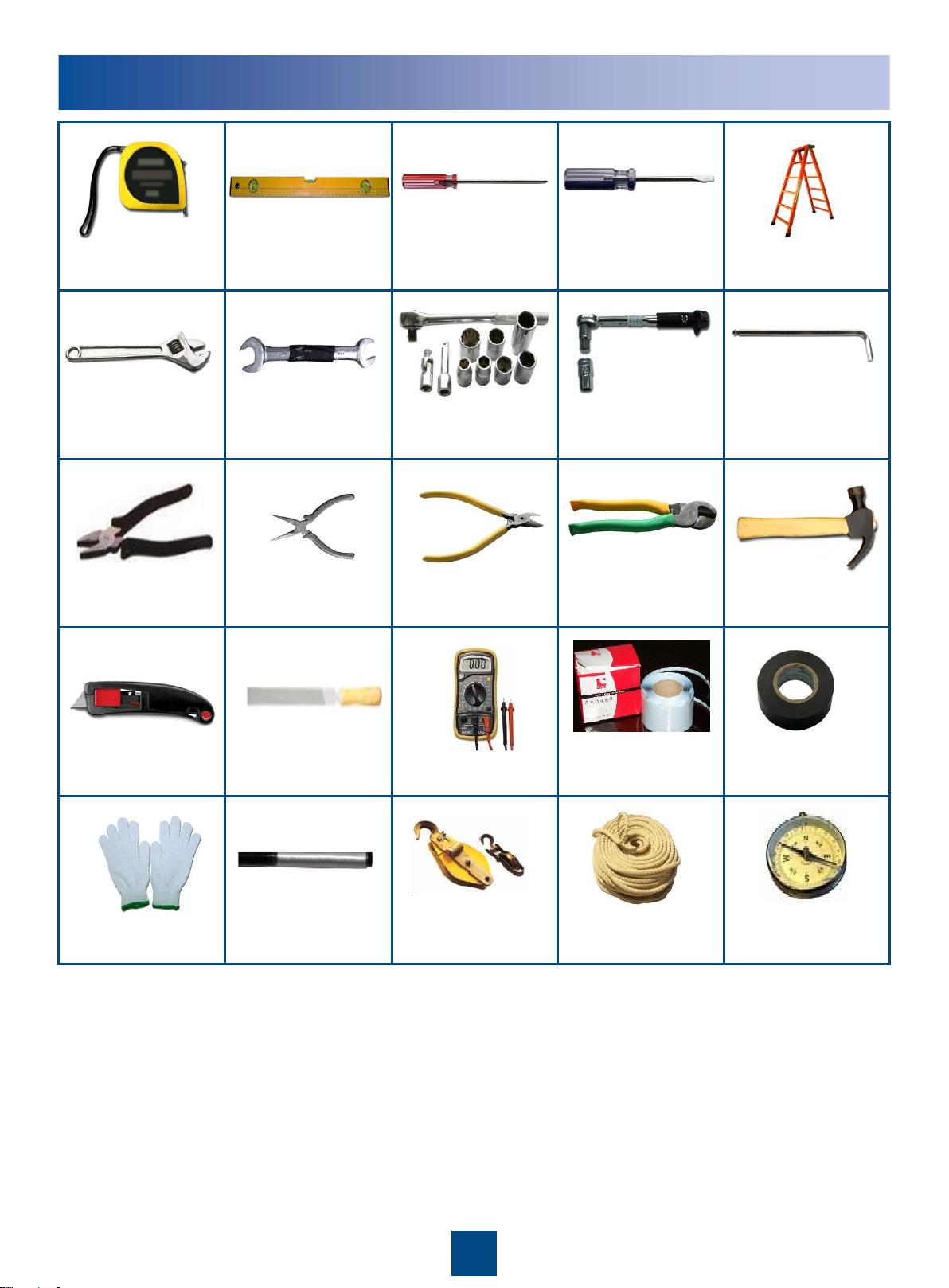

InstallationTools

Measuring tape Phillips screwdriver Flat-head screwdriver

Adjustablewrench

Level

Socket wrench Torque wrench Hex key

Wire clippersDiagonal pliersNeedle-nose pliersCombination pliers

Bayonetwrench

Utility knife

Claw hammer

Marker

Ladder

CompassLifting slingPulleyESD gloves

Multimeter PVC tapeFile Waterproof

insulation tape
