Huawei MicroDC3000H Manuel utilisateur

MicroDC

Quick Installation Guide

Issue: 02

Release Date: 2014-04-25

Product

Huawei MicroDC implements centralized management of micro data centers in enterprise

branch offices. This solution ensures that the micro data centers operate properly even in

unattended mode, allowing customers to focus on core businesses and processes.

Huawei MicroDC pre-integrates facilities, such as the cabinet cabling subsystem, power

supply and distribution subsystem, and environment monitoring subsystem, and

incorporates the ICT infrastructure, such as computing, storage, network, security, and

voice communication resources. It implements unified, remote management of branch

offices through an open software and hardware platform.

MicroDC3000L 24U MicroDC3000H 42U

Application Scenarios

Small-scale branch offices

MicroDC3000L (a 24 U cabinet + optional devices)

Medium-sized branch offices

MicroDC3000H (a 42 U cabinet + optional devices)

The MicroDC features high scalability. Devices can be easily added

to the cabinet based on service requirements.

More MicroDC cabinets can also be added on demand.

About This Document

How to Obtain Help

Feedback

Before You Start

This document describes how to install MicroDC hardware devices onsite. It does not include the installation of

the devices preinstalled before delivery. For details about the installation for each device, see the documents

delivered with the devices or obtain documents at http://enterprise.huawei.com based on the device model.

You can view and download documents from http://enterprise.huawei.com after registering with this website.

Your comments and suggestions help improve the accuracy and quality of our documentation.

Visit http://enterprise.huawei.com to submit your comments and suggestions.

DANGER

Do not operate equipment or cables during lightning strikes.

Installation Process

Safety Precautions

Scenario 1 Wear an ESD wrist strap inserted into

the ESD jack.

P25

P29

P43

P21

P45

P22

Ground a device before powering it on. Otherwise, personal injury or equipment damage may be caused

by high leakage current.

When installing equipment, ground it first. Whenremoving equipment, disconnect grounding cables last.

Do not damage grounding conductors or operate the equipment without a grounding conductor.

Equipment must be permanently connected to the protection ground before an operation. Before operating

a device, check the electrical connection of the device and ensure that the device is securely grounded.

Scenario 2 Wear an ESD wrist strap connected

using a crocodile clip.

Preparation Installation and cable connection

Power-on and power-off commissioning Inspection before power-on

MicroDC3000L Quick Installation Guide

Start Here

1a Obtaining Tools

1 Installation Preparations

NOTE

Ensure that the mandatory tools are available before the installation. The optional tools help increase

installation efficiency.

1b Checking Goods

NOTE

Check the goods according to the goods list delivered with the devices.

If there are packed components that require inspections, unpack and inspect them against the packing

list delivered with the product.

If you need to inspect battery packs, see the inspection method described in the document delivered with

the battery packs (P11).

Mandatory Tools

Adjustable

wrench (6'') Phillips

screwdriver

(M5, M6, and

M8)

Flat-head

screwdriver

(2 mm to 5

mm)

ESD gloves Measuring

tape (5 m) Electrical

tester pen Diagonal

pliers

Optional Tools

Right angle Level Impact tool Headlamp Niddle-nose

pliers Socket

screwdriver

(7 mm)

Electrician's

knife

Protective

gloves Multimeter Powder

marker Vertical

analyzer Claw

hammer

1c Understanding Label Specifications

Power cable label

Example:

Network cable label

Example:

Device name

PDU slot number

Installation position

of the device

Installation position

of the peer device

Installation position of

the local device

Label description: The No.7 network cable on the FE7 port of the AR1220 router installed on the 22

U position of the rack is connected to the port GE0 of the USG installed on the 18 U position of the

rack.

To:

From:

To:

From:

Local device name

Sequential number of

the network cable

Port number of the

peer device

Port number of the local device

Peer device name

22U-AR1220-FE7

18U-USG-GE0

9U-CCU

PDU-B1-5

Label description: The power cable on the No.5 slot, B1 socket of the PDU is

connect to the CCU installed on the 9 U position in the cabinet.

Device Appearances

S3700-28TP-SI-AC S3700-28TP-PWR-EI

S3700-52P-SI-AC S3700-52P-PWR-EI

S2700-26TP-EI-AC S2700-26TP-PWR-EI

S5700-28C-PWR-EI S5700-52C-PWR-SI

S5700-28C-SI S5700-52C-SI

USG2260 Uninterruptible power supply (UPS)

Cabinet control unit (CCU) Battery pack

AR1220, AR1220V AR1220W, AR1220VW

AR2220 RH2285

Filler panel Cable rack

Cable tray Ground cable

Adjustable guide rails Access point (AP)

Dome camera AP power adapter

PoE power adapter

The height of the cabinet is 24 U.

Note: U is a unit of measure used to describe the height of devices in a rack. One U is 1.75 inches (44.45 mm) high.

The board layout of the MicroDC3000L suite is as follows:

Install the battery packs from

the bottom up.

Installation position Installation suggestions

CCU + Temperature and humidity sensor

UPS

Battery pack 1

Battery pack 2

Router

Cable tray

Server

Firewall/Access switch

Filler panel (1 U)

Server

Aggregation switch

KVM

Cable tray

Power supply

& distribution

area

Reserved

area

Network

device area

The CCU, UPS, and aggregation switch are mandatory. Other devices are optional.

The CCU, UPS, aggregation switch, and optional network devices are preinstalled before delivery.

Other devices are installed onsite.

Other components to be installed include the cameras, integrated sensor mounting arm, PoE

power adapters and APs.

Install servers here.

MicroDC3000L suite

Preinstalled

Installed onsite

Preinstalled

Installed onsite

Cable tray

Server

Cable tray

Firewall/Access switch

2 Device Installation and Cable Connection

Preinstalled

Installed onsite

Moving the Cabinet (Moving the Cabinet with Devices Using Elevators)

1 Secure the ramp in place. 2 Remove the screws from the cabinet.

Use dowels to fix one end of the ramp on the pallet

and put the other end on the ground.

3Move the cabinet off the pallet. 1

4 Remove the shim from the pallet.

5 Move the cabinet into the elevator.

Do not place the ramp upside down.

Use an adjustable wrench to turn the four

supporting feet of the cabinet anticlockwise until the

leveling feet bear the whole cabinet weight.

Use an adjustable wrench to remove all screws

from the front and rear doors of the cabinet.

Push the cabinet so that it rolls down the ramp

attached to the pallet.

Two people are

required to move the

cabinet.

Use an adjustable wrench to remove the shim

from the pallet.

Place the shim on the gap of the elevator door. Ensure that the shim is securely placed.

Push the cabinet into the elevator.

•Ensure that the shim is firmly placed and the wheels of the cabinet move along

the shim.

•Use the same way to move the cabinet into and out of the elevator.

•A dedicated person is required to open and close the elevator door.

Connect one end of the ground cable to the ground bar of the

cabinet and the other end to the ground bar of the equipment room.

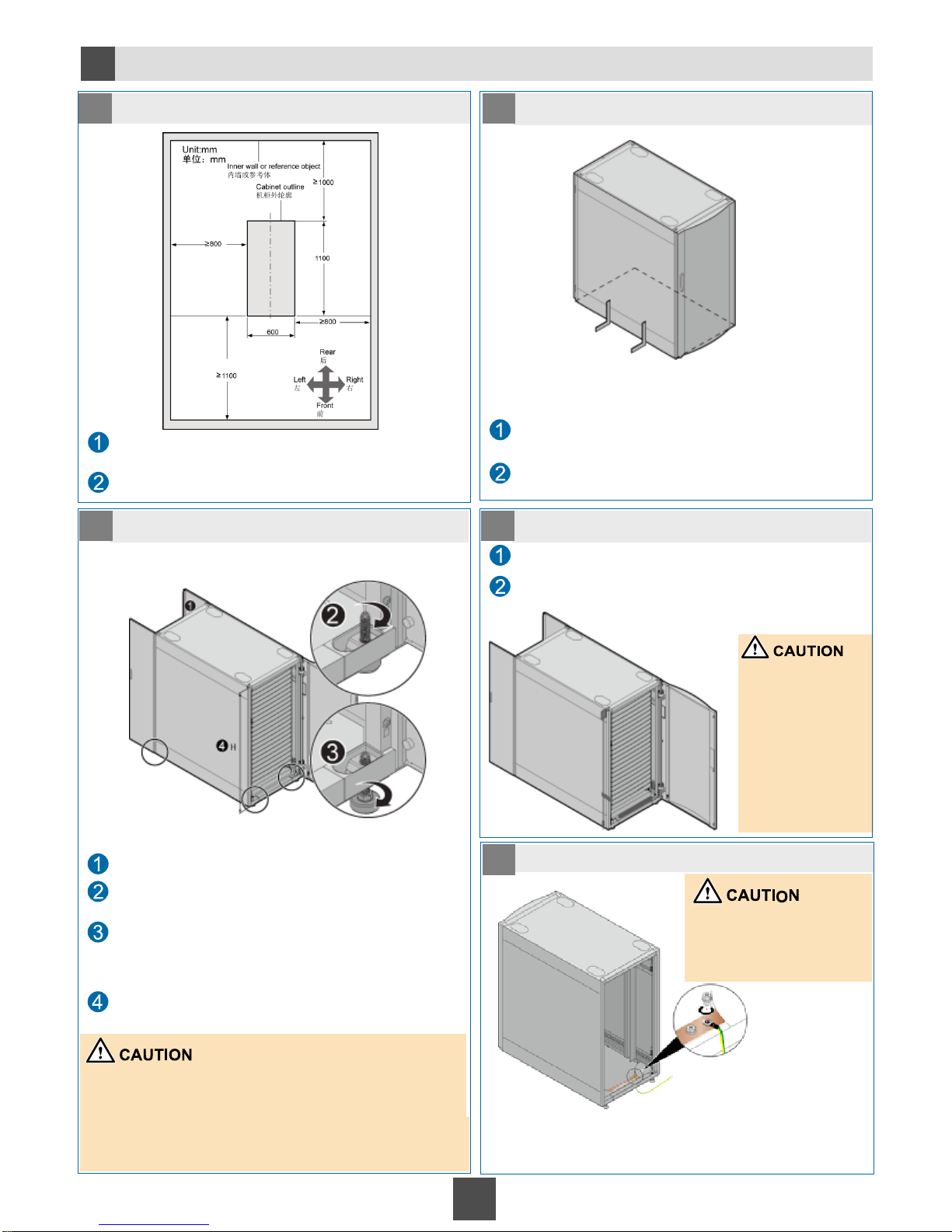

Installing the Cabinet

1 Determine the cabinet installation position. 2Place the cabinet in place.

3 Secure the cabinet in place.

4Level the cabinet.

5 Ground the cabinet.

Determine the position for installing the cabinet based

on the engineering drawing. Mark the four corners of

the cabinet on the floor.

Use the powder marker to draw the outline of the

cabinet.

Move the cabinet in place.

Align the cabinet edges with the marks on the floor

using a right square.

Use a level and plumb line to measure the cabinet.

Ensure that the cabinet is level.

If the cabinet is not level, use an adjustable wrench

to raise or lower the leveling feet.

Open the front and rear doors.

Rotate the four leveling feet clockwise by using a Phillips

screwdriver to lower the leveling feet.

Rotate the M12 bolts at the bottom of the leveling feet

clockwise by using an adjustable wrench until the

leveling feet contact the ground and the wheels hang

in the air.

Ensure that the heights measured from the front,

rear, right, and left of the cabinet are the same.

•Spin the wheels by using a Phillips screwdriver. If the

wheels rotate freely, they are hanging in the air.

•H indicates the distance from the cabinet top to the

ground. The cabinet height can be adjusted from 1195

mm to 1205 mm with the help of the leveling feet.

Measure the front

and rear cabinet

doors as follows:

Place the level

along the surface

of the cabinet. If

the air bubble

goes to the center

of the clear tube,

the surface is even.

ground bar of the

equipment room

This operation must be

performed by professional

electricians onsite.
