Huawei SUN2000L-5KTL Manuel utilisateur

HUAWEI TECHNOLOGIES CO., LTD.

SUN2000L-(2KTL-5KTL)

Quick Guide

Issue: 04

Part Number: 31508725

Date: 2019-04-27

1Packing List

1. The information in this document is subject to change without notice. Every effort has been

made in the preparation of this document to ensure accuracy of the contents, but all statements,

information, and recommendations in this document do not constitute a warranty of any kind,

express or implied.

2. Before installing the device, closely read the user manual to get familiar with product information

and safety precautions.

3. Only certified electricians are allowed to operate the device. Operation personnel must wear

proper personal protective equipment (PPE) all the time.

4. Before installing the device, check that the package contents are intact and complete against

the packing list. If any damage is found or any component is missing, contact your dealer.

5. Huawei shall not be liable for any device damage caused by the violation of instructions in this

document.

6. The cable colors involved in this document are for reference only. Select cables in accordance

with local cable specifications.

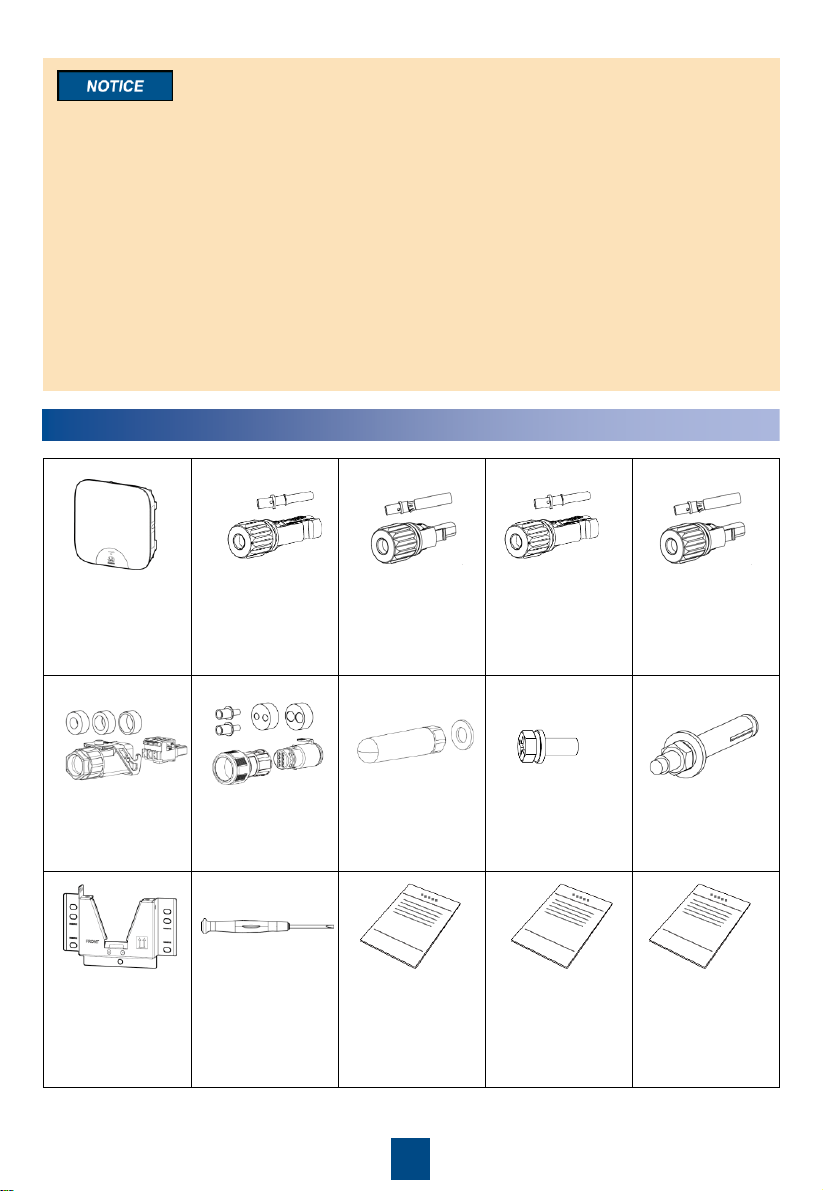

Solar inverter

(1 PCS) PV negative

connector

(black, 2 set)

PV positive

connector

(black, 2 set)

Battery

negative

connector

(blue, 1 set)

Battery

positive

connector

(blue, 1 set)

AC connector

(1 set) Signal cable

connector

(2 set)

Antenna

(1 set) Screw

(3 set) Expansion

bolt

(3 PCS)

Mounting

bracket

(1 PCS)

Screwdriver

(1 PCS) Quick Guide

(1 PCS) Solar Inverter

Delivery

Inspection Report

& Packing List

(1 PCS)

Certificate

(1 PCS)

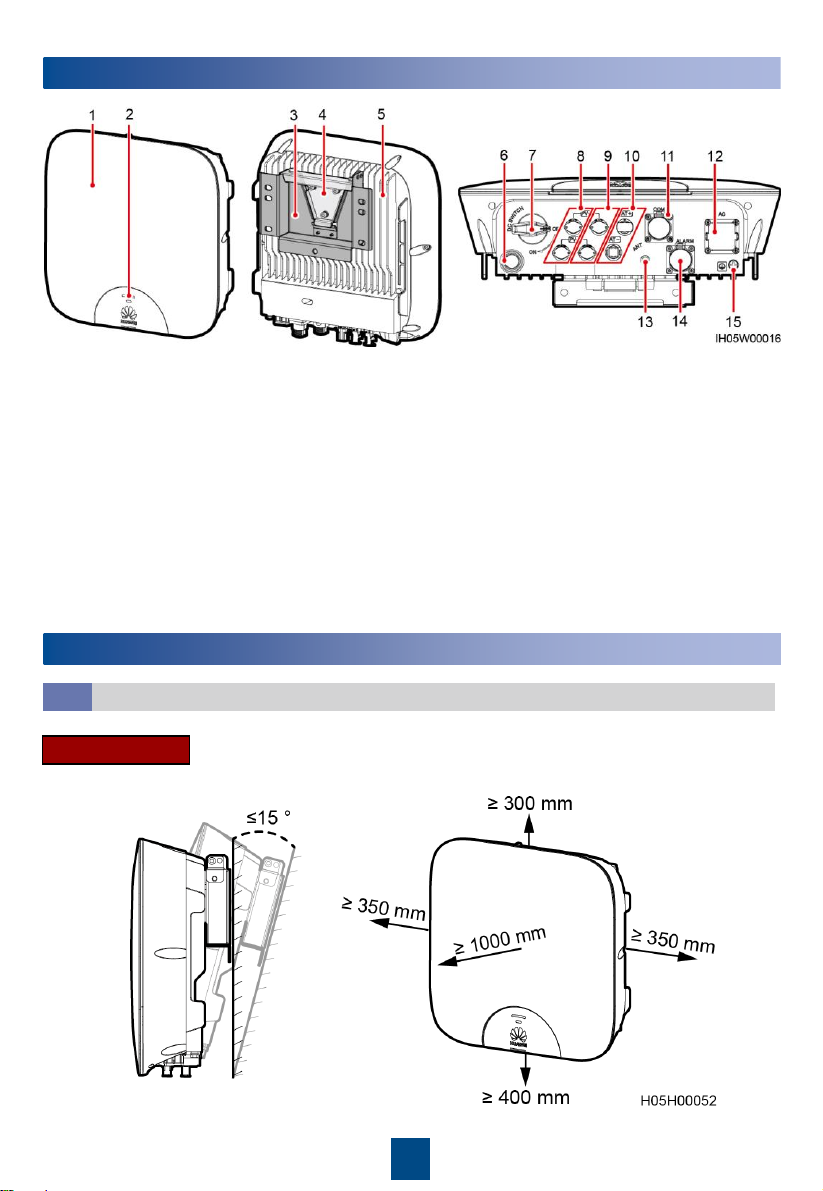

(1) Front panel

(2) LED

(3) Mounting bracket

(4) Mounting plate

(5)

Heat sink

(6) Ventilation valve

(7)

DC switch (DC SWITCH)

(8)

DC input terminals

(PV1+/PV1–)

(9)

DC input terminals

(PV2+/PV2–)

(10) Battery terminals (BAT+/BAT

–)

(11) COM port (COM)

(12) AC output port (AC)

(13) Antenna port (ANT)

(14)

Alarm port (ALARM)

(15) Ground point

Installation Requirements

3.1

2Overview

3Installing the Device

Tilt and Space

Dimensions

NOTE

If multiple inverters need to be installed, see SUN2000L-(2KTL-5KTL) User Manual for the

installation dimensions.

Installing the Mounting Bracket

3.2

Avoid drilling holes in the utility pipes and/or cables attached to the back of the wall.

Wall-mounted Installation

Installing the SUN2000L

3.3

Prepare M8 stainless bolt assemblies (including flat washers, spring washers, and M8 bolts) with

appropriate lengths as well as matched flat washers and nuts based on the support specifications.

You are advised to apply anti-rust paint

on the hole positions for protection.

If the bottom of the mounting plate does not snap into place, push the SUN2000L from the front

until the bottom of the mounting plate snaps into the mounting bracket.

The anti-theft lock needs to be prepared by the customer.

1. Install the SUN2000L on

the mounting bracket. 2. Tighten screw assemblies. 3. (Optional) Install an

anti-theft lock.

Support-mounted Installation

Prepare cables based on site requirements.

No.

Cable

Type

Conductor Cross

sectional Area

Range

Outer

Diameter

PE cable

Single

-core outdoor copper cable

–10 mm2

N/A

AC output power

cable

Two

-core (L and N) outdoor copper

cable or three

-core (L, N, and PE)

outdoor copper cable

–6 mm2

–21 mm

DC input power cable

or battery cable

(optional)

Standard outdoor PV cable in the

industry (recommended model: PV1-

–6 mm2

4.5

–7.8 mm

Signal

cable

(optional)

Four

-core outdoor shielded twisted

pair

0.25

–1 mm2

–11 mm

Connect cables in accordance with the installation laws and regulations of the country or region

where the SUN2000L is located.

Before connecting cables, ensure that the DC switch on the SUN2000L and all the switches

connecting to the SUN2000L are OFF. Otherwise, the voltage of the SUN2000L may result in

electric shocks.

Installing the WiFi Antenna

3.4

Ensure that the WiFi antenna is installed

securely.

Preparing Cables

4.1

Antenna port (ANT)

4Connecting Cables

If the antenna washer is not installed, the antenna will lose the waterproof function.

Installing the PE Cable

4.2

Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks will be

caused.

The PE point at the AC output port is used only as a PE equipotential point, and cannot

substitute for the PE point on the enclosure.

Recommended: Apply silica gel or paint around a ground terminal after connecting the ground

cable.

NOTE

1. Connect the AC output power cable to the AC connector.

Installing the AC Output Power Cable

4.3

Ensure that the protection layer of the AC output power cable is in the connector, and that the

exposed core wire is totally inserted into the cable hole and connected securely. Failing to do so

may cause SUN2000L malfunction or damage.

Click

Ground

point

Three-Core Cable (L, N, and PE)

Click

2. Connect the AC connector to the AC output port, and then Check the route of the AC output

power cable.

AC output port (AC)

Two-Core Cable (L and N)

To remove the AC connector, follow the

steps of its installation in reverse order.

Then remove the plug insert as shown

in the right figure.

NOTE

Plug insert

Installing the DC Input Power Cable

4.4

1. Ensure that the PV string is well insulated to ground.

2. The metal contacts supplied with the DC connectors are either cold forming contacts or stamping

forming contacts. Crimp the metal cold forming contacts using crimping tool UTXTC0005 (Amphenol)

or H4TC0001 (Amphenol). Crimp the metal stamping forming contacts using crimping tool

H4TC0003 (Amphenol, recommended) or H4TC0002 (Amphenol).

3. DC terminal model (cold forming metal terminal): straight male HH4CMD5TM and straight female

HH4CFC5DM; DC terminal model (stamping forming metal terminal): straight male HH4CMD4TMS

and straight female HH4CFD4TMS.

4. TheSUN2000Lopencircuitvoltagemustalwaysbelowerthanorequalto600VDC.

5. Before installing the DC input power cable, label the cable polarities correctly to ensure correct cable

connections.

6. Use the positive and negative metal terminals and black DC connectors supplied with the inverter.

Using incompatible positive and negative metal terminals and DC connectors may result in serious

consequences. The caused device damage is not covered under any warranty.

7. If polarity of the DC input power cable is reversed and the DC switch is ON, do not turn off the DC

switch immediately or unplug positive and negative connectors. The device may be damaged if you

do not follow the instruction. This damage is not covered under any warranty or service agreement.

Wait until the solar irradiance declines at night and the PV string current reduces to below 0.5 A, and

then turn off the DC switch and remove the positive and negative connectors. Correct the string

polarity before reconnecting the string to the SUN2000L.

1. Assembling the DC Connector

using metal cold forming contacts

Ensure that the cable will

not be extracted after

crimped.

Positive metal terminal

Negative metal terminal

Positive connector

Negative

connector

Ensure that the locking

nut is secured.

Ensure that the cables are

correctly connected.

Pull the DC input power

cable back to ensure that

it is connected securely.

Click

2. Connecting the DC Input Power Cable

DC input terminals

Click

Pull the DC input power cable back to ensure that it is

connected securely.

using metal stamping forming contacts

Ensure that the cable will

not be extracted after

crimped.

Positive metal terminal

Negative metal terminal

Positive connector

Negative

connector

Ensure that the locking

nut is secured.

Ensure that the cables are

correctly connected.

Pull the DC input power

cable back to ensure that

it is connected securely.

Click
