Huawei U9200E Guide d'installation

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

Security Level:

47pt

30pt

Color::white

FrutigerNext LT Medium

Font to be used by customers and

Arial

www.huawei.com

U9200E training course

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 2

•The main purpose of this course is to conduct a

comprehensive production training for our

customers about U9200E mobile phone, including

the following contents:

Hardware/Software specifications

Introduction of features

Useful Operation skills

Common Trouble shooting methods

About Technical Support

•

HUAWEI TECHNOLOGIES CO., LTD.

Page 3

Content

Chapter 1 U9200E Product Introduction

Chapter 3 Operation skills

Chapter 2 U9200E Main Features

Chapter 4 Trouble Shooting

Chapter 5 About Technical Support

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 4

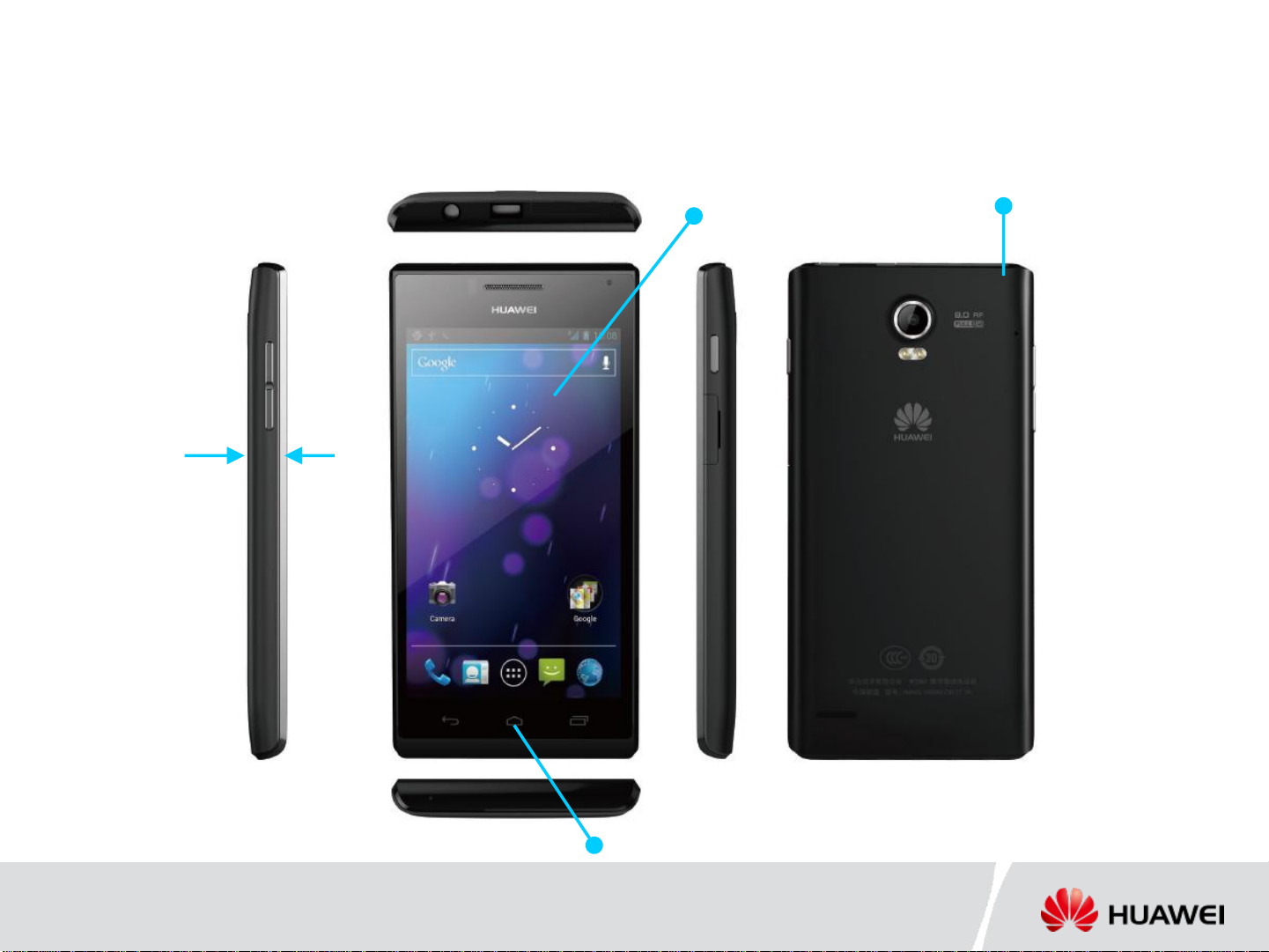

U9200E ID

4.3’ QHD AMOLED

capacitive touchscreen PU Cover

10.7 mm

Touch key pad

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 5

Introduction

HUAWEI U9200E is a smart phone developed by HUAWEI. It

is based on Google AndroidTM 4.0 Operating System. They

give you an excellent browsing with the Operating System

from Google™, all in a beautiful thin touch screen phone.

•Android 4.0 (Ice Cream Sandwich)

•Dual core 1.5 GHz CPU TI OMAP4460+IMC XMM6260

•4.3 inch TFT IPS+ touch screen supporting Multi-touch

•1GB RAM+8GB ROM

•Wi-Fi 802.11 b/g/n, supporting portable Wi-Fi hotspots

•Support for MHL to HDMI output 1080P 30fps video

•8 MP main camera + 1.3 MP second camera

•Dolby DM3 sound technology, Dolby Digital Plus decoding technology

•Bluetooth 3.0, Support for Bluetooth keyboard and Bluetooth mouse

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 6

Content

Chapter 1 U9200E Product Introduction

Chapter 3 Operation skills

Chapter 2 U9200E Main Features

Chapter 4 Trouble Shooting

Chapter 5 About Technical Support

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 7

Hardware Specifications

Item

Specifications

Shape

Bar-type

Phone display

Size: 4.3 inch

Type: TFT IPS+ LCD

Color: 16 M colors

Resolution: HD 1280 * 720

Dimensions

129.9 mm (L) ×64.8 mm (W) 10.7mm (T)

Weight

About 128 g (including the battery)

Technology standard

GSM/WCDMA/HSPA+/HSDPA/HSUPA：3GPP TS 34.114

Frequency band

WCDMA2100 MHz: 1920–1980 MHz (UL), 2110–2170 MHz (DL)

WCDMABand II [1900 MHz]: 1850-1910MHz (UL), 1930-1960 MHz (DL)

WCDMABand IV [1700 MHz]: 1710-1755 MHz (UL), 2110-2155 MHz (DL)

WCDMABand V [850 MHz]: 824-849MHz (UL), 869-894 MHz (DL)

WCDMABand VIII [900 MHz]: 880-915 MHz (UL), 925-960 MHz (DL)

GSM 850 MHz: 824–849 MHz (UL), 869–894 MHz (DL)

GSM 900 MHz: 880–915 MHz (UL), 925–960 MHz (DL)

GSM 1800 MHz: 1710–1785 MHz (UL), 1805–1880 MHz (DL)

GSM 1900 MHz: 1850–1910 MHz (UL), 1930–1990 MHz (DL)

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 8

Hardware Specifications

Network rate

WCDMA: 384 Kbit/s (UL), 384 Kbit/s (DL)

HSDPA: 21 Mbit/s

HSUPA: 5.76 Mbit/s

GPRS/EDGE: 118.4 Kbit/s (UL), 236.8 Kbit/s (DL)

SIM card interface

Standard 6-pin SIM card interface, not support hot swap

External interface

Standard Micro USB, microSD Card slot, 3.5mm headset jack

External memory

support

microSD Card (up to 32GB)

Processor

TI OMAP4460 1.5G+IMC XMM6260

Memory

ROM: 8 GB

RAM: 1 GB

Device control:

soft touch keys (Back, Home, Menu)

Physical Power and Volume key, Charge indicator

GPS

GPS/AGPS/SUPL1.0/Glonass

Temperature

Operating temperature: -10℃- +40℃

Warehouse temperature: -40℃- +70℃

Battery

Capability 2600mAh Li-Polymer

Standby time (Depends on the user operation and network condition): Up to 600 hours (3G)

Talking time (Depends on the user operation and network condition): Up to 800 mins (3G)

Charging Time: 4.5 hours from supplied charger

Relative humidity

Working: 5% - 95%

Camera

Main camera：8 MPAF Camera

Front camera：1.3 MP HD

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 9

Hardware Specifications

•Bluetooth

•Bluetooth 3.0

•Wi-Fi

•802.11b//802.11n, Wi-Fi hotspots

•USB

•Micro USB 2.0, 480Mbit/s

•RF cable maximum transmit power:

•WCDMABand I[2100MHz]/Band II[1900MHz]/Band IV[1700MHz]/Band V[850MHz]/Band VIII[900MHz]:

+23.5dBm（Power Class 3 GSM 850MHz/900MHz: +32.5dBm (Power Class 4)

•GSM 1800MHz/1900MHz: +29.5dBm (Power Class 1)

•EDGE 850MHz/900MHz: 25dBm(+/-3 dBm)

•EDGE 1800 MHz/1900MHz: 24dBm(+/-3 dBm)

•RF cable static sensitivity:

•WCDMABand I[2100MHz]/Band II[1900MHz]/Band IV[1700MHz]/Band V[850MHz]/Band VIII[900MHz] :

better than -110 dBm/3.84 MHz

•GSM 850 MHz: better than -109 dBm

•GSM 900MHz: better than -109 dBm

•DCS 1800MHz: better than -109 dBm

•PCS 1900MHz: better than -108 dBm

•Power supply

•90 V–264 V, 50/60 Hz, 1A

•Certification

•FCC, CE, WIFI, BT

HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential

35pt

Font to be used by customers

and

partners :

18pt

Font to be used by customers

and

partners :

Page 10

Software Specifications

•Operating system

•Android™ 4.0 (Ice Cream Sandwich)

•Input method

•Android keyboard

•Browser

•HTML, Android Native Browser

•Messaging

•SMS, MMS

•Email

•POP3/IMAP/Exchange

•Multi-media

•Audio Codec: MP3, WMA2~9, AMR-NB, AMR-WB, AAC, AAC+, eAAC+, MIDI

•Audio file format: *.mp3, *.mp4, *.3gp, *.wma, *.ogg, *.amr, *.aac, *.flac, *.wav, *.midi

•Video Codec: MPEG4, H.264, H.263, Real Video7~Real Video10, WMV9, XVID

•Video file format: *.3gp, *.mp4, *.wmv, *.rm, *.rmvb

•Image Codec: png, gif (static), jpeg, bmp, AC3

•Image file format: *.jpeg, *.png, *.gif, *.bmp

•Streaming media

•Audio Codec: AMR-NB, AAC,AAC+, eAAC+

•Video Codec: H.263, H.264, MPEG4

•File Format: *.mp4, *.3gp

•Ringtone

•MIDI，MP3,AMR-NB, WAV, OGG, AAC

•Software update

•HOTA
