HTC CE8200 Manuel utilisateur
0
1
CONTENT
Ⅰ. Safety Rules and Precautions.................................................. 2
Ⅱ. Brief Introduction ...................................................................... 4
Ⅳ. Range and Accuracy ................................................................ 5
1.Ranges and Accuracy of Measurement.................................. 5
VII. LCD Display............................................................................. 9
Description of Special Symbols................................................ 10
VIII. Measuring Principle...............................................................11
IX. Operation Method....................................................................11
1.Boot up ...................................................................................11
2. Battery Voltage Check.......................................................... 12
3. Resistance Test .................................................................... 13
4．Clock Settings..................................................................... 14
5.Alarm Settings....................................................................... 14
6.Date Lock............................................................................... 15
7．Data Storage / Review / Delete........................................... 15
Ⅹ. Battery Instructions................................................................. 16
ⅩI. Field Application .................................................................... 16
1. Multi-Point Grounding System.............................................. 16
2. Limited Point Grounding System.......................................... 17
3. Single-Point Grounding System........................................... 19
ⅪI．Accessories........................................................................ 22
2
Ⅰ. Safety Rules and Precautions
Thank you for purchasing our company's clamp grounding
resistance tester. Before using the instrument for the first time,
in order to avoid possible electric shock or personal injury, please
be sure to: read and strictly observe the safety rules and
precautions listed in this manual.
In any case, use this instrument should pay special attention to
safety
The instrument is designed, produced and inspected
according to IEC61010 safety specifications.
In any case, the use of this instrument should pay special
attention to safety.
When measuring, high-frequency signal generators such as
mobile phones should not be used next to the meter to avoid
errors.
Pay attention to the text and symbols on the body of the
instrument.
Before use, make sure that the instrument and accessories
are in good condition before use.
Before starting the machine, press the trigger once or twice to
ensure that the jaws are closed properly.
Do not measure in a flammable place. Sparks may cause an
explosion.
3
Do not withhold the trigger and do not clamp any
wires when turning on the meter
After the power is turned on normally, the "OL Ω" symbol is
displayed, and the measured object can be clamped.
Do not place and store the instrument for a long period of time
under conditions of high temperature, humidity, condensation,
and direct sunlight.
When replacing the battery with the meter, make sure the
meter is turned off.
The instrument displays the battery voltage low symbol
“”, should replace the battery in time, otherwise it will
lead to ground error.
The jaw contact surfaces must be kept clean and cannot be
wiped with corrosives and rough objects.
When opening the trigger, avoid the impact of the clamp,
especially the jaw joint.
When the clamp meter measures the resistance, the clamp
head will make a slight noise, which is normal. Note the
“deep-beep-beep--” sound that distinguishes the alarm.
Pay attention to the measuring range and use environment
specified by this instrument.
Do not measure the lead current above the upper limit of the
clamp meter.
The use, disassembly, calibration and maintenance of this
instrument must be performed by authorized personnel.
4
Because of the reason of this instrument, if it is dangerous to
continue using it, it should be immediately stopped and sealed
immediately, and it should be handled by a qualified
organization.
The " " safety warning sign in the instrument and manual
must be operated strictly in accordance with the contents of
this manual.
Ⅱ. Brief Introduction
Clamp ground resistance tester, also known as loop
resistance tester, is used to test grounding resistance. The
instrument uses a new black luxury screen design, resistance
display in the screen, data storage, data access, alarm, automatic
shutdown and other functions. The machine is beautiful and
upscale, has a wide range, high resolution, convenient operation,
easy to carry, accurate, reliable, stable performance, strong
anti-interference ability. Moreover, it has a shockproof, dustproof,
moisture-proof structure and is a commonly used and
indispensable instrument for telecommunications, electricity,
meteorology, computer rooms, oil fields, electromechanical
installation and maintenance, and industrial enterprises that use
electricity as industrial power or energy. It is suitable for measuring
various grounding resistances such as telecommunications,
electricity, meteorology, computer rooms, oil fields, power
5
distribution lines, transmission lines of iron towers, gas stations,
factory grounding networks, and lightning rods.
The clamp ground resistance tester is controlled by the
microprocessor and can accurately detect the ground resistance. It
uses a fast filtering technique to minimize interference.At the same
time data storage and data upload functions
III. Model differentiation
Model
Resistance
Range
Current Range
CE8200
0-1000Ω
NA
Ⅳ. Range and Accuracy
1. Ranges and Accuracy of Measurement
Mode
Range
Resolution
Accuracy
Resistance
0.010Ω-0.099Ω
0.001Ω
±（1%＋0.01Ω）
0.10Ω-0.99Ω
0.01Ω
±（1%＋0.01Ω）
1.0Ω-49.9Ω
0.1Ω
±（1%＋0.1Ω）
50.0Ω-99.5Ω
0.5Ω
±（1.5%＋0.5Ω）
100Ω-199Ω
1Ω
±（2%＋1Ω）
200Ω-395Ω
5Ω
±（5%＋5Ω）
400-590Ω
10Ω
±（10%＋10Ω）
600Ω-880Ω
20Ω
±（20%＋20Ω）
900Ω-1000Ω
30Ω
±（25%＋30Ω）
6
Ⅴ. Technical Specifications
Functions
Ground resistance test, Loop resistance test
Ambient Temperature
and Humidity
23℃±5℃，below 75%rh
Power Supply
DC 6V （4 AA alkaline dry batteries）
Range
CE8200 Resistance：0.01-1000Ω
Measure Method
Mutual induction
Resistance Resolution
0.001Ω
Jaw Size
55mm×32mm
Clock Function
Have
Display Mode
4-digit LCD display, black screen design
LCD Size
46mm×29mm
Meter Size
L/W/H：285mm×85mm×58mm
Measure Time
2times/second
Data Storage
300 groups，"MEM" storage indication, display "FULL"
symbol indicates that storage is full
Data Review
"MR" symbol indicates when looking up data
Overflow display
"OL" symbol indicates over-range overflow
Interference Test
Automatically identify interference signals, the "NOISE"
symbol indicates when the interference current is large
Alarm Function
Alarm when the measured value exceeds the alarm setting
value
Battery Voltage
Real-time display of battery power, reminding timely
charging when battery voltage is low
7
Automatic shut-down
Turn off after 5 minutes
Power Consumption
50mAMax
Weight
Meter：1180g (including battery)
Working Temperature
and Humidity
-10℃～40℃；below 80%rh
Storage Temperature
and Humidity
-20℃～60℃；below 70%rh
Insulation Resistance
Above 20MΩ(500V between circuit and case)
Pressure resistance
AC 3700V/rms(between circuit and case)
External Magnetic
Field
＜40A/m
External Electric Field
＜1V/m
Suitable for Safety
Regulations
IEC61010-1(CAT Ⅲ300V、CAT IV 150V、Pollution
degree2)；IEC61010-031；IEC61557-1(earth resistance)；
8

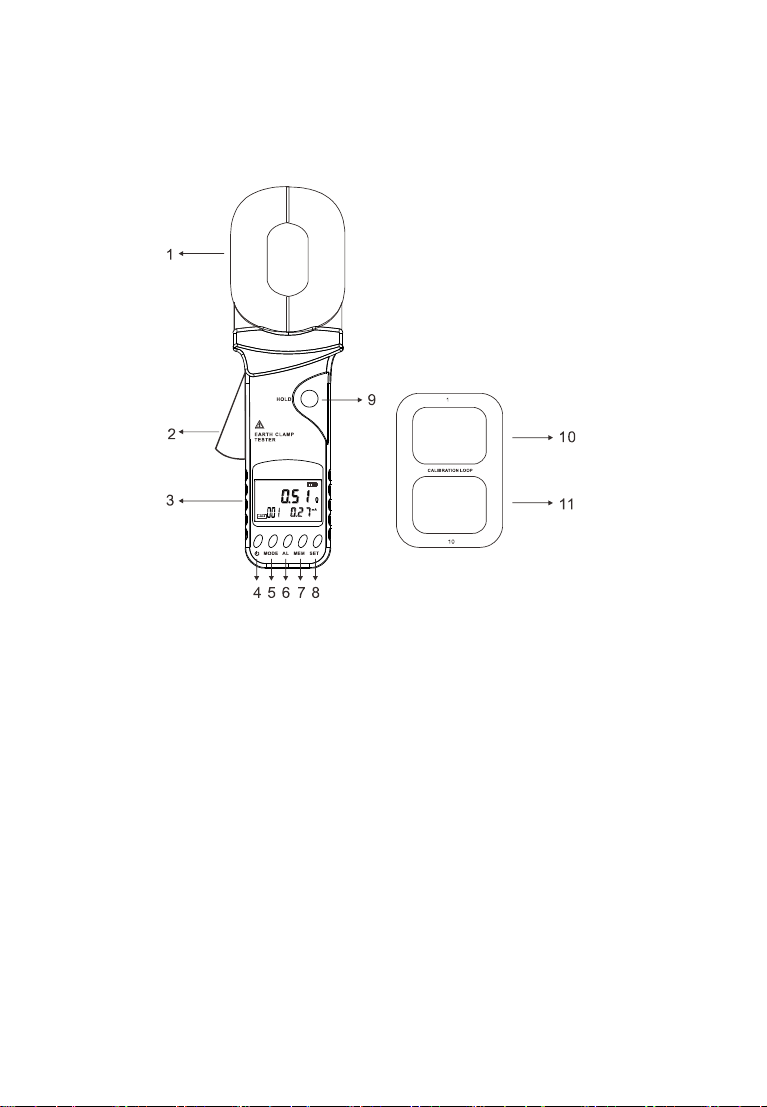

Ⅵ.Structure of Meter
1. Clamp Jaw 2. Trigger 3. LCD
4. POWER Key 5. MODE Key 6. AL Alarm Function Key
7. MEM Key 8. SET Key 9. HOLD Key
10.CALIBRATION LOOP:1Ω
11. CALIBRATION LOOP:10Ω
9
VII. LCD Display
(1). Jaw Open Symbol
(2).Alarm Symbol
(3). Symbol of Greater Than
(4). DC AC Symbol
(5). Symbol of data access
(6). Symbol of data memory
(7). Noise signal
(8). Data lock symbol
(9). Symbol of battery
(10). Resistance unit
(11). 4-digital LCD figures display
(12). Current unit
(13). 2-Digital No. Of Data Storage Unit
(14). 4-digital LCD current and clock display
