HTC VOX Guide de l'utilisateur

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 1 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.



VOX

Service anual

HTC Proprietary

Confidential Treatment Requested

Rev. A01

Feb 12,2007

HTC Corp.

Engineering Mobility

EVISION

ONTROL

ABLE

Rev Date Contents Dept Revised

A01 02/12 First draft PSE

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 2 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Table of Contents

HAPTER

1 –

NTRODUCTION

1.1 Product Specification P3

1.2 Definition P9

HAPTER

2 –

EVICE

SSEMBLING AND

ISASSEMBLING

ROCEDURE

P11

2.1 Assembling procedure P15

2.2 Disassembling procedure P26

HAPTER

3 –

IAGNOSTICS

ROGRAM AND

CE T

EST

TEM

P32

3.1 Test Plan P32

3.2 How to enter Diagnostic mode and Boot-loader mode P33

3.3 Test procedure P34

HAPTER

4 –

EAKAGE CURRENT MEASUREMENT

P41

HAPTER

5 –

OSMETIC

NSPECTION

RITERIA

P44

5.1 Definition of Cosmetic Standard P44

5.2 Visual Inspection Requirements P44

5.3 Definition of Inspection Defects and Areas P44

5.4 Cosmetic Criteria Table P45

HAPTER

6 –

OS, GSM ROM I

MAGE

FLASH

ROCEDURE

P46

6.1 OS upgrade thru RUU P46

6.2 OS upgrade thru SD card P50

HAPTER

7 –

ENERIC

ROUBLESHOOTING

P51

HAPTER

8 –

ENERIC

PARE

ART

IST AND

HOTOS

(

FOR REFERENCE ONLY

) P55

PPENDIX

ENERIC

ABELING

LAN

P59

RF A

NTENNA

EST

PECIFICATION

P67

OARD

EVEL

2.5 R

EPAIRS

P69

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 3 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

NTRODUCTION

 This manual provides the technical information to support the service activities of the Smart Phone Monet.

This document contains highly confidential information, so any or all of this document should not be

revealed to any third party.

1.1 Product Specification/Feature

Platform

 Bar type form factor integrated quad band EDGE/GPRS/GSM, SIP/VoIP, Bluetooth, WiFi, 2 mega-pixel

camera

 One stop sliding QWERTY keyboard

 OS: Windows Mobile Crossbow Platform

Dimension

 101.5mm (L) x 50mm(W) x 18.6mm(T)

 Weight: 134g (with battery)

Processor/Chipset

 TI OMAP850, 200Mhz

Memory

 ROM: 128 MB ROM

 RAM: 64 MB DDR

LCD Module

 2.4” QVGA, 64K colors Transmissive LCD

 LED backlight

GSM/EDGE Function

 Internal antenna

 Quad-band (850/900/1800/1900)

 850: 824-849, 869-894MHz

 900: 880-915, 925-960MHz

 1800: 1710-1785, 1805-1880MHz

 1900: 1850-1910, 1930-1990MHz

 Generic Services

 Call Holding, Waiting, Forwarding

 Call Barring

 CLI (Calling Line Identity)

 SMS (Short Message Service)

 SMSMT, SMSMO, SM Reply, SM Replace, SM Acknowledgement, 8 Bits SMS Data

 Concatenated messages, up to 640 characters

 Display own number, telephone number storage capability in terminal and SIM card

 Network selection

 Cell broadcast

 Multi-party conference capability

 Phase 2+ Unstructured Supplementary Service Data

 Audio Codec: AMR/EFR/FR/HR

 Network Lock

 CPHS partial

 E-GPRS Function

 EGPRS class B

 Multi-slot standard class 10

 MO/MT SMS over GPRS

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 4 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

 PBCCH

 SIM

 1.8 / 3V of UICC

 SIM Application Tool Kit release 98 class 3 and 99 partial

 Over the Air (OTA) programming

 Fixed Dialing Number (FDN)

 Abbreviation Dial Number (ADN)

 Security Pin 1 & 2 control

 SIM+/ EAP-SIM support

Camera (manufacture option)

 Color CMOS 2 mega-pixel camera

 Preview mirror

Keyboard/button/Switch

 2 soft keys

 Home key

 Back key

 Send phone button

 Quick press: Start a phone call

 Long press (Press & Hold): Switch on or off the Loud Speaker

 End phone button

 Short press: End a phone call

 Long press (press & hold): turn on Key-lock

 Camera capture button (position: top-right)



5-way navigation pad

 Power button (position: on top of device)

 Volume Up and Volume Down button (position: top-left)

 PoC or VC/VR button (position: left & below volume button)

 PoC case: (Cingular requirement)

 VD/ VR case (others)

 Short press: Voice Dialer

 Long press: Voice Record

 Numerical dialing pad (12 buttons)

 QWERTY keyboard with 2 additional soft keys

 Cap and Function mode indicator on QWERTY keyboard

 Auto sound effect when sliding out/ close

 Auto display on when sliding out

 Light sensor control for backlight

Notification

 One bi-color LED (Green and Red) for GSM/GPRS/EDGE standby, GSM/GPRS/EDGE network status,

Event Notification, Power Charging status, and Low battery

 One bi-color LED (Blue and Green) for Bluetooth (blue) and WiFi (Green) connectivity status

 Notification by LED, Sound, Message, Vibration

Audio

 Built-in microphone

 Receiver

 Speaker

 Loud speaker for Hands-Free supported

 Full duplex

 Audio sampling rate

 16-bits with 8KHz, 11KHz, 22KHz, 44.1KHz

 AMR/AAC/WAV/WMA/MP3 codec

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 5 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Connectivity & Interface

 Bluetooth

 Chipset: TI 6300

 Compliant with v2.0

 Class 2 transmit power

 Supported profiles:

 GAP (generic access profile)

 SPP (serial port profile)

 OPP (object push profile)

 PAN (pan area profile)

 GOEP (generic object exchange profile)

 ActiveSync (legacy application via SPP)

 HSP (headset profile)

 HFP (handsfree profile)

 A2DP (Advanced Audio Distribution profile)

 AVRCP (Audio/Video Remote control Profile)

 Service Discovery Profile

 SAP (SIM Access Profile)

 HID (Human interface device profile)

 FTP (File Transfer profile)

 WiFi

 Chipset: TNETW1251

 Internal WLAN antenna

 IEEE 802.11b/g

 Date rate auto fallback for extended range

 ELP mode

 Security 802.11i and AES

 WPA/WPA 2 authentication – WEP (64 & 128bit), PSK, EAP-TLS, PEAP, LEAP

 Signaling interfaces between the terminal device and the servers: mutually authenticated and

encrypted utilizing TLS (RFC 2246) with RC4 encryption with SGA1 used as the message integrity

check

 QoS

 802.11 WME QoS

 802.11e

 Fast AP to AP handover

 Packet tagging & prioritization

 Site Survey, Trace Route (Hidden Feature), Seamless-Secure Roaming, and VLAN Support

 HTC ExtUSB 11-pin mini-USB

 USB 1.1

 Support Audio jack

 Support ActiveSync to PC/NB

 Support Charging capability

 MicroSD card slot

 External RF connector with cover

Power

 Talk time: 3.2~7.3 hrs [base on RF power level 5~12]

 Standby time: 120~175hrs [base on multi-frame 2~5]

 Charging time: 2.5~3 hrs [base on OFF mode at 25℃]

 WMA: 12 hours [base on NSTL test case]

 WMV: 8 hours [base on NSTL test case]

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 6 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

 Battery

 Rechargeable battery, Li-Polymer 1,050 mAh

 AC Adapter:

 AC input rating: 100 ~ 240 VAC, 50/60Hz

 DC output: 5V, 1A

Hanger

Accessories

 Standard

 Travel Charger

 USB Sync. Cable

 Stereo wired headset with microphone

 Standard Battery

 User Manual, Quick Start Guide, & Software CD

 Option

 Mono Bluetooth Headset w/ microphone

 Stereo Bluetooth Headset w/ microphone

 Car adapter

 Battery charger [TBD]

 Carrying case

 Charging docking (home use)

 TTY adaptor

 11 pin Y-Cable

Microsoft Windows Mobile 2005 Smartphone Applications

 Pocket Outlook

 Calendar, Contacts, Messaging, Tasks, & Voice Notes

 Push Mail

 Email Setup Wizard

 Microsoft Internet Explorer Mobile

 Microsoft Windows Media Player

 Pictures & Video

 Microsoft ActiveSync

 Microsoft MSN Messenger

 Device Management

 Calculator

 Games

 File Manager

 Smart Dialer for QWERTY keyboard as search input

Value Added Applications

 Camera / Camcorder

 Camera Mode

 Encoding format: JPEG

 Resolution: UXGA 1200x1600, SXGA 960x1280, VGA 480x640, QVGA 240x320, QQVGA

120x160

 Night Mode

 Digital Zooming: continuous 1x ~ 10x

 Time & Date Stamp

 Self Timer: 2/10 sec for Photo, Contacts Picture mode

 Camcorder Mode

 10 fps encoding up to QCIF resolution

 Digital Zooming: 1x ~ 2x

 Encoding format

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 7 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

 H.263 + AMR-NB (.3gp)

 MPEG4 + AMR-NB (.mp4)

 Motion JPEG + PCM (.avi)

 Ringtone

 MIDI

 Software polyphonic & Standard MIDI format 0 and 1 (SMF) / SP MIDI

 MP3, AAC, AAC+, WMA, WAV and AMR-NB

 Multimedia support format

 Audio: AAC, AAC+, MP3, WMA, WAV, AMR-NB

 Video: MPEG4, H.263, WMV, Motion JPEG (AVI)

 Picture Enhancement for Pictures & Videos

 Graphics: JPEG, GIF87a, GIF89a, PNG, WBMP

 Video Thumbnail Preview: MPEG4, H.263, Motion JPEG (AVI)

 MMS Client

 Partial compliant to MMS 1.2

 SMIL v2.0 supported

 vCalendar v1.0 and vCard v2.1 supported

 Task Manager

 Unlock Screen Clock

 Java virtual machine (MIDP 2.0)

 Midlet display area: 220x300

 JSR 75 File Connection

 JSR 118 MIDP 2.0

 JSR 139 CLDC 1.1

 JSR 185 JTWI

 JSR 135 Mobile Media API

 JSR 120 Wireless Messaging API

 Voice Dial/ Voice Command

 Speaker Dependent

 Voice Recorder (for AMR only)

 Notes (Text notes)

 T9 IME for Smartphone

 SIM Manager

 Comm. Manager

 FOTA (Firmware OTA)

 Document viewer

 Word/ Excel/ PowerPoint

 Adobe PDF Viewer

 OMA DRM v1.0 (2.0 when available)

 Audio Manager

 HTC SIP/VoIP SDK

 VoIP codec support

 G.711 (64kbps, a-law/u-law)

 G.729ab (G.729 with VAD support)

 G.723.1

Carrier Specific Requirement

 BlackBerry Client (Orange, T-Mobile)

 SIP

 Protocol support

 SDP (RFC 3264)

 DHCP or static IP addressing

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 8 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

 Authentication (login/password)

 DTMF transmission over RTP (RFC 2833)

 No static IPv4 address configuration

 DHCP locating

 Security

 802.11i compliant (WEP, WPA, WPA2)



Authentication by EAP-SIM should follow 3GPP TS 23.234

 Generic Call service

 Calling line identification presentation (CLIP)

 Calling line identification restriction (CLIR)

 Call forward unconditional (CFU)

 Call forward on mobile subscriber busy (CFB)

 Call forwarding on no reply (CFNRy)

 Call forward on mobile subscriber not reachable (CFNRc)

 Call waiting (CW)

 Call Hold (HOLD)

 Multiparty (MPTY)

 Barring of all outgoing calls (BAOC)

 Barring of all incoming calls (BIC)

 Pre-dialing before sending

 Redial

 Call mute

 Comfort noise generation (CNG), voice activity detection (VAD), adaptive jitter buffer, and echo

cancellation

Regulatory

 GCF certification [Operator dependent]

 R&TTE: EMC / EMI, Safety SAR

 FCC Approval

 FCC HAC (Hearing Aid Compatibility)

 PTCRB Approval [Operator dependent]

 WiFi Certification

 BQB (Bluetooth Qualification Body) certification

 Windows Mobile Logo (NTSL)

 USB certification

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 9 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

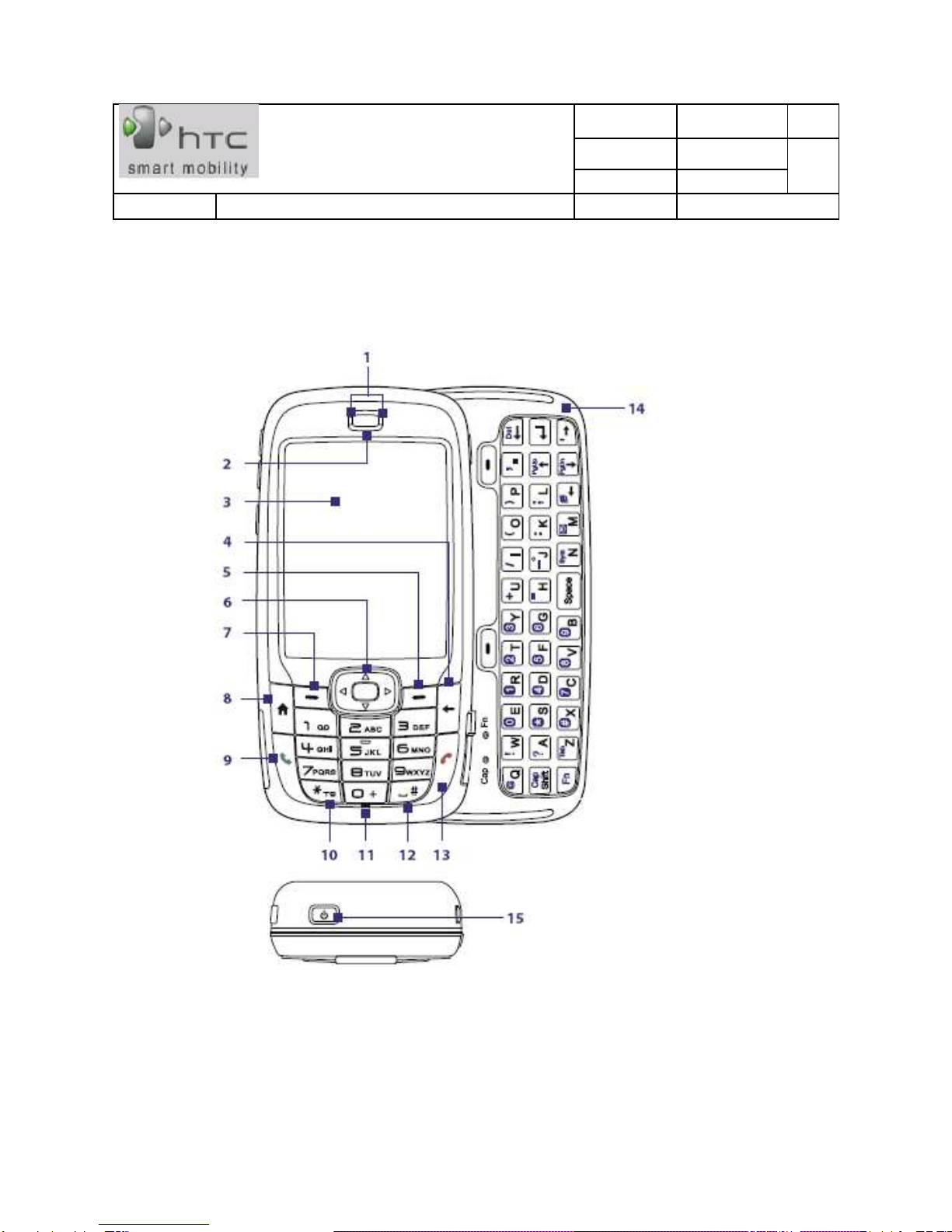

2.1 Definition

Doc. No.

DOC-

00026415

REV.

Issued Date 2007/02/12

Revised Date N/A A01

Doc. Title VOX Service Manual

Page 10 of

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Table des matières

Autres manuels HTC Téléphone portable

HTC

HTC Desire US Cellular Instructions d'utilisation

HTC

HTC 10 Manuel utilisateur

HTC

HTC DROID DNA Manuel utilisateur

HTC

HTC Rezound Manuel utilisateur

HTC

HTC S740 Manuel utilisateur

HTC

HTC Desire 530 Manuel utilisateur

HTC

HTC 10 Manuel utilisateur

HTC

HTC 10 Instructions d'utilisation et d'entretien

HTC

HTC Sensation 4G T-Mobile Mode d’emploi

HTC

HTC Desire 555 Manuel utilisateur

HTC

HTC Desire 612 Manuel utilisateur

HTC

HTC Tilt 2 Manuel du propriétaire

HTC

HTC 0P9O300 Manuel d'utilisation

HTC

HTC touchpro2 - Touch Pro 2 Smartphone Manuel utilisateur

HTC

HTC NIKI160 Manuel utilisateur

HTC

HTC Desire 616 dual sim Manuel utilisateur

HTC

HTC HTC One Manuel utilisateur

HTC

HTC Desire C Manuel utilisateur

HTC

HTC Desire 700 Manuel utilisateur

HTC

HTC Desire 501 Manuel utilisateur

HTC

HTC Desire EYE Manuel utilisateur

HTC

HTC Advantage Guide de démarrage rapide

HTC

HTC Explorer Manuel utilisateur

HTC

HTC Merge Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
