HTC Artemis Manuel utilisateur

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 1 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Artemis

Service Manual

HTC Proprietary

Confidential Treatment Requested

Rev. AX02

Oct,17,2006

HTC Corp.

Engineering Mobility

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 2 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Revision Control Table

Rev Date Contents Dept Revised App

Dept Stage

AX01 2006/9/15 Fist Draft PSE Henry DAL PVT

AX02 2006/10/17 Add Disassembly process PSE Edwin Chen MV

AX03

2007/1/10

• Modify p.25 : Del (Stick

the Copper Foil on the

Camera Module.) PSE Edwin Chen MP

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 3 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Table of Contents

1 Introduction

2 Product Configuration

3 Labeling Plan

4 Unit Refurbishment Inspection Criteria

5 Product Overview

6 Unit Assembly/Disassembly Procedure

7 Function Test Procedure

8 OS upgrade procedure

9 Board Level 2.5 Inspection

10 Generic Troubleshooting

11 Photo for 80H & 99H Spare Part

12 RF Antenna Specification

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 4 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

1. Introduction

 This manual provides the technical information to support the service activities of the pocket PC

phone - Artemis.

 This document contains highly confidential information, so any or all of this document should not be

revealed to any third party.

2. Product Features

Platform

- Slim GPS PDA Phone.

- Microsoft Windows Mobile 5 Pocket PC Phone Edition.

Processor/Chipset

- TI OMAP 850, 200 MHz.

Memory

- ROM: 128MB.

- RAM: 64MB.

LCD Module

- 2.8" 240 x 320 color TFT LCD.

- LED backlight.

- Sensitive Touch Screen.

GSM/GPRS/ EDGE Functional Block

- Internal antenna.

- GSM Quad-band: 850/900/1800/1900 MHz.

- EDGE/GPRS: class B, Multi-slot standard class 10.

GPS

- Internal GPS antenna.

- 20 parallel channel GPS receiver.

FM Radio

- Tuning range: 87.5 MHz ~ 108.5 MHz.

Wireless LAN

- WI-FI 802.11b/g.

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 5 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Device-to-Device Connectivity

- Bluetooth 2.0.

Digital Camera

- 2 mega-pixel CMOS image sensor.

Power

- Battery.

- Removable and chargeable battery, 1,250mAh.

- AC adaptor.

- AC input: 100 ~ 240V AC, 50/60 Hz.

Keyboard/Button/Switch

- Power Button.

- Volume up & down Button.

- Voice dialer /Voice recorder Button.

- Camera captures Button.

- 2 Soft-key Buttons.

- Send/Hands-free Button.

- End Button.

- Start Button.

- OK Button.

- GPS Button.

- Portal Button.

- 8-way track ball w/ action.

- Track wheel.

- Reset Switch.

Notification

- One bi-color LED for GSM network status, notification, and charging status.

- One Bi-color LEDs (Blue & Green) and One Orange-colored LED on in the second lens for WI-FI

(Green), Bluetooth (Blue), and GPS (Amble) status.

- Notification by LED, sound, message, and vibration.

Audio

- Microphone.

- Receiver.

- Loud speaker for Hands-free and GPS voice instruction support.

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 6 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

Interface

- 3V SIM Card slot.

- Micro-SD Card slot.

- HTC Ext-USB (11-pin, mini-USB & audio jack in one).

- External Antenna Connector.

- External GPS Antenna Connector.

Stylus

- Lock type mechanism.

Hanger

Accessories

- Standard.

- AC adapter.

- USB Sync. Cable.

- Stereo wired headset with microphone and FM radio antenna support.

- Stylus.

- User manual, quick start guide & software CD.

- Option.

- Pouch.

- Mono Bluetooth headset.

- Stereo Bluetooth headset.

- Car adapter.

- Car holder.

Microsoft Windows Mobile 5.0 Pocket-PC Phone Applications

- Pocket Outlook.

- Calendar, Contacts, Messaging, Tasks, & Voice Notes.

- Direct-Push Mail.

- Internet Explorer Mobile.

- Office Mobile.

- Word, Excel, & PowerPoint Mobile.

- Windows Media Player 10 Mobile.

- Pictures & Videos.

- ActiveSync Client.

- Pocket MSN.

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 7 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

- Modem Link.

- Device Management.

- OTA Provisioning.

- Terminal Service Client.

- Calculator.

- Games.

Value Added Applications

- Camera captures utility.

- Camcorder utility.

- H.263, MPEG4.

- WMP 10 DirectShow plug in to support playing more audio/video format.

- Audio Codec.

- MP3/ WMA/ AMR/ AAC/ AAC+ (optional).

- Video Codec.

- MPEG4 / H.263 / Motion JPG.

- MMS Client.

- PDF Viewer.

- ZIP.

- SIM Manager.

- Comm. Manager.

- Voice Dial.

- Smart Dialing.

- OMA DRM v1.0.

- STK 99.

- Backup Tool.

- FM Radio Application.

- GPS navigation software [optional].

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 8 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

3. Labeling Plan

3.1 Labels for device

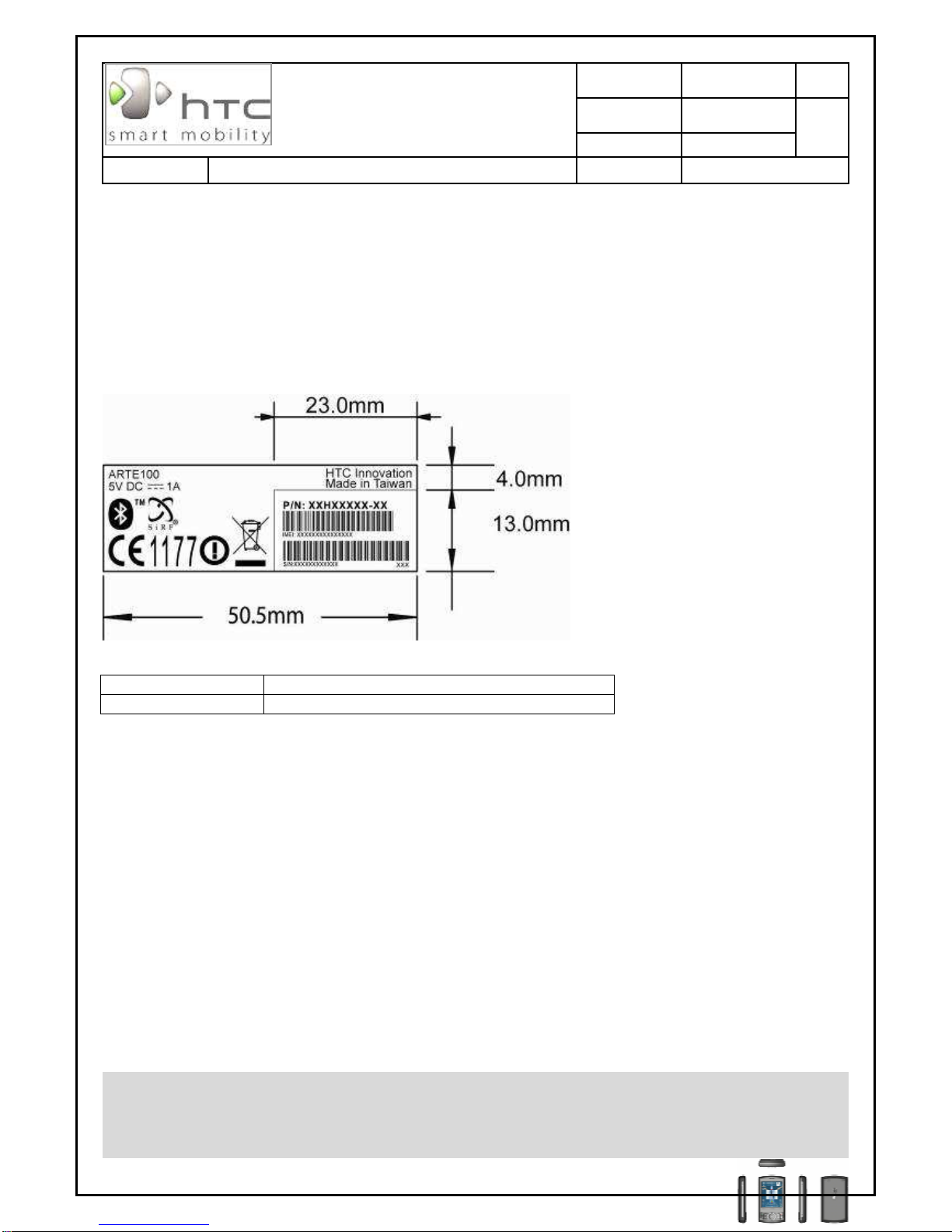

3.1.1 Agency label-ARTE100 w/ WiFi

HTC P/N: 77H00400-00M

Size: 50.5 X 17.0 mm

HTC P/N Countries supported

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 9 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

3.1.2 Agency label-ARTE110 w/o WiFi

HTC P/N: 77H00400-01M

Size: 50.5 X 17.0 mm

HTC P/N Countries supported

Doc. No. DOC-00021050

REV.

Issued Date 2007/1/10

Revised Date

AX03

Doc. Title Artemis Service Manual

Pa e 10 of 66

HTC CONFIDENTIAL

宏

宏宏

宏達國際電子股份有限公司

達國際電子股份有限公司達國際電子股份有限公司

達國際電子股份有限公司

High Tech Computer, Corp.

High Tech Computer, Corp.High Tech Computer, Corp.

High Tech Computer, Corp.

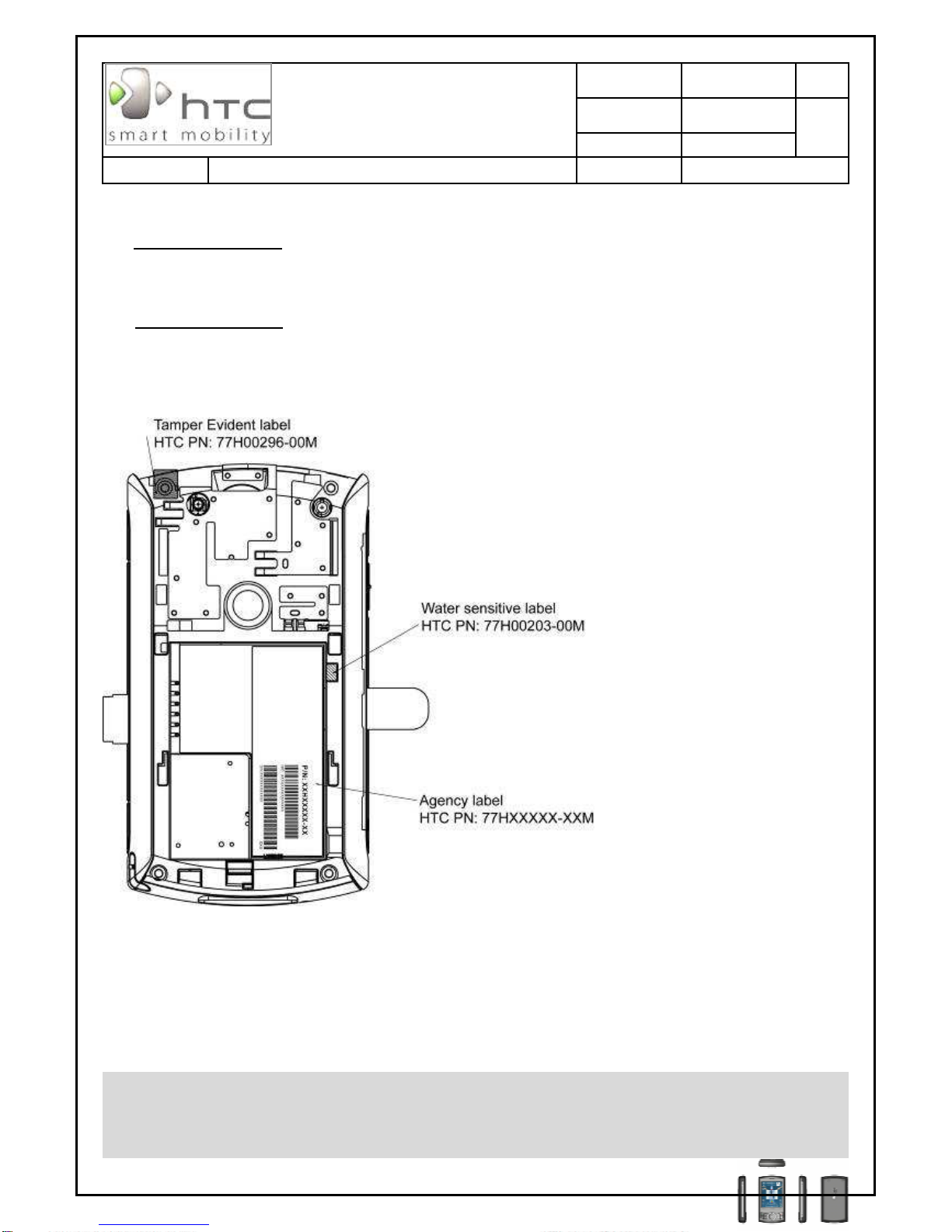

3.2 main label locations Explanation

Tamper evident label

HTC PN: 77H00296-00M

Size: 5.68X6.9mm

Water sensitive label

HTC PN: 77H00203-00M

Size: 2.5X4mm
