HSM Securio B22 Manuel utilisateur
SCHÖN SICHER.
BETRIEBSANLEITUNG
AKTENVERNICHTER
OPERATING INSTRUCTIONS
PAPER SHREDDER
NOTICE D‘UTILISATION
DESTRUCTEUR DE DOCUMENTS
MANUALE OPERATIVO
DISTRUGGIDOCUMENTI
INSTRUCCIONES DE SERVICIO
DESTRUCTORA DE DOCUMENTOS
INSTRUÇÕES DE OPERAÇÃO
DESTRUIDORA DE DOCUMENTOS
GEBRUIKSAANWIJZING
PAPIERVERNIETIGER
BRUGSVEJLEDNING
MAKULERINGSMASKINE
BRUKSANVISNING
DOKUMENTFÖRSTÖRARE
KÄYTTÖOHJE
PAPERINSILPPURI
BRUKSANVISNING
MAKULERINGSMASKIN
1.830.998.100 – 0804
http://www.monomachines.com
http://www.monomachines.com
....
deutsch: Aktenvernichter SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
english: Paper shredder SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
français: Destructeur de documents SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
italiano: Distruggidocumenti SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
español: Destructora de documentos SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
português: Destruidora de documentos SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
nederlands: Papiervernietiger SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
dansk: Makuleringsmaskine SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
svenska: Dokumentförstörare SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
suomi: Paperinsilppuri SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
norsk: Makuleringsmaskin SECURIO B22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
HSM (UK) Ltd.
14 Attwood Road / Zone 1
Burntwood Business Park
Burntwood
Staffordshire
WS7 3GJ
Tel. +44(0) 1543.272.480
Fax +44(0) 1543.272.080
www.hsmuk.co.uk
HSM of America LLC
1075 Andrew Drive, Suite C
West Chester
HSM GmbH + Co. KG PA 19380
Bahnhofstrasse 115
88682 Salem / Germany Tel. (610) 918-4894
(1200) 613-2110
Tel. +49 (0) 75 53 / 822-0 Fax (610) 918-4899
www.hsm.eu www.hsmofamerica.com
2 0804
http://www.monomachines.com
http://www.monomachines.com
english
The shredder is designed exclusively for de-
stroying paper. Depending on the cutting type, it
can also handle small quantities of the following
materials:
Shred width (mm) 3.9 5.8 1.9x15 3.9x30
Credit and charge cards ●●●●
CDs ●
Its sturdy drive mechanism is not damaged by
paper clips and staples.
The warranty period for the document shredder
is 2 years. In addition, there is a 10 year guar-
antee on the solid steel blade rollers. This war-
ranty and guarantee exclude wear and damage
caused by improper handling or actions taken
by third parties.

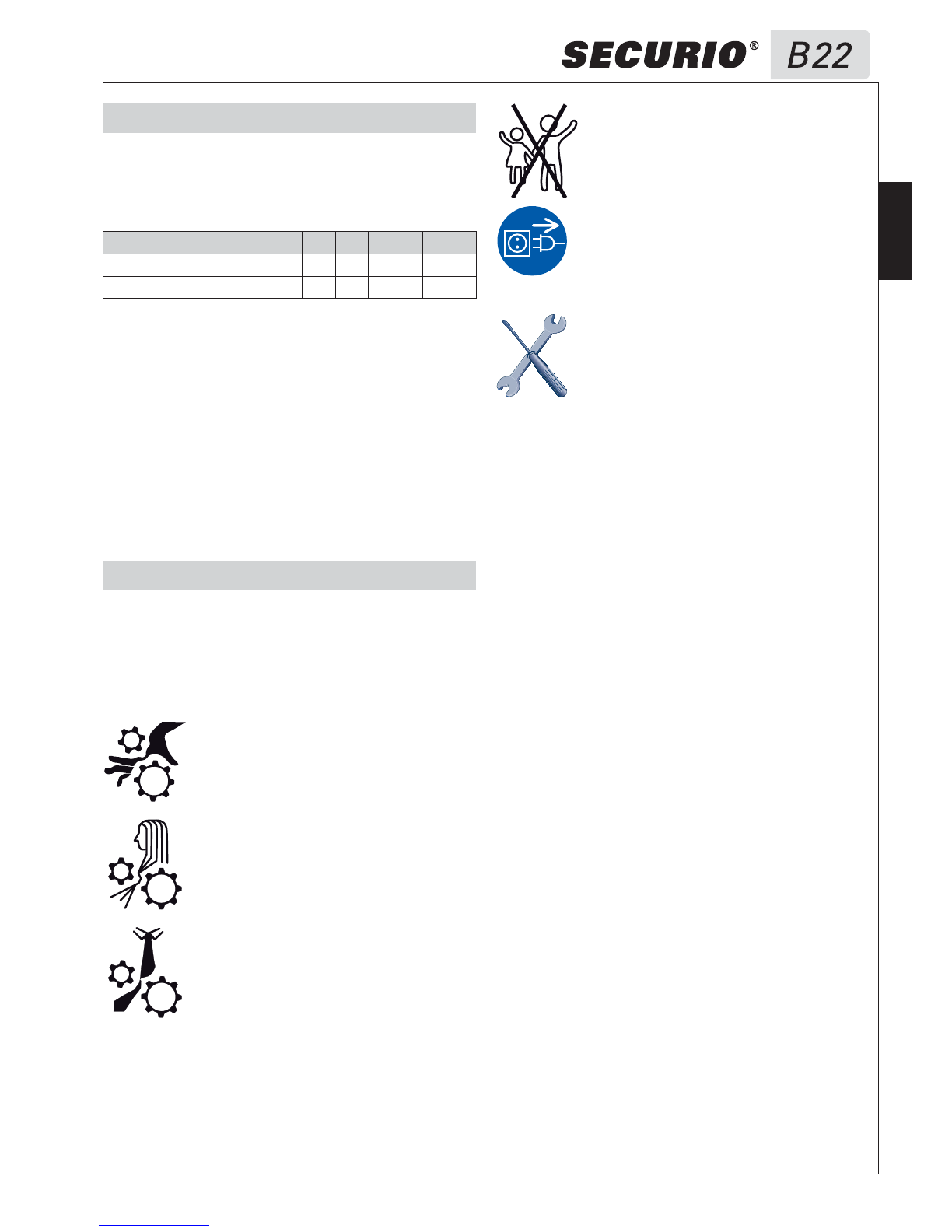

Keep paper shredder out of the
reach of children. Do not let the
shredder run if the person using it
is not present.
Switch the shredder off and dis-
connect it from the mains if it is
damaged, not working correctly or
before relocating or cleaning it.
Service work may only be carried
out by HSM Customer Service or
by the service technicians of our
contractual partners.
• Make sure the mains plug is easily accessi-
ble.
• Before plugging in the mains plug, check
that the voltage and frequency of your local
mains supply correspond to those stated on
the type plate.
• This paper shredder should never be placed
near or over a radiator or heat source. The
ventilation slots must not be blocked or cov-
ered and they must be at a distance of at
least 5 cm away from walls or furniture.
•
Make sure no liquid is spilled on or in the paper
shredder.
• Read the operating instructions before
switching on the document shredder. Save
these instructions for later use.
• Follow all warnings and instructions marked
on the product!
Risk of injury!
Do not reach into the paper feed
slot.
Risk of injury from being pulled
in!
Keep long hair, loose articles of
clothing, ties, scarves, jewellery,
etc. away from feed opening.
Material with the tendency to form
loops, e.g. tapes, strapping mate-
rial, etc. must not be shredded.
Danger of injury by splinters!
Wear protective goggles when
destroying CDs and hard credit
cards.
1 Proper use, warranty
2 Safety instructions
Translation of the original operating instructions
0804 7
http://www.monomachines.com
http://www.monomachines.com
h
english

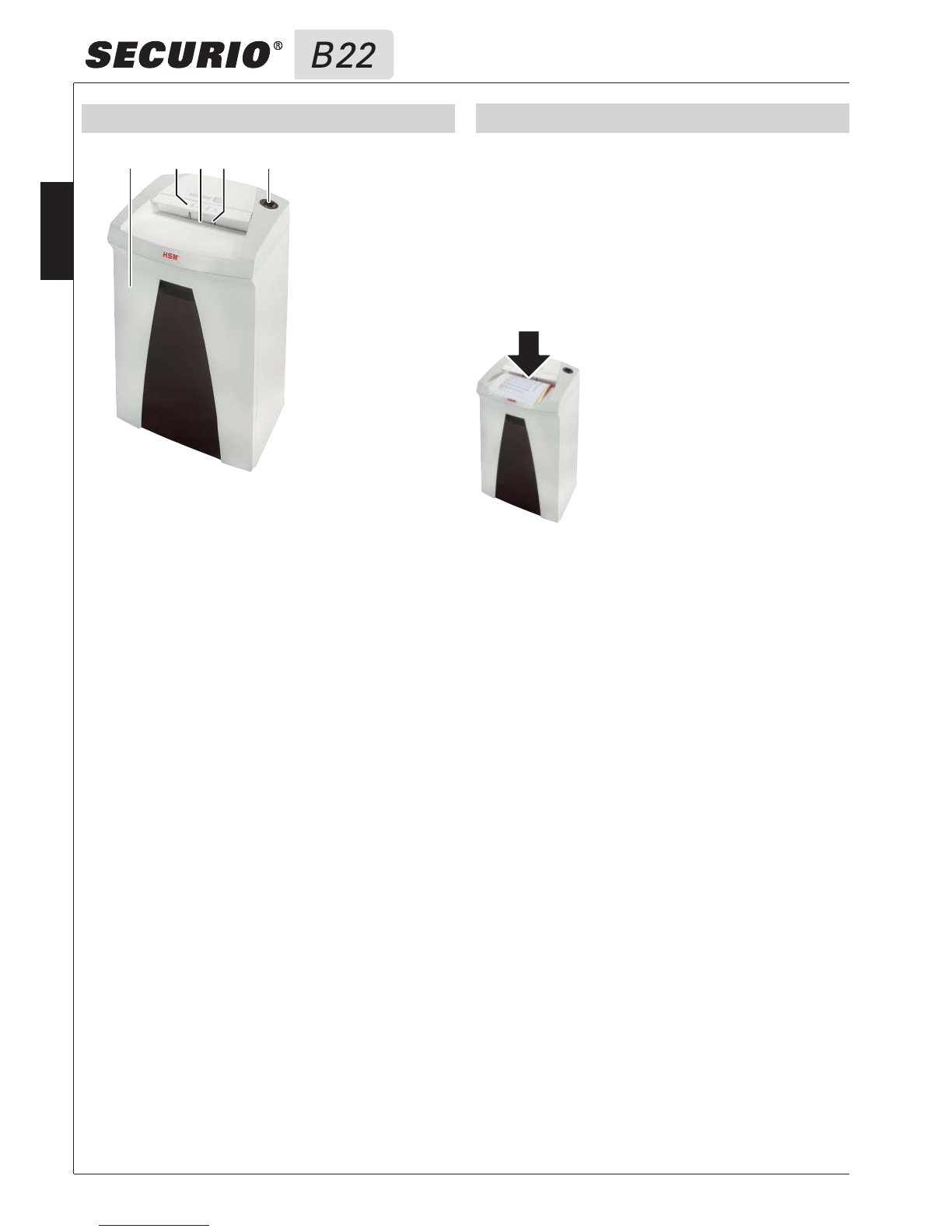

3 Machine components
1 2 3 4 5
1 Cut material container
2 Safety instructions
3 Paper feeding opening
4 Automatic start stop control
5 Rocker switch
I: On
R: Off, Reverse
4 Operation
Switching the paper shredder on
• Press rocker switch „I“.
Rocker switch locks in place.
hPaper shredder is ready for op-
eration (standby).
Feed paper
• Insert the paper to be destroyed.
See “Technical data” for sheet
capacity.
hAutomatic start stop control
starts the cutting system auto-
matically.
hPaper is pulled into cutting
system and shredded.
hWhen the paper feeding open-
ing is free again, the cutting sy-
stem automatically switches off
after approx. 3 sec. and returns
to standby.
Switching paper shredder off
• Tap rocker switch „R“.
hSwitch returns to zero position.
8 0804
http://www.monomachines.com
http://www.monomachines.com
0804 9
Paper jam
You have fed in too much paper.
NOTICE! Do not press rocker switch alter-
nately forwards/backwards („I“
-
„R“).
Cutting unit could be damaged.
• Press rocker switch „R“.
h Paper is pushed out.
• Separate paper stack.
• Press rocker switch „I“.
• Feed in paper sheets.
Shredded material container full
NOTICE!
Empty the cut material container
immediately, because if it is too full,
malfunctions can occur in the cutting
system.
• Switch equipment off. To do this tap
rocker switch „R“.
• Empty cut material container.
Shredded material container contact
interrupted
hDocument shredder switches off.
• Check whether shredded material
container is correctly inserted in bot-
tom frame.
For all other malfunctions, check whether the
motor was overloaded before contacting our
customer service. Let the shredder cool down
for approx. 15 – 20 mins. before using it again.
5 Troubleshooting
Switch off the shredder and pull out the mains
plug. When cleaning only use a soft cloth and
a mild soap-water solution. However, no water
must enter the equipment.
Oil the cutting unit when
cutting performance de-
creases or the device be-
comes noisy, or every time
you empty the waste con-
tainer (Cross cut only):
• Spray special cutting apparatus oil on to the
cutting rollers along the entire width of the
paper feed opening.
• Run cutting system backwards (pos. “R”)
without feeding paper.
hPaper dust and particles are shaken off.
Note:
Oiling the cutting unit also improves the cutting
performance of devices with strip cut.
6 Cleaning and maintenance
english
http://www.monomachines.com
http://www.monomachines.com
english
8 Technical data
EC Declaration of Conformity
Machinery directive 98 / 37 / EC
EMC directive 2004 / 108 / EC
Low voltage directive 2006 / 95 / EEC
The manufacturer HSM GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem, Germany declares herewith, that the
paper shredder SECURIO B22 corresponds with the above mentioned EC Machine Directive including all relevant
modifications.
Applied standards and technical specifications:
• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001
• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001
• EN 61000-3-2:2000 + A2:2005 • EN 61000-4-6:1996 + A1:2001
• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001
• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2006
• EN 294:1992
Salem, 02.11.2007
Rolf Gasteier - Technical Manager
Cutting type Strip cut Cross cut
Cut size (mm) 5.8 3.9 3.9 x 30 1.9 x 15
Security level DIN 32757 - 1 2 2 3 4
Cutting capacity (sheets), A4 70 g/m2
80 g/m2
22 - 24
17 - 19
16 - 18
13 - 15
12 - 14
9 - 11
9 - 11
7 - 9
Cutting speed 80 mm/s 90 mm/s
Weight 11 kg 12 kg
Intake width 240 mm
Power supply 230 V, 50 Hz
100 V, 50/60 Hz – 115 V, 60 Hz
Power consumption with max. number of sheets 440 W
Size W x D x H (mm) 375 x 310 x 600
Shredded material container volume 33 l
Noise level (Idle running/ load) 57 dB(A) / 59 dB(A)
• Paper shredder, ready for connection, in car-
ton packing
• 5 Bags for shredded material
• Special cutting block oil 50 ml (cross cut)
• Operating instructions
7 Scope of delivery Accessories:
• Bag for shredded material
order No.: 1.661.995.050
• Special cutting block oil 250 ml
order No.: 1.235.997.403
10 0804
http://www.monomachines.com
http://www.monomachines.com
