HSM Powerline FA 400.2 Manuel utilisateur
OPERATINGMANUAL
SHREDDER
HSM FA 400.2
geprüfte
Sicherheit
B
G
-
P
R
Ü
F
Z
E
R
T
Keep in a safe place for future use! 1.513.999.111 – 2004-12
english
HSM FA 400.2 Shredder
22004-12
Contents
1. Properuse,warranty............................................................................................... 3
2. Safety instructions .................................................................................................. 3
3. Overview................................................................................................................. 4
4. Dimensions............................................................................................................. 5
5. Transportation, installation...................................................................................... 6
6. Operatorcontrols .................................................................................................... 7
7. Start-up, inspecting the safety devices.................................................................... 8
8. Malfunctions ......................................................................................................... 11
9. Maintenance and care .......................................................................................... 12
10. Scope of supply, accessories ............................................................................... 14
11. Technical data....................................................................................................... 14
12. Electric wiring diagrams for Solo- and Combination-version ................................ 15
HSM Pressen GmbH + Co. KG
Bahnhofstraße 115
D-88682 Salem
Germany
Tel.: +49 (0) 75 53 / 822-0
Fax.: +49 (0) 75 53 / 822-160
E-Mail: [email protected]
www.hsm-online.de
HSM of America LLC
1075 Andrew Drive
Suite C
West Chester, PA 19380
USA
Phone: 001 610 918 4894
Fax: 001 610 918 4899
E-mail: [email protected]
www.hsmofamerica.com
Shredder HSM FA 400.2
2004-12 3

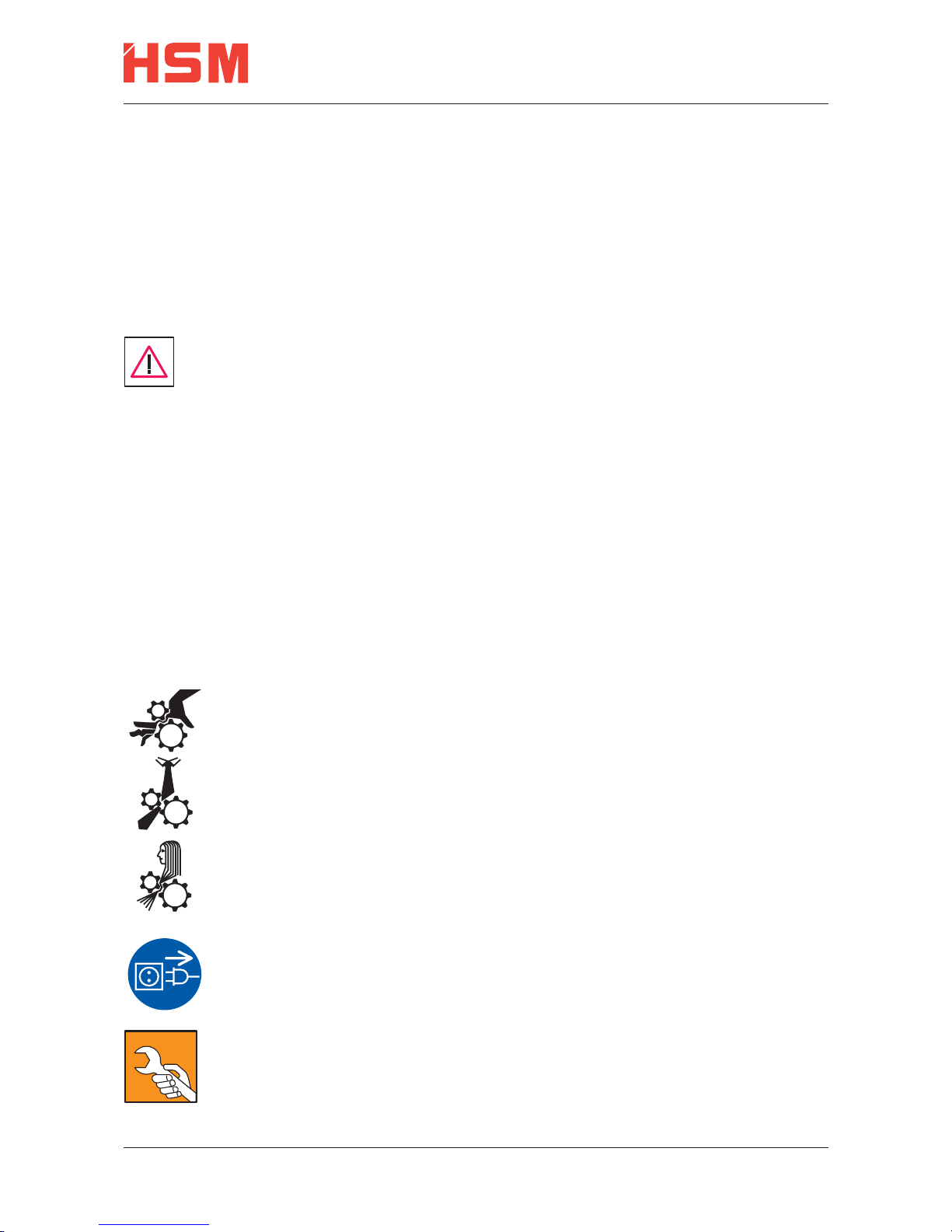

Danger of injury
Do not reach into the paper feed opening.
Splinterscancauseinjury
Before destroying credit cards and store cards, CD-ROMs or floppy disks, you must
fitasplinter guard (stripcurtain,order no. 1.513.050.445).
Danger of injury during intake
Do not go near the paper feed opening with long hair, loose clothing, ties, scarves,
necklaces, bracelets etc.
Do not destroy any material which might become tangled, such as tapes, binder ties
or foil.
Switch off the shredder and pull out the power plug
before moving or cleaning the shredder, or any other task outside its normal scope
of use.
Maintenance and service tasks may only be performed by:
• HSM customer service
• Trained specialist staff (such as electricians)
• Service engineers of our dealers
1. Proper use, warranty
The shredder is exclusively designed for destroying paper and cardboard, as well as small quantities of
store card, credit cards, CD-ROMs and floppy disks. Its sturdy drive mechanism is not damaged by
paper clips and staples.
We provide a warranty for the device in accordance with our general sales and delivery terms. This
warranty excludes wear, damage due to improper handling, natural depreciation, and actions taken by
third parties.
2. Safety instructions
Caution:
It is prohibited to operate one only machine of a combination-version machine. Only the
combination of document shredder and HSM baling press fulfits the requirements of EN 294.
•Read the operating manual before starting up the shredder.
•Do not remove or modify safety devices which guarantee the safe operation of the machine.
•Observe all safety instructions attached to the machine.
•Theshredder may not be operated by anyone under 16 years of age.
•Only open the front door once the machine has come to a standstill.
•Carryoutinspectionandmaintenanceregularly.
•Switch off the shredder, disconnect the power plug and call customer service in the following
circumstances:
-Powercablesorplugsaredamaged
-Liquidhasenteredtheshredder
-Theshredderhasbeen exposed to rain
-Themachinedoesnotworkproperlydespite the operating manual having beenobserved
-Theshredderhasbeendamaged
HSM FA 400.2 Shredder
42004-12

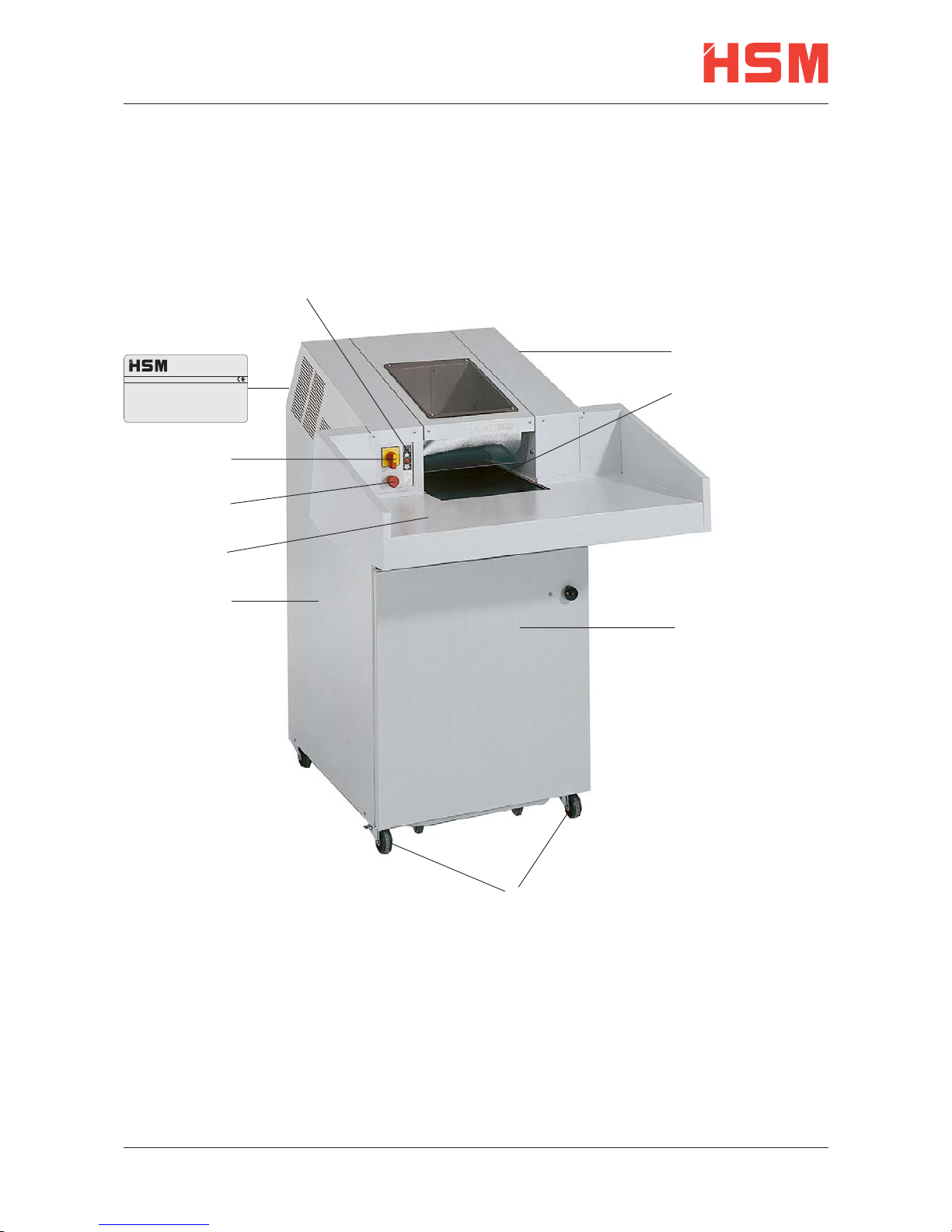

3. Overview
1
7
9
10
HSM Pressen GmbH+Co.KG
Bürotechnik • Austrasse 1
88699 Frickingen/Germany
Schnittbreite Baujahr
Spannung
Leistung
NennstromMasch.-Nr.
Modell
Made in Germany
Seriennummer
4
8
3
2
1Main switch (only solo-version)
2Keypad
3Emergencystopbutton
4Loadingtray
5Leftcover panel
6Right cover panel
7Intake conveyor,
paper feed opening
8Front door
9Braking swivel castors
10 Nameplate
5
6
Shredder HSM FA 400.2
2004-12 5

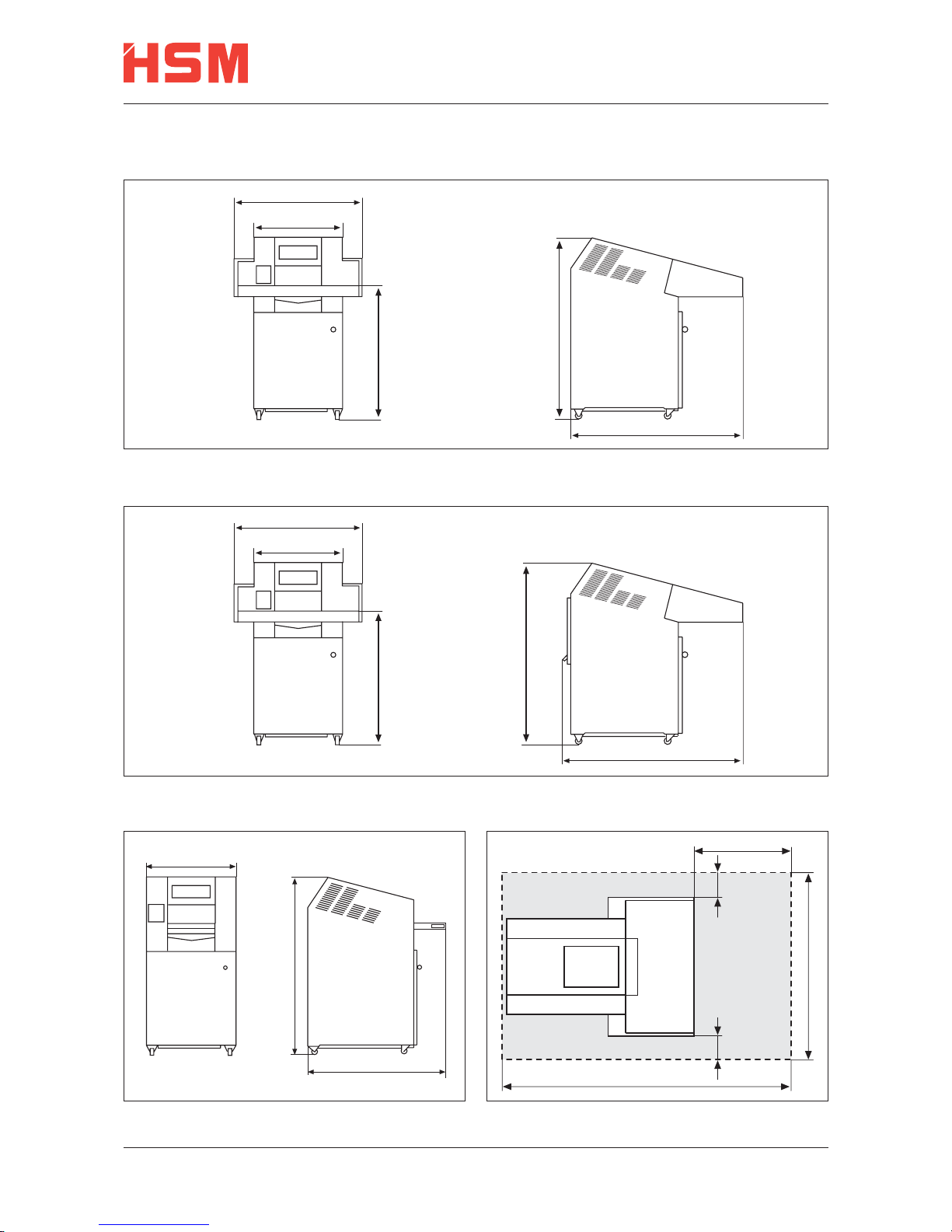

4.Dimensions
Transportation dimensions (without tray) Space requirements for operation and
maintenance
1564
1646
1208
804
1157
HSM FA 400.2 Combi version
HSM FA 400.2 Solo version
1644
1646
1208
804
1157
804
1262
1646
800
200
1557
200
2414
HSM FA 400.2 Shredder
62004-12

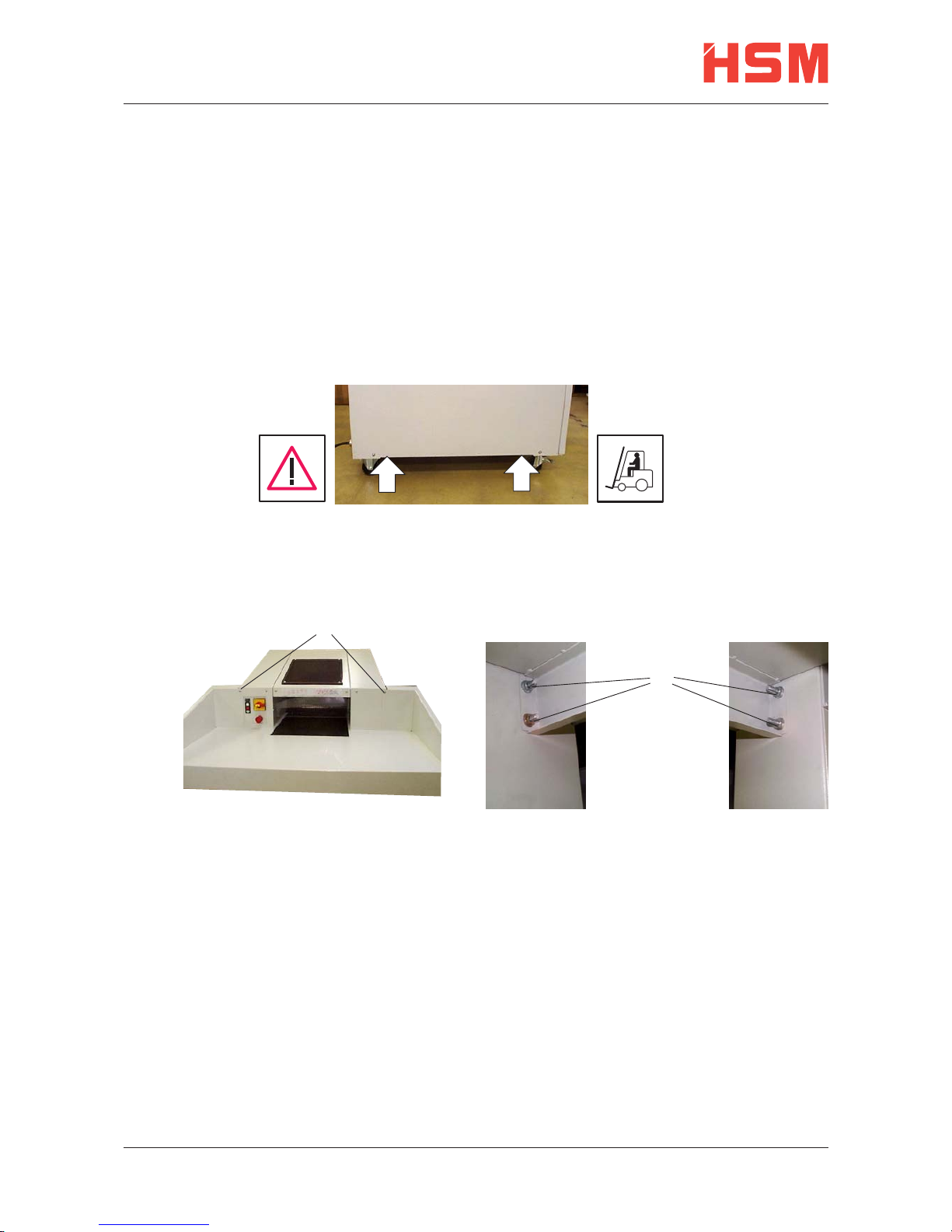

5. Transportation,installation
•Place the shredder in its packaging on a smooth, level surface.
•Remove the packaging.
•If you need to move the shredder through narrow doors, you can wait until it is at its final location before
fitting the loading tray. Without the tray, the machine is only 805 mm wide.
•When moving the shredder, note that it may topple over.
•The shredder can be moved on its rollers.
If using a forklift to transport a Solo machine, you must first remove the waste trolley. Then you can
push the forks under the machine from the left or right side and lift it up.
•The shredder may only be placed in dry rooms on a hard, level floor – not on carpets. The floor load on
each roller is approximately 107 kg.
•Place the machine in such a way that the power plug is easily accessible and the ventilation slots are
free.
•Solomachine:
- Lock the front castors by pressing down the brake lever.
- Connect the power plug of the shredder to the 32A CEE mains socket.
•Combinationversion:
- Push the shredder up to the baling press until the press and the outlet chute of the shredder touch.
- Bolt the shredder and the baling press together.
- Lock the front castors by pressing down the brake lever.
- Connect the power plug of the shredder to the combination socket of the baling press.
1
2
•Fitting the loading tray:
Fasten the tray on both sides at the top with the Phillips screws (1) and at the bottom with the 2 nuts (2).
Shredder HSM FA 400.2
2004-12 7

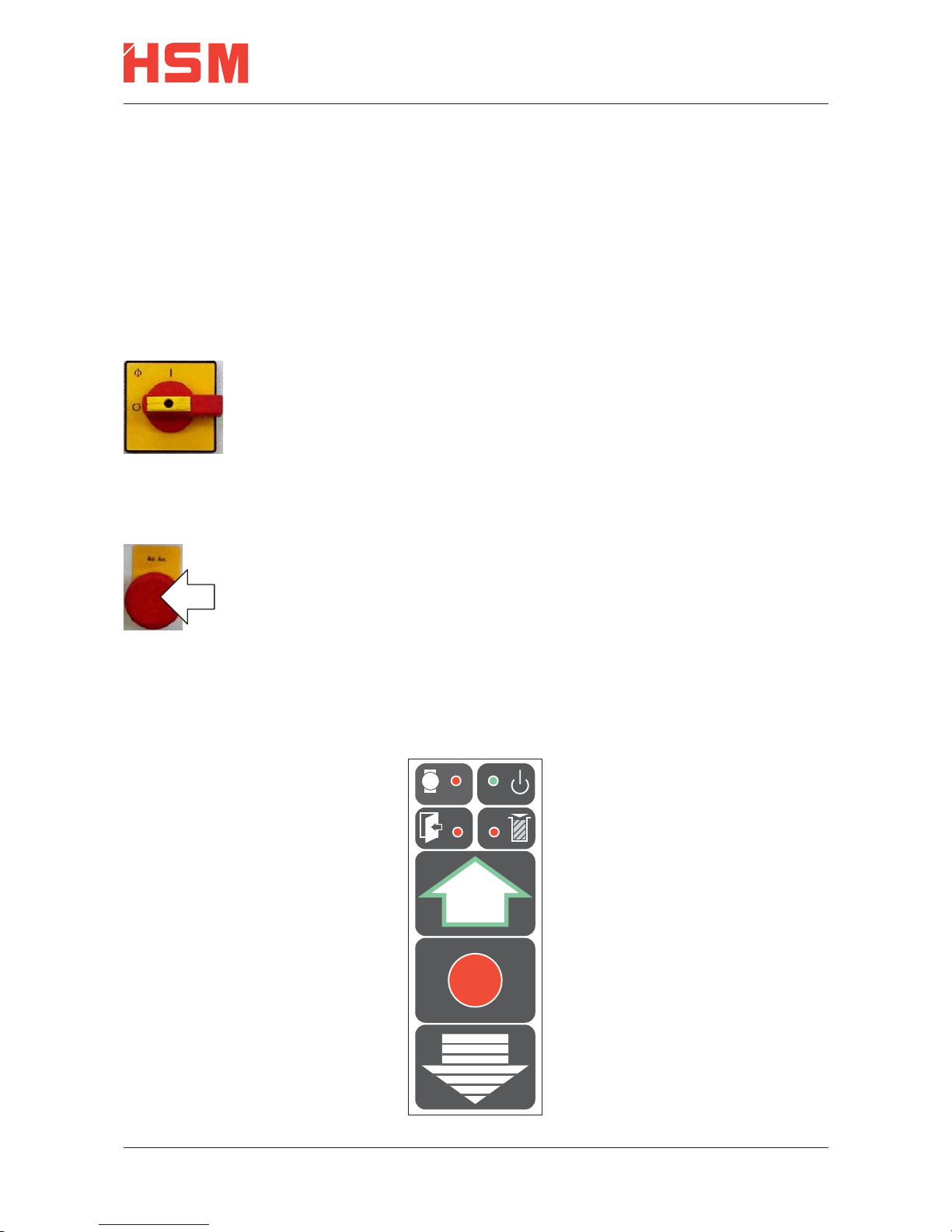

6. Operator controls
Main switch (only Solo-version)
In the "0" position, the shredder is switched off. The main switch can be secured with
a padlock.
In the "I" position, the machine is ready for operation.
Emergency stop button
In the event of danger, press the emergency stop button immediately!
This switches off the shredder, and stops the cutting block and feed belt.
Ready for operation
GreenLED
Waste bag full
Red LED
Startbutton
The shredder switches on.
The feed belt moves in the intake
direction.
Stopbutton
The cutting block and feed belt stop.
The shredder is in standby mode.
Reversebutton
The cutting block and feed belt run in
reverse.
Paper jam or overload
Red LED
Door open
Red LED
Keypad
•The machine must be connected to a power source which meets the specifications on the nameplate.
•Make sure the power cable is unobstructed and that nobody can tread on it.
•No platforms or other raised surfaces may be placed near the shredder if they encroach on the specified
safety clearances.
HSM FA 400.2 Shredder
82004-12
Switching on the shredder
•Pull out the emergency stop button.
•Solo-version: Turn the main switch to the Iposition.
Combination-version: Turn the main switch on the baling press to the Iposition.
➪The green "Ready for operation" LED lights up
Note
There is a safety switch on the front door of the shredder.
The machine can only be switched on when the door is shut.
•Press the green start button.
➪The cutting block and feed belt start up
Caution!
The feed belt can run in reverse if the phase wires in the power plug are incorrectly connected.
Turn off the main switch immediately and pull out the power plug!
Have an electrician change two of the three phase wires.
0
I
I
7. Start-up,inspectingthesafetydevices

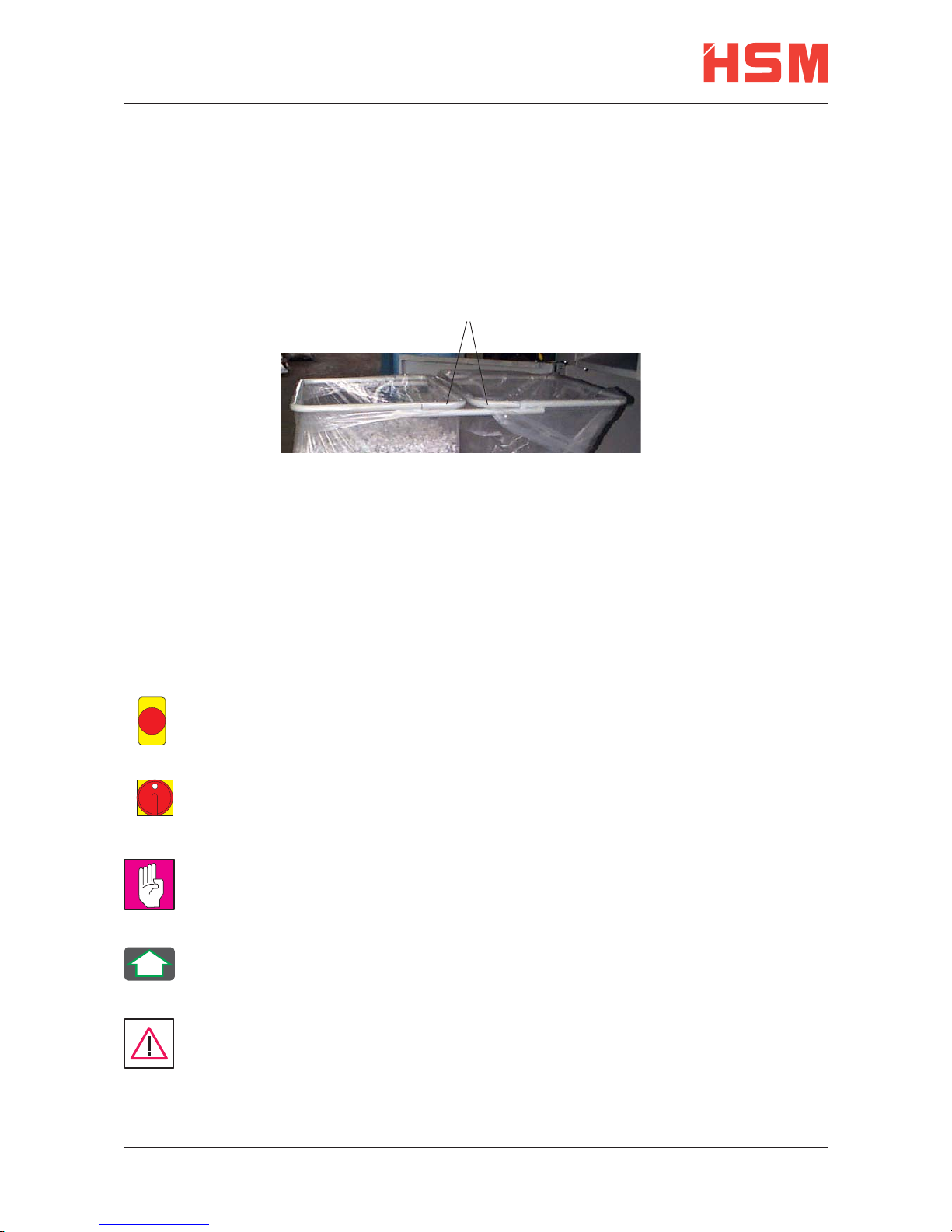

Attaching the waste bag (Solo version)
•Open the front door and pull out the waste trolley.
•You can modify the trolley from a double-chamber to a single-chamber system by removing the
brackets(1).
•Put in a new waste bag and fold it approximately 20 cm over the top frame tube. When using a two-
chamber system, make sure that there is also around 20 cm of plastic foil below the brackets (1).
•Push in the waste trolley and close the front door.
1
Shredder HSM FA 400.2
2004-12 9

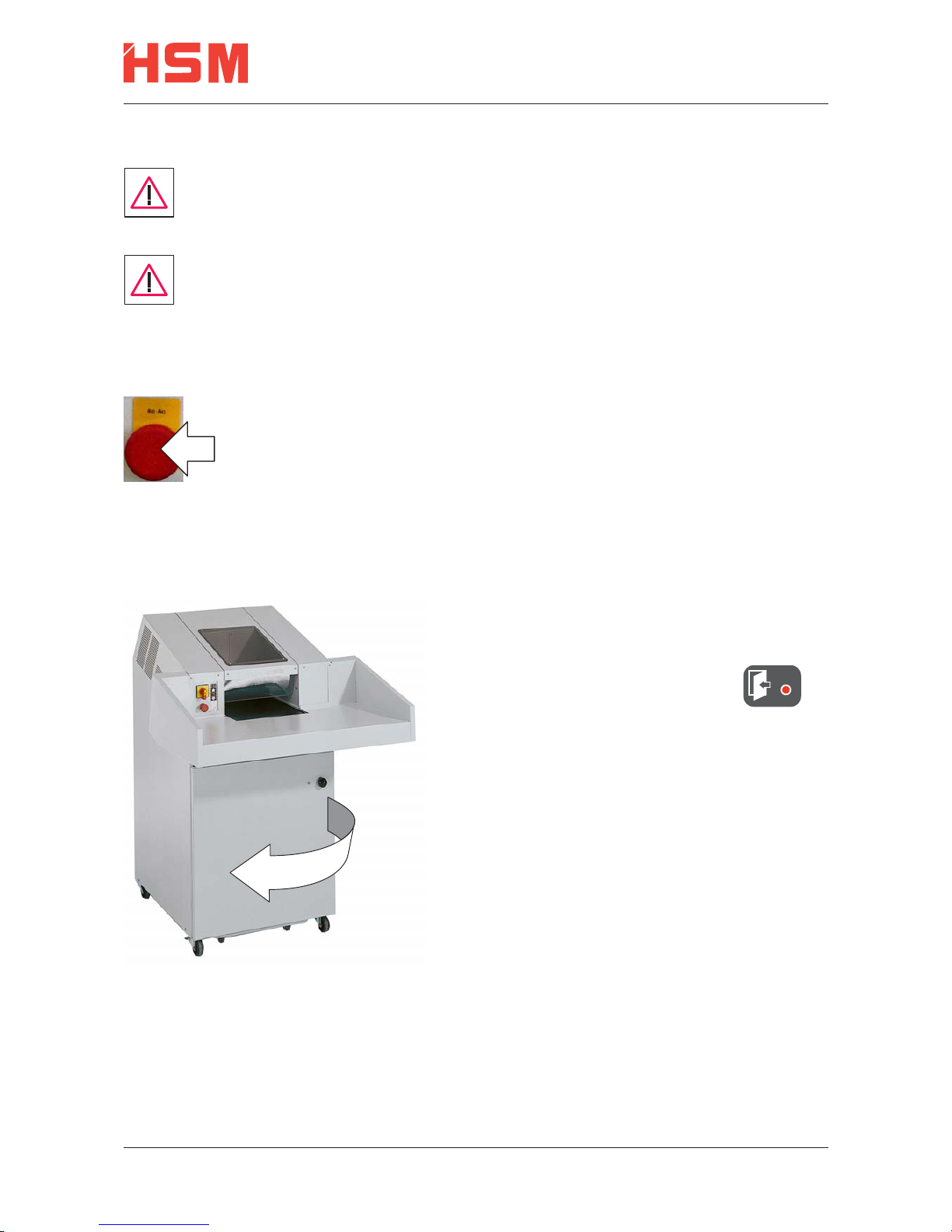

Inspecting the safety devices
Check that the safety devices are working properly:
• At the start of each shift if the machine is not operated continuously
• At least once a week if the machine is operated continuously
• After any maintenance or repair work
Do not start the machine until you have checked the emergency stop button and the door switch
and found them to be in perfect working order. If any defect arises during operation stop the
machine immediately and make sure it is corrected.
Checking the emergency stop button
Press the emergency stop button while the machine is running.
The shredder must switch off immediately. The cutting block and the feed belt must stop.
The machine will only start again once you have pulled out the emergency stop button
again.
Inspecting the door switch
Openthefrontdoor.
The red "door open" LED must light up.
The cutting block and feed belt
must stop.
After you close the door, the LED should go out and
you can start the machine again by pressing the start
button.
HSM FA 400.2 Shredder
10 2004-12

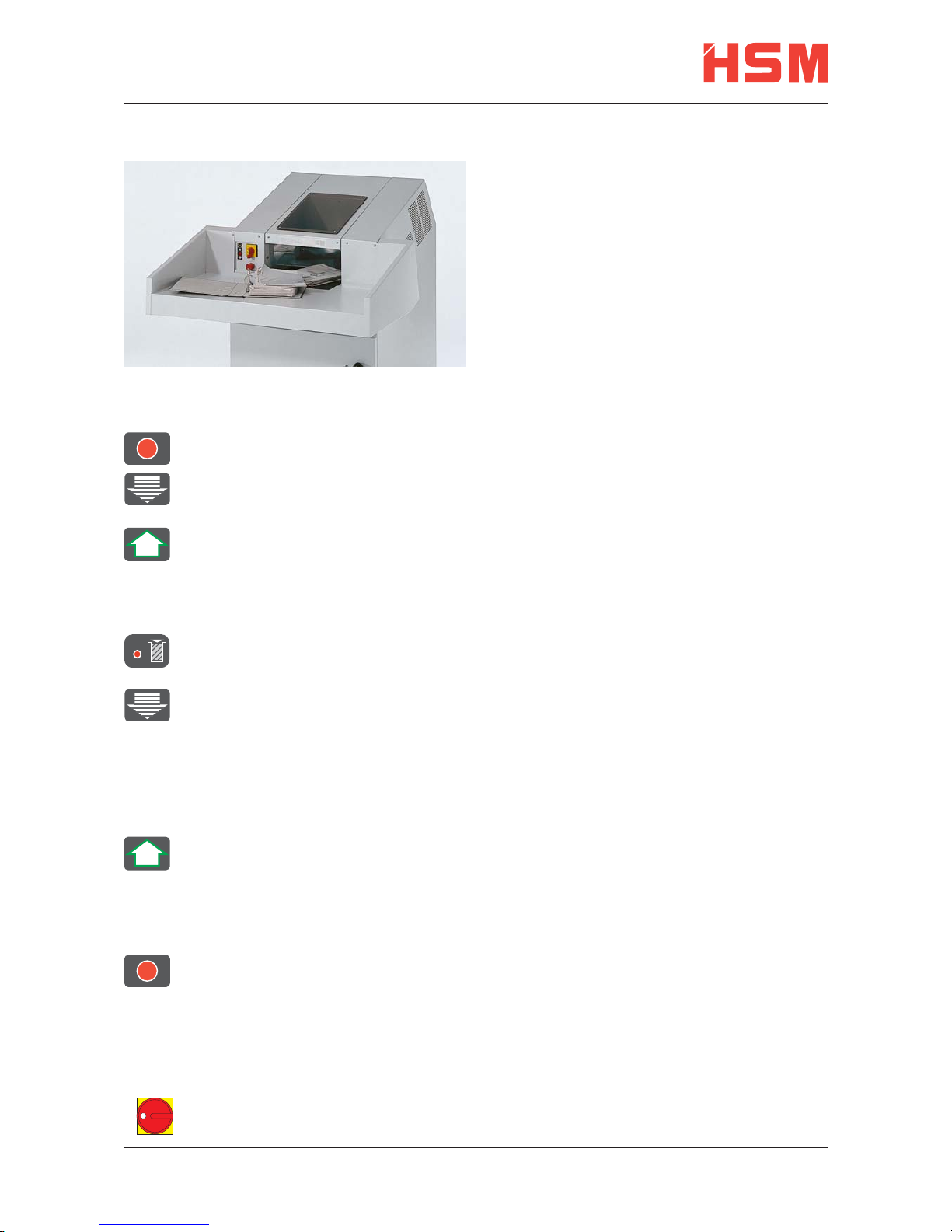

Place the material to be shredded on the loading
tray and then place batches on the feed belt.
If material that is not supposed to be shredded is mistakenly placed onto the belt, never attempt to
pull it out
•Press the stop button.
➪The drive stops.
•Press the reverse button.
➪The cutting block and feed belt run in reverse.
•You can now remove the material from the belt and start the shredder again by pressing the start
button.
Waste bag full
➪The red LED on the keypad lights up.
➪The shredder switches off automatically.
•
Press the reverse button for approx. 3 seconds.
➪ Part of the material is pulled back into the apparatus.
•Open the front door and shake the waste trolley
➪The cut material spreads in the cut material sack and does not fall into the interior of the
shredder.
•Pull the waste trolley out and change the cut material sack.
•Push the trolley back in and start the shredder again by pressing the green start button.
Stopping the shredder
•Press the stop button.
➪The cutting block and feed belt stop.
➪The shredder switches to standby mode.
Switching off the shredder
•Turn the main switch on the paper shredder or the baling press to 0.
You can secure the main switch in this position using a padlock.
Shredding material
0
I
0
Autres manuels pour Powerline FA 400.2
2
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels HSM destructeur de papier
HSM
HSM Powerline HDS 150 Manuel utilisateur
HSM
HSM securio P36 Manuel utilisateur
HSM
HSM Shredstar Multishred One-4-all Manuel utilisateur
HSM
HSM 386.2 Manuel utilisateur
HSM
HSM securio C18 Manuel utilisateur
HSM
HSM shredstar x10 Manuel utilisateur
HSM
HSM Powerline 450.2 Manuel utilisateur
HSM
HSM shredstar x10 Manuel utilisateur
HSM
HSM Powerline 450.2 Manuel utilisateur
HSM
HSM HSM-1850 Manuel utilisateur
HSM
HSM 125.2 Manuel utilisateur
HSM
HSM Shredstar S10SC Manuel utilisateur
HSM
HSM SP 5080 Manuel utilisateur
HSM
HSM HSM1785 Manuel utilisateur
HSM
HSM 105.3 Manuel utilisateur
HSM
HSM Securio B24 Manuel utilisateur
HSM
HSM 105.2HS-L5 Manuel utilisateur
HSM
HSM securio C18 Manuel utilisateur
HSM
HSM SECURIO Auto Feed 150C Manuel utilisateur
HSM
HSM Classic 102.2 Manuel utilisateur
Manuels destructeur de papier populaires d'autres marques
Swingline
Swingline STACK-AND-SHRED200X&200XL 60X Mode d’emploi
GBC
GBC ShredMaster CC055 Manuel utilisateur
UNITED OFFICE
UNITED OFFICE UAV 190 A1 Manuel utilisateur
UNITED OFFICE
UNITED OFFICE UAV 190 A1 Manuel utilisateur
Rexel
Rexel Optimum AutoFeed+ 45X Manuel utilisateur
Martin Yale
Martin Yale 227284S1 Manuel utilisateur
