INSTRUCTION MANUAL FOR GT36A CONNECTOR

COUNT

DESCRIPTION OF REVISIONS

DESIGNED

CHECKED

DATE

DIS-T-00004327

HK.WATANABE

MO.OKADA

20190311

名称TITLE

INSTRUCTION MANUAL FOR GT36A CONNECTOR

APPROVED

KI.HIROKAWA

20171128

CHECKED

KI.HIROKAWA

20171128

DESIGNED

KJ.OBINATA

20171128

WRITTEN

KJ.OBINATA

20171128

TECHNICAL SPECIFICATION

ETAD-T0401-01

1/ 7

FORM HC0011-9-1

HIROSE ELECTRIC CO.,LTD.

△

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

2/ 7

FORM HC0011-9-2

△

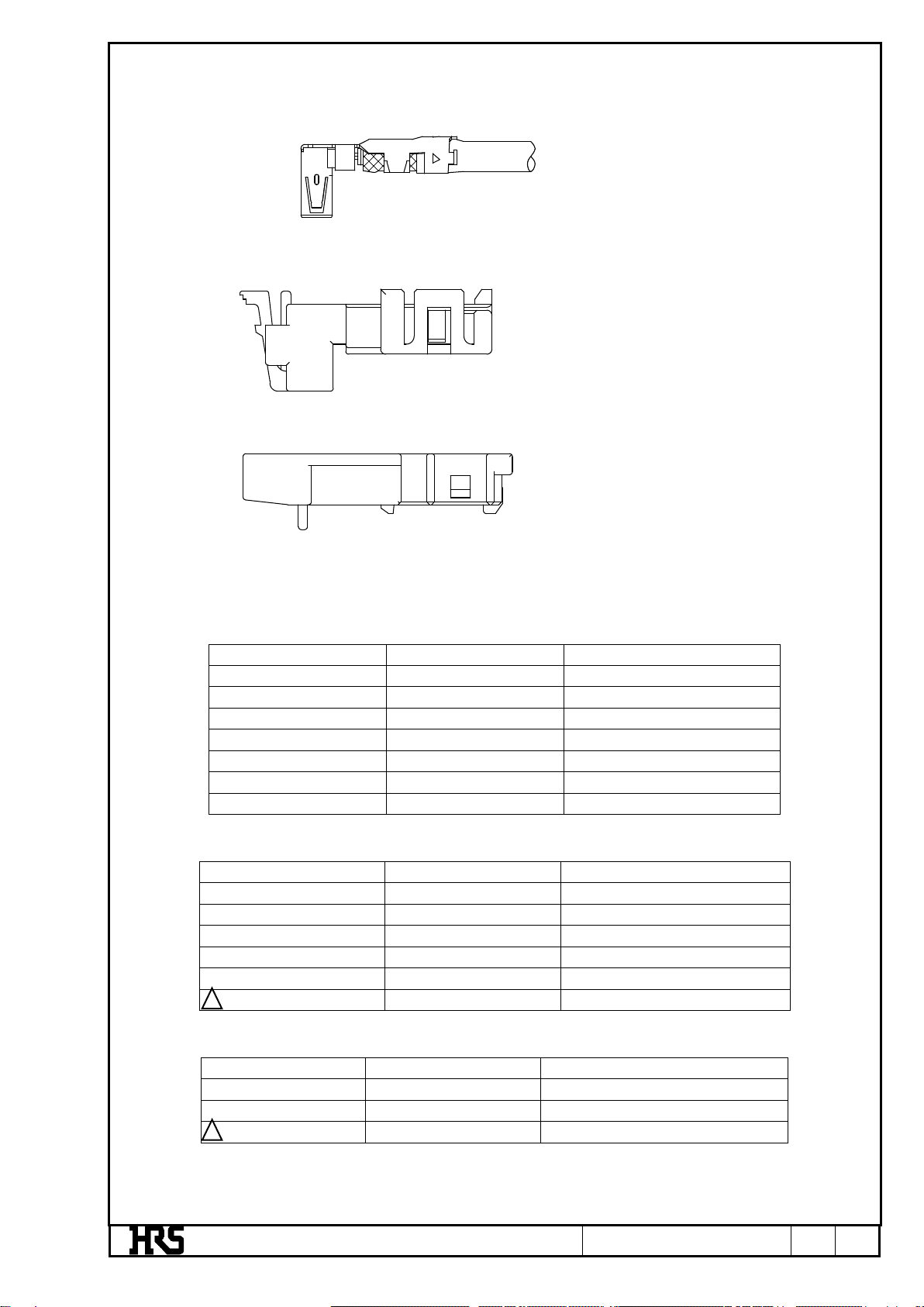

1. Names of Parts

GT36 Female terminal

GT36A Female housing

GT36A Cover

2. Construction of Parts

GT36 Female terminal

Hirose part name

Hirose part number

Remarks

GT36-2022SCF

CL786-0002-0-00

For 2.5D

GT36A-2022SCF

CL786-0028-3-00

For 2.5D

GT36-2428SCF

CL786-0001-7-00

For 1.5D

GT36-1.6-2.9SCF

CL786-0003-2-00

For 1.5D

GT36-3.3-3.8SCF

CL786-0005-8-00

For 2.5D

GT36G-1.6-2.9SCF

CL786-0025-5-00

For 1.5D foaming (ETC)

GT16G-1.5DHQS(L)

CL766-0111-0-00

For 1.5D foaming (ETC)

GT36A Female housing

Hirose part name

Hirose part number

Remarks

GT36A-4S-HU(A)

CL786-0030-5-00

1.5D: three, ETC/2.5D: one

GT36A-4S-HU(B)

CL786-0031-8-00

1.5D: three, ETC/2.5D: one

GT36A-4S-HU(C)

CL786-0032-0-00

1.5D: three, ETC/2.5D: one

GT36A2-4S-HU(D)

CL786-0024-2-00

1.5D: two, ETC/2.5D: two

GT36A-4S-HU(D)

CL786-0043-0-00

1.5D: three, ETC/2.5D: one

GT36A3-4S-HU(B)

CL786-0117-0-00

1.5D: three, ETC/2.5D: one

GT36A Cover

Hirose part name

Hirose part number

Remarks

GT36A-4S-CV

CL786-0023-0-00

1.5D: three, ETC/2.5D: one

GT36A2-4S-CV

CL786-0034-6-00

1.5D: two, ETC/2.5D: two

GT36A3-4S-CV

CL786-0118-0-00

1.5D: three, ETC/2.5D: one

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

3/ 7

FORM HC0011-9-2

△

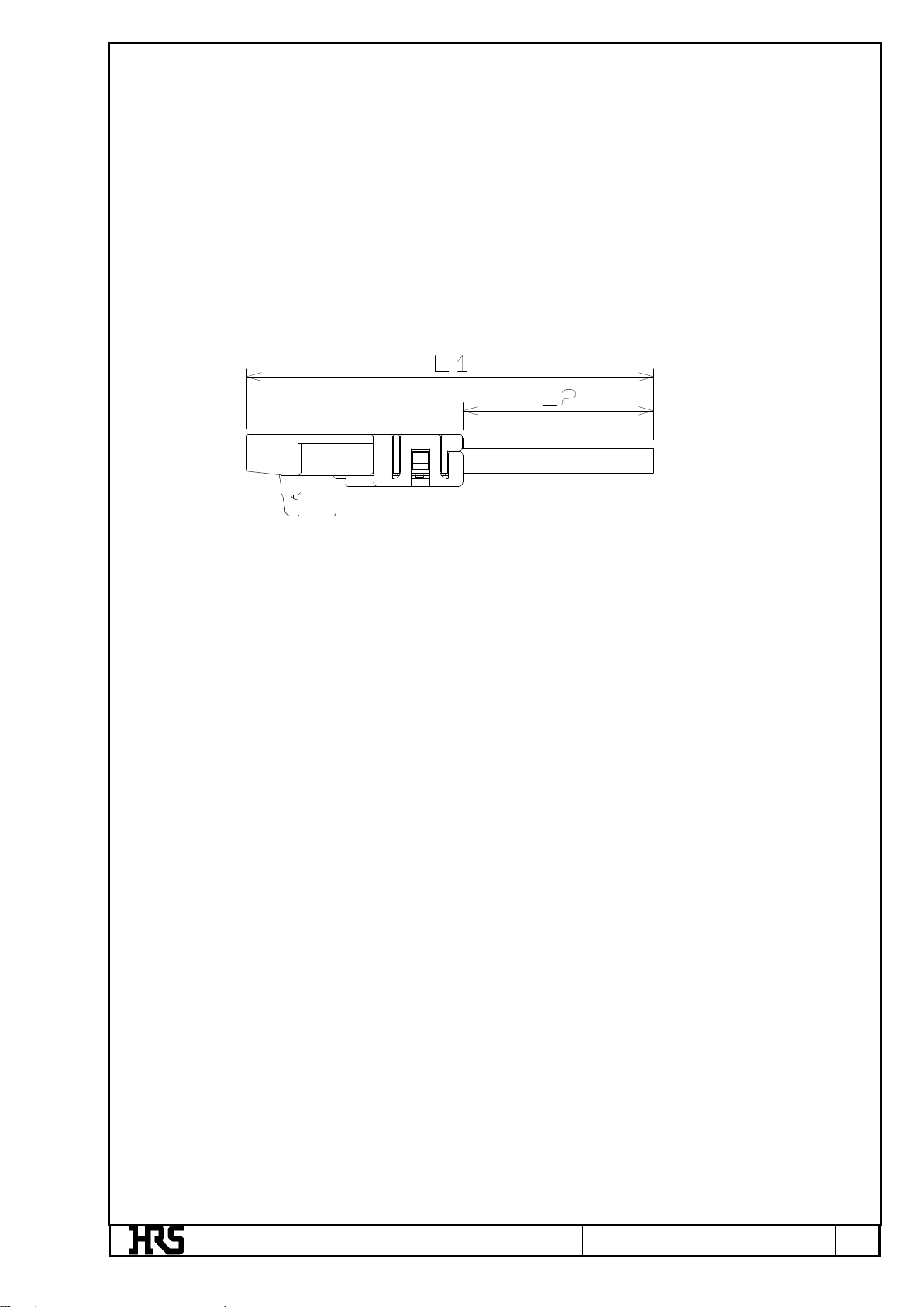

3. Harness Work

(1) Cutting cable

Cut the cable according to the specified harness length.

See below for the dimension L after wiring and the cable cutting length.

Cable cutting length：Ｌ１－９．６

Ｌ２＋１７．５

(2)Crimping terminals

Refer to the terminal instruction manual for the terminal crimping procedures and crimping

quality standards. (ETAD-T0392-01、ETAD-T0400-01)

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

4/ 7

FORM HC0011-9-2

△

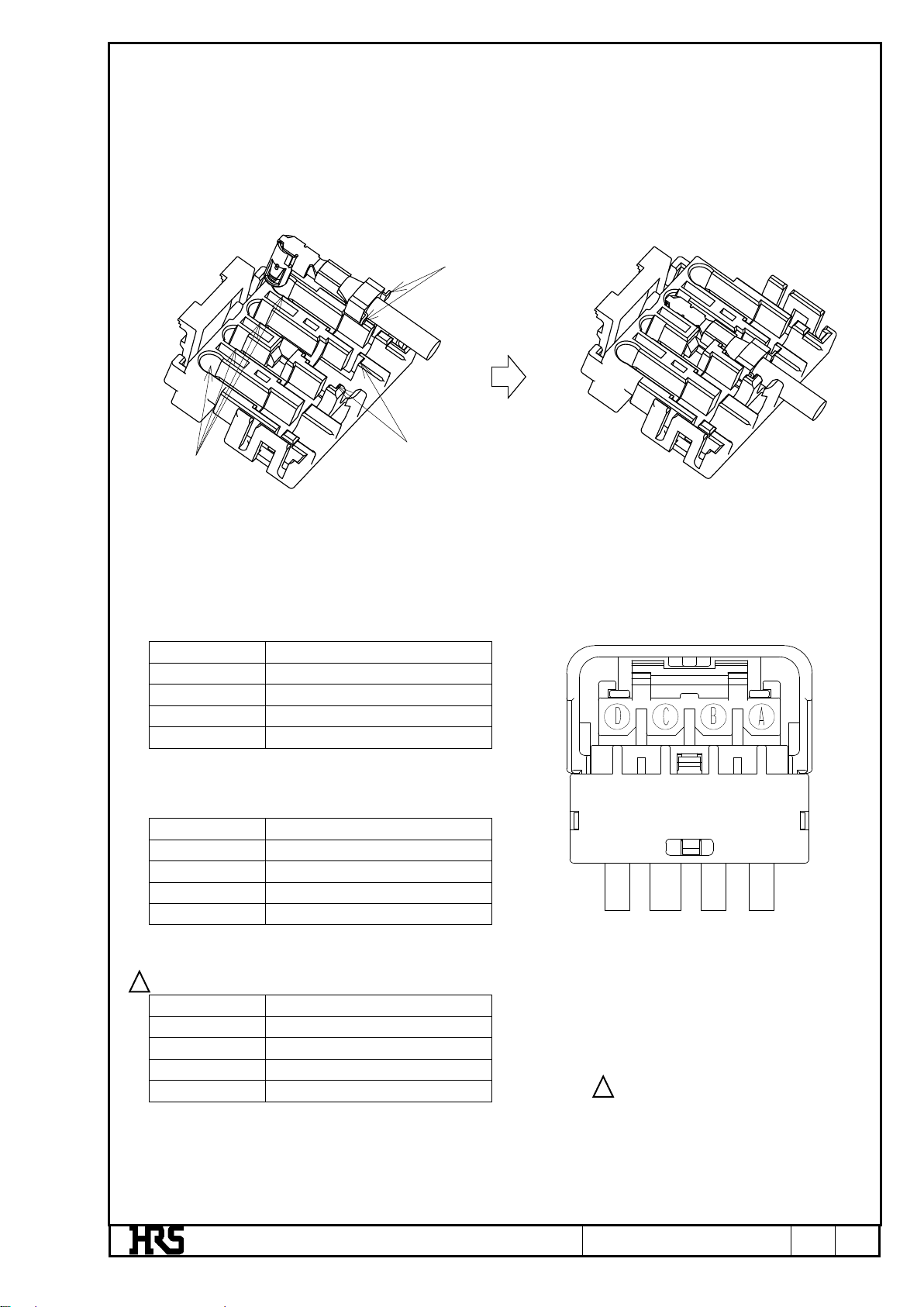

(3) Inserting crimped terminals into housings

①Insert a crimped GT36 female terminal along the terminal insertion hole into the housing to the

end. After insertion, check if the terminal engagement is inserted into the housing engagement.

* Coaxial cables and available cavities

GT36A-4S-HU(*)×GT36A-4S-CV

Cavities

Coaxial cables

1.5D

1.5D foaming (ETC)/2.5D

1.5D

GT36A2-4S-HU(*)×GT36A2-4S-CV

Cavities

Coaxial cables

1.5D foaming (ETC)/2.5D

1.5D

1.5D foaming (ETC)/2.5D

1.5D

Viewed from engagement side

GT36A3-4S-HU(*)×GT36A3-4S-CV

Cavities

Coaxial cables

1.5D

1.5D foaming (ETC)/2.5D

1 Table Deleted

Terminal engagement

Terminal

insertion hole

Housing engagement

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

5/ 7

FORM HC0011-9-2

△

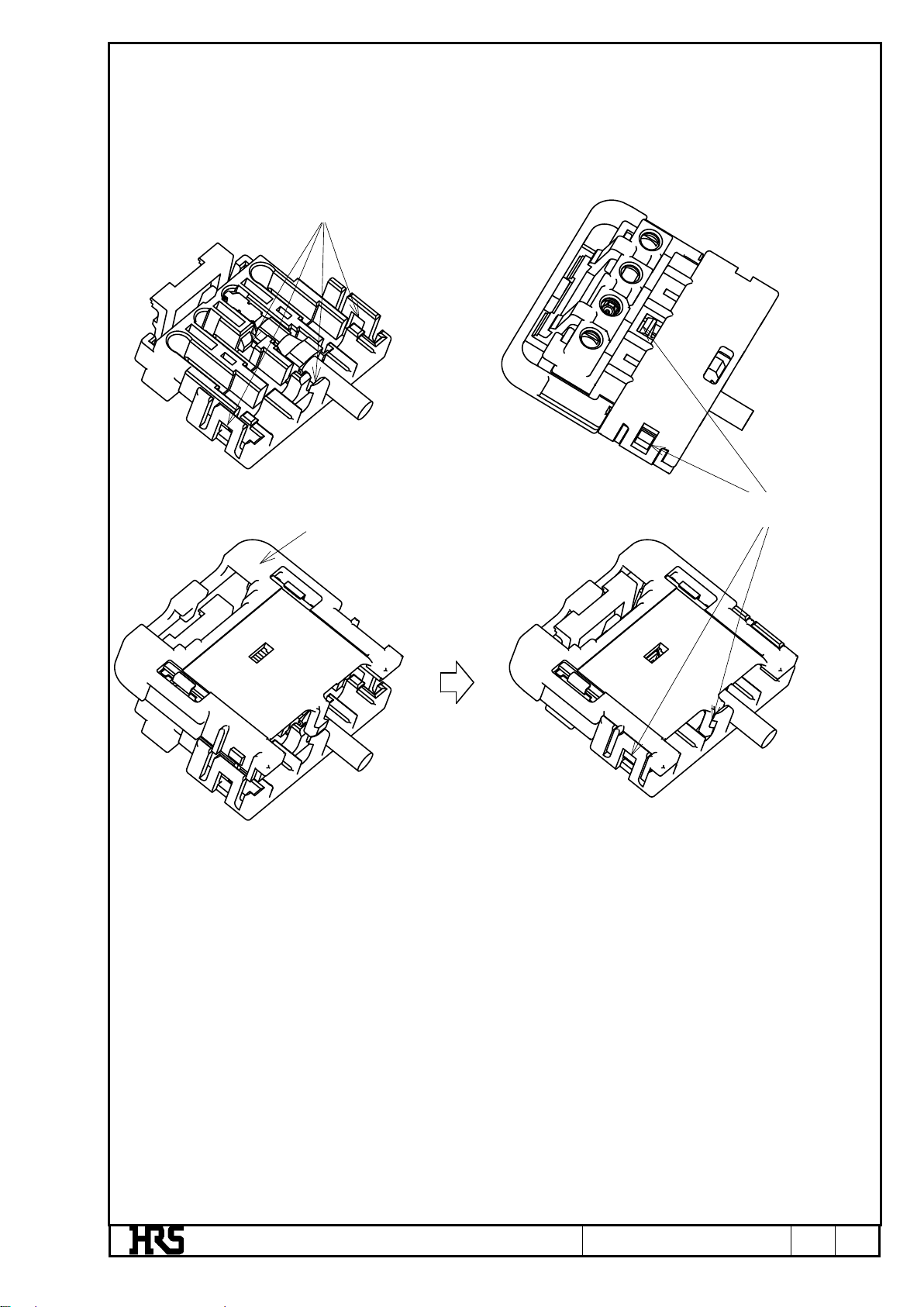

②Insert the GT36A cover into the GT36A housing until it is engaged with the housing

engagement and a click sound is heard.

③Make sure that it is engaged with the engagement.

Housing engagement

Engagement

Cover

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

6/ 7

FORM HC0011-9-2

△

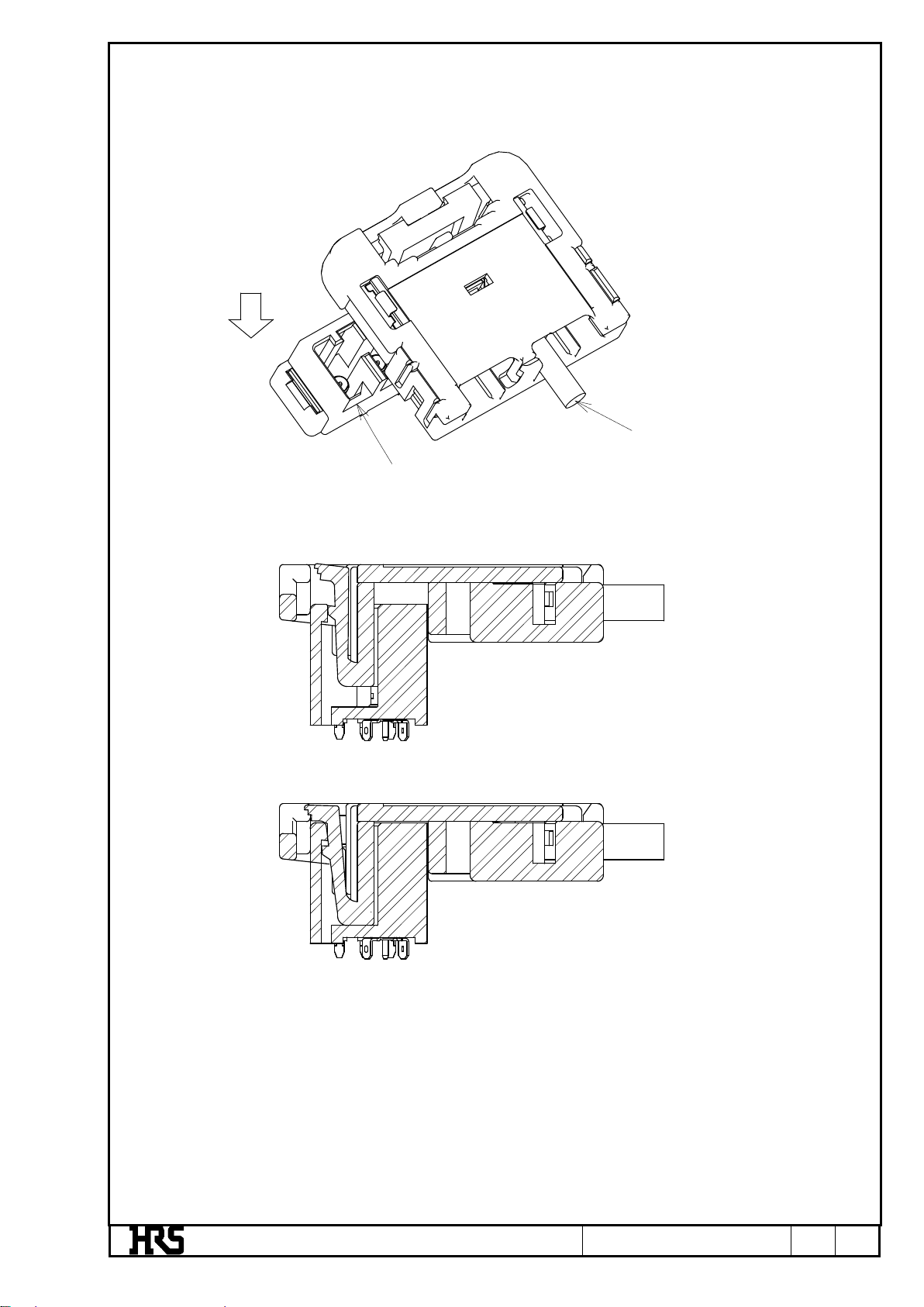

4. Connector Engagement Procedures

①Adjust the direction of the notch of the board-side connector to that of the cable pullout side of

the harness-side connector.

②Insert the connector until it is locked and a click sound is heard.

* After completion of work, pull the connector in the disconnection direction and make sure that it

does not come out.

The above figure shows the unfinished engaged condition.

The above figure shows the engaged condition.

Engagement

direction

Notch

Cable pullout side

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.

HIROSE ELECTRIC CO.,LTD.

ETAD-T0401-01

7/ 7

FORM HC0011-9-2

△

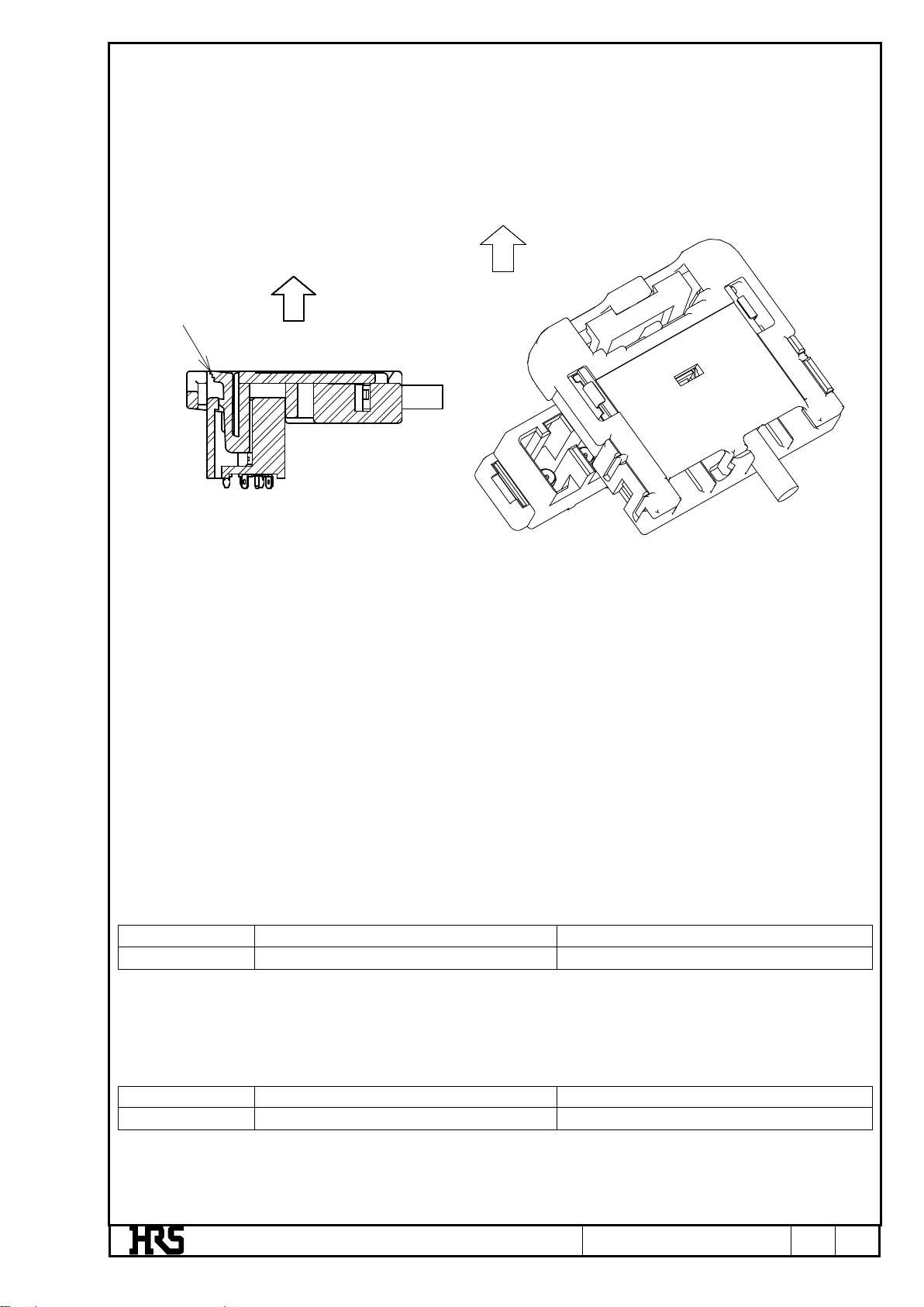

5. Connector Disconnection Procedures

①Push the lock button until the connector is unlocked and pull it out.

6. Instructions

①Do not touch terminals unnecessarily.

②Do not put any object on a terminal. Do not drop terminals. Otherwise, terminals may be

deformed or become dirty. Handle terminals carefully.

③Do not pull terminals forcedly when they are entangled. Disentangle them with care not to

deform them.

④Be careful not to deform terminals when touching them.

7．Storage Conditions

Storage place

Temperature & humidity conditions

Storage period

Indoor storage

15～30℃、60%RH or less

Six months (in our packing condition)

Store the products in a place that meets the following conditions, if they cannot be stored in

an air-conditioned warehouse as shown above. Do not store the products in a place with much

humidity or dust, exposure to direct sunlight, etc.

Storage place

Temperature & humidity conditions

Storage period

Indoor storage

-30～60℃、80%RH or less

Six months (in our packing condition)

Lock

button

Disconnection direction

Oct.1.2022Copyright2022HIROSEELECTRICCO.,LTD.AllRightsReserved.
