5. Overview

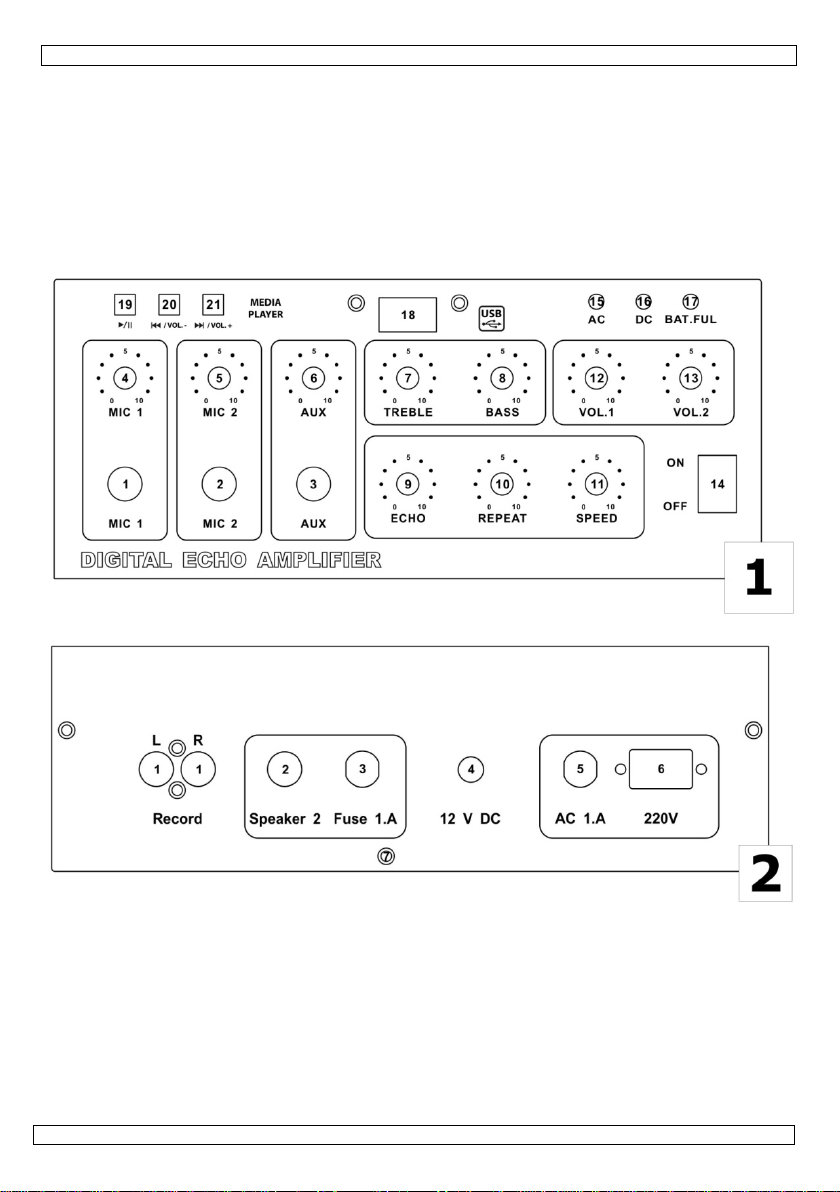

Refer to illustration 1on page 2of this manual.

CONTROL PANEL

1 MIC 1 INPUT

¼” jack connection for your main microphone.

2 MIC 2 INPUT

¼” jack connection for a secondary microphone.

3 AUX INPUT

¼” jack connection for your CD or MP3 player.

4 MIC 1 LEVEL CONTROL

Volume control button for your main microphone.

5 MIC 2 LEVEL CONTROL

Volume control button for the secondary microphone.

6 AUX LEVEL CONTROL

Volume control button for the AUX input.

7 MASTER TREBLE CONTROL

Treble tone control button for the master output.

8 MASTER BASS CONTROL

Bass tone control button for the master output.

9 ECHO LEVEL CONTROL

Echo depth control button.

10 ECHO REPEAT CONTROL

Echo repeat control button.

11 ECHO SPEED CONTROL

Echo delay length control button.

12 SPEAKER 1 LEVEL CONTROL

Volume control button for the built-in speaker.

13 SPEAKER 2 LEVEL CONTROL

Volume control button for the auxiliary speaker.

14 POWER SWITCH

On/off switch. Turn the amplifier on last and off first.

15 AC LED

Lights when the amplifier is connected to the mains.

16 DC LED

Lights when the amplifier is powered by the internal battery.

17 BAT.FUL LED

Lights green when the internal battery is fully charged or red when the internal battery needs

recharging.

18 USB CONNECTION

USB connection for your USB stick.

19 BUTTON

Play/pause button for your MP3 files on your USB stick.

20 /VOL.- BUTTON

Press once to select the previous track on your USB stick; press and hold to turn down the volume

level.

21 /VOL.- BUTTON

Press once to select the next track on your USB stick; press and hold to turn up the volume level.

PA100U Rev. 01

12.09.2011 ©Velleman nv

Refer to illustration 2on page 2of this manual.

CONNECTION PANEL

1 RECORD OUTPUT L/R

Left and right RCA connections for your recording device. The volume level is not influenced by the

master control buttons.

2 SPEAKER 2 OUTPUT

¼” jack connection for the auxiliary speaker.

3 FUSE

Fuse holder with 1A fuse.

4 12 VDC CONNECTION

5 FUSE

Fuse holder with 1A fuse.

6 POWER SUPPLY INPUT

Input for the power supply cord.

6. Technical Specifications

power supply 230 VAC ~ 50 Hz or internal 12 V battery

input sensitivity/impedance

MIC 3.0 mV / 600 Ω

AUX 300 mV / 28k Ω

output level

amplifier 16 W / 4 Ω

RECORD 775 mV / 10k Ω

frequency response 20 Hz ~ 20k Hz ± 2 dB

S/N ratio (@ 1k Hz)

MIC > 80 dB / 3 mV

LINE > 90 dB / 300 mv

distortion

MIC 0.5%

LINE 0.3%

master tone control

treble 12k Hz ± 15 dB

bass 80 Hz ± 15 dB

delay time 50 ms ~ 120 ms

autonomy (fully charged) 6 h

dimensions 310 x 255 x 120 mm

weight 5.6 kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the

event of damage or injury resulted from (incorrect) use of this device. The information in this

manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual or may be copied, reproduced, translated or reduced to any electronic medium or

otherwise without the prior written consent of the copyright holder.
