HPE Aruba AP-318 Instructions de montage

Product End-of-Life Disassembly Instructions

Product Category: Networking Equipment

Marketing Name / Model

[List multiple models if applicable.]

Aruba AP-318 Indr Hardened 11ac AP

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm 1

in product, 1 in power adapter

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface

greater than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

EL-MF877-00 Page 1

EL-MF877-00

Template Revision A

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components and

materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Torx screwdriver

T10/T20/T25

Cross-head screwdriver

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Use T25 screwdriver to remove the 4 screws on the chassis

2. Use Cross-head screwdriver to remove the 3 screws on the TOP

3. Use T25 screwdriver to remove the 6 screws on the bottom

4. Remove the antenna cable from PCBA.

5. Use Cross-head screwdriver to remove screws on the PCBA and AC Module.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Page 2

EL-MF877-00

Template Revision A

AP-318

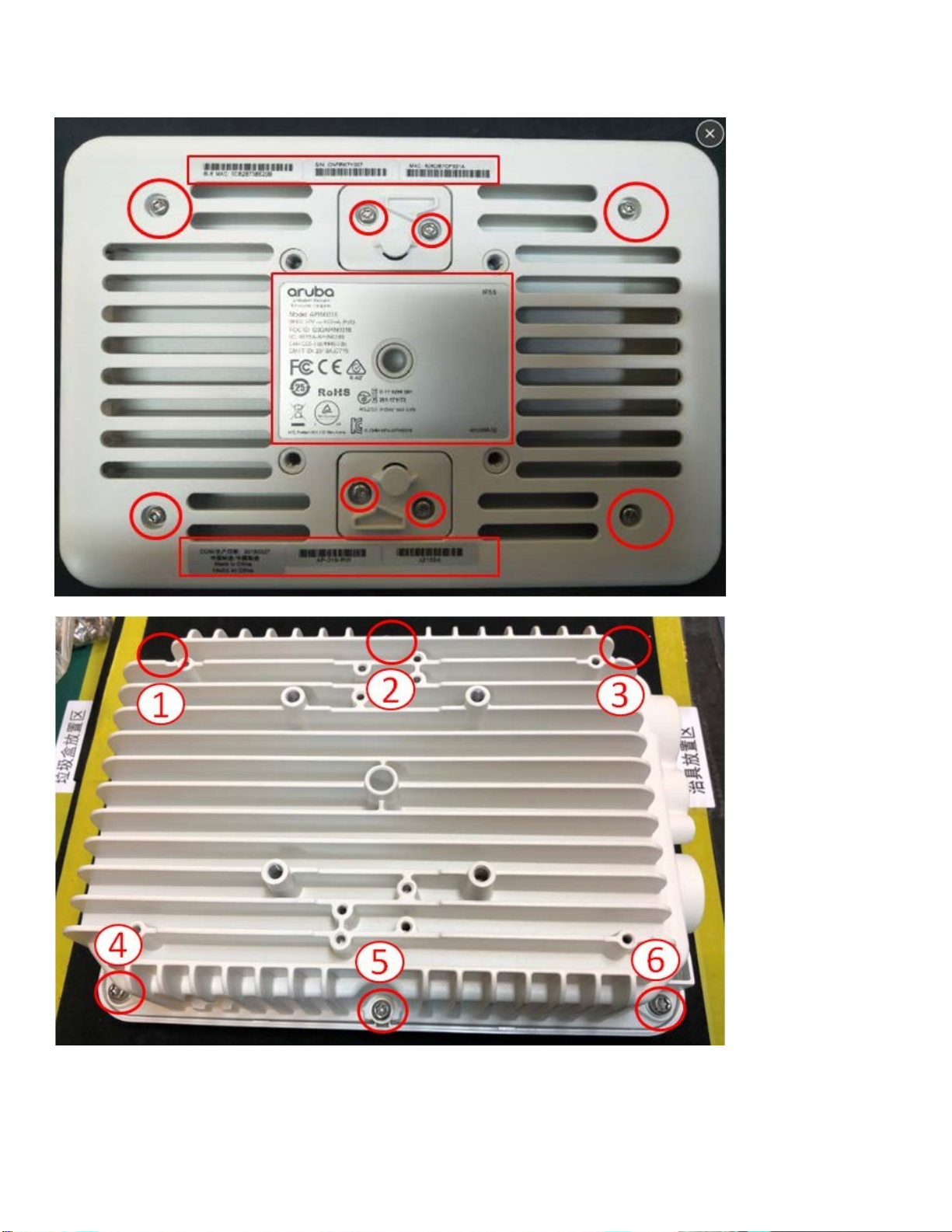

1. Use T10 screw drive to remove 8 screws on the holder and shielding cover.

Page 3

Template Revision A

Use T20 screw drive to remove 6pcs screws on Bottom Cover

EL-MF877-00

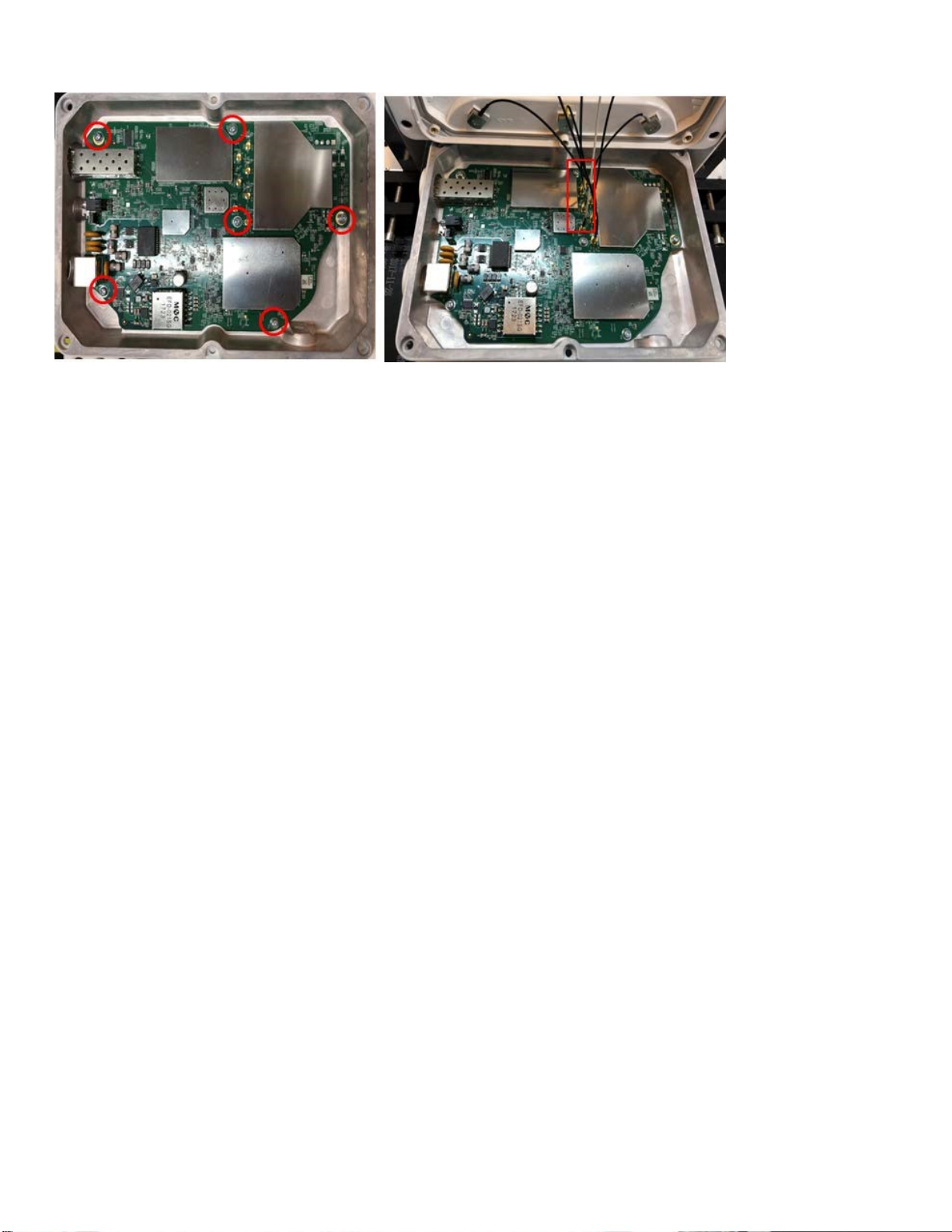

Use Cross-head screwdriver to remove 6 screws on the PCBA, then use special fixture to support to push out antenna

lock carefully.

Page 4
