Product End-of-Life Disassembly Instructions

Product Category: Servers

Marketing Name / Model

[List multiple models if applicable.]

HPE R8000/3 R12000/3 RP12000/3 Extended Runtime Module (ERM) / AF434A

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HPE products to remove components and materials requiring selective treatment, as defined by EU

directive 2012/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium

coin or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface

greater than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

MF877-00 Page 2

Template Revision A

HPE instructions for this template are available at MF877-01

Item Description Notes

Quantity

of items

included

in product

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Phillips Screw driver

Mechanical Pliers

Knife or

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Caution: Avoid wearing jewelry during disassembly that can be exposed for electrical shock.

2. Remove the front panel manually (No tools required).

3. Remove screws from rear panel, cover and disassemble.

4. Cut power cord with a cutting tool.

5. Disassemble batteries (Disable the potential charge from the battery connectors and Disconnect battery terminals.)

6. Disassemble battery unit by removing rear panel and bars on top.

7. Remove bracket on back side of unit

8. Disassemble batteries.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

MF877-00 Page 3

Template Revision A

HPE instructions for this template are available at MF877-01

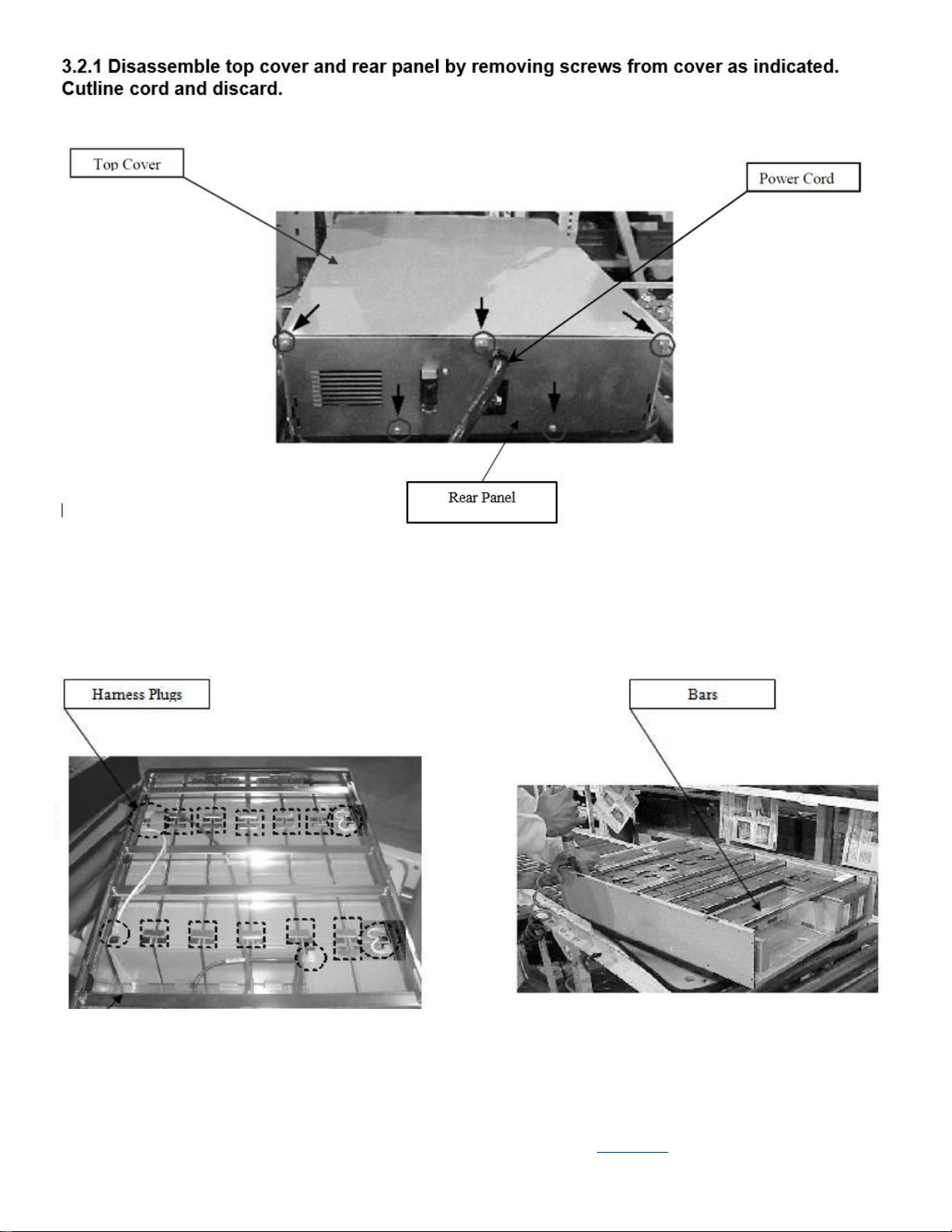

3.2.2 Disassembly battery Module: disconnect harnesses and remove, (marked circles),

with pliers pry battery clips (Marked rectangles). Unscrew and remove bars from the top of

the battery module.

MF877-00 Page 4

Template Revision A

HPE instructions for this template are available at MF877-01

NOTE: The battery should be properly disposed of at a local recycling / reuse

or hazardous waste center.
