Graphics Card Replacement Instructions

Before you be

g

in

Observe the following requirements before removing and

replacing graphics cards.

WARNING: To reduce the risk of serious injury or

damage to the equipment, do not open the chassis cover of

any unit with a 750W power supply. To determine if you

have a 300W, 500W or 750W power supply, refer to the

label on the rear of the computer.

CAUTION: Never open the cover with the power cord

attached or power applied. You might damage your

computer or be injured by the spinning fan blades.

CAUTION: Avoid touching sharp edges inside the

computer.

NOTICE: Static electricity can damage the electronic

components inside the computer. Discharge static electricity

by touching the metal cage of the computer before touching

any internal parts or electronic components.

Tools needed

Phillips #2 screwdriver

Small screws are easily lost. Remove screws over a

surface that enables you to retrieve them if they fall.

NOTE: Computer appearance and features may vary by

model.

NOTE: When using an add-on, discrete graphics card,

you must connect your display to the port on the graphics

card. The covered UMA graphics port that is integrated

into the computer system board does not function when an

add-on graphics card is installed.

NOTE: When using an SLI graphics card configuration,

be sure to connect your display to the port in the primary

graphics card closest to the processor.

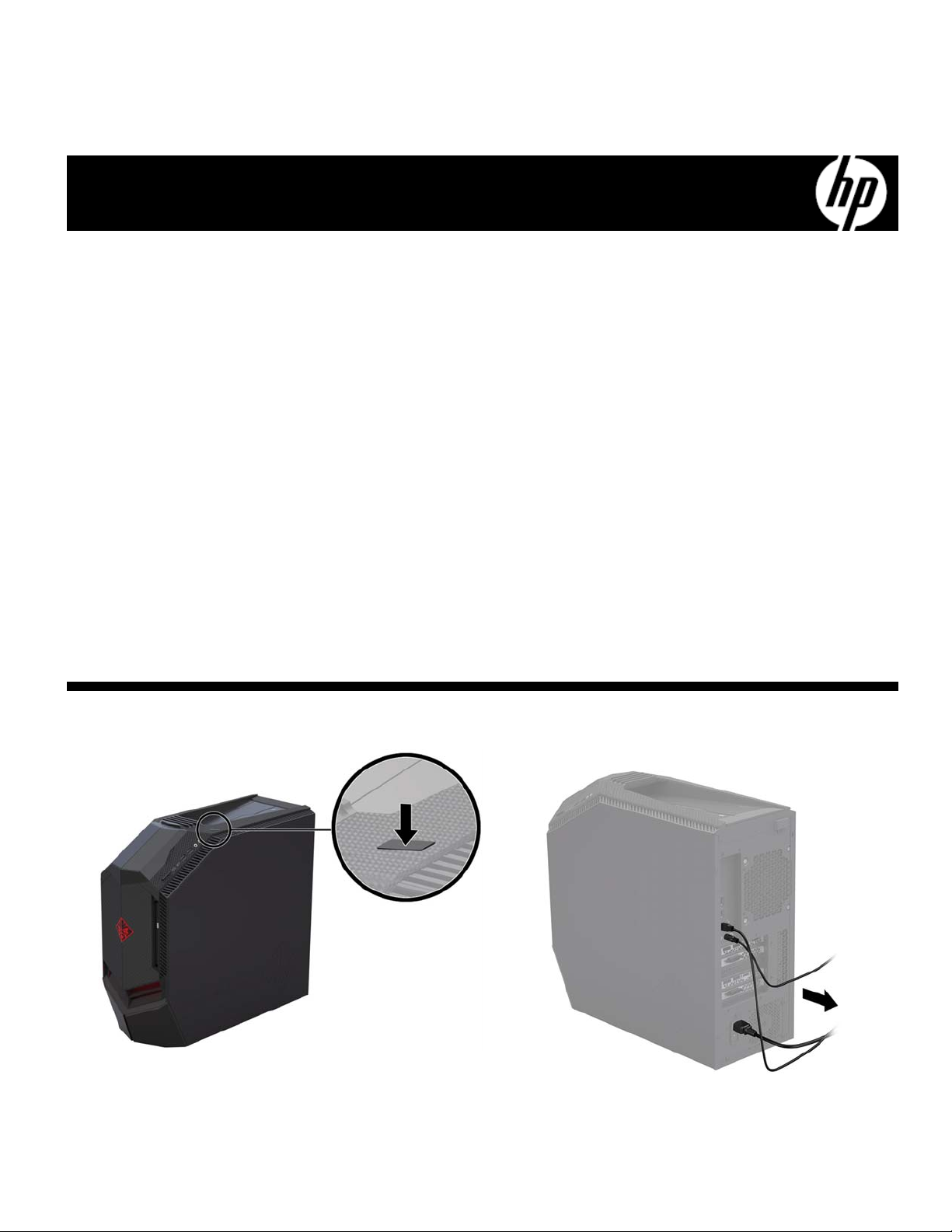

Removing a graphics card

1. Press the power button to turn off the computer.

2. Disconnect the power cord and all attached cables

from the back of the computer.



936167-001

936167-001 2

3. To remove the access panel:

Slide the release latch (1), and then slide the panel back

and pull it away from the computer (2).

4. Locate the graphics card:

1. Memory modules

2. Liquid-filled heat sink

3. Graphics cards

NOTE: All graphics cards are removed using the same

procedures.

5. Remove the SLI bridge, if installed: Lift the bridge up

from atop the graphics cards.

6. Remove the graphics card bracket: Remove the three

screws (1), and then lift the bracket off the graphics

card (2).

936167-001 3

7. Remove the graphics card: Disconnect the power

connector from the top of the card (1). Remove the two

screws from the end of the card (2). Pull the PCIe socket

latch (3), and then lift the graphics card up and out of

the socket (4).

8. Touch the replacement graphics card bag to the metal

of the computer, and then remove the replacement

graphics card from the bag.

Replacing a graphics card

1. Insert the graphics card into the socket (1), replace the

two screws (2), and then connect the power cable to the

card (3).

2. Place the bracket on the back of the graphics card (1),

and then replace the screws (2).

936167-001 4

3. Install the SLI bridge, if necessary: Connect the SLI

bridge to the top of the graphics cards.

4. Position the access panel back into place on the side

of the computer (1), and then slide the release latch to

the locked position (2).

5. Plug the power cord and any additional cables into the

back of the computer.

6. Press the power button to turn on the computer.
