HP Tower Server tc4100 with

HP Surestore Virtual Array 7100/7400

Windows NTÒ4.0 Enterprise Edition

Cluster Configuration Guide

Introduction

This document defines the server cluster configurations supported by Hewlett-Packard for interconnection of

two HP tc4100 servers and one HP VA 7100 or 7400 disk drive enclosure, with MicrosoftâCluster Server

software. These configurations provide high server cluster availability and minimize single points of failure

(SPOFs). Hewlett-Packard will support any cluster configuration that conforms to the guidelines of this

document. Deviations from the supported configurations can result in an inoperative cluster, an operating

cluster with degraded performance, or hidden SPOFs. Therefore, deviations are not supported. For

revision/update information on this document, refer to Versions on page 9.

Cluster Configuration Elements

This section identifies the hardware components, system software, network interfaces, and power distribution

arrangement required to build an operational server cluster supported by Hewlett-Packard. The various

server cluster elements are listed below, and their associated configuration data is detailed in separate tables

and illustrations that follow.

· Server configuration

· Shared storage configuration

· Intra-cluster (heartbeat) LAN configuration

· Client LAN configuration

· FC cabling configuration

· Supported Fibre Channel topologies

· Power distribution configuration

Server Configuration

Parameter Specification

Server

Type HP Tower Server tc4100

Number of nodes Two

Each node must be the same server type, but nodes may differ in their CPU clock

speeds and cache sizes, and amounts of main memory.

Clock speed 1.40 GHz, or any CPU within the same processor family

Number of CPUs Two

BIOS Version 4.06.12 RI, or later

CPU cache Any size

RAM Recommended 512 MB, minimum. Must be HP.

Number of power

supplies

One standard, two required for redundancy

4/15/02 1

tc4100nt71-74

Server Configuration

Parameter Specification

I/O slots Added cards may be installed in any appropriate slot, considering the server

default boot order provided below.

Default boot order IDE CD-ROM, FDD, embedded SCSI A, embedded SCSI B, PCI slot 6, PCI slot

5, PCI slot 4, PCI slot 3, PCI slot 2, PCI slot 1, embedded LAN

Local Storage

Controller Embedded SCSI or NetRAID-1M

Driver For embedded SCSI, sym_u3.sys, version 5.09, or later

For NetRAID-1M, mraidnt.sys, version 4.05

(drivers obtained from Navigator CD-ROM, version M.04.60, or later)

Physical drive location Server internal drive bays, or HP external drive cabinet

(e.g., HP Rack Storage/12)

Disk drives Must be HP

SCSI bus Any HP cables that meet SCSI specifications, and any SCSI bus speed

SCSI IDs Any

System software

Navigator CD-ROM Version M.04.60, or later

Operating system

Service pack

Microsoft Window NTâServer 4.0, Enterprise Edition

SP6a

HP Surestore Auto Path

Version 1.03.00 or later.

Required only if two Fibre Channel Host Bus Adapters are configured for shared

storage. No Load Balancing is set for the FC HBA devices on each node. See the

dual HBA diagrams on pages 5 and 6 for more information.

Shared Storage Configuration

Parameter Specification

Controller

Model HP D8602B Fibre Channel Host Bus Adapter

Number of controllers One or two

Dual HBA controller configurations require running HP Surestore Auto Path VA.

Note that the purpose of the second HBA is to provide an alternate path for

automatic failover only.

Driver Afcnt4.sys, version 3.0.4107.0

Registry settings N_Port enabled for Fabric configurations

NL_Port enabled for Arbitrated Loop configurations

Refer to the readme file included with the HBA driver for instructions on

modifying driver parameters.

RAID levels AutoRAID, or RAID 1+ 0

Logical disks Sixteen LUNs, maximum, per cluster

Enclosure HP Surestore Virtual Array 7100, Models A6261A, A6262A, or A6263A

HP Surestore Virtual Array 7400, Models A6264A, A6265A, or A6214A

Number of enclosures One or two per cluster

4/15/02 2

tc4100nt71-74

Shared Storage Configuration

Parameter Specification

Number of clusters One or two per Virtual Array enclosure

Consult your HP Reseller or HP storage specialist if planning configurations that

may require support for additional MSCS clusters or additional non-clustered

servers.

Disk drives 18 GB, 15K rpm, product numbers A6191A or A6228A

36 GB, 10K rpm, product numbers A6192A or A6229A

36 GB, 15K rpm, product numbers A6193A

73 GB, 10K rpm, product number A6194A or A6231A

Firmware HP14

Virtual Front Panel

settings

Topology 1 – Private Loop (default)

4 - Fabric

Host port behavior WinNT

Host FC connector VA 7100 - GBIC not included

VA 7400 - SFP (small form-factor pluggable) optical interface

Hubs or Switches

HP Brocade Silkworm

2800

HP Brocade Silkworm

2400

HP Netserver 8 Port

Fibre Loop Switch

Hubs or switches are supported in single, two-node cluster configurations.

Multiple cluster configurations, Virtual Arrays with more than one cluster

attached, require FC switches.

16 port FC switch, product number A5624A (standalone) or A5624AZ (rack

optimized) – GBICs not included

8 port FC switch, product number A5625A and A5667A (standalone), or

A5625AZ (rack optimized) – GBICs not included

8 port fibre loop switch, product number P4459A– GBICs not included

Cables and GBICs

Copper

HBA to 8 Port

Loop switch

Copper cabling is supported from the HBA to the 8 Port Loop Switch only.

3 meter cable, product number D6978A (includes 2 copper GBICs)

5 meter cable, product number D6979A (includes 2 copper GBICs)

10 meter cable, product number D7080A (includes 2 copper GBICs)

Fiber Optic

HBA to hub/switch

Only an optical fiber connection is supported to the storage enclosure, either

directly from the HBA or from a hub or switch.

50 meter cable, product number D6980A (includes 2 SW GBICs)

100 meter cable, product number D6981A (includes 2 SW GBICs)

2 meter cable, product number A3583A (GBICs not included)

16 meter cable, product number A3531A (GBICs not included)

50 meter cable, product number A3735A (GBICs not included)

100 meter cable, product number A3736A (GBICs not included)

4/15/02 3

tc4100nt71-74

Shared Storage Configuration

Parameter Specification

From HBA or

hub/switch

To VA 7100

To VA 7400

2 meter cable, product number A3583A (GBICs not included)

16 meter cable, product number A3531A (GBICs not included)

50 meter cable, product number A3735A (GBICs not included)

100 meter cable, product number A3736A (GBICs not included)

2 meter cable, product number C7529A (GBIC not included)

16 meter cable, product number C7530A (GBIC not included)

GBICs Short wavelength optical GBIC (for HBA or Loop switch/Brocade switch), prod-

uct number A5225A or D6975A

Intra-Cluster (Heartbeat) LAN Configuration

Parameter Specification

Network

Connection HP D5954A crossover cable, or equivalent.

The intra-cluster LAN may only be used for cluster node communication. It may

not be used for client communication.

NIC

Quantity One, minimum

Model Integrated NIC, HP 10/100 IPSec 3DES, Model P3492A, or any LAN adapter that

is on both the HP Tested Products List and the Microsoft®Hardware

Compatibility List

Driver For integrated NIC or P3492A, latest version from Navigator CD-ROM or HP

technical support web site.

For other NICs, any vendor-supported driver.

Client LAN Configuration

Parameter Specification

Network

Connection Any LAN

NIC

Quantity One, minimum

Model Any model that is on both the HP Tested Products List and the Microsoftâ

Hardware Compatibility List

Driver Vendor-supported driver

If the NIC used is the same as that of the intra-cluster LAN, then the client LAN

driver must be the same as that of the intra-cluster LAN.

4/15/02 4

tc4100nt71-74

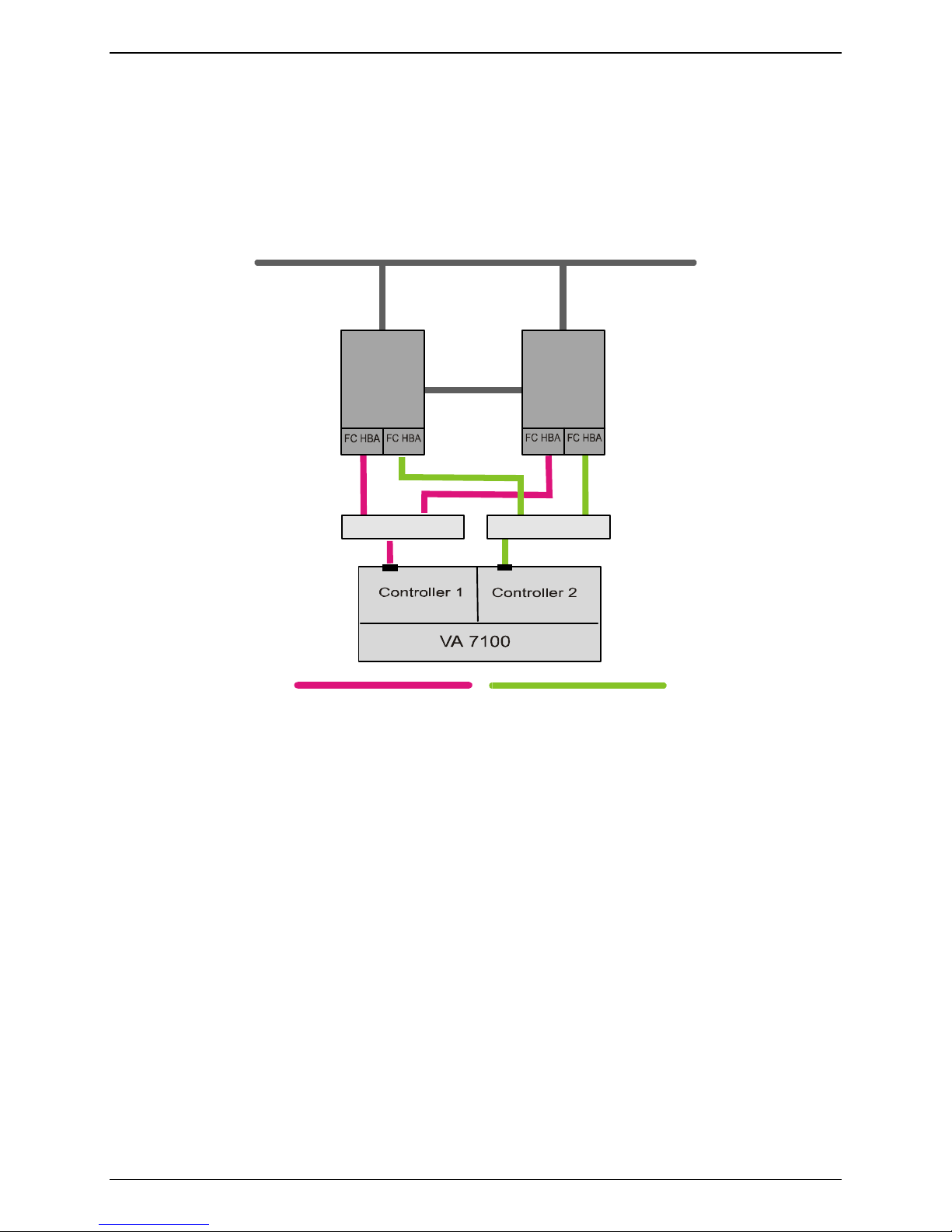

Server

Private

Network

FC Hub/Switch

Primary Active Path* Secondary Path for Failover

Public Network

HP Dual HBA Cluster

A 7100

*Preferred path mode only.

(LUN owner)

FC Hub/Switch

4/15/02 5

tc4100nt71-74

Server

Private

Network

FC Hub/Switch

Primary path for RG 1*

Secondary path for RG 2 Secondary path for RG 1

Primary path for RG 2*

FC Hub/Switch

Public Network

HP Dual HBA Cluster

A 7400

*Preferred path mode only.

()

Redundancy Group1 owner

()

Redundancy Group 2 owner

HOST FC HOST FC

Performance note:

For best performance, If Server 1 and Server 2 are configured in an active/active cluster

configuration, where each is running a critical application software, each application should

use LUNs owned by a different VA controller, and the primary path of the server running the

application should be to the VA controller owning that application’s LUNs.

4/15/02 6

tc4100nt71-74

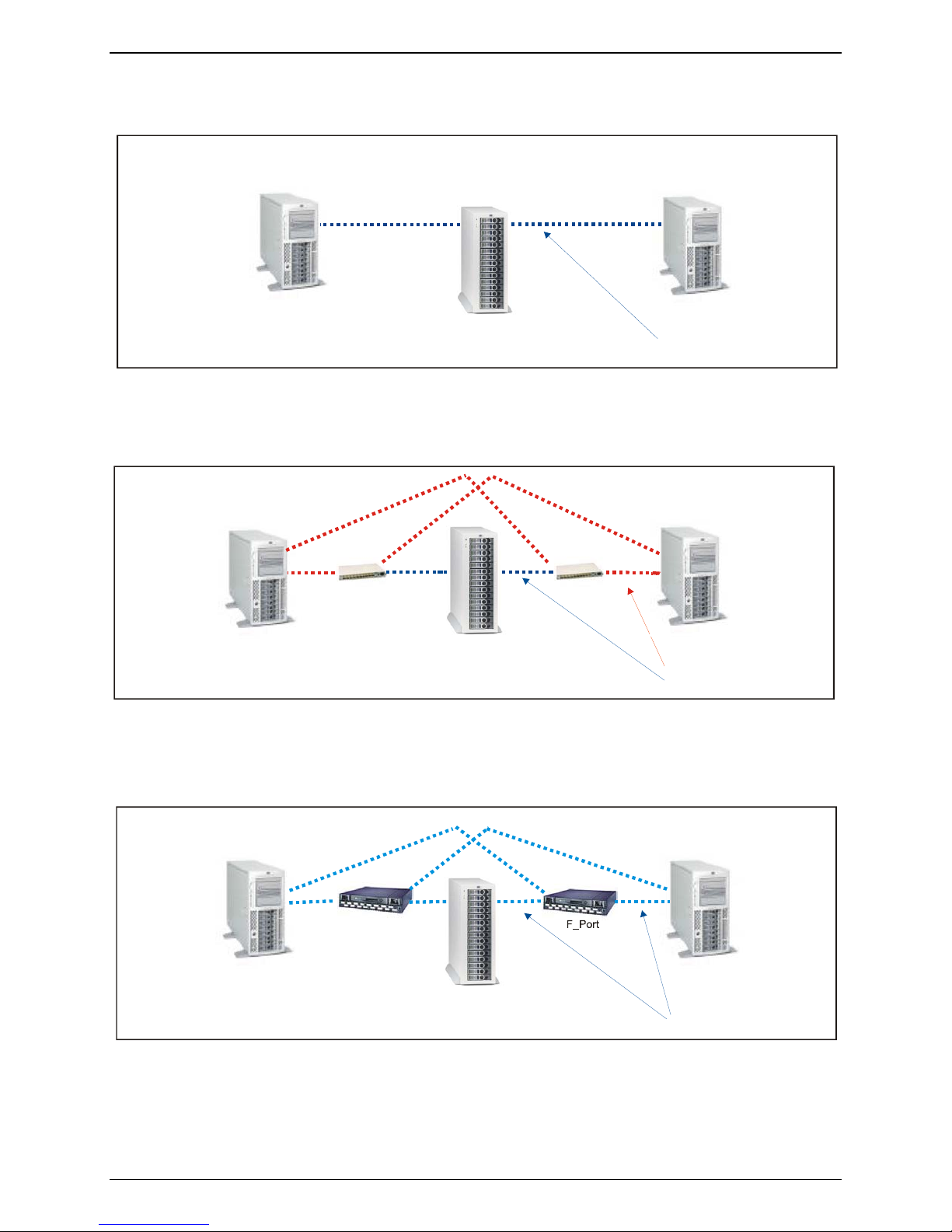

NL_Port

Private Arbitrated Loop with No Hub

Private Arbitrated Loop with Two Hubs

Switched Fabric with Two Hubs or Switches and Two HBAs

FL_Port FL_Port

F_Port

VA 7 X 0 0

FC-AL Hub FC-AL Hub

Brocade Switch Brocade Switch

NL_Port

N_Port

optical fiber cable

optical fiber or copper cables

NL_Port NL_Port

N_Port N_Port

tc4100 tc4100

tc4100

Supported Topologies for the HP tc4100, Virtual Array Cluster

4/15/02 7

tc4100nt71-74

Power Cabling to Separate Power Circuits

4/15/02 8

tc4100nt71-74

Versions

15 April 2002 Updated topology diagram.

01 April 2002 Initial release

4/15/02 9
