November 2015 HP ProLiant DL360 G9 RAID Configuration

1

HP ProLiant DL360 G9 RAID configuration

Use the following procedures to configure the Avaya HP DL360G9 Raid Controller

(P440AR) for Avaya RAID Array configurations.

A monitor and USB keyboard and mouse are required to configure the Raid Controller.

1. Connect a monitor, USB keyboard, and mouse to HP ProLiant DL360 G9 Server.

2. Power up the server.

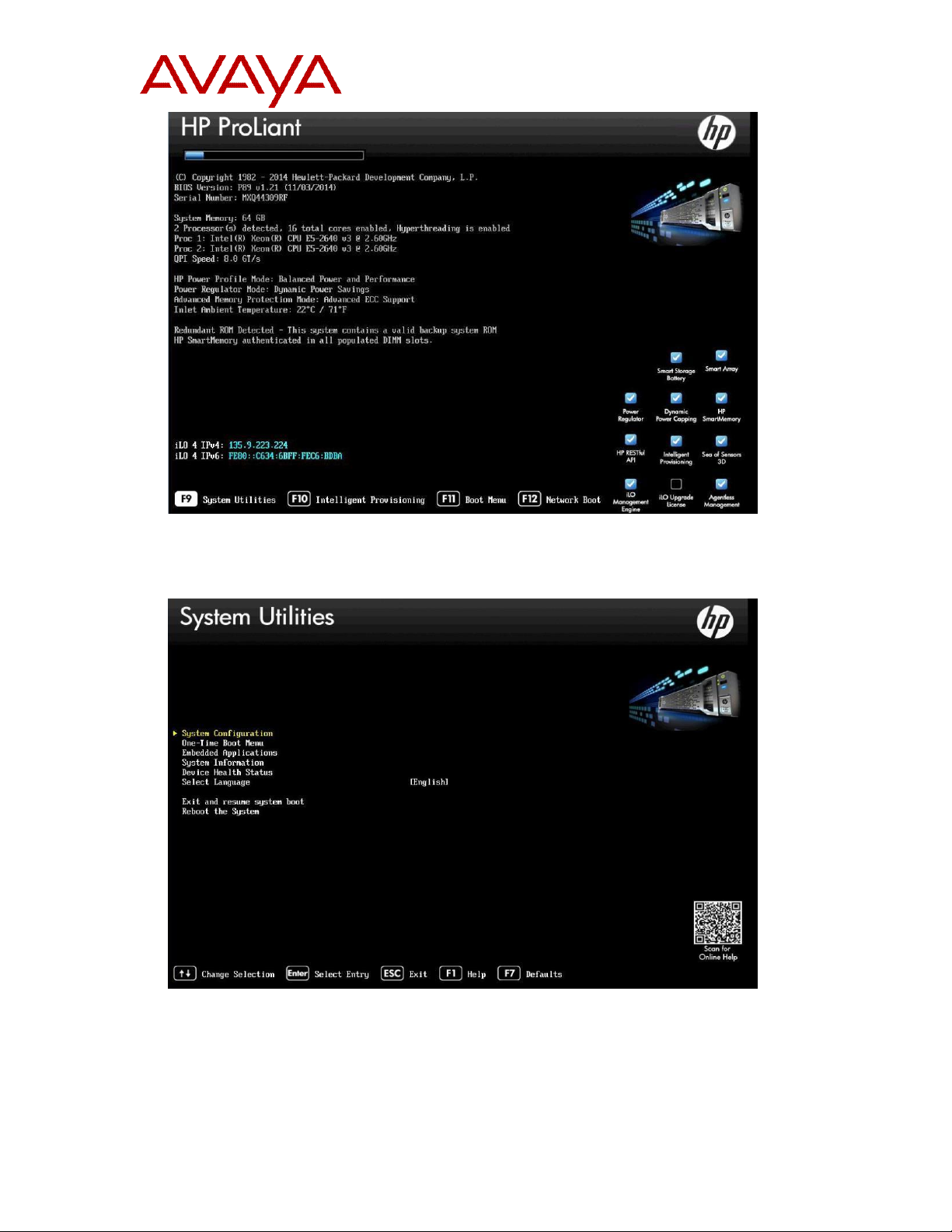

The system displays the HP DL360G9 hardware boot screen.

November 2015 HP ProLiant DL360 G9 RAID Configuration

2

3. When the system displays the HP Splash screen, press F9 to go to System

Utilities.

4. Highlight System Configuration and press Enter to select.

November 2015 HP ProLiant DL360 G9 RAID Configuration

3

5. Move cursor to highlight Embedded RAID : Smart Array P440ar

Controller and press Enter.

6. Move cursor to highlight Exit and launch HP Smart Storage

Administrator (HPSSA) and press Enter to select.

The system loads the HP Smart Storage Tool and displays the HP

Smart Storage Administrator screen.

November 2015 HP ProLiant DL360 G9 RAID Configuration

4

7. In left column, select Smart Array P440ar.

8. Select the Configure button under Actions.

November 2015 HP ProLiant DL360 G9 RAID Configuration

5

9. Select the Clear Configuration button to remove any data or current

array configurations. Select Clear/Confirm and Finish buttons to finalize

Clear Configuration job. If the Clear Configuration button is not

available move to next step.

10. Select the Create Array button under Actions to initiate Array

creation.

November 2015 HP ProLiant DL360 G9 RAID Configuration

6

11. Select all drives to be included (as indicated by check mark) in Array and click the

Create Array button.

12. Select RAID settings according to Avaya application. Generally, settings on

this page should be left at default values unless otherwise specified by Avaya

application documentation. If the HP default setting does not align with Avaya

specified configuration, the RAID Level needs to be changed. Select the Create

Logical Drive button to create the Logical (Virtual) Drive.

Avaya RAID configuration matrix:

November 2015 HP ProLiant DL360 G9 RAID Configuration

7

# of

HDDs

installed

RAID

option

Approx. Logical

(Virtual) Drive Size

based on 300GB

HDDs

Notes

1

N/A

N/A

Must have at least 2 HDDs

Installed

2

1

279.4 GB

Set for RAID 1

3

5

558.7 GB

Set for RAID 5

4

5 or 10

838.1 GB or 558.7

GB

User should set for RAID 5 or

1+0 depending on Avaya

Application.

5

5

1.09TB

User should set for RAID 5

6

5, 10 or

50

1.4 TB, 838.1 GB or

1.09TB

User should set for RAID 5, 1+0

or 50 depending on Avaya

Application.

The system displays following message: Logical (Virtual) Drive was

successfully created.

13.Click Finish to exit application or to delete current array and start new Array

creation process.

November 2015 HP ProLiant DL360 G9 RAID Configuration

8

14. Select “X” in upper right corner of screen to Exit Array tool or click the

Clear Configuration button to start new array creation process. Once

exited from this tool software installation can commence.

November 2015 HP ProLiant DL360 G9 RAID Configuration

9

Supplementary RAID Array configuration size example screens:

1. Example 2x300GB RAID 1.

November 2015 HP ProLiant DL360 G9 RAID Configuration

10

2. Example 4x300GB RAID 5.
