HP NetServer LXr Pro

with

A3661B High Availability Disk Array Model 30/FC

Cluster Configuration Guide

July 31, 1998

Introduction

This document defines the supported HP NetServer LXr Pro with HP A3661B High Availability Disk Array

Model 30/FC (LXr Pro/ Model 30-FC) configurations for Microsoft Cluster Server. These configurations

minimize single points of failure and provide maximum availability. They have been certified by Hewlett-

Packard and Microsoft.

This guide is prescriptive; it describes the configurations supported by HP. If you create any configuration not

expressly allowed by this guide it will not be supported by HP. HP NetServer clusters have been carefully

designed and tested to allow as much configuration flexibility as possible consistent with high-availability.

What’s Defined

•Cluster

•SPUs

•LANs

•Local Storage

•Shared Storage

•Shared Storage Cables

•Shared Storage Configurations

Cluster

Type of SPUs HP NetServer LXr Pro Model 1

Each node must be the same model SPU, but may have different size main

memory, cache, and number of CPUs.

Number of nodes 2

Shared Storage See Shared Storage below.

LANs:

Client See Client LAN below.

Intra-cluster See Intra-cluster LAN below.

Power source Direct from power mains, power conditioner or uninterruptible power supply

(UPS) using any power conditioner or UPS.

System software:

Navigator version G.01.00 or later

Operating System Microsoft Windows NT Server 4.0, Enterprise Edition or later

Service pack SP 3 and hotfix "clusfixi", or later

SPU

Model HP NetServer LXr Pro Model 1

Clock speed 200 MHz. or faster

No. of CPUs 2-4 (at least 2 are required for each node)

BIOS 1.00.09CD0L or later

CPU cache Any size

RAM 128 MB minimum. Must be HP.

No. of power supplies 3

Local storage Internal or external, using any controller. Must use HP disks. See

Local

Storage below.

I/O slots: P5 – P6 - Shared storage controller (See Shared Storage )

P1 - Intra-cluster LAN

P2 - Client LAN

All others - Any other plug-in cards.

LANs

Intra-cluster LAN Client LAN

LAN connection HP D5954A crossover cable or any

equivalent only Any LAN

The intra-cluster LAN may only be

used for cluster node

communication via a crossover

cable. It may not be used for client

communication.

NIC:

Model HP D5013A (10/100TX PCI)

(or HP J3171A)

Any that is on both the HP Tested

Products List and the Microsoft

Hardware Compatibility List.

Driver 2.24.00.0000 or later Any driver

If the NIC used is the same as the

Intra-cluster LAN, then the Client

LAN must use the same driver as

the Intra-cluster LAN.

No. of NICs 1 1 minimum

SPU I\O slot P1 P2

Local Storage

Physical drive location SPU internal drive bays or HP external drive cabinet (e.g., HP Rack

Storage/8).

Disk drives Must be HP.

Controller SPU embedded controller or any controller (any number, manufacturer or

driver) in any available I/O slot (see SPU I/O slots above).

SCSI bus Any HP cables that meet SCSI specifications and any SCSI bus speed

Shared Storage

Host Bus Adapter:

Model A5246A HP Fibre Channel Adapter Kit for NT

No. of HBA 1-2 (See Shared Storage Configurations.)

Driver version 2.09.B.038.020

SPU I/O slot P6 (1st HBA) and P5 (2nd HBA)

Disk Array Controller:

Model SP630/FC Storage Processor (ordered with A3661B or A3662B)

No. of controllers 1 – 2. (See Shared Storage Configurations.)

Microcode 9.45.03 or greater

Disk Array Storage:

Model A3661B HP High Availability Disk Array Model 30/FC.

No. of cabinets See Shared Storage Configurations.

Controller 1 – 2. (See Shared Storage Configurations.)

Disk capacities: HP A3666A 4.2 GB Disk Module;

HP A5132A 8.8 GB Disk Module;

HP A5133A 17.8 GB Disk Module.

ArrayGUIde Version 1.7.0 or greater

RAID levels 1, 1/0, 3 and 5

Logical units Logical units within each array must be numbered from 0-7.

Hot spares Recommend assigning logical unit numbers 8 or greater.

Power Supply 3

RAID arrays Different size or speed disks are allowed in the same disk array but are not

recommended in the same logical unit.

Shared Storage Cables (Fibre Optics)

Short Wave Port Cables A3583A 2 meter FC cable,

A3531A 16 meter FC cable,

A3735A 50 meter FC cable,

A3736A 100 meter FC cable,

Any cable ≤500 meters per segment that conforms to ANSI X3.230-1994

Fibre Channel Standards Specification (FC-PH) rev 4.3.

Long Wave Port Cables

(Long Wave Hub only) Any cable ≤2 kilometers that meets ANSI X3.230-1994 Fibre Channel

Standards Specification (FC-PH) rev 4.3.

Shared Storage Configurations

Configurations:

Basic See "Basic Configuration Cabling Diagrams with Single or Cascaded Hubs."

Redundant See "Redundant Configuration Cabling Diagrams with Single or Cascaded

Hubs."

Fibre Channel Hubs:

Model A3724A HP 10-port Short Wave Fibre Channel (FC) Hub

A4839A HP 10-port Long Wave FC Hub

No. of Hubs Basic Configuration: 1 or 2

Redundant Configuration: 2 or 4 with 1 min. or 2. max. per FC

Arbitrated Loop.

Disk Arrays (See Shared

Storage:

No. of Disk Arrays 1-8

No. of Controllers 1 per Disk Array for Basic Configuration.

2 per Disk Array for Redundant Configuration.

Basic Configuration with Single Fibre Channel Arbitrated Loop Hub

Port connections to this

hub are for example

only. You can use any

port, except for port 10

on Long Wave Hubs.

The remaining ports can

be used for connection

of additional Disk Arrays.

See Shared

Storage Cables for

a list of cables that

can be connected

to the Short Wave

Ports of the hub.

Basic Configuration with Cascaded Fibre Channel Arbitrated Loop Hubs

See Shared

Storage Cables for

a list of cables that

can be connected

to the Short Wave

Ports of the hub.

Port connections to

these hubs are for

example only. You can

use any port, except for

port 10 on Long Wave

Hubs. The remaining

ports can be used for

connection of additional

Disk Arrays.

See Shared Storage

Cables for a list of

cables that can be

connected between

hubs. Port 10 is used

exclusively in Long

Wave hubs for hub-to-

hub connection.

Redundant Configuration with Single Fibre Channel Arbitrated Loop Hub

See Shared

Storage Cables for

a list of cables that

can be connected

to the Short Wave

Ports of the hub.

Port connections to

these hubs are for

example only. You can

use any port, except for

port 10 on Long Wave

Hubs. The remaining

ports can be used for

connection of additional

Disk Arrays.

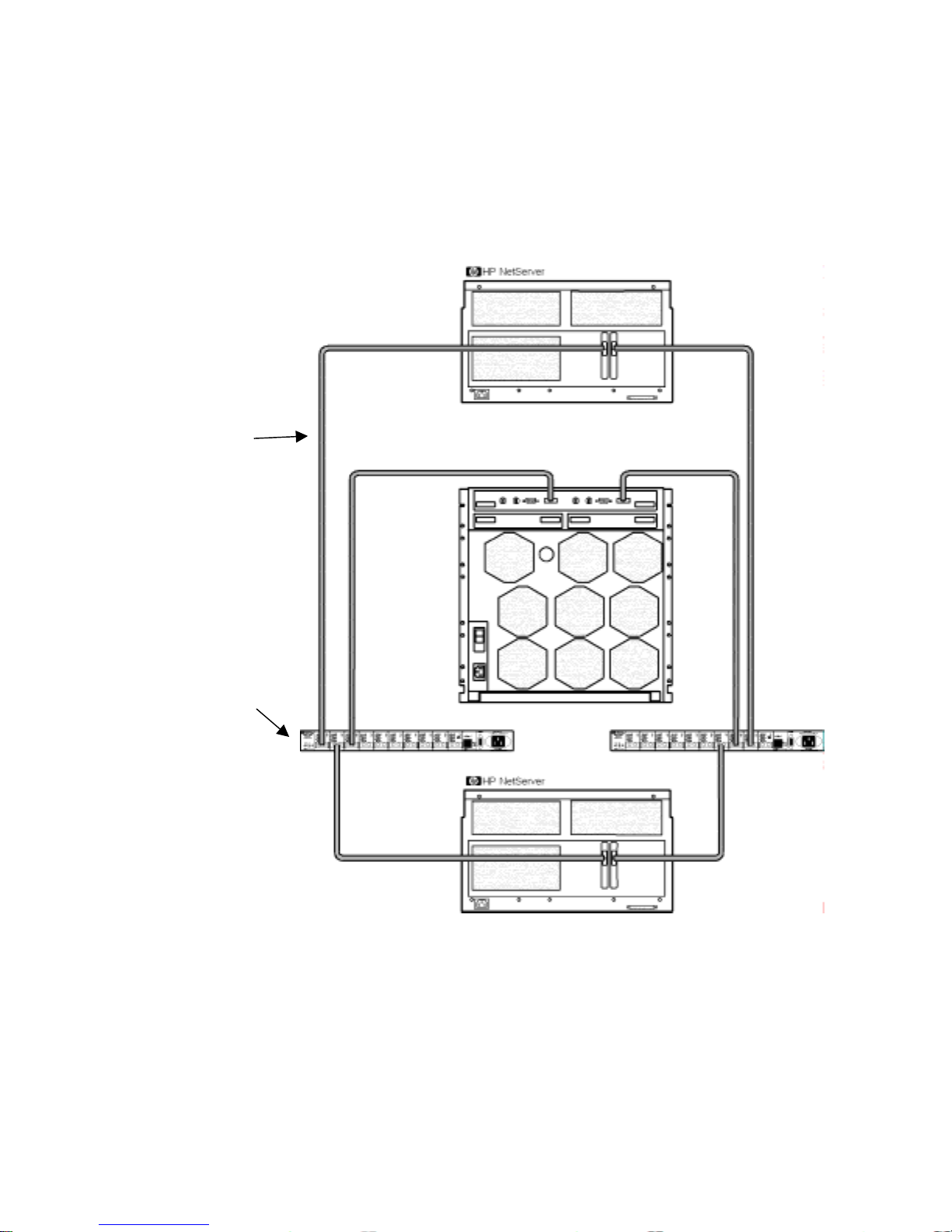

Redundant Configuration with Cascaded Fibre Channel Arbitrated Loop Hubs

See Shared

Storage Cables for

a list of cables that

can be connected

between hubs.

Port 10 is used

exclusively in Long

Wave hubs for hub-

to-hub connection.

Port connections to

these hubs are for

example only. You

can use any port,

except for port 10 on

Long Wave Hubs. The

remaining ports can

be used for

connection of

additional Disk Arrays.

See Shared

Storage Cables for

a list of cables that

can be connected

to the Short Wave

Ports of the hub.
