HP NetServer LD Pro

data sheet

Uncompromised performance

and availability for corporate

workgroups

Meet the newest addition to the

leading HP NetServer L Series.

Designed specifically for the

needs of small and medium-sized

workgroups and remote sites,

the HP NetServer LD Pro delivers

remarkable performance and

availability with a feature set

that includes:

 Pentium®Pro processing

and advanced memory sub-

systems for uncompromised

performance

 High-availability benefits unique

for a server in this price range

 Preinstalled, high-speed

network card for quick,

trouble-free connections

 Familiar, consistent tools that

make it simple to configure,

replicate, and troubleshoot

even remote servers

 Room to grow and cost-

effective upgrades for built-in

investment protection

 Legendary HP quality and

reliability, with a broad range

of on-site support options

 Advanced 64-bit architecture with scalable Pentium Pro processing

 Super-fast Ultra SCSI controller

 Enhanced performance with 10/100TX PCI NIC

 Advanced memory subsystem with Extended Data Out (EDO)

 Built-in Automatic Server Restart (ASR) and temperature monitoring

 Flexible hot-swap storage subsystem for ease of replacing

drives online

 Manageable Error Checking and Correcting (ECC) memory with

error reporting to reduce downtime

 NetRAID array controller

 Upgradable to Pentium Pro dual 6/200

 Up to 512MB memory

 Four PCI and two EISA slots

 Up to 27GB hot-swap storage capacity

 Automated system setup and configuration with

HP NetServer Navigator CD-ROM

 Proactive server monitoring and alerting with

HP NetServer Assistant software on HP OpenView

 Advanced remote management capabilities with optional

HP NetServer Remote Assistant card

High-end performance

without a high-end

price tag

High availability for

maximum uptime

Expandability for investment

protection

Familiar, consistent

HP NetServer management

tools

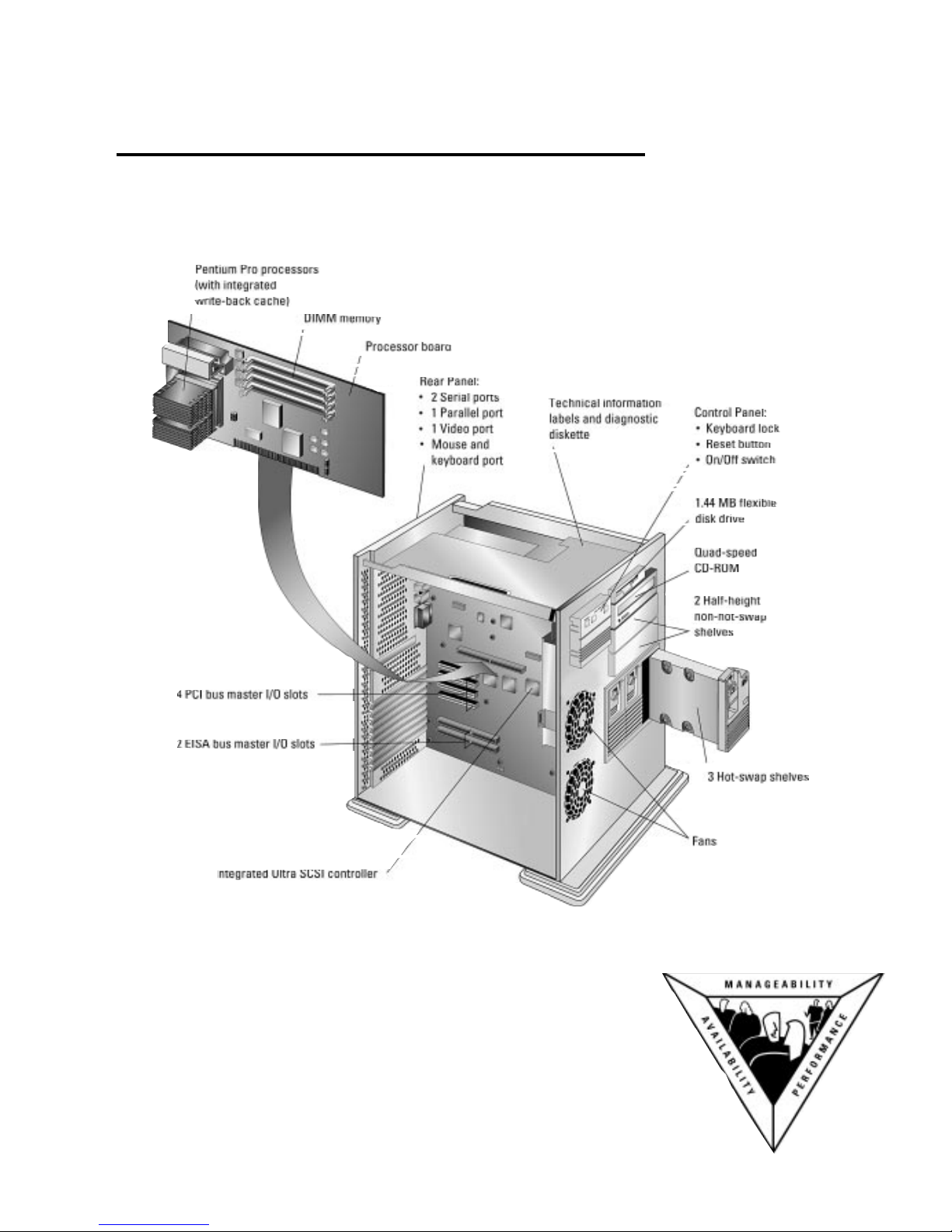

This Server Delivers:

Accessories

Product Accessory1Product No.

Memory HP 16MB DIMM (60ns) D4294A

HP 32MB DIMM (60ns) D4295A

HP 64MB DIMM (60ns) D4296A

HP 128MB DIMM (60ns) D4297A

Processor Upgrades Dual Pentium Pro/200 processor board upgrade kit D4959A

Storage Devices 2.1GB hot-swap Ultra SCSI disk module D3582C

4.2GB hot-swap Ultra SCSI disk module D3583C

9.1GB hot-swap Ultra SCSI disk module D4289A

HP SureStore 6000i internal tape drive C1528F

HP SureStore 5000i internal tape drive C1526G

HP SureStore 2000i internal tape drive C1525G

3.5-inch hard disk drive mounting trays (3-pack, non-hot-swap) D2198A

Tape/DAT/CD-ROM mounting trays (3-pack) D2199A

Hot-swap disk mounting tray (for selected third-party drives) D3349B

External Storage Cabinet HP NetServer Storage System/6 (6 hot-swap shelves, 2 non-hot-swap shelves) D3604B

Controllers HP NetRAID adapter (disk array controller) D4943A

Network Connectivity HP 10/100VG Selectable PCI adapter J2585B

HP 10/100VG Selectable EISA adapter J2577A

HP 10/100TX Selectable PCI adapter J3171A

Monitor HP Super VGA Display D2813A

Uninterruptible Power Supply (UPS)2HP PowerWise 1000VA UPS C4275A

UPS Power Management Software C4776A

Racks and Accessories32-meter rack with side panels and rear door (41U high rack)5J1487A

2-meter rack only (without side panels and rear door)5J1487A opt AXH

Console Director 8-port Switchbox5J1495A

Rackmount kit 5J1491A

Remote Management EISA server management card for remote diagnostic and environmental monitoring of server

HP Remote Assistant (with modem) for US/Canada/Latin America D2968C

HP Remote Assistant (with modem) for Europe/Asia D2969C

HP Remote Assistant (without modem) for other countries D2967C

1 Please see the HP NetServer Configuration Guide for important technical information when choosing your accessories.

2 See HP Network Power Protection Products Data Sheet, P/N 5963-3606EUS

3 See HP NetServer Rack Configuration Guide,P/N 5965-5757EUS

4 See HP NetServer Management Products Data Sheet, P/N 5965-1035EUS

5 New Quartz color

Features

Performance

Processor Intel®Pentium Pro 180MHz, upgradable to dual Pentium Pro 200MHz Symmetric Multiprocessing (SMP)

Cache 256KB write-back cache

Memory  32MB ECC memory (DIMM) standard

 512MB maximum

Controller Integrated Ultra SCSI controller

Mass Storage Shelves  Three hot-swap shelves (must use hot-swap drive)

 Two half-height non-hot-swap shelves

 One 3.5-inch, 1.44MB flexible disk drive (included)

 One quad-speed CD-ROM (included)

Video  Integrated 1024x768, 16-color, noninterlaced

 512KB standard video memory

 Super VGA drivers available with operating systemor fromHP electronic support services

Availability

Hot-Swap Subsystem  2.1GB, 4.2GB,and 9.1GB high-performance drives

 27GB with hot-swap capacity

HP Disk Array  New HP NetRAID adapter (disk array controller) (optional)

 Supports RAID 0, 1, 5, 10 (also known as 6)

 Hot-swap and hot-spare capabilities

 Online storage expansion

 Online RAID level migration

 Triple-channel Ultra SCSI

 Span arrays and hot spares across channels

Manageability

Installation Configuration HP NetServer Navigator bootable CD-ROM includes:

Monitoring  Automated,menu-driven installation and configuration application that helps you install,configure/reconfigure,

and optimize the performance of the HP NetServer LD Pro

 Server management software that provides monitoring, proactive alerting, and problem identification for

subsystems such as SCSI controllers, hard disk drives,and uninterruptible power supplies; includes

HP OpenView for Windows network management platform

Fine-Tuning  Intelligent information retrievalsystemfor quick access to information on HP NetServersand accessories,

network operating systeminstallation and tuning, and product service and support

Troubleshooting  Easy-to-use diagnostic tool forsystem verification and rapid troubleshooting of hardware issues, such as

incorrect SCSI cabling and termination

Expandability

Expansion Slots Six I/O slots:

 Four PCI (one slot is taken by the preinstalled 10/100TX PCI)

TwoEISA

Built-In I/O Ports  One 25-pin parallel port

 Two 9-pin RS-232 serial ports

 Video port

 Mini-DIN keyboard and mouse

Flexibility

Supported Network Microsoft®Windows®NT, Novell®NetWare®

, NetWare SMP, NetWare SFTIII, SCO®UNIX®

Operating Systems Banyan®VINES®

, IBM®OS/2®LAN Server

Security and Safety

Software Access  Startup password

 Network Server mode

Hardware Access  Keyboard lock button

 Power,reset switch lock

 EISA configuration protection switch

 Enable or disable serial port,flexible disk drives,and write operations to the flexible disk drive

 Provision for padlock or cable lock

Advanced Cooling System  Dualfans for extra cooling for internalcomponents

 Superior airflow design

Service and Support

 3-year, next-business-day, on-site limited warranty from HP or authorized resellers (standard

business hours) worldwide

 Optional 4-hour response during standard business hours, or 7 days a week, 24 hours a day available as

HP SupportPack from resellers

 Free telephone support for basic setup, installation, and troubleshooting in U.S., Canada,and Europe

during warranty

 LAN Support and Comprehensive Network Support, available as HP SupportPack fromresellers

 HP NetServer C ompatibility E valuation Guarantee

Features

HP NetServer LD Pro

Banyan and VINES are registered trademarks of

Banyan Systems Inc. IBM and OS/2 are registered

trademarks of IBM Corporation. Novell and NetWare

are registered trademarks of, and NetWare SFT is a

trademark of Novell Inc. Intel, Pentium, and the

Intel Inside logo are registered trademarks of Intel

Corporation. Microsoft, MS-DOS, and Windows are

registered trademarks of, and Windows NT is a

trademark of, Microsoft Corporation. SCO is a

registered trademark of the Santa Cruz Operation.

UNIX is a registered trademark in the United States

and other countries, licensed exclusively through

X/Open Company, Ltd.

For Additional Information

HP WWWeb server http://www.hp.com/go

/netserver

HP NetServer FTP server ftp://ftp.netserver.hp.com

HP NetServer BBS 1-408-553-3500

HP FAX Response system 1-800-333-1917 (U.S.)

1-208-344-4809 (worldwide

from fax only)

HP NetServer Literature 1-800-322-4772

Information in this document is subject to change

without notice.

©Copyright Hewlett-Packard Company 1996. All Rights

Reserved. Reproduction, adaptation, or translation

without prior written permission is prohibited except

as allowed under the copyright laws.

Printed in USA M1196

P/N 5965-5831EUS

Specifications

Operating Temperature 41° to 95° F (5° to 35° C)

Operating Humidity 20% to 80% noncondensing

Acoustic Emissions Sound level (LpA):<58 dB(A)

Power Supply Auto-ranging 90 to 140 VAC, or 180 to 264 VAC at 4763Hz

Power Availability 350W continuous

Power Consumption 499/479W maximum with 110/220V supply

System Dimensions 19.3¦¦ H x 13.7¦¦ W x 18.1¦¦ D (49cm H x 34.8cm W x 46cm D)

System Weight 5070lb (22.731.8kg), depending on configuration

Regulatory Compliance

Electromagnetic  CISPR 22 Class B (International)

 EN 55022 Class B (EU Countries)

 EN 50082-1, Generic Immunity (EU Countries), includes: IEC 801-2, ESD; IEC 801-3, RI; IEC 801-4, FT

 FCC Class B Verified (USA)*

 M of C Class A (Korea)

 VCCI Class 2 (Japan)

 ENG1000-3-2 Harmonic Current

*FCC ID: pending

Safety  CSA Certified (Canada, File LR106647)

 EN 60950 Compliance (International)

 TÜV Certified (Germany)

 UL Listed (USA, File E139742)

Model Processor Memory NIC HDD Product No.

HP NetServer LD Pro 6/180 Model 1 Pentium Pro 180MHz 32MB 10/100TX  D4944A

Model 2100 Pentium Pro 180MHz 32MB 10/100TX 2.1GB hot-swap D4946A

Configuration and Models

HP NetServer LD Pro

HPs MAP strategy ensures that your networking solution delivers

the highest levels of Manageability, Availability, and Performance.

So you can count on optimum, easy-to-achieve results over the life

of your server. Maximum system uptime and data protection in your

business-critical environment. And the most advanced technology

available todaywith plenty of headroom for future growth.

Autres manuels pour D7171A - NetServer - LPr

117

Ce manuel convient aux modèles suivants

Autres manuels HP Serveur

HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper... Manuel utilisateur

HP Virtual Connect FlexFabric-20/40 F8 Module Instructions d'utilisation

HP ProLiant ML350 Generation 4p Manuel utilisateur

HP ProLiant DL380 - G2 Server Instructions d'utilisation

HP ProLiant DL380 G3 with MSA1000 Instructions d'utilisation et de sécurité

HP mt41 Manuel

HP ProLiant DL380 Generation 5 Manuel utilisateur

HP ProLiant DL180 G Instructions d'utilisation

HP vc4725 - Thin Client Manuel utilisateur

HP ProLiant DL560 Manuel utilisateur

HP ProLiant SL170z - G6 Server Instructions de montage

HP T5135 - Compaq Thin Client Manuel

HP PA-8600 Guide d'installation

HP t5300 - Thin Client Manuel utilisateur

HP T5700 - compaq thin client Guide de démarrage rapide

HP ProLiant ML310 Generation 5p Instructions d'utilisation

HP ProLiant BL465c Gen8 Manuel

HP Integrity rx2620 Manuel utilisateur

HP Sa3110 - VPN Server Appliance Manuel utilisateur

HP P5389A - Intel Pentium III-S 1.4 GHz Processor... Manuel utilisateur

HP Proliant DL580 Manuel utilisateur

HP ProLiant DL380p Manuel utilisateur

HP vc4820T - Thin Client Manuel utilisateur

HP DL120 - ProLiant - G5 Manuel utilisateur

Manuels Serveur populaires d'autres marques

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Dell

Dell PowerEdge HS5610 Manuel
