HP SDCAB-0603 Manuel utilisateur

SDCAB-0603 (PEZ)

User Guide

Part number: xxxxxx-xxx

First edition: MM/YYYY

Legal notices

Never leverage legal and notice information. For the most current requirements, refer to HP Standard 004-0 Legal Notices for

Product Documentation, Promotional Materials, and Software and Media located at

http://standards.inet.cpqcorp.net/smc/hpstd/hpstds.htm

CANADA STATEMENT

Operation is subject to the following two conditions:

(1) this device may not cause interference and

(2) this device must accept any interference,including interference that may cause

undesired operation of the device

To prevent radio interference to the licensed service, this device is intended to be operated

indoors and away from windows to provide maximum shielding.

Note:

This device has been designed to operate with an antenna having amaximum gain of 2 dBi.

Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The

require antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be

so chosen that the EIRP is not more than required for successful communication.

Contents 3

Contents

Revision history

Revision tables..........................................................................................................................................................4

1 Introduction

1-1 Package Contents.......................................................................................................................................5

1-2 Physical Details..............................................................................................................................................6

1-3 LED Table .......................................................................................................................................................7

1-4 Operating System.........................................................................................................................................7

1-5 List of Supported HP Devices ......................................................................................................................7

2 Physical Installation

2-1 Procedure...........................................................................................................................................................8

3 Software Installation

3-1 Installation Procedure.......................................................................................................................................9

3-2 WPS icon in the System Tray...........................................................................................................................12

3-3 Managing Print Jobs .......................................................................................................................................12

3-4 Using the HP Director.......................................................................................................................................12

4 Advanced Application

4-1 Overview...........................................................................................................................................................14

4-2 Advanced Configuration...............................................................................................................................14

4-3 User Installation ................................................................................................................................................18

4-3 WPS icon in the System Tray...........................................................................................................................21

5 Troubleshooting

5-1 Overview...........................................................................................................................................................22

5-2 General Problems............................................................................................................................................22

6 Specification

6-1 WPS Specification............................................................................................................................................23

6-2 Wireless Dongle Specification........................................................................................................................23

Appendix A

Index

4 錯誤! 尚未定義樣式。

Revision history

Revision tables

Table 1 Revisions

Date Edition Revision

March 27, 2006 First Original Readme.doc released by Sercomm

Revision history

錯誤! 尚未定義樣式。 5

1 Introduction

Congratulations on the purchase of your WPS. Your WPS was designed to provide a simple and

efficient network printing and multi-function solution.

1-1 Package Contents

The WPS package contains the following items. If any item is missing, please contact your dealer

immediately.

• The WPS unit

• The Wireless Dongle unit

• One CD-ROM containing all support programs and this manual

• Quick installation guide

• Power Adapter (3.3V, 2A)

• USB Cable

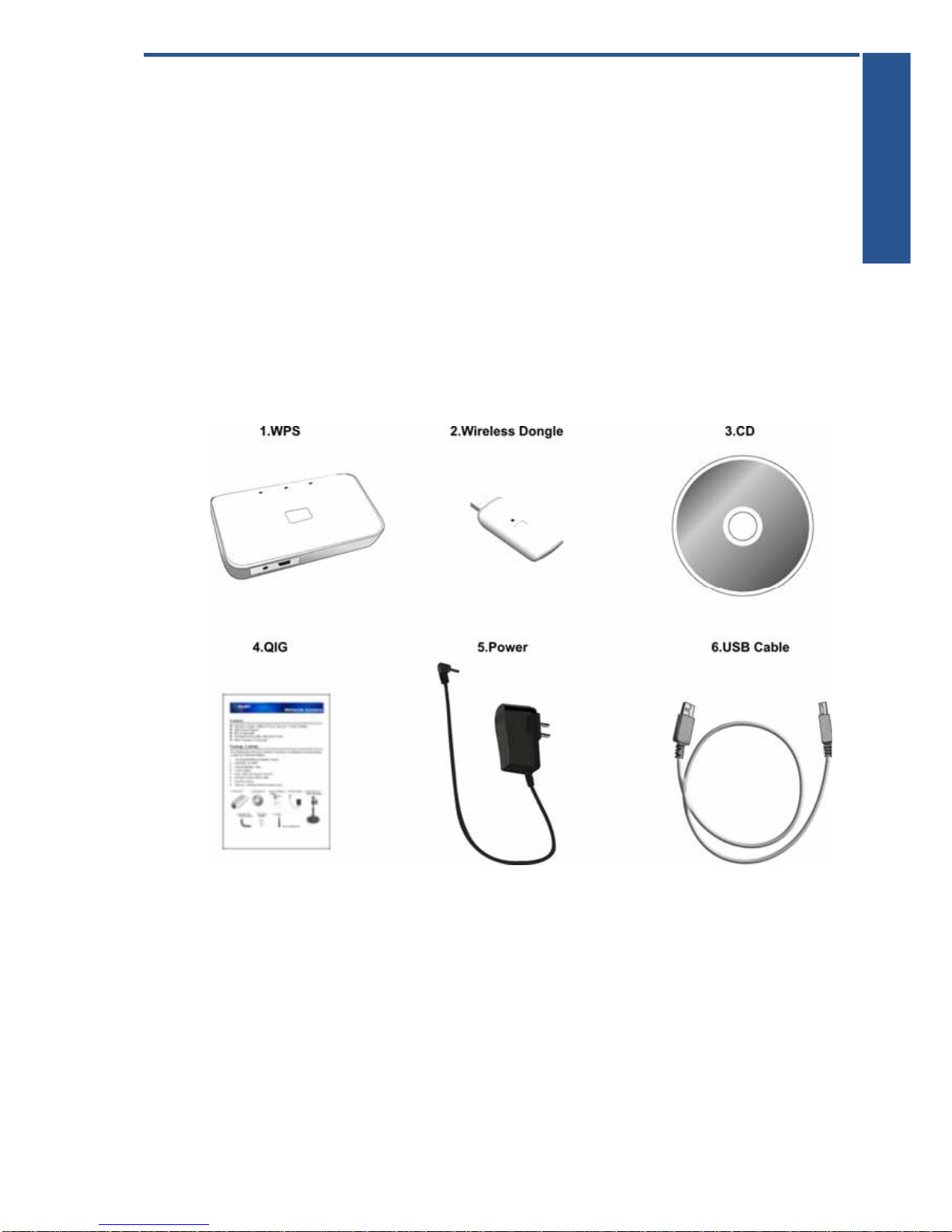

Figure 1-1

Introduction

6 錯誤! 尚未定義樣式。

1-2 Physical Details

• WPS

Figure 1-2

• Wireless Dongle

Figure 1-3

錯誤! 尚未定義樣式。 7

1-3 LED Table

There are three (3) LED indicators on the top panel - Power (Green), 802.11G (Blue) and Attention

(Amber). The following table describes common situations and explains what the lights mean.

Table 1-1 LED Table

POWER (GREEN) 802.11G (BLUE) ATTENTION (Amber)

Power Off Off Off Off

Power On On Off Off

Device initialized On On Off

Data Transmission On Blinking Off

No MFP connected to USB

Port On On/Blinking On

FW Upgrade (data

transmission) On Blinking Off

FW Upgrade (write to Flash) Blinking Off Off

1-4 Operating System

The following operating systems are supported:

• Windows XP Home/Professional Stock

• Windows XP Home/Professional SP2

• Windows XP Home/Professional SP1

• Windows 2000 Professional SP4

1-5 List of Supported HP Devices

HP AiOs for Home and Home Office:

PSC 1210, 1350, 1410, 1507, 1315, 1510, 1600, 1610, 2110, 2175, 2210, 2355, 2410, 2510.

Photosmart 2575, 2610, 3210, 2710, 3310.

Officejet 4110, 4125, 5110, 5510, 5610, 6110, 6210, 7210, 7310, 7410.

Photo printers:

Photosmart 145, 230, 245, 325, 375, 7260, 7350, 7550, 7660, 7850, 7960, 8050, 8250, 335, 385, 422, 475,

425, 428.

Deskjet printers:

Deskjet 3425, 3450, 3520, 3550, 3650, 3745, 3820, 3930, 3940, 3845, 5150, 5550, 5740, 5850, 6540, 6840,

9650, 9670.

Introduction

8 錯誤! 尚未定義樣式。

2 Physical Installation

2-1 Procedure

Figure 2-1

1. Make sure the WPS and MFP (Multi-Function Peripheral) are powered OFF.

2. Connect the MFP to the USB port on the WPS.

3. Connect the Power Adapter to the WPS Power port, power on the MFP.

4. Power on the WPS.

5. Check the WPS LEDs:

• The Power LED should be ON.

• The 802.11g LED should be ON.

• The Attention LED should be Off.

6. Begin Software installation.
