CISS for HP Deskjet 1280
Thanks for your purchasing our continuous ink system for HP Deskjet 1280. Our continuous ink system is
the idea set for inkjet printer which can low down the printing cost. Before your using of CISS, pls kindly
read the instruction with details. In this way, you can install this system without troubles then.
1.General Guide
1)components
A. CIS system 1 set B. Air filter 4pcs C. support arm 2 sets
D.Refill kit 4pcs E. Instruction CD 1pc F. pedestal for drawing air 1set
2) Opening box for inspection
a. Check whether all the accessories are ready
b. Check whether there is leakage of CIS system, whether the tubes has been separated from CISS.
2.Printer testing
Check whether the printer is in normal condition, such as mechanical status, lubrication
status etc. After installation of this system, it will not low down the printing precision,
so you have no need to worry about that.
3. Installation procedure:
1) first step
Put the CISS on the right side of the Open the air hole Place the air filter into the air hole,
printer,In the mean time, place all the make sure that the thicker side is down
tubes at correct position ( make sure the the tank
printer and ink tank should be in one level)
2) Set up the CISS system
Open the printer power Open the cover for the printer Ink vehicle out
Open the cover of the ink vehicle Put in the cartridges of CISS Cover the lid and make sure the
Put out the original cartridges cartridges are in the right position
3. Installation of the support arm
We have installed the support Put another short support arm in the Put the long support arm 3.5cm right to
arm in the cartridges middle of groove the short one and 10cm down.
Close the tubes to the support arm by clasp, and make sure the tubes are not contorted
4、Adjust he tubes
Pull out the power wire, then move move it to the left end pull the tubes straight, the tube can not
the Ink vehicle be that long or contorted.
Move the ink vehicle to the left, In the same way, move it to the right installation finished
whether there is baffle , whether it will hit anywhere

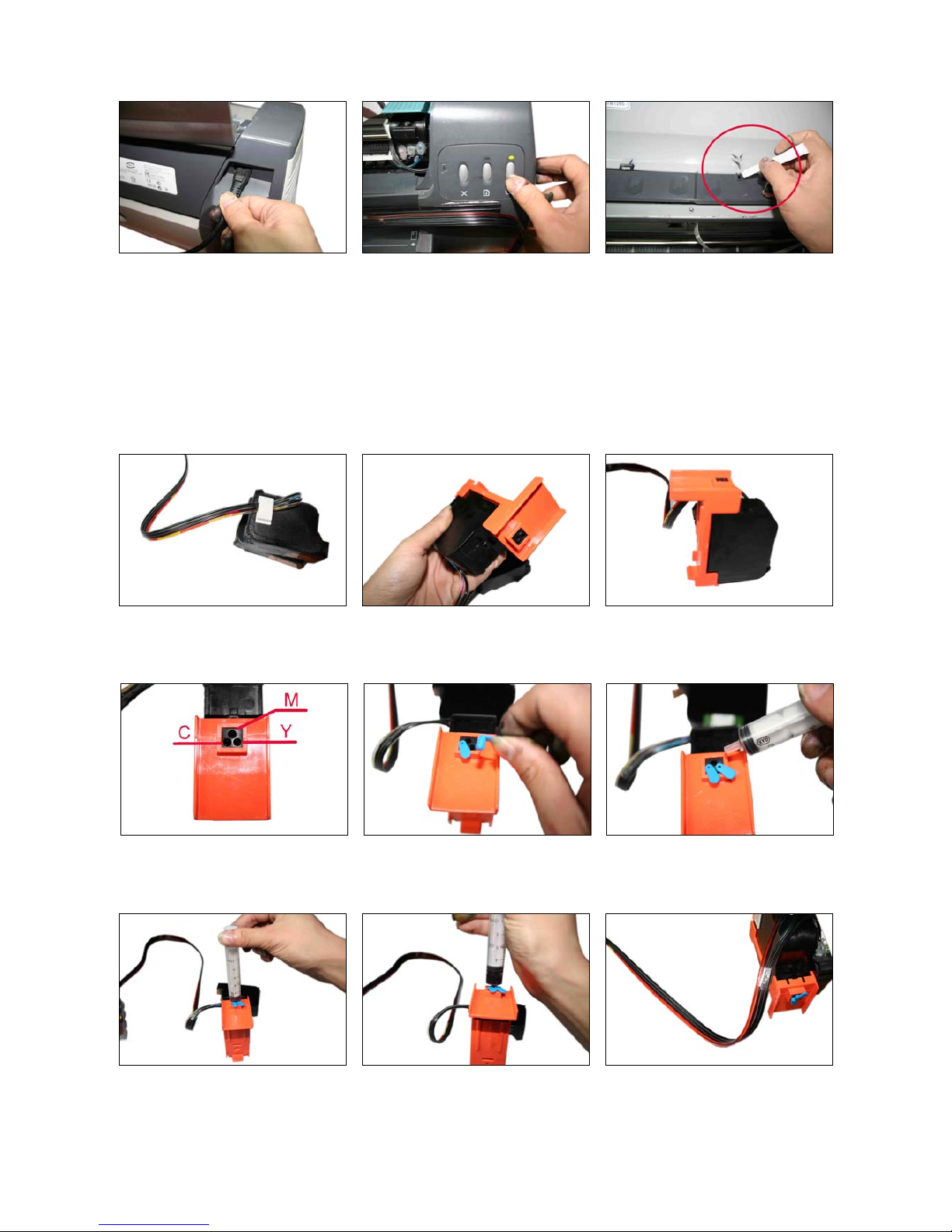

4. printing testing
Switch on the power press the power key During printing, pls keep the
Cover of the printer open, just
insert the paper to the hole as
picture shows. Then no need to close
the cover.
Cleaning the cartridges and checking the printing quality. If the printing is uncontinuous, maybe for there is little
air in the nozzle. And after several times of cleaning, there is still some uncontinuous condition, especially for the single
color, you can keep the printer for about one hour, the printer will be ok then.If after testing, still unnormal, you can
solve the problem as follows: ( set the color cartridges as an example)
There is air in the tube, and can Put out the cartridges and put in the convert the cartridges, keep the end with
not be solved by cleaning pedestal, install it on the end with hole up and let it in the same level of
hole the ink tank.
As picture shows, the up hole is for When you want to draw one of the color, Put the inkjector to the hole that
Magetta, “c”means cyan, “y”means you should put on the rubber for other you are going to draw air out
Yellow. Holes.
Pull up the plunger Till there is ink up In the same way, draw out the air for other
color cartridges, then there will be no air
in the tubes.
5.Decode the cartridges
When the printer says that you
need to change the cartridges,
you need to decode the
cartridges. Just press the
button 6 (restore key) till the
light does not flash, then it
is decoded.
6. Refill ink
Please pay attention to the ink level in the reservoir, if the ink level is below 1cm as the picture show,[lease use
the refill kits to fill ink into reservoir bottle. Carefully pull out the rubber plugs from the ink hole. After
filling,according to the color, then put the rubber back.
During the procedure of refilling ink, the printer and the ink tank should be in one level.
7. Attention for maintenance
Take out the CISS including the inner cartridges and other components. Then remove support
arm from printer,and place the original cartridges in. Pls inquire local dealer before sending
it for maintenance.
Notice:
1.Please do not take out the cartridges at random after installing the CIS system,
2.Keep the ink tank and printer in the same level.
3.Using it in the temperature of 15-35℃
4. Our CIS system has passed the strict compatible checking, so we suggest to use our ink
and cartridges to keep the printing quality.
5. Do not Place the reservoir higher or lower thantherprinter
6. Some color of the printer will leak out for long time no work. If using that printer,
will cause some problems then, so before using, pls check whether there is ink in the
cartridges, if no, do not open the printer, and send it to be repaired.
For this trouble, we suggest you to put off the air filter, and close the air hole.
Warning:
1. Not drinkable, keep it out of the reach of children
2. Avoid exposure to direct sunshine and don’t keep it in the high or freezing temperature.
3. Avoid collision and fallen down.
