HP StorageWorks SN6000 Manuel utilisateur

Page 1

*5697-1309*

HP Part Number: 5697-1309

Published: November 2011

Edition: 2

Overview

Congratulations on your purchase of the HP SN6000

Fibre Channel Switch power supply. This document

provides procedures for replacing SN6000 Fibre

Channel Switch power supply models SBPSFANBF,

SBPSFANFB, SBPSFAN2BF, and SBPSFAN2F. These

instructions are also available in the HP SN6000

Fibre Channel Switch Installation and Reference

Guide.

Supported switches

This power supply is for the HP SN6000 Dual Power

Supply Fibre Channel Switch.

Related documentation

For the latest documentation for the HP SN6000 Fibre

Channel Switch, see the HP website

http://www.hp.com/go/sn6000.

Before you begin

CAUTION:

•Both power supplies must have the same

air flow direction to prevent the switch

from overheating.

•To avoid overheating, do not operate the

switch with one power supply any longer

than necessary.

•This is a Class A product. In a domestic

environment, this product may cause

radio interference, in which case, the user

may be required to take adequate

measures.

Collect the required items

Required tools:

•Cross-head screwdriver, medium

© Copyright 2011 Hewlett-Packard Development Company, L.P.

Printed in the U.S.

HP SN6000

Fibre Channel Switch

Power Supply Quick Start

Installation Instructions

Page 2

Verify the contents

Check the contents of the SN6000 Fibre Channel

Switch power supply carton. The carton contains one

power supply.

Preparation

The power supplies are hot pluggable and

interchangeable. When removing or replacing a

power supply on an operating switch, be sure that the

Heartbeat LED is flashing once per second. This

indicates that the switch will continue operating

normally while the power supply is being removed or

replaced.

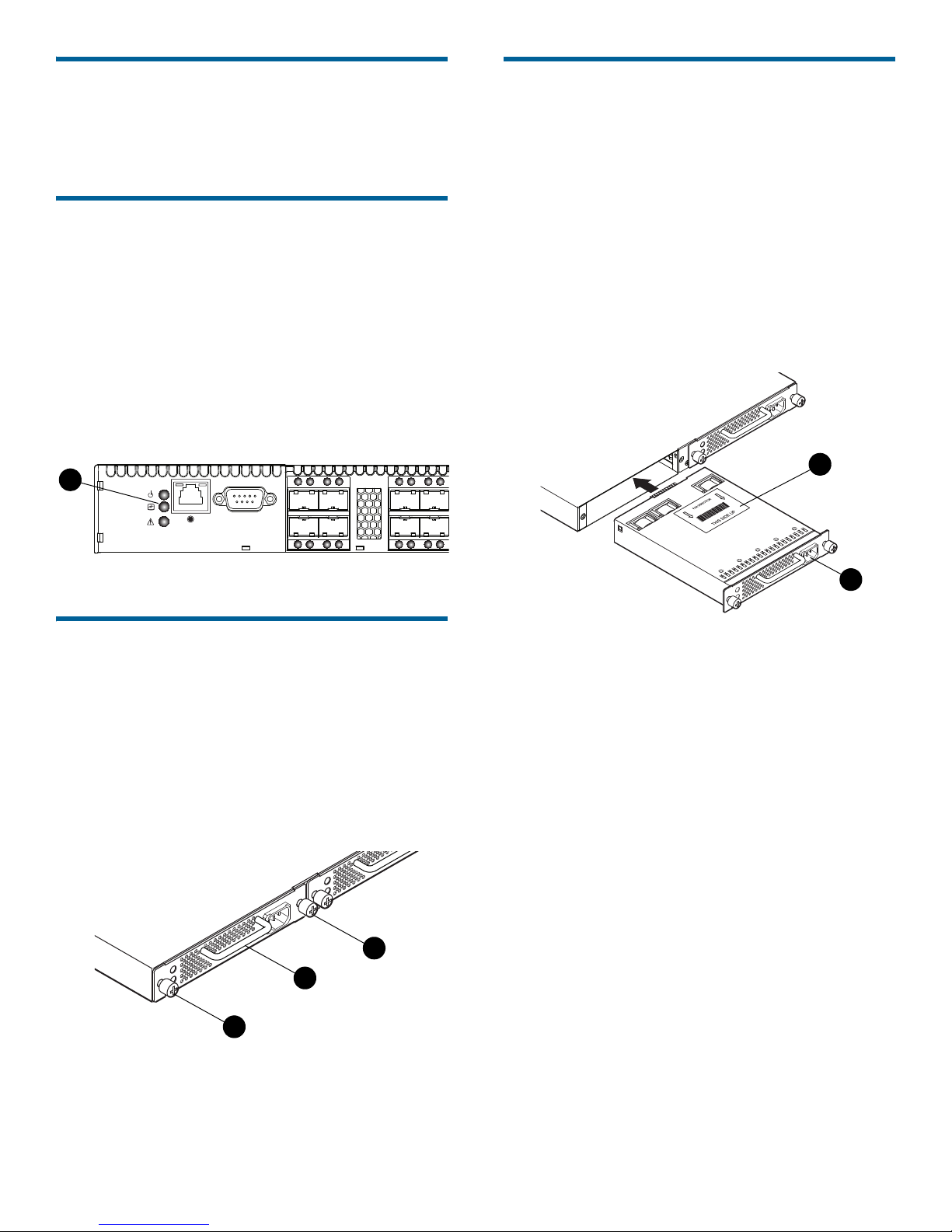

Figure 1 Observing the Heartbeat LED

Removing the failed power supply

1. Unplug the power cord from the power supply.

2. Using a cross-head screwdriver, loosen the two

knurled fasteners.

3. Grasp the power supply handle and pull firmly

to disengage the modular connector.

4. Remove the power supply from the bay.

Figure 2 Removing the failed power supply

Installing the new power supply

1. Confirm that the new power supply air flow

direction is compatible with the old power

supply. The air flow direction is noted on the

part number label.

2. With the AC receptacle on the right, slide the

power supply into the bay until it is firmly

seated.

3. Secure the knurled fasteners by hand.

4. Plug the power cord into the AC receptacle and

confirm that the air flow direction is correct.

Figure 3 Installing the new power supply

1 Heartbeat LED (green)

1 Knurled fastener 2 Handle

1

1

2

1

1 Part number label 2 AC receptacle

1

2
