Product End-of-Life Disassembly Instructions

Product Category: Monitors and Displays

Marketing Name / Model

[List multiple models if applicable.]

HP EliteDisplay E273m 27-in Monitor

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC,Waste Electrical and Electronic Equipment (WEEE).

1.1

Items listed below are classified as requiring selective treatment.

1.2

Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

ItemDescription

Notes

Quantity

of items

included

product

Printed Circuit Boards (PCB) or Printed

Circuit Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin or button

style batteries

Mercury-containingcomponents

For example, mercuryin lamps, display backlights, scanner

lamps, switches, batteries

Liquid Crystal Displays (LCD) with a

surface greater than 100 sq cm

Includes background illuminated displays with gas discharge

lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing

PCB/PCT)

C801,C701,C706,C7202,C715,C7207,C4303,C4102,C5204,

C1228,C629,C674,C677,C641,C1111,C1101,C904,C906,C905

C907,C901,C902,C914,C908,C9904,C9903,C9902

Electrolytic Capacitors / Condensers

measuring greater than 2.5 cm in diameter

or height

C901,C902

External electrical cables and cords

Power Cord、VGA cable、DP cable, HDMI cable,

USB C to A Cable

Gas Discharge Lamps

Plastics containing Brominated Flame

Retardants weighing > 25 grams (not

1.0 Items Requiring Selective Treatment

EL-MF877-00

Template Revision B

Page 2

PSG instructions for this template are available at EL-MF877-01

including PCBs or PCAs already listed as a

separate item above)

Components and parts containing toner

and ink, including liquids, semi-liquids

(gel/paste) and toner

Include the cartridges, print heads, tubes, vent chambers, and

service stations. 2

Components and waste containing

asbestos

Components, parts and materials

containing refractoryceramic fibers

Components, parts and materials

containingradioactivesubstances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1 Screw driver of "+" type

200mm

Description #2 Hexagonal nut screw driver for DVI and D-SUB connector

200mm

Description#3

Description#4

Description#5

3.0 Product Disassembly Process

3.1

List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

Lay the monitor on a flat, soft and clean surface.

Push the button release the stand-base ass'y

Remove the screws to release the Rear cover

Remove the cable pin, screws and tapes

Release the mainframe, take out the mylar

Remove the screws and cables to detach the MB & Power board

Remove the screws and seperate teh camera ass'y

Left Panel, middle frame with the keyboards and panel.

3.2

Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

12. Mechanical Instructions

Step

Figure

Description

Preparation

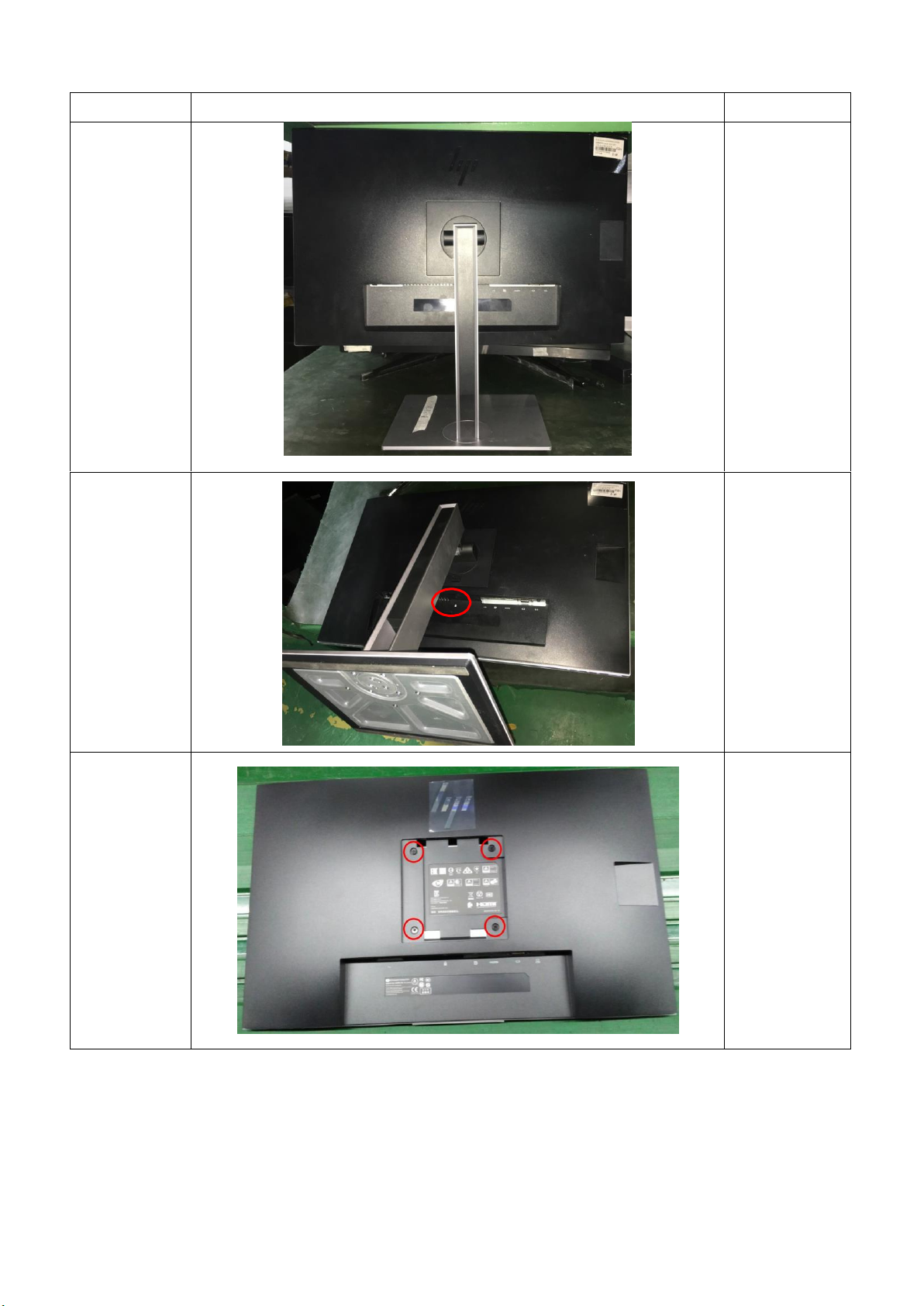

Lay the monitor

on a flat, soft

and clean

surface.

Remove the

Stand-base

Ass’y

Push the button

the remove the

stand-base

ass’y

Remove the

Rear cover

Remove the

screws to

remove the

Rear cover.

Remove the

pin and the

screw

Remove the pin

and the screw.

Remove the

tapes, screws

and the pins

Remove the

tapes, the

screws and the

pins

Remove the

screws

Remove the

screws.

Remove the

screws

Remove the

screws

Remove the

Mylar

Remove the

Mylar

Remove the

main board

and power

board

Remove the

screws to

remove the

main board and

power board

Remove the

connectors

Remove the

connect pins

Remove the

screws.

Remove the

screws and the

key board.

Remove the

screws.

Remove the

screws and

the camera.

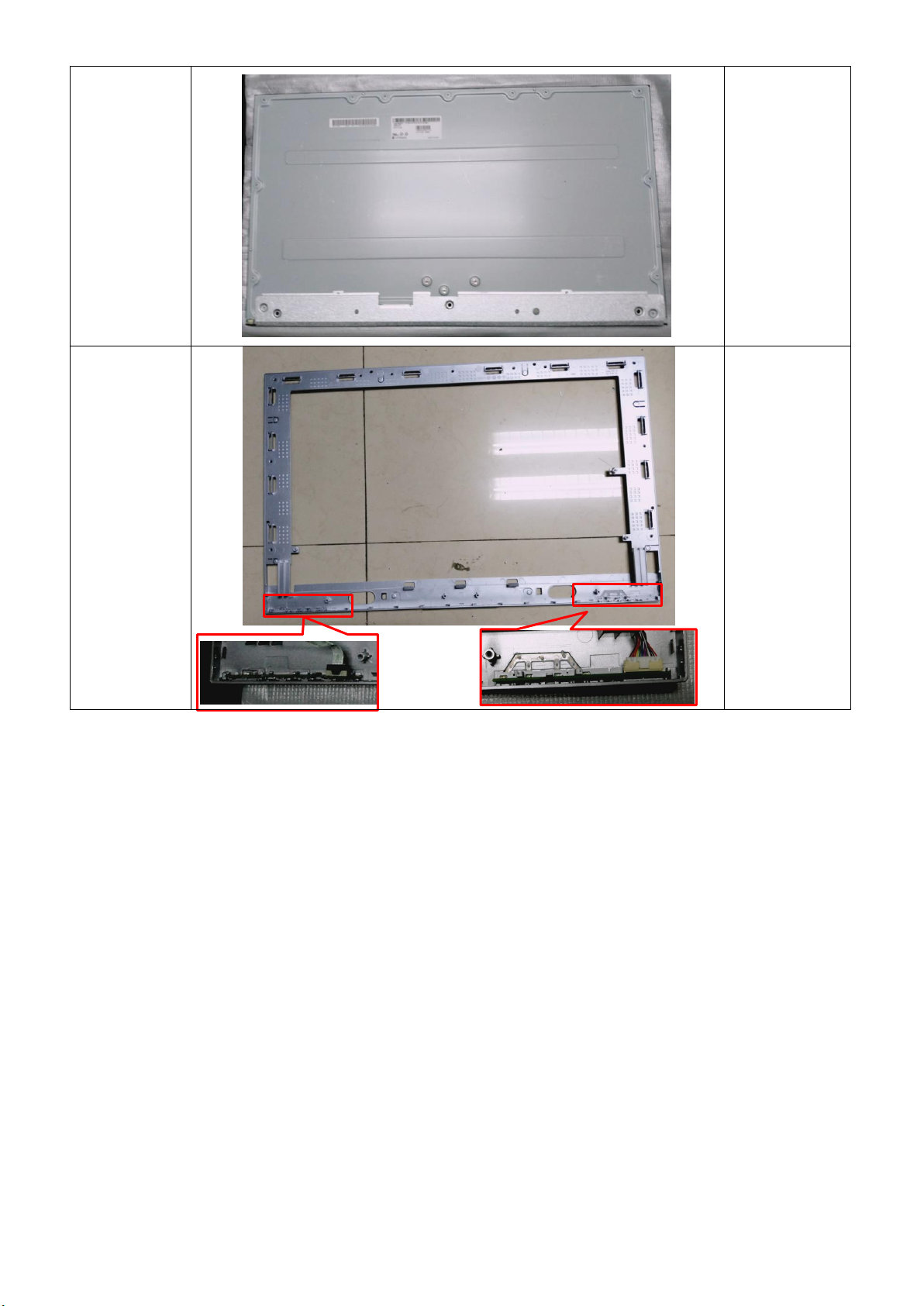

The

mainframe

The mainframe

The panel

The middle

frame and the

key board

The Middle

Frame and the

key boards.
