HP EliteDisplay E232e Instructions d'installation

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Monitors and Displays

Marketing Name / Model

[List multiple models if applicable.]

HP EliteDisplay E232e 23-inch Monitor

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1

Crossing

Screw Driver

Description #2

Crossing

Screw Driver

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Lay the Monitor on the desk, tack out the stand with hand

2. Unlock the 4 PCS screws

3. Take out the back cover with hand.

4. Take out the Keypad line with hand.

5. Take out the tapes with hand and take out the LED line

6. Take out the foils with hand

7. Take out the tape and take out the LVDS

8. Take out the chassis ASM with hand

9. Take out the foil with handTake out the panel and Bezel ASM

10. Take out the top chassis mylar with hand

11. Unlock the 2 screws and take out the keypad

12. Unlock the 3 Screws

13. Unlock the 1 Screws and take out the USB cover ASM

14. Take out the USB line

15. Unlock the 2 screws and take out the USB board

16. Take out the mylar

17. Unlock the 7 screws and take out the PCBA with hand

18. Take out the lines with hand

19. Take out the rubber cap and mylars with hand

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Below action which may easily damage product .please notice it

Lay the

Monitor on

the desk, tack

out the stand

with hand

N/A

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

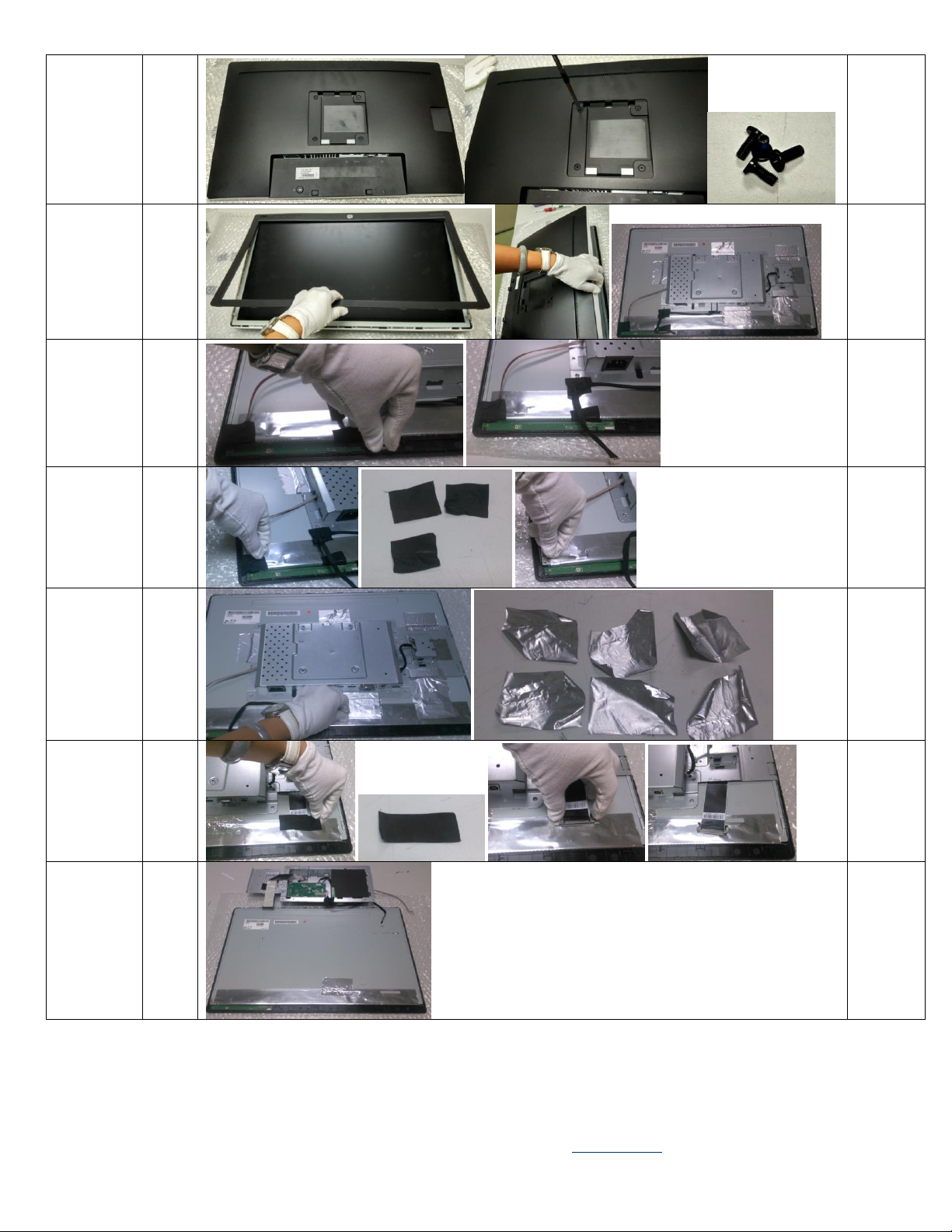

Unlock the

4 PCS

screws

Cross

ing

Scre

Drive

Take out the

back cover

with hand.

N/A

Take out the

Keypad line

with hand.

N/A

Take out the

tapes with

hand and take

out the LED

line

N/A

Take out the

foils with

hand

N/A

Take out the

tape and

take out the

LVDS

N/A

Take out the

chassis

ASM with

hand

N/A

EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Take out the

foil with

hand

N/A

Take out the

panel and

Bezel ASM

N/A

Unlock the

2 screws

and take out

the keypad

Cross

ing

Scre

Drive

Unlock the

3 Screws

Cross

ing

Scre

Drive

Unlock the

1 Screws

and take out

the USB

cover ASM

Cross

ing

Scre

Drive

Take out

the USB

line

N/A

Unlock the

2 screws

and take

out the

USB board

Cross

ing

Scre

Drive

EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Take out

the mylar

N/A

Unlock the

7 screws

and take

out the

PCBA with

hand

Cross

ing

Scre

Drive

Take out

the lines

with hand

N/A

Take out

the rubber

cap and

mylars with

hand

N/A
