HP Compaq CV5500 Manuel utilisateur

Reference Guide

CRT Monitors 5500, v72, mx704, 7500,

7550, 9500

Document Part Number: 346224-002

January 2004

This guide provides information on setting up the monitor,

installing drivers, using the on-screen display menu,

troubleshooting, regulatory notices, and technical specifications.

The information contained herein is subject to change without notice.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of

Microsoft Corporation in the U.S. and other countries.

Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel

Corporation in the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered

trademarks of Adobe Systems Incorporated.

The only warranties for HP products and services are set forth in the

express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty.

HP shall not be liable for technical or editorial errors or omissions

contained herein.

This document contains proprietary information that is protected by

translated to another language without the prior written consent of

Hewlett-Packard Company.

ÅWARNING: Text set off in this manner indicates that failure to

follow directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Reference Guide

CRT Monitors 5500, v72, mx704, 7500, 7550, 9500

Second Edition (January 2004)

Document Part Number: 346224-002

Reference Guide iii

Contents

1 Introduction

Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

2 Safety and Maintenance Guidelines

Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Important Safety Information . . . . . . . . . . . . . . . . . . 2–1

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Removing the Monitor Base . . . . . . . . . . . . . . . . . . . 2–4

3 Installation

Attaching the Monitor Base . . . . . . . . . . . . . . . . . . . . . . . 3–1

Setting Up the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Connecting the Speakers (Available with Select Models) 3–4

Attaching the JBL Speakers to the Monitor . . . . . . . 3–5

Using the JBL Speaker Security Lock. . . . . . . . . . . . 3–6

Connecting Portable Output Devices to the

JBL Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Plugging Headphones into the Computer . . . . . . . . . . . . 3–7

4 Operation

Information Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

On-Screen Display Functions . . . . . . . . . . . . . . . . . . 4–5

iv Reference Guide

Contents

Monitor Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

No Signal Message . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

Out of Frequency Range Message. . . . . . . . . . . . . . 4–11

Using the Energy Saver Mode . . . . . . . . . . . . . . . . . . . . 4–12

A Troubleshooting

Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1

Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–4

Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–4

B Technical Specifications

5500/15” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . B–1

v72/17” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . B–3

mx704/17” Series Monitor. . . . . . . . . . . . . . . . . . . . . . . . B–5

7500/17” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . . B–7

7550/17” Flat CRT Monitor. . . . . . . . . . . . . . . . . . . . . . . B–9

9500/19” Series Monitor . . . . . . . . . . . . . . . . . . . . . . . . B–11

C Agency Regulatory Notices

Federal Communications Commission Notice. . . . . . . . . C–1

Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–1

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2

Declaration of Conformity for Products Marked with FCC

Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . . C–2

Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

European Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4

Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4

EPA Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . C–4

Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–4

Reference Guide 1–1

Introduction

Your microprocessor-based, digitally controlled color monitor is

a high-performance and easy-to-use product. It employs the latest

on-screen menu technology.

Kit Contents

The monitor kit contains:

■CRT monitor

■Monitor Base (pre-attached on select models)

■Monitor AC power cord (select models)

■Speakers and power adapter (select models)

■Documentation kit

Reference Guide 2–1

Safety and Maintenance

Guidelines

Safety Guidelines

Power Requirements

A power cord is included with your monitor. If another cord is

used, use only a power source and connection appropriate for this

monitor. For information on the correct power cord set to use with

your monitor, refer to the “Power Cord Set Requirements” section

in Appendix C.

Important Safety Information

ÅWARNING: To reduce the risk of electric shock or damage to your

equipment, do not disable the power cord grounding feature. This

equipment is designed to be connected to a grounded (earthed)

power outlet that is easily accessible to the operator. The grounding

plug is an important safety feature.

ÅWARNING: For your safety, be sure that the power outlet you plug

the power cord into is easily accessible and located as close to the

equipment as possible. When you need to disconnect the power to

the equipment, unplug the power cord from the power outlet by

grasping the plug firmly. Never pull on the cord.

2–2 Reference Guide

Safety and Maintenance Guidelines

ÄCAUTION: For the protection of your monitor, as well as your

computer, connect all power cords for your computer and its

peripheral devices (such as a monitor, printer, scanner) to some form

of surge protection device such as a power strip or Uninterruptible

Power Supply (UPS). Not all power strips provide surge protection;

the power strips must be specifically labeled as having this ability.

Use a power strip whose manufacturer offers a Damage Replacement

Policy so you can replace your equipment if surge protection fails.

Maintenance Guidelines

To enhance the performance and extend the life of your monitor,

follow these guidelines:

■Do not open your monitor cabinet or attempt to service this

product yourself. If your monitor is not operating properly, or

has been dropped or damaged, first unplug from power outlet,

then contact your Hewlett-Packard authorized dealer, reseller,

or service provider.

■Adjust only those controls that are discussed in the operating

instructions.

■Place your monitor at least 3 inches (76 mm) away from

walls or other enclosures.

■Use only a power source and connection appropriate for this

monitor, as indicated on the label/back plate of the monitor.

■Be sure the total ampere rating of the products connected to

the outlet does not exceed the current rating of the electrical

outlet, and the total ampere rating of the products connected

to the cord does not exceed the rating of the cord. Look on the

power label to determine the ampere rating (AMPS or A) for

each device.

Safety and Maintenance Guidelines

Reference Guide 2–3

■Install your monitor near an outlet that you can easily reach.

Disconnect the monitor by grasping the plug firmly and

pulling it from the outlet. Never disconnect the monitor by

pulling the cord.

■Turn your monitor off when not in use. You can substantially

increase the life of your monitor by using a screen saver

program and turning off the monitor when not in use.

■Unplug your monitor from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners. Use a damp

cloth for cleaning. If the screen requires additional cleaning,

use an antistatic CRT screen cleaner.

ÄCAUTION: Do not use benzene, thinner, ammonia, or any other

volatile substances to clean your monitor or the screen. These

chemicals may damage the cabinet finish as well as the screen.

■Slots and openings in the cabinet are provided for ventilation.

These openings must not be blocked or covered. Never push

objects of any kind into cabinet slots or other openings.

■Do not place plants on top of your monitor. Water or dirt from

the plant may get into the vents.

■Do not drop your monitor or place it on an unstable surface.

■Do not allow anything to rest on the power cord. Do not walk

on the cord.

■Keep your monitor in a well-ventilated area, away from

excessive light, heat or moisture. Keep your monitor away

from high-capacity transformers, electric motors, and other

devices with strong magnetic fields.

■In a two-monitor system, place your monitors as far apart

from one another as possible to lessen interference between

them.

2–4 Reference Guide

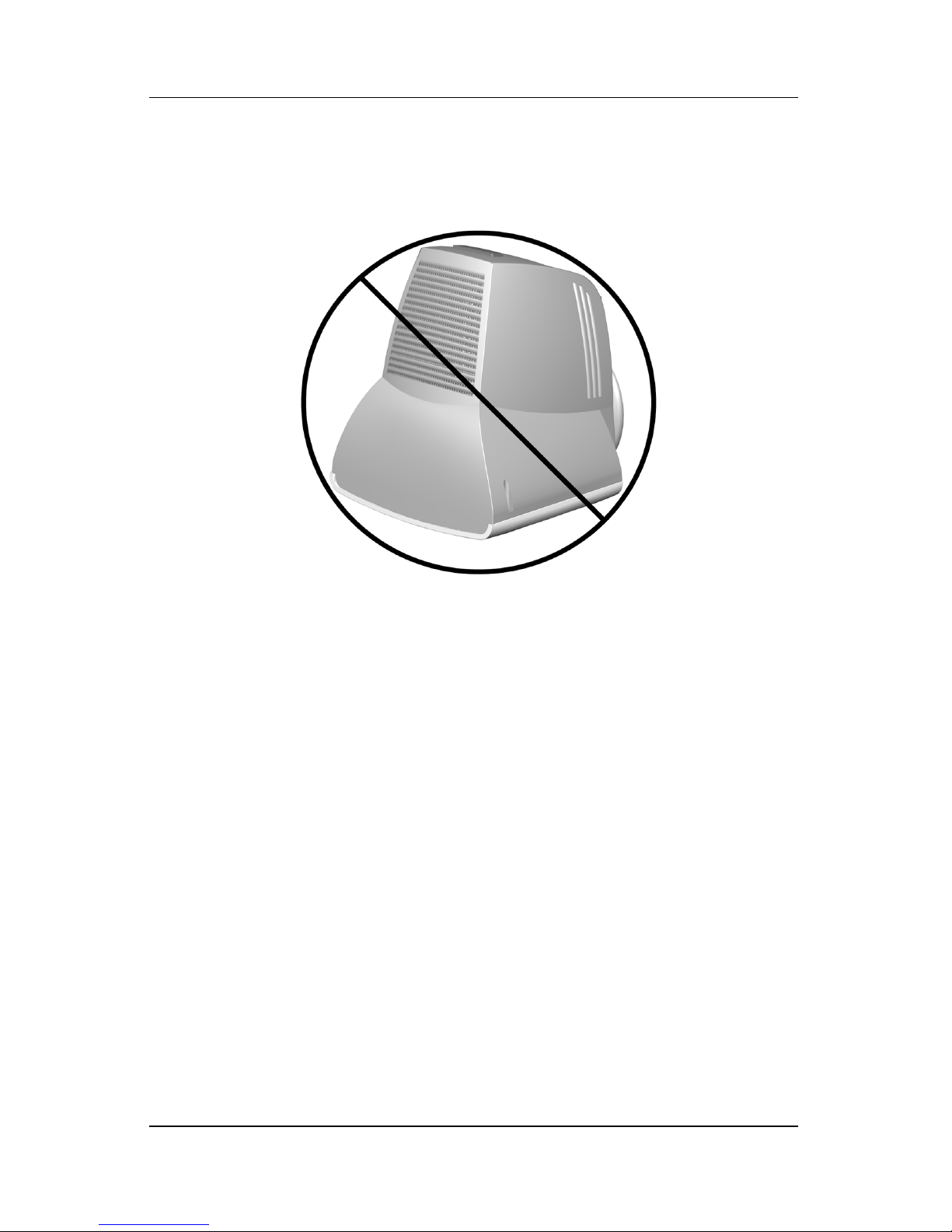

■Do not place the monitor face down. Damage could result to

the front panel controls or the monitor screen.

Removing the Monitor Base

In the event that you need to disassemble the base from the

monitor, follow these instructions:

1. If you must remove the base attachment, release the catch and

slide the base toward the back of your monitor.

2. Lift the base up and away from your monitor.

Reference Guide 3–1

Installation

Attaching the Monitor Base

On some monitors, the base must be attached prior to setting up

the monitor. To attach the base:

1. Align the hooks on the base with the sockets on the bottom of

the monitor and attach the base.

Autres manuels pour Compaq CV5500

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Moniteur

HP Engage 14t Instructions de montage

HP LP1965 - Promo LCD Monitor Manuel utilisateur

HP TFT5600 Manuel utilisateur

HP Compaq LA2006 Instructions d'utilisation

HP MX703 - Pavilion - 17" CRT Display Manuel utilisateur

HP LP2480zx - DreamColor - 24" LCD Monitor Manuel utilisateur

HP Compaq LA2006x Manuel utilisateur

HP Z31 Series Manuel

HP KD911A4 Instructions d'utilisation

HP GP537AA Manuel utilisateur

HP L5006tm Manuel utilisateur

HP X27i Manuel

HP S2032a Instructions d'installation

HP EliteDisplay S240ml Instructions d'utilisation

HP Vp17 Manuel utilisateur

HP ProDisplay P202va Instructions d'installation

HP V206hz Manuel utilisateur

HP 2009m Manuel utilisateur

HP LD4730Ga Instructions d'installation

HP Compaq R201 Instructions de montage

HP Compaq S1933 Manuel utilisateur

HP E24t G4 Manuel

HP NK570AA Manuel utilisateur

HP w15e - Widescreen LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
