HP Nc6400 - Compaq Business Notebook Mode d’emploi

Memory Modules

User Guide

Development Company, L.P.

The information contained herein is subject

to change without notice. The only

warranties for HP products and services are

set forth in the express warranty statements

accompanying such products and services.

Nothing herein should be construed as

constituting an additional warranty. HP shall

not be liable for technical or editorial errors

or omissions contained herein.

First Edition: May 2006

Document Part Number: 406746-001

Table of contents

1 Adding or replacing memory modules

Adding a memory module to the expansion memory module slot ........................................................ 2

Upgrading a memory module in the primary memory module slot ....................................................... 6

2 Effects of increasing memory

Index ................................................................................................................................................................... 13

ENWW iii

iv ENWW

1 Adding or replacing memory modules

The computer has two memory module compartments. The primary memory module compartment is

located under the keyboard. The expansion memory module compartment is located on the bottom of

the computer.

The memory capacity of the computer can be upgraded by adding a memory module to the vacant

expansion memory module slot or by upgrading the existing memory module in the primary memory

module slot.

WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the

power cord and remove all batteries before installing a memory module.

CAUTION Electrostatic discharge (ESD) can damage electronic components. Before

beginning any procedure, ensure that you are discharged of static electricity by touching a

grounded metal object.

CAUTION To prevent damage to a memory module, hold the memory module by the edges

only.

ENWW 1

Adding a memory module to the expansion memory

module slot

To add or replace a memory module in the expansion memory module slot:

1. Save your work.

2. Shut down the computer and close the display. (If you are not sure whether the computer is off or

in hibernation, turn the computer on by pressing the power button. Then shut down the computer

through the operating system.)

3. Disconnect all external devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface.

6. Remove the battery from the computer.

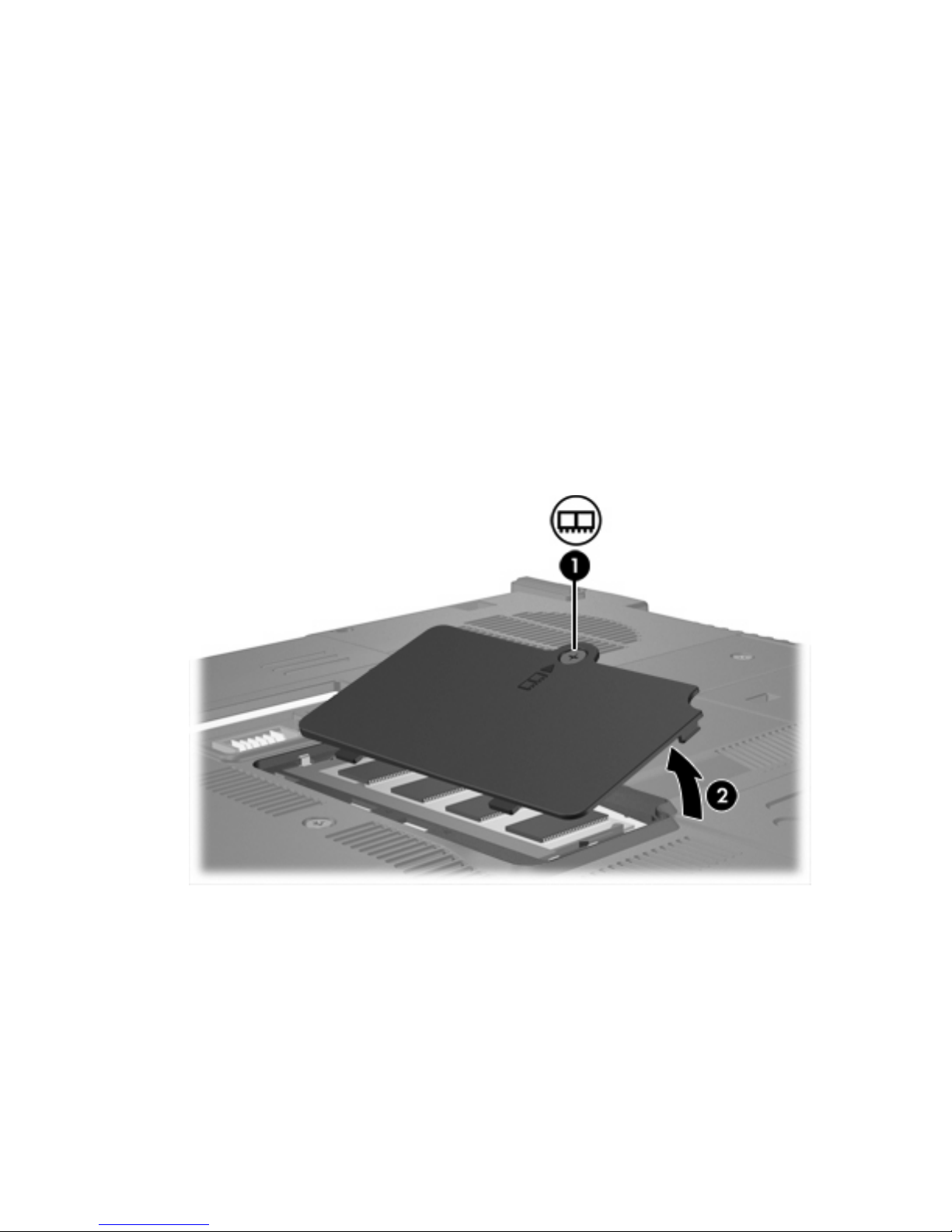

7. Loosen the memory module compartment cover screw (1).

8. Lift the memory module compartment cover (2) away from the computer.

9. To remove a memory module:

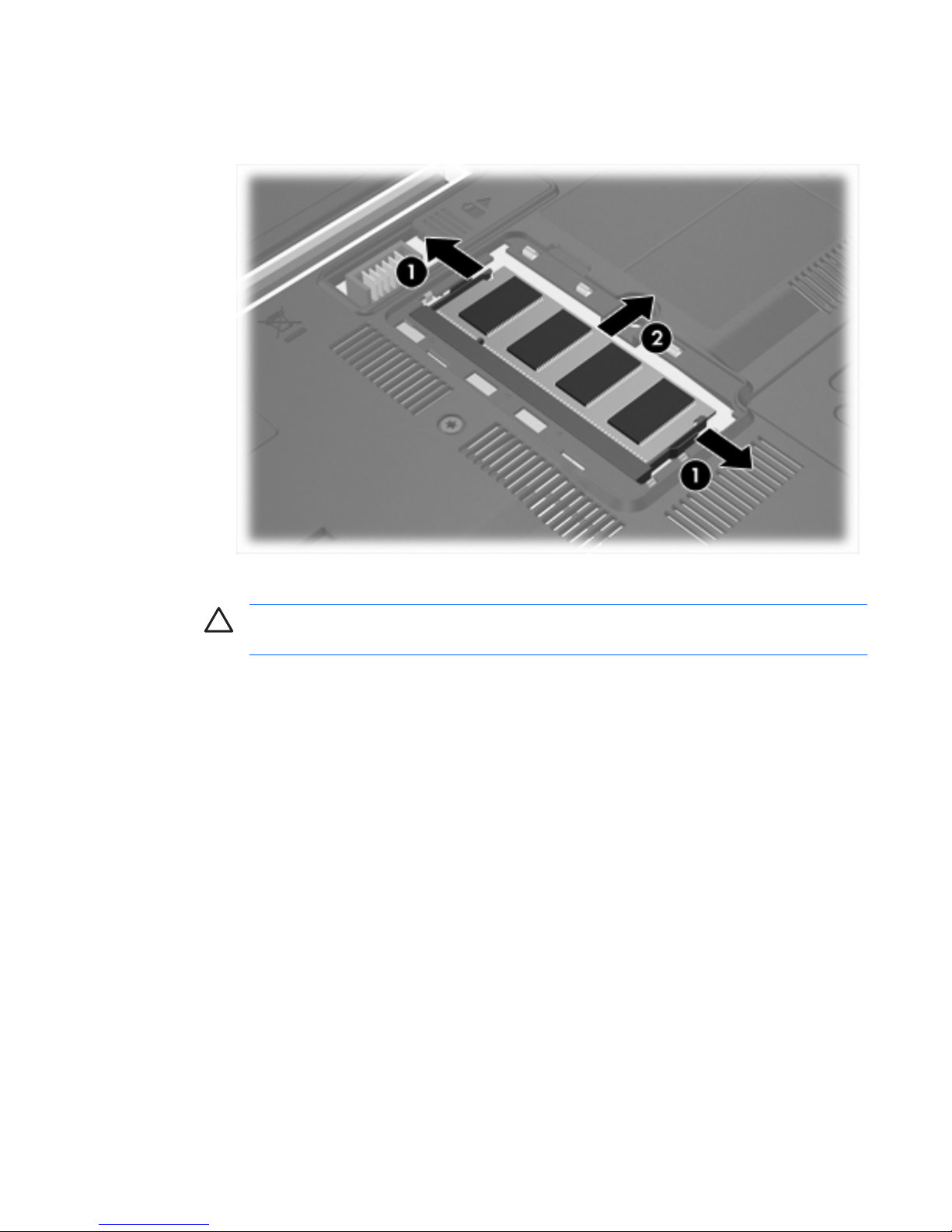

a. Pull away the retention clips (1) on each side of the memory module. (The memory module

tilts up.)

2 Chapter 1 Adding or replacing memory modules ENWW

b. Grasp the edge of the memory module (2), and gently pull the module out of the memory

module slot. (To protect a memory module after removal, place it in an electrostatic-safe

container.)

10. To insert a memory module:

CAUTION To prevent damage to the memory module, be sure that you do not bend the

memory module.

a. Align the notched edge (1) of the memory module with the tab in the memory module slot.

b. With the memory module at a 45-degree angle from the surface of the memory module

compartment, press the module (2) into the memory module slot until it is seated.

ENWW Adding a memory module to the expansion memory module slot 3

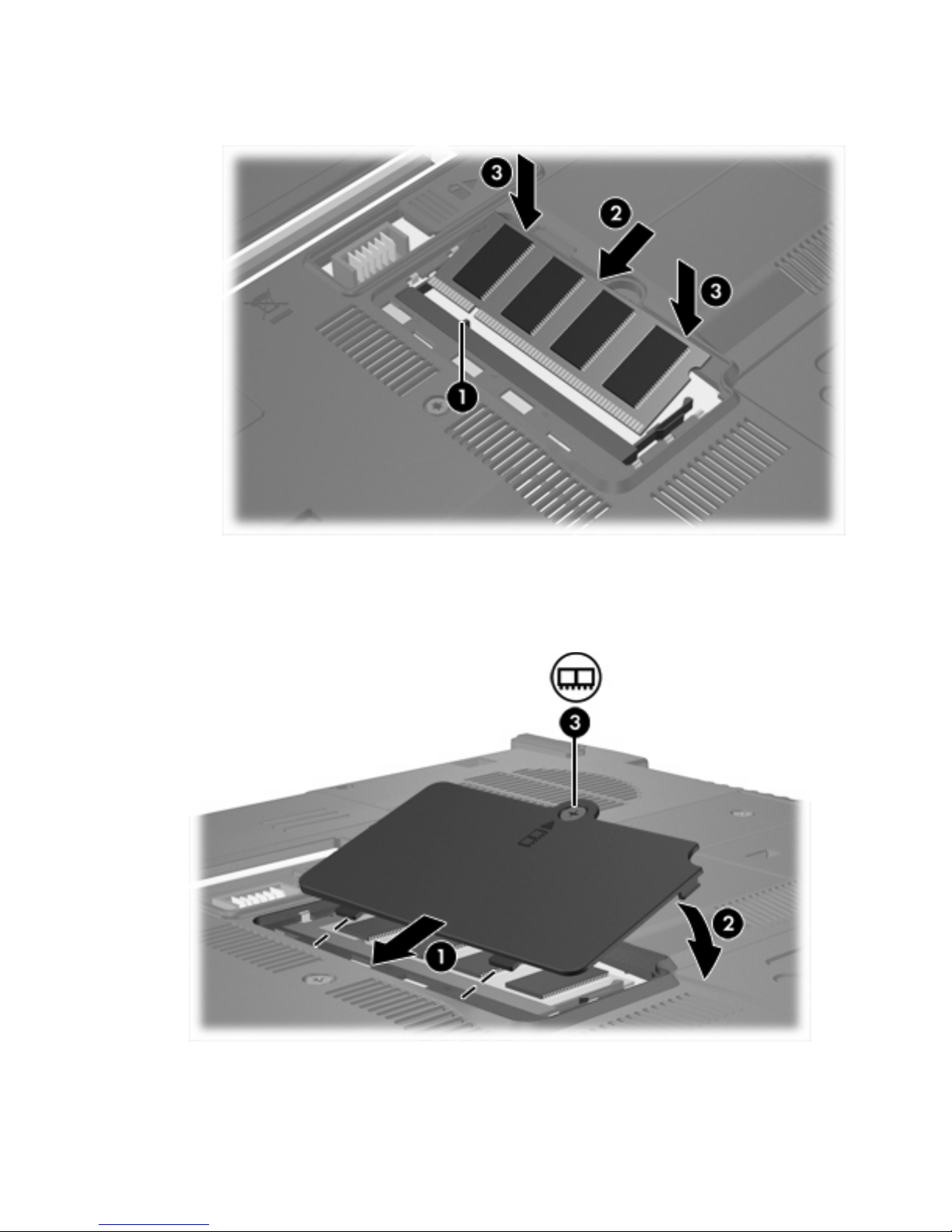

c. Press the memory module (3) down, applying pressure to both the left and right edges of the

memory module, until the retention clips snap into place.

11. Align the tabs (1) on the memory module compartment cover with the notches on the computer.

12. Close the cover (2).

13. Tighten the memory module compartment cover screw (3).

14. Replace the battery.

4 Chapter 1 Adding or replacing memory modules ENWW

15. Reconnect external power and external devices.

16. Turn on the computer.

ENWW Adding a memory module to the expansion memory module slot 5

Upgrading a memory module in the primary memory

module slot

To upgrade a memory module in the primary memory module slot:

1. Save your work.

2. Shut down the computer. (If you are not sure whether the computer is off or in hibernation, turn the

computer on by pressing the power button. Then shut down the computer through the operating

system.)

3. Disconnect all external devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface.

6. Remove the battery from the computer.

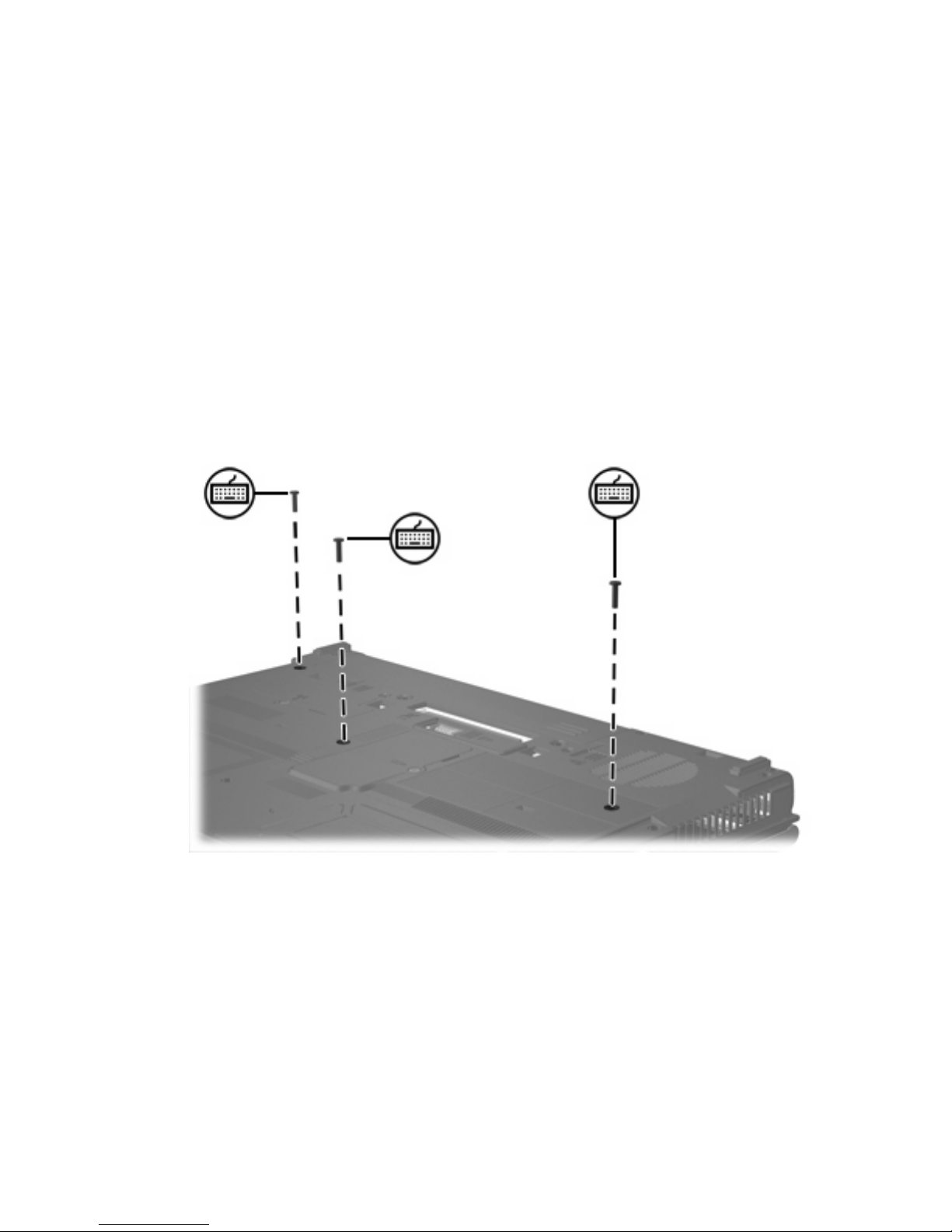

7. Remove the 3 keyboard screws.

8. Turn the computer over and open it.

6 Chapter 1 Adding or replacing memory modules ENWW
