1-98 Volume Two

Presario 1200

System/Processor Boards Assembly Spare Part System

Processor Board w/ 32 MB 356877-001 1234, 35, 36,

37, 38, 40,

42, 50, 52

Processor Board w/ 32 MB 330938-001 1230

Processor Board w/ 32 MB

SDRAM 142646-001 1272, 73, 74,

System Board 586/200GXM,

Processor 203716-001 1220,

1220ES

System Board 586/180GXM,

Processor 203718-001 1215

System Board, I/O w/ 1M w/ 64

MB LVD 50M102D83-S0 173539-001 1200XL

System Board, I/O w/ 1M w/ 64

MB TFT 50M102D81-S0 169608-001 1200XL

System Board, I/O w/ 32 MB

SDRAM 102246-001 1255, 60, 66,

System Board, I/O w/ 512K

Cache w/ 32 MB HPA 50M102D79-S0 169606-001 1200XL

System Board, I/O w/ 512K

Cache w/ 32 MB RAM 158793-001 1246, 47

System Board, I/O w/ 512K

Cache w/ 64 MB HPA 50M102D80-S0 169607-001 1200XL

System Board, I/O w/ 512K

Cache w/ 64 MB RAM 158794-001 1246, 77, 78

System Board w/ 32 MB

SDRAM w/o FMDM 102247-001 1255, 60, 66,

System Board w/ Cache, w/o

Processor 293785-001 1207, 10

System Board, w/o Processor 203731-001 1220

System Board, w/o Processor 327715-001 1215

Configuration Code System Board

Spare Part Model

BQH2 293785-001 1210

BQH3 293785-001 1207

BQH4 293785-001 1207

BQH5 293785-001 1207

BVL2 203716-001 1220

BVL4 203716-001 1220

BXN2 203731-001 1215

BY44 330938-001 1230

BY86 356877-001 1235

BY87 356877-001 1238

BY88 356877-001 1237

BY8B 356877-001 1235

BY8H 356877-001 1234

BY8K 356877-001 1236

BYG2 356877-001 1240

BYG3 356877-001 1240

BYG4 356877-001 1242

BYG5 356877-001 1240

CF42 356877-001 1252

CF43 356877-001 1250

Continued

Volume Two 1-99

Presario 1200

Configuration Code System Board

Spare Part Model

CFK2 102246-001 1255

CFK3 102246-001 1255

CFK4 102246-001 1255

CFK5 102246-001 1260

CFK6 102246-001 1255

CFK7 102246-001 1260

CFK8 102246-001 1266

CFKB 102246-001 1267

CFKC 102246-001 1260

CFKD 102246-001 1260

CLR3 142646-001 1275

CLR4 142646-001 1273

CLR5 142646-001 1272

CLR7 142646-001 1275

CLR8 142646-001 1274

CLRG 142646-001 1275

CTS1 158793-001 1246

CTS3 158794-001 1277

CTS6 158793-001 1246

CTS7 158794-001 1278

CTS9 158793-001 1247

CTSD 158794-001 1277

DCH1 169607-001 1200XL

DCH2 169608-001

173539-001 1200XL

DCH3 169608-001

173539-001 1200XL

DCH5 169607-001 1200XL

DCH6 169608-001

173539-001 1200XL

DCH7 173539-001 1200XL

Microprocessors Assembly Spare Part System

233 GXM Processor 330937-001 1230

586/200 GXM w/ Processor

Board 203734-001 1220, 1220ES

686/150 w/ Heat Sink 293828-001 1207, 10

686/180 GXM 203718-001 1215

686/266 MMX Processor 332216-001 1234, 35, 36, 37,

K6/300 Processor 356886-001 1250, 52

K6II/333 Processor 400442-001 1255, 60, 66, 67

K6II/366 Processor 142647-001 1272, 73, 74, 75

K6II/400 Processor, AMD,

2.2V 134079-001 1246, 47

K6II/433 Processor, AMD 158851-001 1277, 1278

K6II/450 Processor, 2.1V 50M102D42-S0 159548-001 1200XL

K6II/475 Processor, 2V 50M102D44-S0 161064-001 1200XL

K6II/500 Processor, 2.1V 50M102D82-S0 173534-001 1200XL

P/266 MAX Processor 356885-001 1240, 42

1-100 Volume Two

Presario 1200

Memory Modules/Boards Spare Part System

16 MB Memory, SODIMM 293726-001 All

32 MB Memory, SODIMM 293727-001 All

64 MB Memory, SODIMM 332208-001 All

Hard Drives Assembly Spare Part System

1.4 GB, IDE 293779-001 1207, 10

1.4 GB, IDE 203740-001 1215

2.1 GB, IDE 298764-001 1220

2.1 GB, IDE 330933-001 1230

3.2 GB, IDE 330968-001 1230

4.0 GB, IDE 330969-001 1260, 66, 67

4.3 GB, IDE 144410-001 1246, 47, 72, 74,

75, 77, 78

4.8 GB, IDE 50M101D81-S0 142310-001 1246, 77, 78, 79;

1200XL

5.0 GB 50M102D77-S0 169609-001 1200XL

6.0 GB 50M101Z23-S0 170087-001 1200XL

6.4 GB, IDE 347548-001 1250, 60, 66

6.4 GB, IDE 142651-001 1273

Diskette Drives Assembly Spare Part System

1.44 MB 293784-001 All

1.44 MB 330947-001 1230, 34, 35, 36,

37, 38, 40, 42,

50, 52, 55, 60,

66, 67

1.44 MB 50M101D99-S0 141847-001 1246, 47, 72, 73,

74, 75, 77, 78;

1200XL

CD-ROM Assembly Spare Part System

6X DVD-ROM, 1C 50M102D76-S0 169799-001 1200XL

14X Max 203741-001 1215

14X Max CD-ROM (Black) 297657-001 1207, 10

20X Max CD-ROM 203736-001 1220

24X CD-ROM 330934-001 1230, 34, 35, 36,

37, 38, 40, 42,

50, 52

24X CD-ROM 386891-001 1255, 60, 66, 67

24X Max CD-ROM, IDE, 2C 50M101D78-S0 142307-001 1246, 47, 77, 78;

1200XL

24X CD-ROM, 2C 142650-001 1272, 73, 74, 75

Cables Assembly Spare Part System

Flat Panel, Cable to

Interface Board 50M102D15-S0 152186-001 1246, 77, 78, 79;

1200XL

Misc. Cable Kit 293759-001 All

Misc. Cable Kit 203714-001 1215, 20, 20ES

Misc. Cable Kit 293759-001 All

Misc. Cable Kit 50M101F23-S0 330946-001 1230, 34, 35, 36,

37, 38, 40, 42,

46, 47, 50, 52,

55, 60, 66, 67,

72, 73, 74, 75,

77, 78, 79;

1200XL

Volume Two 1-101

Presario 1200

Miscellaneous Internal Assembly Spare Part System

Audio Board w/ Jacks –

Lite 293756-001 1207, 10

Fan 346863-001 1234, 35, 36, 37, 38,

40, 42, 50, 52, 55,

60, 66, 67

Fan 293747-001 All

Fan 102249-001 1272, 73, 74, 75

Fan, 5500 rpm 50M102D35-S0 158801-001 1246, 47, 77, 78, 79;

1200XL

Fan, 7000 rpm 50M102D34-S0 158800-001 1246, 47, 77, 78, 79;

1200XL

Heat Spreader, 2000 50M102D36-S0 158802-001 1246, 47, 77, 78, 79;

1200XL

LCD Interface Board w/

Header 293746-001 All

Voltage Converter

Board 293748-001 All

Voltage Converter

Board 330962-001 1230

Voltage Converter

Board, 3C 50M101F43-S0 352891-001 1234, 35, 36, 37, 38,

40, 42, 46, 47, 50,

52, 55, 60, 66, 67,

1272, 73, 74, 75, 77,

78, 79; 1200XL

Miscellaneous

External Assembly Spare Part System

AC Adapter 50M101P23-S0 298239-001 All (new smaller

size)

AC Adapter 293787-001 All

Base Enclosure 50M102D32-S0 158798-001 1246, 47, 77, 78;

1200XL

CPU Cover, Upper 203739-001 1215, 1220

CPU Cover w/ Cable &

Power Switch 293739-001 All

CPU Cover w/ Power

Switch 330963-001 1255, 60, 66, 67

CPU Cover w/ Power

Switch 50M102D33-S0 158799-001 1200XL

Hardware Kit, Misc. 50M101F37-S0 346853-001 1234, 35, 36, 37, 38,

40, 46, 47, 50, 52,

55, 60, 66, 67, 1272,

73, 74, 75, 77, 78,

79; 1200XL

Keyboard 102250-001 1260

Keyboard 141706-XXX 1246, 47, 72, 73, 74,

75, 77, 78, 79

Keyboard 50M102D58-S0 171003-001 1200XL

Keyboard - ARAB 50M102D66-S0 171003-171 1200XL

Keyboard - BEL 50M102D74-S0 171003-381 1200XL

Keyboard - BR 50M102D86-S0 171003-201 1200XL

Keyboard - DK 50M102D59-S0 171003-081 1200XL

Keyboard - FCAN 50M102D73-S0 171003-121 1200XL

Keyboard - FR 50M102D60-S0 171003-051 1200XL

Keyboard - IT 50M102D62-S0 171003-061 1200XL

Keyboard - JP 50M102D71-S0 171003-291 1200XL Continued

1-102 Volume Two

Presario 1200

Miscellaneous

External Assembly Spare Part System

Keyboard - LA 50M102D65-S0 171003-161 1200XL

Keyboard - NL 50M102D72-S0 171003-331 1200XL

Keyboard - NO 50M102D63-S0 171003-091 1200XL

Keyboard - UK 50M102D68-S0 171003-031 1200XL

Keyboard - PT 50M102D69-S0 171003-131 1200XL

Keyboard - SE 50M102D67-S0 171003-101 1200XL

Keyboard - SG 50M102D64-S0 171003-AF1 1200XL

Keyboard - TW 50M102D70-S0 171003-AB3 1200XL

Keyboard - UK 50M102D68-S0 171003-031 1200XL

Keyboard, US 293776-001 1210, 1620

Keyboard, US 330956-001 1230, 34, 35, 36, 37,

38, 40, 50, 52

Modem, 33.6+Data/Fax 298958-002 298974-002 1215, 20, 07

Modem, 56.6+Data/Fax 292306-002 292311-001 1220, 10, 07

Modem, 56K Data/Fax 138657-001 1215, 20, 30

Modem, 56K Data/Fax 292306-001 138610-001 1230, 34, 40, 42, 55,

Modem, 56K Data/Fax

w/o SRAM 138659-001 1235, 36, 37, 38, 40,

50, 52, 55, 60, 66,

67, 72, 73, 74, 75

Modem, K-56K

Data/Fax w/o SRAM 50M101D48-S0 400445-001 1246, 47, 77, 78;

1200XL

Modem, K-56K

Data/Fax w/o SRAM -

International

50M102D02-S0 143848-001 1200XL

Palm Rest w/ Board &

Cables 293716-001 All

Palm Rest 203737-001 1215, 1220

Palm Rest 330965-001 1230

Palm Rest 352888-001 1234, 35, 36, 37, 38,

40, 42, 50, 52

Palm Rest w/

Touchpad/Button Board 387540-001 1255, 60, 66, 67

Palm Rest w/

Touchpad/Button Board 50M101D96-S0 142653-001 1272, 73, 74, 75;

1200XL

Palm Rest w/

Touchpad/Button Board 50M101D95-S0 142654-001 1200XL

Palm Rest w/

Touchpad/Button Board

w/o Soft Paint

161416-001 1278

Plastic Kit,

Miscellaneous 50M102D01-S0 142657-001 1246, 47, 77, 78;

1200XL

Port Replicator 102270-001 1270

Speakers, Left and

Right 293757-001 1215, 1220

Speakers, Left and

Right 293782-001 All ex 1207, 10

Speakers, Lite 293883-001 1207, 10

Speakers, w/ Enclosure

and Cable 330960-001 1230

Speakers, w/ Enclosure

and Cable 352889-001 1234, 35, 36, 37, 38,

40, 42, 50, 52, 55,

60, 66, 67

Speakers, w/ Enclosure

and Cable 50M102D06-S0 148108-001 1246, 47, 1272, 73,

74, 75, 77, 78;

1200XL

Volume Two 1-103

Presario 1200

Modem Cables Spare Part

APD 137256-001

Brazil 137256-001

Canada 137256-001

Hong Kong 137256-001

Japan 137256-001

Latin America 137256-001

Switzerland 304398-111

Taiwan 137256-001

United Kingdom 165224-031

US 137256-001

Modem Cable/Adapters Cable Spare Part

APD 304398-371

Australia 304398-011

Belgium 304398-181

France 304398-051

Germany 304398-041

Netherlands 304398-331

New Zealand 304398-011

Sweden 304398-101

United Kingdom 304398-031

Video Assembly Spare Part System

Display Assy , 11.3”DSTN 293781-001 1207

Display Panel, 12.1”DSTN 50M102D24-S0 158795-001 1277, 78, 79;

1200XL

Display Assy, 12.1”HC 332209-001 1220 (BVL4)

Display Assy, 12.1”HPA 203735-001 1220 (BVL2),

1215

Display Assy, 12.1”HPA 330939-001 1230, 34, 35,

38, 40

Display Assy, 12.1”HPA 142648-001 1272, 73, 74, 75

Display Assy, 12.1”STN-Lite 293881-001 1210

Display Assy, 12.1”TFT 352890-001 1235, 36, 37,

40, 42, 50, 52,

60, 66, 67

Display Assy, 12.1”TFT 50M102D84-S0 173540-001 1200XL

Display Panel, 12.1”HPA II 102248-001 1255

Display Panel, 12.1”

TFT/LVDS 159038-001 1246, 77, 78,

79,

Display Assy, 13.0”HPA 142649-001 1275

Display Panel, 13.0”DSTN 50M102D25-S0 158796-001 1246, 78, 79;

1200XL

Display Panel, 13.3”

TFT/LVDS 50M102D85-S0 173665-001 1200XL

Display, Status w/ Cables 293737-001 All

ROM Information Spare Part System

ROMPaq 261922-001 All

1-104 Volume Two

Presario 1200

Power Supply/Battery Assembly Spare Part System

Battery Pack, E.D. NiMH 330935-001 1230, 34, 35, 40

Battery Pack, E.D. NiMH,

Enhanced 50M101D26-S0 388648-001 1246, 55, 72, 73,

74, 75, 77, 78, 79;

1200XL

Battery Pack, Li-Ion,

Enhanced 50M101X13-S0 138184-001 1200XL

Battery, Li-Ion 292560-001 All

Battery, Li-Ion 330936-001 1234, 35, 36, 37,

38, 40, 42, 50, 52

Battery, Li-Ion, Enhanced 388647-001 1246, 47, 55, 60,

66, 67, 75, 77, 78,

Battery, NiMH 293861-001 All

Clock/Battery 117099-001 All

Volume Two 1-105

Presario 1200

PRESARIO 1207, 1210, 1215, 1220, 1220ES, 1230

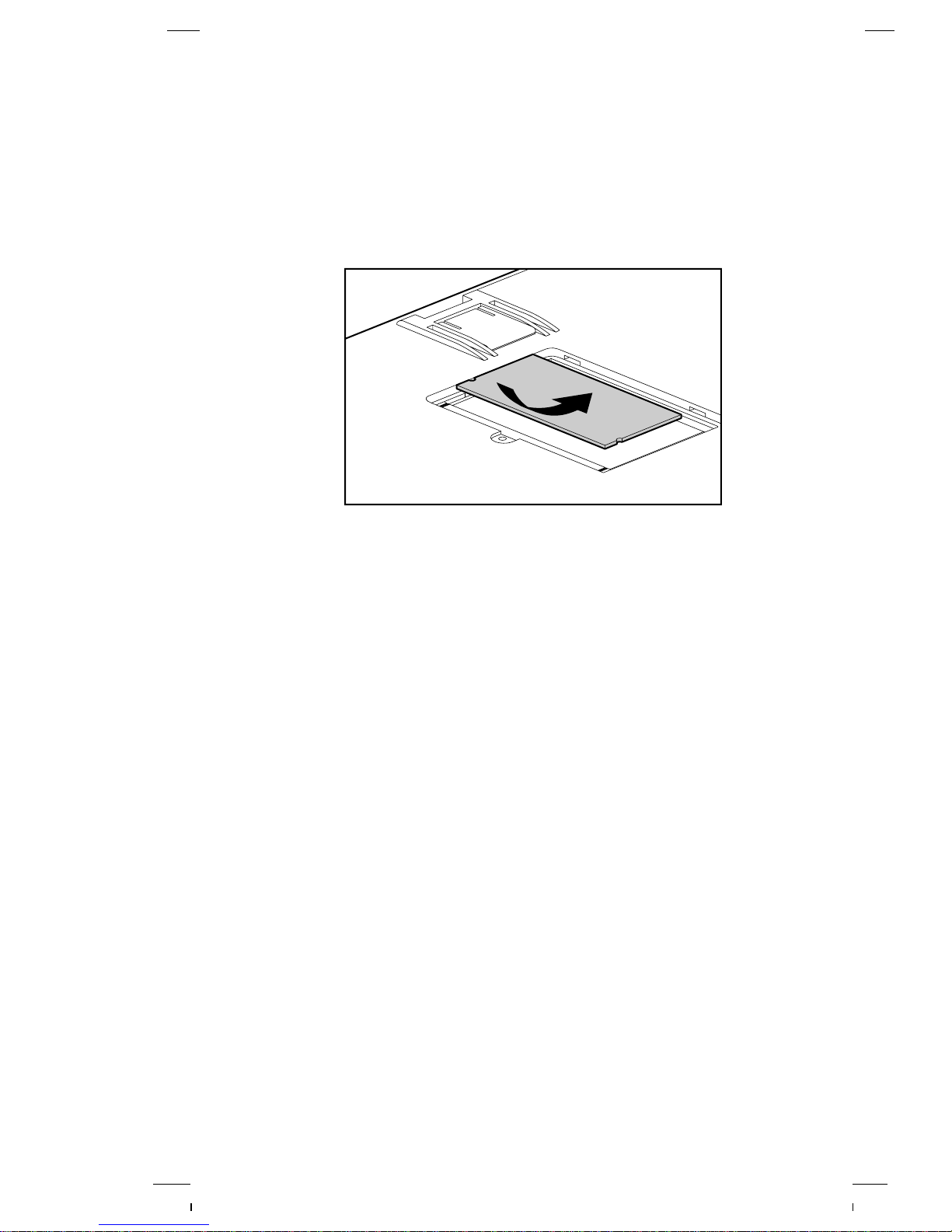

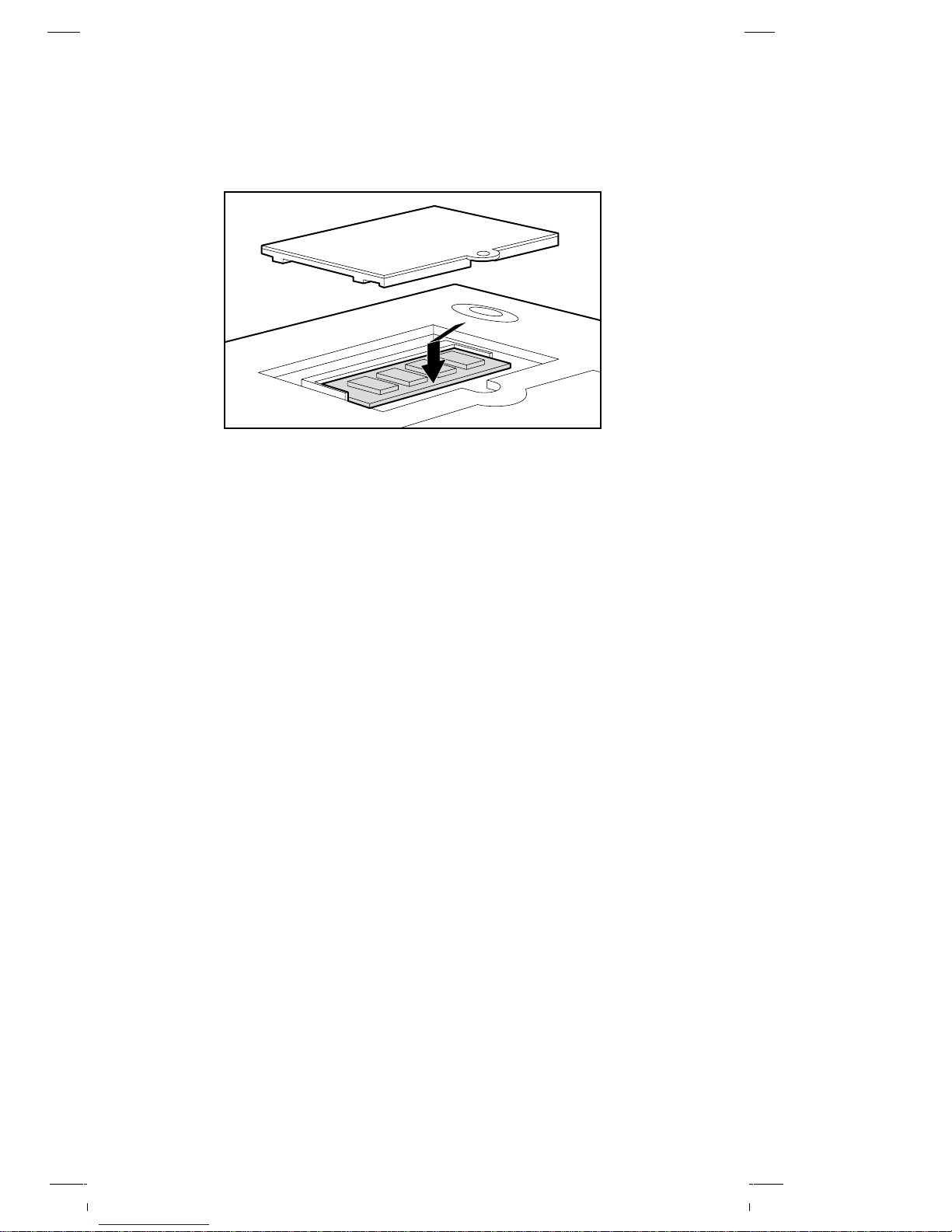

MEMORY UPGRADE CHART

16-MB MEMORY MODULE, SODIMM - OPTION PN 293820-001

ADD ANY ONE OF THE FOLLOWING

MEMORY MODULES:

MAXIMUM MEMORY IS 96 MB

32-MB MEMORY MODULE, SODIMM - OPTION PN 293821-001

64-MB MEMORY MODULE, SODIMM - OPTION PN 293822-001

1-106 Volume Two

Presario 1200

PRESARIO 1234, 35, 36, 37, 38, 40, 42, 50, 52

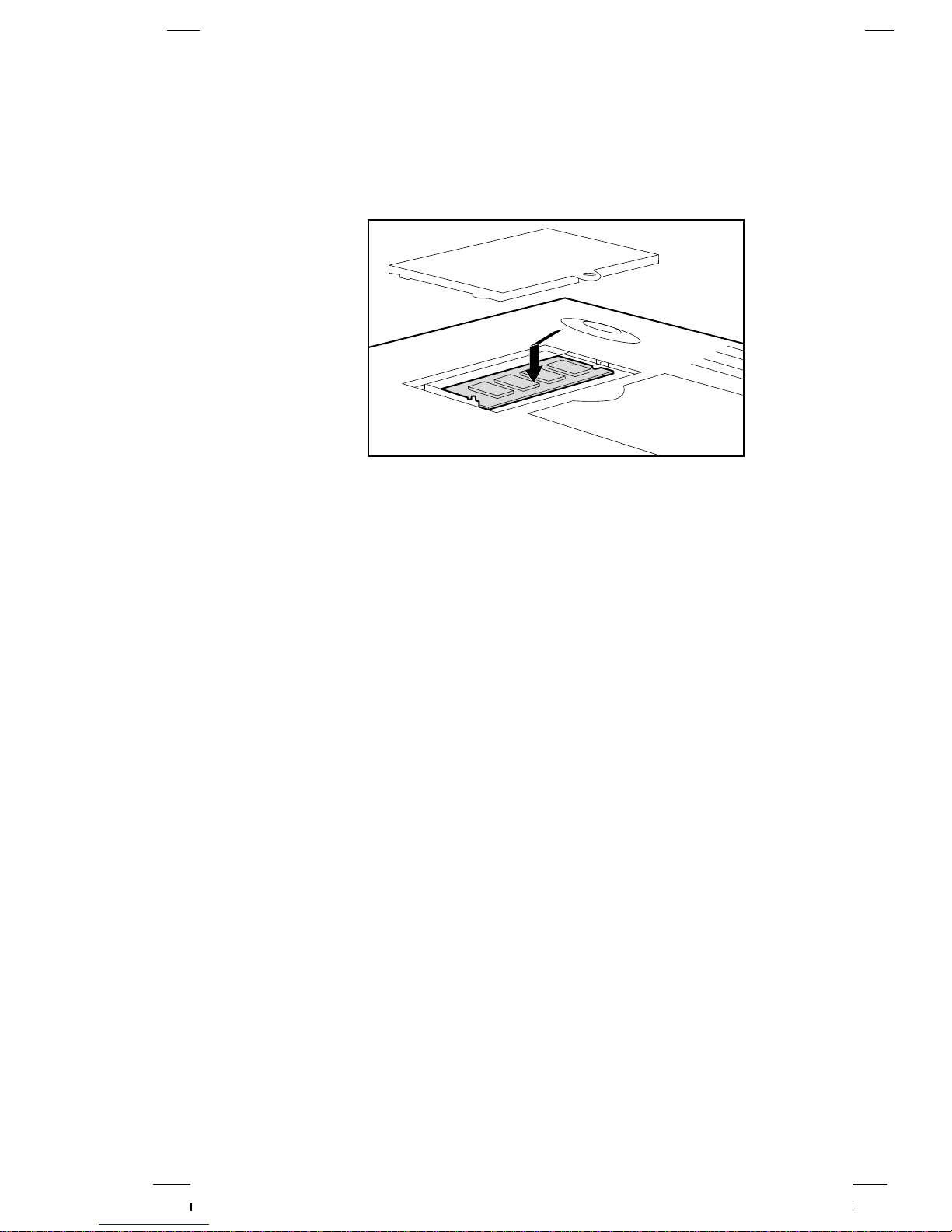

MEMORY UPGRADE CHART

16-MB MEMORY MODULE - OPTION PN 293820-001

ADD ANY ONE OF THE FOLLOWING

MEMORY MODULES:

32-MB MEMORY MODULE - OPTION PN 293821-001

64-MB MEMORY MODULE - OPTION PN 293822-001

MAXIMUM MEMORY IS 96 MB

Volume Two 1-107

Presario 1200

PRESARIO 1255, 60

MEMORY UPGRADE CHART

ADD ANY ONE OF THE FOLLOWING MEMORY BOARDS

32-MB SDRAM OPTION PN 293821-002

64-MB SDRAM OPTION PN 293822-002

128-MB SDRAM OPTION PN 401040-B21

Autres manuels pour Compaq Presario

307

Ce manuel convient aux modèles suivants

154

Autres manuels HP Ordinateur portable

HP COMPAQ 377703-001 Manuel utilisateur

HP Folio 13-2000 Manuel

HP Notebook Instructions de montage

HP Chromebook 14-db0 Series Manuel

HP 6730s - HP Business Notebook Manuel

HP Compaq Notebook Instructions d'installation

HP Compaq NC4400 Instructions d'utilisation

HP EliteBook x360 1040 G5 Manuel

HP Pavilion 14-ab099 Manuel

HP zd7005QV - Pavilion - Pentium 4 2.66 GHz Manuel d'utilisation et d'entretien

HP OmniBook 800 Manuel utilisateur

HP ProBook 4535s Manuel utilisateur

HP 8730w - EliteBook Mobile Workstation Manuel utilisateur

HP Pavilion DV5-1002 Manuel utilisateur

HP Compaq Presario Manuel

HP Pavilion zd8000 - Notebook PC Manuel

HP mt21 Mobile Thin Client Instructions de montage

HP 597Y5EA Manuel utilisateur

HP ProBook 440 Manuel utilisateur

HP Jornada 430 Manuel utilisateur

HP Compaq Presario Manuel

HP Compaq Presario Manuel utilisateur

HP ELITE X3 Manuel utilisateur

HP Pavilion ZX5001 Manuel de la liste des pièces

Manuels Ordinateur portable populaires d'autres marques

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur
