HP Compaq Presario Manuel

Maintenance and Service

Guide

HP Pavilion ze2200 Notebook PC

Compaq Presario M2200 Notebook PC

Document Part Number: 383111-001

June 2005

This guide is a troubleshooting reference used for maintaining

and servicing the notebook. It provides comprehensive

information on identifying notebook features, components, and

spare parts; troubleshooting notebook problems; and performing

notebook disassembly procedures.

✎The information and procedures included in this

Maintenance

and Service Guide

apply to all Compaq Presario M2200

Notebook PC models and to the following HP Pavilion ze2200

Notebook PC models:

■ze2201AP

■ze2201XX

■ze2202AP

■ze2203AP

■ze2204AP

■ze2205AP

■ze2206AP

■ze2207AP

■ze2208AP

■ze2209AP

■ze2209XX

■ze2210AP

■ze2211AP

■ze2250EA

■ze2281EA

To verify the applicability of spare parts kits to HP Pavilion ze2200

Notebook PC models, visit the HP Parts Surfer Web site at

http://partsurfer.hp.com/cgi-bin/spi/main.

Microsoft and Windows are U.S. registered trademarks of Microsoft

Corporation. Intel, Pentium, Celeron, and Centrino are trademarks or

registered trademarks of Intel Corporation or its subsidiaries in the United

States and other countries. Bluetooth is a trademark owned by its proprietor

and used by Hewlett-Packard Company under license.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing

herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

Maintenance and Service Guide

HP Pavilion ze2200 Notebook PC

Compaq Presario M2200 Notebook PC

Second Edition June 2005

First Edition February 2005

Document Part Number: 383111-001

Maintenance and Service Guide iii

Contents

1 Product Description

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.2 Resetting the Notebook . . . . . . . . . . . . . . . . . . . . . . . 1–4

1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6

1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–32

2 Troubleshooting

2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Accessing Computer Setup . . . . . . . . . . . . . . . . . . . . 2–2

Computer Setup Defaults . . . . . . . . . . . . . . . . . . . . . 2–3

Selecting from the Main Menu . . . . . . . . . . . . . . . . . 2–4

Selecting from the Security Menu . . . . . . . . . . . . . . 2–4

Selecting from the Advanced Menu . . . . . . . . . . . . . 2–5

Selecting from the Tools Menu. . . . . . . . . . . . . . . . . 2–5

2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–7

3 Illustrated Parts Catalog

3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Notebook Major Components. . . . . . . . . . . . . . . . . . 3–2

3.3 Miscellaneous Plastics Kit . . . . . . . . . . . . . . . . . . . 3–14

iv Maintenance and Service Guide

Contents

3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–16

3.5 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–18

3.6 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–19

4 Removal and Replacement Preliminaries

4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2

Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3

4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4

4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5

4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6

4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–6

5 Removal and Replacement Procedures

5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3

5.3 Preparing the Notebook for Disassembly . . . . . . . . . 5–5

5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.5 Notebook Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.6 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

5.7 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–13

5.8 Mini PCI Communications Card. . . . . . . . . . . . . . . 5–16

5.9 Keyboard Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

Contents

Maintenance and Service Guide v

5.10 LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22

5.11 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–24

5.12 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–28

5.13 Base Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–33

5.14 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–39

5.15 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–41

5.16 Heat Sink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–43

5.17 Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–45

5.18 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–47

5.19 Battery Connector Board. . . . . . . . . . . . . . . . . . . . 5–49

5.20 Power Connector Board . . . . . . . . . . . . . . . . . . . . 5–52

5.21 USB/S-Video Controller Board . . . . . . . . . . . . . . 5–54

5.22 Bluetooth Board . . . . . . . . . . . . . . . . . . . . . . . . . . 5–56

5.23 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–58

6 Specifications

vi Maintenance and Service Guide

Contents

A Connector Pin Assignments

B Power Cord Set Requirements

3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1

General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2

Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–3

C Screw Listing

Index

Maintenance and Service Guide 1–1

Product Description

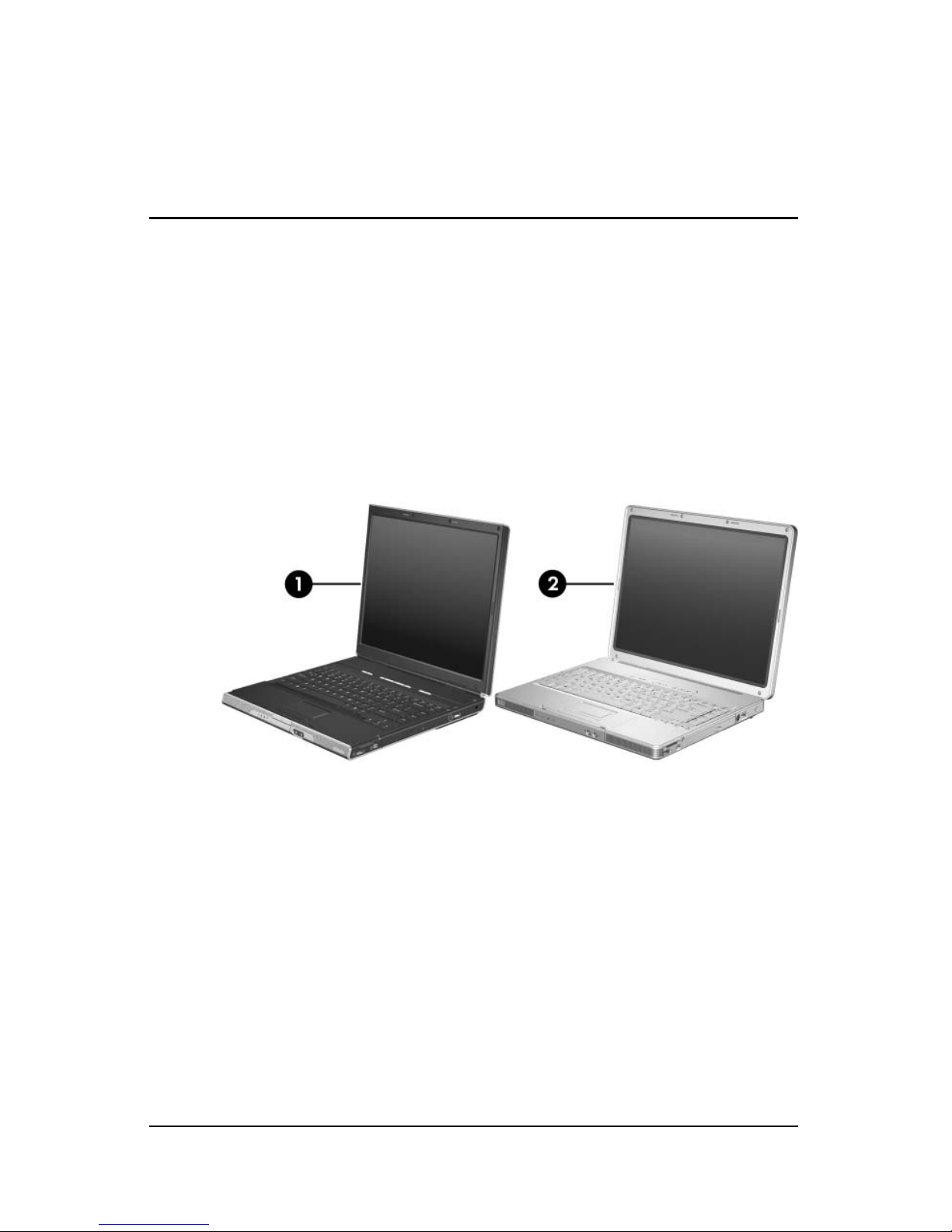

The HP Pavilion ze2200 Notebook PC 1and the

Compaq Presario M2200 Notebook PC 2offer advanced

modularity, Intel® Mobile Pentium® M and Celeron® M

processors, and extensive multimedia support.

HP Pavilion ze2200 and Compaq Presario M2200

1–2 Maintenance and Service Guide

Product Description

1.1 Features

✎Numerous references are made throughout this Maintenance and

Service Guide to “full-featured” and “defeatured” notebook

models. A model is considered to be full-featured if it has

3 Universal Serial Bus ports and the following components:

■S-Video-out jack

■Expansion port 2

■6-in-1 Digital Media Slot or 6-in-1 Memory Reader

A notebook model is considered to be defeatured if it has only

2 Universal Serial Bus ports and none of the components in the

preceding list.

■The following processors are available, varying by

notebook model:

❏Intel Pentium M 745 (1.8-GHz) with 400-MHz

front side bus (FSB)

❏Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB

❏Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB

❏Intel Pentium M 715A (1.5-GHz) with 400-MHz FSB

❏Intel Celeron M 360 (1.4-GHz) with 400-MHz FSB

❏Intel Celeron M 350 (1.3-GHz) with 400-MHz FSB

✎Full-featured models feature both Intel Pentium M and

Celeron M processors. Defeatured models feature only

Celeron M processors.

Product Description

Maintenance and Service Guide 1–3

■15.0-inch XGA (1024 × 768) TFT display with over

16.7 million colors

■80-, 60-, or 40-GB high-capacity hard drive, varying by

notebook model

■256-MB DDR2 synchronous DRAM (SDRAM) at 400 MHz,

expandable to 1.0 GB

■Microsoft® Windows® XP Home Edition or Windows XP

Professional, varying by notebook model

■Full-size Windows keyboard with embedded numeric keypad

■TouchPad pointing device with dedicated vertical scroll

region

■Integrated 10Base-T/100 Base-TX Ethernet local area

network (LAN) network interface card (NIC) with RJ-45 jack

■Integrated high-speed 56K modem with RJ-11 jack

■Integrated wireless support for Mini PCI IEEE 802.11b and

802.11b/g WLAN device

■Support for one Type II PC Card slot, with support for both

32-bit (CardBus) and 16-bit PC Cards

■External 65-watt AC adapter with 3-wire power cord

■6-cell or 12-cell Li-Ion battery pack

■Stereo speakers with volume up and down buttons

■Support for the following optical drives:

❏8X DVD-ROM Drive

❏24X DVD/CD-RW Combo Drive

❏8X DVD±RW/R and CD-RW Combo Drive

❏24X CD-ROM Drive (Compaq Presario M2200

notebooks only)

1–4 Maintenance and Service Guide

Product Description

■Connectors:

❏External monitor port

❏Universal Serial Bus (USB) v. 2.0 (up to 3 ports)

❏RJ-11 (modem) jack

❏RJ-45 (network) jack

❏Audio-out (headphone) jack

❏Audio-in (microphone) jack

❏Power

❏IEEE 1394 digital port

❏S-Video-out jack (select models only)

❏Expansion port 2 (select models only)

❏6-in-1 Digital Media Slot (select models only)

❏6-in-1 Memory Reader (select models only)

1.2 Resetting the Notebook

If the notebook you are servicing has an unknown password,

follow these steps to clear the password. These steps also

clear CMOS:

1. Prepare the notebook for disassembly (refer to Section 5.3,

“Preparing the Notebook for Disassembly,” for more

information).

2. Remove the real-time clock (RTC) battery (refer to

Section 5.14, “RTC Battery,” for more information).

3. Wait approximately 5 minutes.

4. Replace the RTC battery and reassemble the notebook.

5. Connect AC power to the notebook. Do not reinsert any

battery packs at this time.

6. Turn on the notebook.

All passwords and all CMOS settings have been cleared.

Autres manuels pour Compaq Presario

307

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Ordinateur portable

HP Compaq Presario Instructions de montage

HP 550 - Notebook PC Manuel

HP Dv7-1127cl - Pavilion Entertainment - Turion X2 2.1... Manuel utilisateur

HP Envy 13-1007 Manuel utilisateur

HP DV DV6-6117 Manuel utilisateur

HP Pavilion Sleekbook 14-b000 Manuel utilisateur

HP Pavilion dv1515cl Manuel utilisateur

HP 14 Series Manuel

HP Pavilion ZT3000 Manuel de la liste des pièces

HP Pavilion Sleekbook 14-b000 Manuel utilisateur

HP ENVY x2 Detachble PC 12 Instructions d'installation

HP ProBook 4325s - Notebook PC Manuel

HP Jornada 430 Guide de référence

HP ProBook 6540b Instructions d'utilisation

HP OMNIBOOK 3000 Manuel utilisateur

HP Pavilion Notebook PC Manuel utilisateur

HP Pavilion DV4-1280 Manuel utilisateur

HP ENVY Manuel

HP ProBook 4436s Manuel utilisateur

HP 2230s - Compaq Business Notebook Manuel utilisateur

HP EliteBook 860 G9 Manuel

HP Omnibook XE3 Manuel utilisateur

HP Chromebook 14 Instructions de montage

HP ProBook 430 G7 Instructions de montage

Manuels Ordinateur portable populaires d'autres marques

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel

Lenovo

Lenovo THINKPAD X31 Manuel

Sony

Sony VGN-T240P VAIO Manuel utilisateur

Compaq

Compaq Armada E700 Series Manuel utilisateur

Fujitsu

Fujitsu Lifebook A6230 Manuel utilisateur
