HP df750 Series

Digital Picture Frame

數位相框

デジタル・ピクチャ・フレーム

디지털 액자

User Manual

使用說明書

ユーザー・マニュアル

사용 설명서

Revision 1.0a

FCC Compliance Statement

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example – use only

shielded interface cables when connecting to computer or peripheral

devices). Any changes or modiﬁcations not expressly approved by

the party responsible for compliance could void the user’s authority to

operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Qty Item Image

1 Digital Picture Frame

2 Additional Frames

1 Remote Control

1 Universal Power Adapter

(9V, 1 A, 3W, 100/240 switching)

1 Warranty Document

1 User Manual

What’s in the Box

english

Getting Started

1. Connect the power cord into the DC input of the digital picture

frame and plug the adapter into a power outlet.

2. Unfold the attached stand to its extended position and push the

POWER button on the top of the digital picture frame.

3. Insert your memory card or USB storage device (external memory)

containing desired photos, music, and/or video into the appropriate

card slot or USB port as illustrated below. Note: Memory cards and

USB storage devices must be orientated correctly. Generally,

labels on these cards or USB devices must be facing outward as

illustrated below.

4. A slide show of your photos will automatically begin in a few

seconds. If music tracks are available on the same external

memory card, the slide show will be displayed with background

music unless disabled in Settings. Enjoy it and have fun!

english

Remote Control (please refer to page 10 for details regarding the viewing modes)

SOURCE: Press to select among memory card(s)

and/or USB storage device as the source of pictures

and other media ﬁles.

Note: Internal memory can only be accessed by

removing all external memory sources!

REPEAT: During playback of audio or video ﬁles,

press to select the mode of repeating playback.

MENU: Press to access menu mode.

ZOOM: Press to enlarge picture in browse mode.

UP or COPY/DEL: Press to move up in thumbnail

mode or copy/delete in browse mode.

PREV or RETURN: Press to move left in browse,

thumbnail or menu mode, or return to previous screen

in slide show mode.

PLAY/PAUSE or MODE: Press to change display

mode (slide show, browse, or thumbnail). Press to

play or pause music or video ﬁles. Press to make

selections in menu or settings mode.

NEXT: Press to move right in browse, thumbnail or

menu mode.

DOWN or ROTATE: Press to move down in thumbnail

mode or when setting options. Press to rotate the

picture during slide show or browse mode.

english

Picture Frame

Top View: Power and Transport

Power button & LED

PLAY/PAUSE/MODE button

MENU button

UP/Copy/Delete button

DOWN/ROTATE button

PREV/RETURN button

NEXT button

Left Side View: Volume Control & USB Port

Volume Adjustment USB Slot

Underside View: External Memory Slots

Power Input CF Card Slot SD/MMC/xD/MS Card Slot

english

Feature External Memory Internal Memory

(Cards and or Flash Drives)

Photo slide show with music

Photo slide show

without music

Photo auto-rotation with

frame orientation

Delete photos from memory

Playback music/audio ﬁles

Playback video clips

View Photo thumbnails

Photo Zoom

Browse Photos/Images

Widescreen View

Key Features

√

√√

√

√√

√

english

Initial Setup

NOTE: The following instructions are shown using the remote control

unit. Most of these functions can also be conducted via the same

control keys located on the top side of the picture frame. The keys are

labeled with the same icon/text.

1. Pull tab from remote control to activate. (Note: If a replacement

battery is required, purchase model #CR2025)

2. Press button and use the directional arrows to highlight

“SETTINGS” icon.

3. Press button and use the directional arrows to highlight

“OSD LANGUAGE”.

4. Press button again and select the On-Screen-Display

language you want.

english

5. Change other settings by using the directional keys to highlight

the desired option.

BRIGHTNESS: Adjust brightness from –10 to +10

SLIDE SHOW TIME: Select how long a picture is displayed in slide

show mode: 5, 10, 30, 60 seconds and 1 hour.

SLIDE WITH MP3: Turn background music on or off during the slide

show. (You need to have a supported music track in order to playback)

OSD LANGUAGE: Select desired text translation.

PHOTO MODE: Select between the following two modes:

Normal: Display photo in full height in normal aspect ratios.

Many photos may not ﬁll the screen, and leave

space on both sides.

Wide Screen: Photo will enlarge to ﬁt the full width

of the screen.

DEFAULT: Restore all options to factory default settings.

EXIT SETUP: Return to the main menu.

english

Photo/Picture Slide Show and Browse

Slide show modes

Slide show mode will begin automatically a few seconds after the

frame is powered on or when an external memory card/USB Flash

drive is inserted. There are two slide show modes, one with

background music and the other without.

Slide show with music – This is only possible with

photos/pictures and music ﬁles on an external

memory card or USB Flash drive. The default frame

setting is for music to play with slide show. This can

be changed in the settings option.

Slide show without music – This is possible with photos/pictures

on either internal or external memory sources.

Browse mode

To exit slideshow mode, press once. Browse mode will be dis-

played on the screen. This allows forward and previous photo

viewing as well as a copy option from an external memory source

onto internal memory (limit of 15 photos/pictures). Browse mode on

internal memory will also allow for deleting of photos. See next

section Managing Photos/Pictures for details.

Thumbnail mode

View photos/pictures in thumbnail mode by pressing the twice

in slide show mode or once in browse mode

english

Autres manuels pour DF1000A3

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels HP Cadre photo numérique

HP MediaSmart Frame 100 Manuel utilisateur

HP KY616AA - DreamScreen 100 Wireless Connected... Manuel utilisateur

HP DF1000A3 Manuel utilisateur

HP DF1050TW Manuel utilisateur

HP df808 Series Manuel utilisateur

HP df820 - 8" Series Digital Picture Frame Manuel utilisateur

HP df750 Series Manuel utilisateur

HP DF1000A3 Manuel utilisateur

HP DF1010P1 Manuel utilisateur

HP sd828a1 - Smart WiFi Digital Photo Frame Manuel utilisateur

HP df730v1 Manuel utilisateur

HP df730 Manuel utilisateur

HP DF840 Manuel utilisateur

HP DF820B2 Manuel utilisateur

HP DF1000A3 Manuel utilisateur

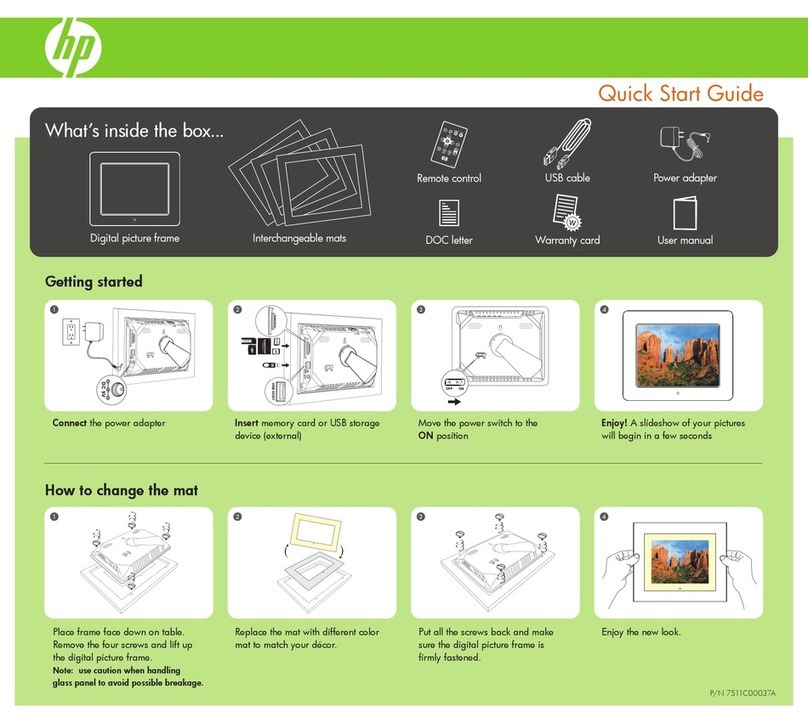

HP DF780A3 Manuel utilisateur
