hp business pcs

www.hp.com/go/vectrasupport

service

handbook

chapter

hp vectra

xe320 pc

notice

Information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material,

including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose. Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated into another language without the prior written

consent of Hewlett-Packard Company.

3Com®and EtherLink®are registered trademarks of 3Com Corporation.

Intel®and Pentium®are registered trademarks of Intel Corporation.

Microsoft®, MS-DOS®, Windows®and Windows NT®are U.S. registered trademarks of

Microsoft Corporation.

Analog Devices®is a registered trademark of Analog Devices, Inc.

contents

This chapter provides:

❒Product model numbers

❒Supported Accessories

❒System Board, BIOS, and memory information

❒Part numbers.

replacement and exchange parts

The difference between a replacement and an exchange part is that when using

an exchange part you should return the replaced part to HP.

Replacement and exchange parts listed in this manual are subject to change.

However, updated part numbers are automatically cross-referenced to the old

number. This means that you will receive the correct part using the numbers

listed in this manual (even if the part’s actual number has been updated).

ordering parts

Contact your local HP Customer Care Center or an HP Authorized support

provider to get parts. Diagnostic is required in both cases, prior to any shipments.

For HP Customer Care Centers:

www.hp.com/go/vectrasupport and select contact hp.

microtower vectras hp vectra xe320 pc 1-1

hp vectra xe320 pc

models and accessories

product

number

hard drive graphics

controller

std. RAM optical drives OS1

Vectra xe320 PC

Models with Intel Pentium 4 Processor,

400MHz Bus Speed, 133MHz Data Bus Speed, and 256KB L2 Cache Memory

HP Vectra xe320 1.6GHz (CPL: 02/2002 )

P7302A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7336B 20 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

16✕40✕IDE

DVD-ROM

XP HE

P7337A 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7338B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7922B 40 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7923B 40 GB IDE,

5400 rpm

ATI Rage 128 Pro

16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

HP Vectra xe320 PC 1.7GHz (CPL: 02/2002 )

P7297A 20 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7297B 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

16✕40✕IDE

DVD-ROM

XP HE

P7303A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

none Linux

P7304A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

Linux

P7305B 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7917B 40 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

hp vectra xe320 pc

1-2 hp vectra xe320 pc microtower vectras

note

All models have:

❒Integrated Analog Devices AD1885 AC’97 stereo audio codec.

❒Integrated Intel Pro/100 VE network controller.

P7918B 40 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7920B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7921B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P8792A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

HP Vectra xe320 PC 1.8GHz (CPL: 02/2002 )

P7298A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7299A/B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7306A 20 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7919B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

256 MB

SDRAM

24✕10✕40✕max

IDE CD-RW

XP HE

HP Vectra xe320 PC 2.0GHz (CPL: 02/2002 )

P7300A 20 GB IDE,

5400 rpm

nVIDIA TNT2

Vanta 16 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP HE

P7301A 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

48✕max IDE

CD-ROM

XP Pro

P7301B 40 GB IDE,

5400 rpm

ATI Rage 128 Ultra

32 MB

128 MB

SDRAM

24✕10✕40✕max

IDE CD-RW

XP HE

1. Indicates operating system preloaded. XP Pro = Windows XP Professional,

XP HE = Windows XP Home Edition.

product

number

hard drive graphics

controller

std. RAM optical drives OS1

hp vectra xe320 pc

microtower vectras hp vectra xe320 pc 1-3

supported accessories

Memory

128 MB SDRAM, non-ECC PC133 main memory module P1537A

128 MB SDRAM, non-ECC PC133 main memory module – pack of 10 P5101A

256 MB SDRAM, non-ECC PC133 main memory module P1538A

256 MB SDRAM, non-ECC PC133 main memory module – pack of 10 P1502A

512 MB SDRAM, non-ECC PC133 main memory module P5090A

Input Devices

HP PS2 Windows Keyboard C4735B

HP USB Enhanced Internet Keyboard C4768A

HP PS2 Scrolling Mouse C4736B

HP USB Optical Scrolling Mouse C4766A

HP Cordless keyboard and mouse kit

(US, France, Germany, UK and Euro English only)

P5911A

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Hard Disk Drives

40 GB 7200 rpm IDE Ultra ATA/100 hard disk drive P2813A

80 GB 7200 rpm IDE Ultra ATA/100 hard disk drive P1542A

Optical and Removable Storage

48✕max-speed IDE CD-ROM drive D9444A

16✕max-speed IDE DVD-ROM drive P1544A

24✕10✕40✕max-speed IDE CD-RW drive P1543A

Multimedia

HP Multimedia Monitor Base P1535A

HP Amplified External Speaker 9.6WRMS P1534A

HP Headset with Microphone P1968A

Data Communications and LAN Adapter Boards

HP PCI Modem (US only) P5091A

HP External USB Modem P1979A

hp vectra xe320 pc

1-4 hp vectra xe320 pc microtower vectras

system board, BIOS, and memory

System Board Switches:

See the table on the next page.

Processor:

Intel Pentium 4 with

socket N.

Main Memory:

3 DIMM sockets

Maximum 1.5 GB.

128, 256 or 512 MB

SDRAM modules.

Main Power

connector

Primary IDE connector for

Hard drive(s)

Processor fan

CD-ROM, DVD,

CD-RW, Tape or Zip

drive

Floppy drive

CD audio connector

Auxilary power

connector

Chassis fan

Status panel

hp vectra xe320 pc

microtower vectras hp vectra xe320 pc 1-5

system board switches

BIOS history

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP’s Web site.

pre-boot diagnostic beep codes

Switch Function Default

1-4 On Reserved Off

Off Reserved – Normal operation

On Clears CMOS and passwords

(to reload the Setup program defaults) Off

Off Normal operation

6On Clears User and Administrator passwords Off

Off Normal operation

On BIOS recovery mode: forces booting in the BIOS boot

block area Off

Off Normal operation

8On Not used Off

Off Not Used - Normal operation

9On Normal operation (Software boot block protection) On

Off Hardware boot block protection

10 On Not used Off

Off Not Used - Normal operation

http://www.hp.com/go/vectrasupport/

Number

of Beeps

Meaning

0 System OK

1 Processor absent, not correctly connected or ZIF (Zero Insertion Force)

socket not closed

2 Power supply is in protected mode

3 No memory, bad memory modules, incompatible memory module

4 Graphics card problem

5 PnP/PCI initialization problem

6 Corrupted BIOS. You need to activate crisis recovery procedure (refer to

release note provided with BIOS).

7 Defective system board

hp vectra xe320 pc

1-6 hp vectra xe320 pc microtower vectras

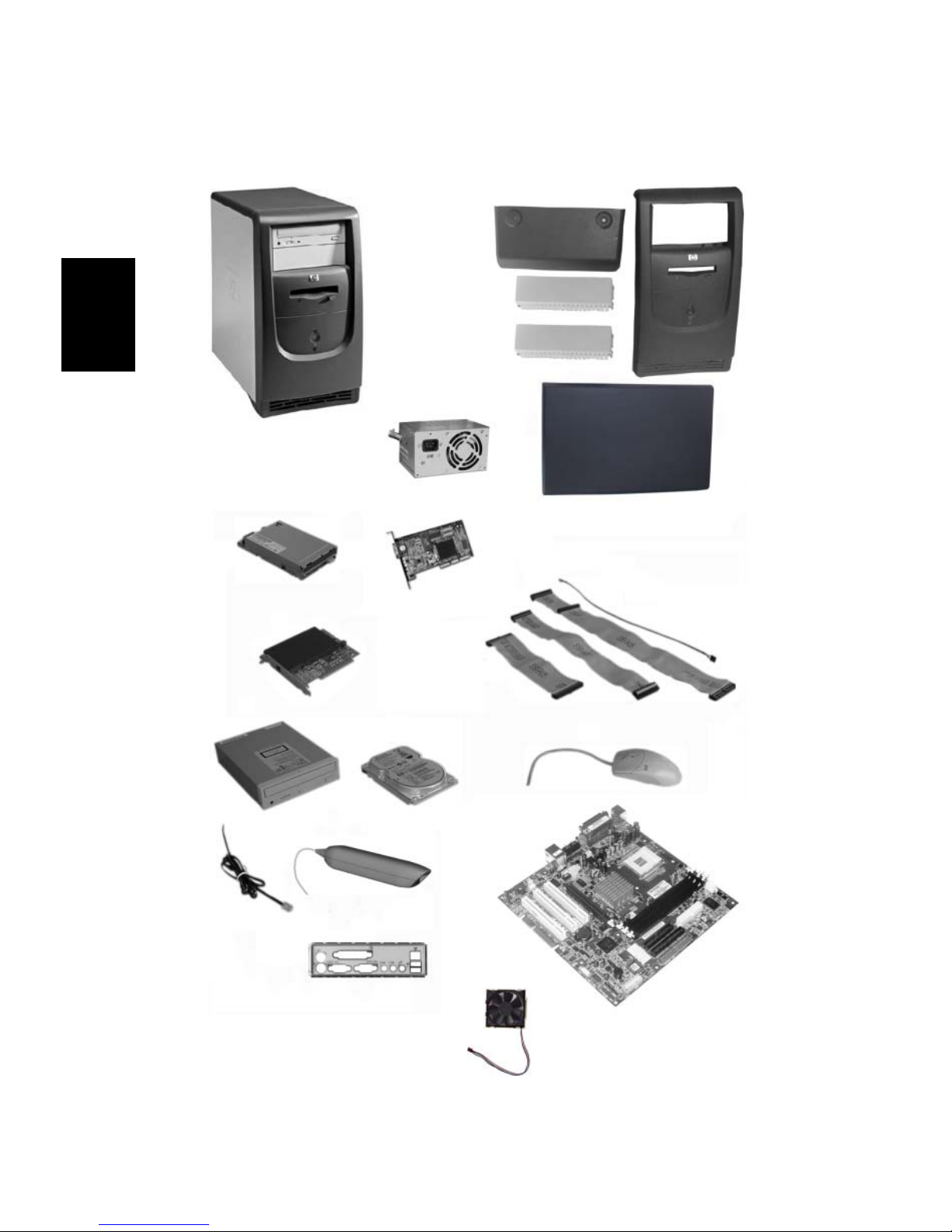

part numbers

hp vectra xe320 pc

microtower vectras hp vectra xe320 pc 1-7

parts list

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis barebone15065-7334

2 Plastic parts kit25065-8935 —

3 Floppy disk drive (bezel-less) P4680-63012 —

4 Power supply P8758-63021

5 Cable Kit (including FDD, CD-ROM, HDD

and CD audio connector cables)

P6901-63041 —

6 Internal PCI modem (US only) P4680-63041 —

748

✕IDE CD-ROM drive

24✕10✕40✕IDE CD-RW drive

16✕40✕IDE DVD-ROM drive

D4389-60052

—

D4398-69053

D4398-69091

P4388-69018

8 Telephone Cable for3:

#AB0, #AB1, #AB2, #AB4, #AB6, #ABA,

#ABB, #ABC, #ABM, #ABT, #ABV, #AC8,

#AKB, #AKL, #AKR, #AKV, #AR6, #ARL

5182-5432 —

#ABE 5182-5434 —

#ABD 5182-5435 —

#ABF 5182-5436 —

#ABH 5182-5437 —

#AB5, #ABU, #ACJ 5182-5438 —

#ABG 5182-5438

5184-3806

—

#ABS 5182-5439 —

#AB9, #ABY 5182-5441 —

#ABZ 5182-5442 —

#ABN, #ABX 5183-9453 —

#ABW 5184-1599 —

#AB7 5184-2043

5182-5432

—

#AB8 5184-3803 —

#ABJ 5184-3805 —

9 External USB e- Modem3

#AB0, #AB1, #AB2, #AB4, #AB5, #ABA,

#ABC, #ABJ, #ABM, #AC4, #AC8, #ACJ,

#AKL, #AKV, #AR6

5065-2590 —

AB6, #AB7, #AB8, #AB9, #ABB, #ABD,

#ABE, #ABF, #ABG, #ABH, #ABN, #ABS,

#ABT, #ABU, #ABV, #ABW, #ABX, #ABY,

#ABZ, #AKB, #AKC, #AKR, #ARL

5065-2591 —

hp vectra xe320 pc

1-8 hp vectra xe320 pc microtower vectras

10 IDE hard disk drives:4

20 GB 5400 rpm WD WL40

20 GB 5400 rpm Seagate U6

40 GB 5400 rpm WD VL40

40 GB 5400 rpm Seagate U6

—

P4449-69001

P6868-69001

P4450-69001

P6869-69001

11 PS/2 scrolling mouse C4737-60001 —

12 AGP graphics cards:

ATI Rage 128 Ultra 32 MB

ATI Rage 128 Pro 16 MB (Brazil only)

nVidia TNT2 Vanta 16MB

P6197-63501

—

P5760-63501

—

P1650-69501

—

13 System board See PC’s system board parts list

14 Rear panel I/O gasket 5002-6287 —

15 System fan 5065-4254 —

not

shown

Standard keyboard (not shown) C4739-601xx —

Power Cord (not shown) 812x-xxxx —

Headphones 5183-9500 —

Battery 1420-0356 —

On-Off LED Cable Assembly (not shown) P4680-63031 —

1. Includes chassis frame, side covers, front bezel, top cover, foot, airflow guide, floppy drive,

floppy and hard drive bay, I/O plate, 5.25 inch fillers, PSU, FDD, CD cables.

2. Includes front bezel, foot, top cover and two 5.25 inch fillers.

3. See localization option codes table below.

4. For optional disk drive information, see the Accessory Service Handbook.

parts list

Item Description Repl.

Part Number

Exchange

Part Number

Autres manuels pour Vectra XE320

Table des matières

Autres manuels HP Ordinateur de bureau

HP Compaq Presario Instructions d'installation

HP Xw4200 - Workstation - 1 GB RAM Guide d'installation

HP Compaq 6000 Pro SFF Manuel utilisateur

HP dc7900 - Convertible Minitower PC Manuel utilisateur

HP dc5700 - Microtower PC Manuel utilisateur

HP Net PC 20 Instructions d'utilisation

HP 9000 200 Series Manuel utilisateur

HP A6110n - Pavilion - 2 GB RAM Manuel d'utilisation

HP Brio 8200 Manuel utilisateur

HP Pavilion t478d Manuel utilisateur

HP Pavilion a400 - Desktop PC Manuel utilisateur

HP Sprout Pro G2 Instructions de montage

HP m9060n - Pavilion - Elite Fiche technique

HP Z600 - Workstation - 6 GB RAM Manuel utilisateur

HP Compaq dx2700 Microtower and Small Form... Manuel utilisateur

HP Rp5700 - Point of Sale System Manuel utilisateur

HP EliteDesk 800 G3 Manuel

HP 280 Pro G2 Small Form Factor Instructions de montage

HP Pavilion 21-a000 Fiche technique

HP Workstation x2000 Manuel utilisateur

HP Rp5700 - Point of Sale System Manuel d'utilisation et d'entretien

HP Compaq dc5700 MT Manuel utilisateur

HP Compaq dx2700 Microtower and Small Form... Guide d'installation

HP 9000 715/64 Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
