Mini-Tower Vectras HP Vectra VA 6/xxx MT PC Series 15-1

15

15

HP Vectra VA 6/xxx MT PC Series

Models and Accessories

1. Windows NT 3.51 is supplied on CD-ROM (not preloaded); Windows NT 4.0 is preloaded.

Product

Number

Flexible

Drive A:

Hard

Drive C:

Video

Controller

Std.

RAM

Multi-

media

Network OS1

Vectra VA 6/xxx MT PC

HP Vectra VA 6/200 MT PC (CPL: 08/96 )

D4206A 1.44 MB None Matrox

MGA

Millennium

board,

(2 MB,

upgradeable

to 4 MB or

8MB)

16 MB None None None

D4207N 1.2 GB

IDE

32 MB 8 ✕IDE

CD-ROM

(D4381A)

and ISA

Sound

Board

NT

3.51

WS

D4208N 2.5 GB

IDE

D4209N

D4217N NT 4.0

WS

D4218N 4 GB IDE

HP Vectra VA 6/xxx MT PC Series

15-2 HP Vectra VA 6/xxx MT PC Series Mini-Tower Vectras

15

Supported Accessories

8-MB kit (2 ✕4-MB) 32-bit EDO, 60 ns main memory modules D3646B

16-MB kit (2 ✕8-MB) 32-bit EDO, 60 ns main memory modules D3647B

32-MB kit (2 ✕16-MB) 32-bit EDO, 60 ns main memory modules D3648B

64-MB kit (2 ✕32-MB) 32-bit EDO, 60 ns main memory modules D4543A

2-MB, 50 ns video memory upgrade kit D3557B

Documentation

HP Vectra VA MT User’s Guide Manual Kit D4210A

Input Devices

HP mouse C3751B

HP keyboard for Windows® 95 C4735A

Video Displays

All current HP Displays (see the HP Vectra Accessory Service Handbook)

Mass Storage

1.2-GB IDE hard disk D2785A

Flexible disk 3.5-inch 1.44-MB (1-inch high) D2035B

IDE 8✕CD-ROM drive D4381A

Multimedia sound accessory kit (8✕CD-ROM drive, Plug-and-Play ISA audio

board, headphones)

D4179A

3.5-inch side mounting rails (packs of 5 pairs) D3566A

5.25-inch side mounting rails (packs of 5 pairs) D2880A

HP Vectra VA 6/xxx MT PC Series

Mini-Tower Vectras HP Vectra VA 6/xxx MT PC Series 15-3

15

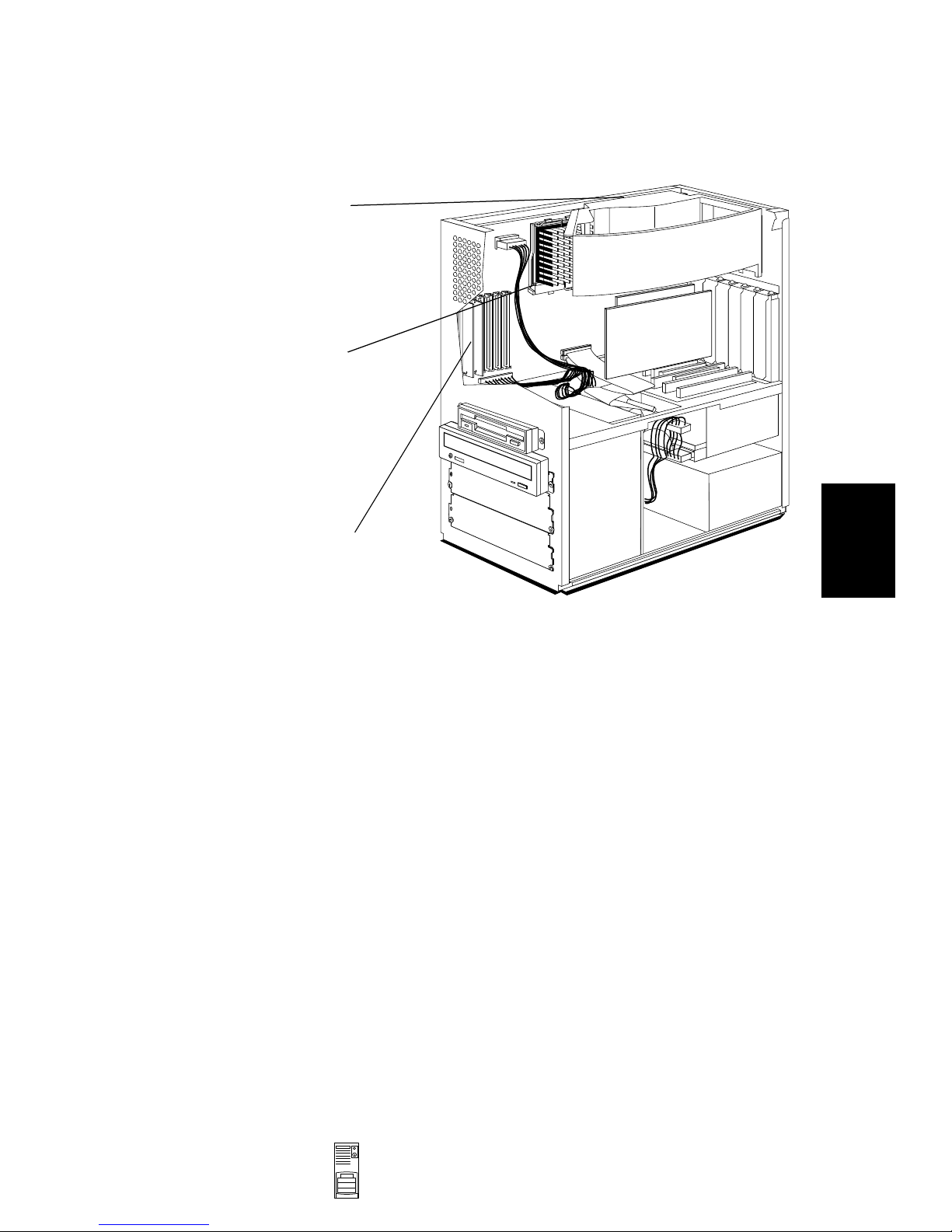

System Board, BIOS, and Memory

Main Memory:

16 MB or 32 MB,

depending on model, fitted

as standard.

Install pairs of identical

modules in each bank, up

to a maximum of 192 MB.

System Board Switches

Processor:

Zero Insertion Force (ZIF)

socket allows upgrades

using overdrive

processors.

HP Vectra VA 6/xxx MT PC Series

15-4 HP Vectra VA 6/xxx MT PC Series Mini-Tower Vectras

15

System Board Switches

BIOS History

The latest BIOS, the flasher utility program, and the BIOS history can each be

obtained from the World Wide Web:

http://www.hp.com/go/VectraSupport.

Switch Function Default

1-5 - Processor frequency, see the table below -

6Open Normal operation Open

Closed Clear the configuration data (in CMOS memory)

7Open Normal operation Open

Closed Clears all passwords

8

Open Disables keyboard power-on

Closed

Closed Enables the PC to be turned on from the space bar on the

keyboard

9Open Normal operation Open

Closed Clears the Product Identification (VA)

10 Open Pentium Pro 3.3 V Open

Closed Pentium Pro 3.5 V

Processor

Frequency

Switch

12345

150 MHz Closed Open Open Open Closed

166 MHz Open Open Open Open Closed

180 MHz Closed Open Open Closed Open

200 MHz Open Open Open Closed Open

233 MHz Open Open Open Closed Closed

266 MHz Open Open Closed Open Open

HP Vectra VA 6/xxx MT PC Series

Mini-Tower Vectras HP Vectra VA 6/xxx MT PC Series 15-5

15

Main Memory

The PC has three banks on the system board for installing main memory; banks

A, B and C. Each bank consists of two sockets. The PC is supplied with 16 or

32 MB of main memory (composed of two memory modules installed in any

bank). The PC uses 60-ns EDO DRAM.

Memory modules must be installed in identical pairs, so that each bank with

memory installed contains two memory modules of the same size and type

(both EDO, or both FPM).

Main memory can be installed up to a maximum of 192 MB.

Video Memory

The PC is supplied with 2 MB of video memory. An additional 2 MB of video

memory can be installed by adding a D3557B module in the video memory

socket. This will make a total of 4 MB. Alternatively, an additional 6 MB of video

memory can be installed by adding an MGA-MIL/MOD6 module in the video

memory socket (ordered from Matrox); this will make a total of 8 MB.

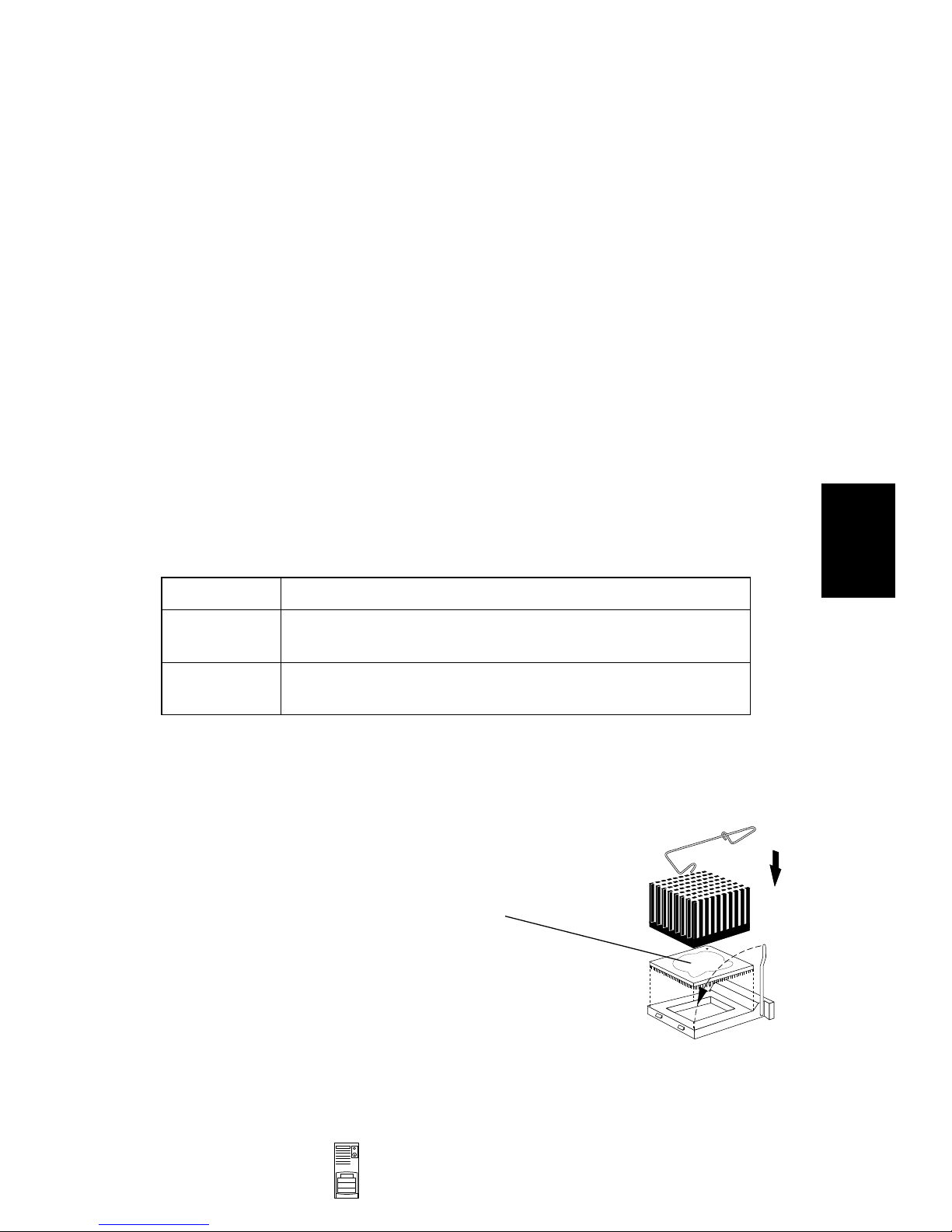

Replacing the Processor Chip

Matrox Video Board Switches

Switch Function

1· OFF to prevent Video BIOS upgrades - DEFAULT

·ON to allow Video BIOS upgrades

2· OFF for single-screen operation - DEFAULT

·ON for dual-screen operation (with second VGA controller)

If any thermal interface material, such as aluminium

foil or silicone, is supplied with the heat-sink or the

processor chip, place it carefully on the top of the

processor before installing the heat-sink.

HP Vectra VA 6/xxx MT PC Series

15-6 HP Vectra VA 6/xxx MT PC Series Mini-Tower Vectras

15

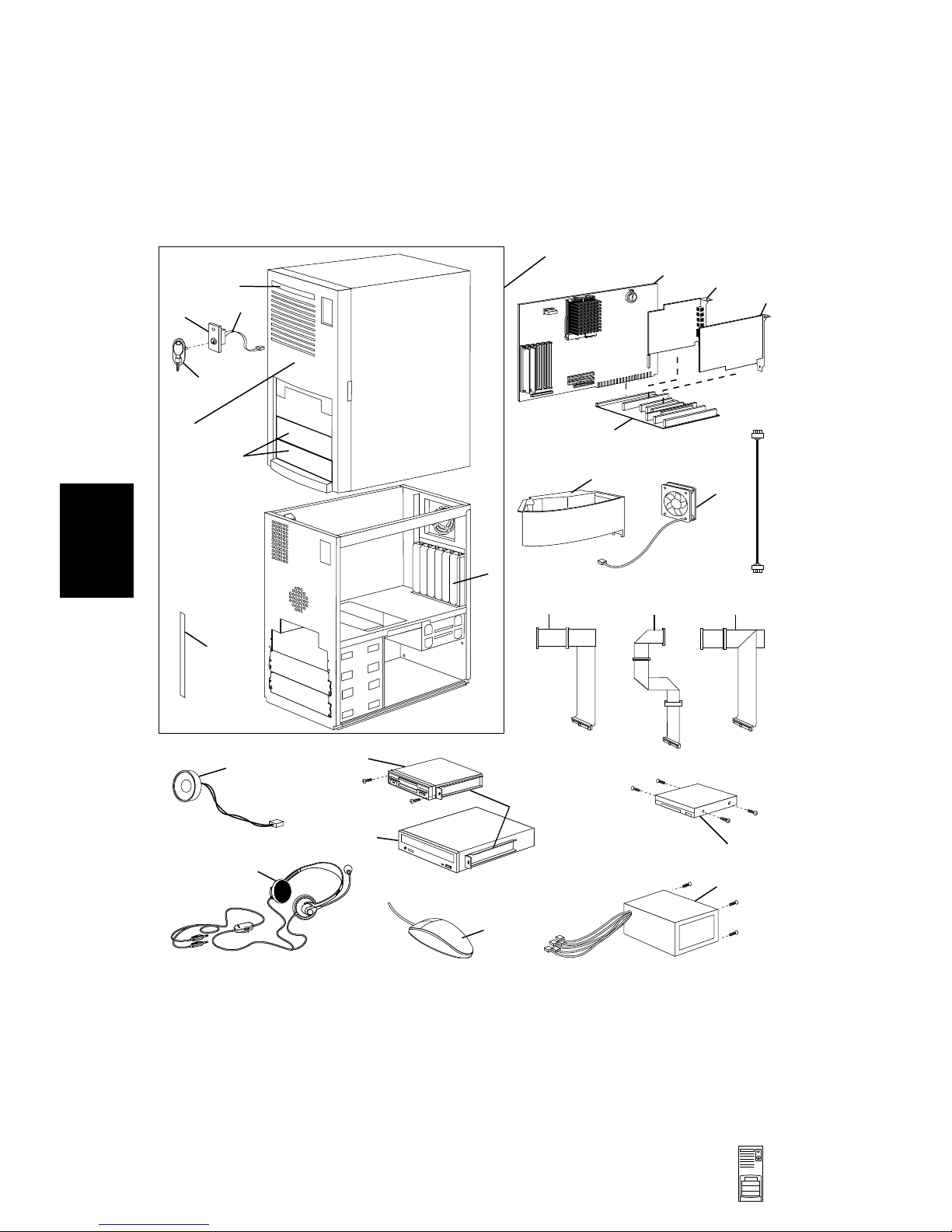

Part Numbers

a

c

b

6

3

2

5

4

118 20 19

17

16 15 21

13

11

8

23 10

9

12

22

24

14

7

HP Vectra VA 6/xxx MT PC Series

Mini-Tower Vectras HP Vectra VA 6/xxx MT PC Series 15-7

15

1. For optional disk drive information, see the Accessory Service Handbook.

2. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).

Parts List for HP Vectra VA 6/xxx MT PC

Item Description Repl.

Part Number

Exchange

Part Number

1 Box assembly:

a Front bezel

b Filler panel 5.25 inch

c Lock status panel

5064-0236

5064-3320

5042-1178

5064-1880

—

2 Power switch and cable 5063-3331 —

3 Cover lock assembly 5062-5590 —

4 I/O panel blank 45935-00004 —

5 Rear bezel connector label 5042-1831 —

6 VA MT logo 5042-1826 —

7IDE hard disk drive (standard) 1

1.2 GB — D2930-69001

1.6 GB — D4621-69001

2.5 GB — D2784-69001

4 GB — D2687-69001

8 IDE hard disk cable 5182-3507 —

9 Rail kit (3 ×5.25 inch) 5063-7961 —

10 Flexible disk drive D2035-60152 —

11 Flexible disk drive cable 5182-3509 —

12 IDE 8✕CD-ROM drive — D4381-69001

13 IDE CD-ROM cable 5182-3508 —

14 Power supply 5063-8760 —

15 Fan 3160-1054 —

16 Airflow guide 5042-2454 —

17 Backplane board 5064-0244 —

18 System board See PC’s system board parts list

19 Matrox Millennium video board Rev. 6.00 — D3568-69006

20 Audio board 5063-9057 —

21 CD-ROM to Audio Board cable 5182-1857 —

22 Headphones 5182-3552 —

23 Internal speaker 5063-4559 —

24 Mouse C3751-60201 —

Keyboard C4735-601xx2—

HP Vectra VA 6/xxx MT PC Series

15-8 HP Vectra VA 6/xxx MT PC Series Mini-Tower Vectras

15

1. Electronic file only.

System Board Parts List for HP Vectra VA 6/xxx MT PC

Description Repl.

Part Number

Exchange

Part Number

System board:

Vectra VA 6/xxx MT system board — D4205-69002

Processors:

Intel Pentium Pro (P6) 200 MHz 5063-8756 or 5064-1805 —

Thermal interface material 6040-0939 —

Heatsink and clip 1205-1170 —

Main memory modules:

2 ✕4-MB main memory 60-ns EDO RAM D3646-63001 —

2 ✕8-MB main memory 60-ns EDO RAM D3647-63001 —

2 ✕16-MB main memory 60-ns EDO RAM D3648-63001 —

2 ✕32-MB main memory 60-ns EDO RAM D4543-63001 —

Video memory module:

2 MB video memory module D3557-63002 —

Batteries:

3 V system board battery (type CR2032) 1420-0356 —

Software for HP Vectra VA 6/xxx MT PC

NT, OS/2 and Windows 95 drivers:

HP Vectra VA and XA Drivers CD-ROM

5011-3831

Multimedia software 5964-8365

DOS and Windows 3.x drivers:

available from HP BBS or WWW

—

Manuals and Documentation for HP Vectra VA 6/xxx MT PC

User’s Guide (Setting up the PC and Troubleshooting) D4210A

HP Help (Using the PC and Technical information) online 1

Familiarization Guide D4200-90901

Technical Reference Manual: hardware and BIOS No number 1
