HP ProOne 460 G3 Instructions d'installation

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

HP ProOne 460 G3 Non-Touch All-in-One Business PC

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Batteries

All types including standard alkaline and lithium coin

or button style batteries

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

Power cord

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

refractory ceramic fibers

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Electric screwdriver (Torx)

T15, Torx

Electric screwdriver (Cross)

#0, Cross

Plastic stick

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Follow steps described in Disassembly instruction (file attached)

2. If parts can be removed without using a tool, remove it first

3. Use correct screwdriver and torque value before unlock the screw.

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

MANUFACTURING PROCESS INSTRUCTIONS

MECHANICAL ASSEMBLY

MODEL : Pyxis400

1.00

Station Version Station Version Station Version Station Version Station Version Station Version

11.00 91.00 17 1.00 25 1.00 33 1.00

2 1.00 10 1.00 18 1.00 26 1.00

3 1.00 11 1.00 19 1.00 27 1.00

4 1.00 12 1.00 20 1.00 28 1.00

5 1.00 13 1.00 21 1.00 29 1.00

6 1.00 14 1.00 22 1.00 30 1.00

7 1.00 15 1.00 23 1.00 31 1.00

8 1.00 16 1.00 24 1.00 32 1.00

Station

Ver.

ALL 1.**

2017/5/23

Date

Content

Date:

Porter Zan

First version

2017/5/23

A.Current station version list:

B.Version Modify list:

Sub-assembly name:

Pyxis400 DISASS'Y SOP

Document No.:

Pyxis400 DISASS'Y SOP

Page:

Design

Revision:

Written by:

Ethan Lai

1 of 1

Auditor ：Xin-Xin Chen

Tabulator：

Ethan Lai

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

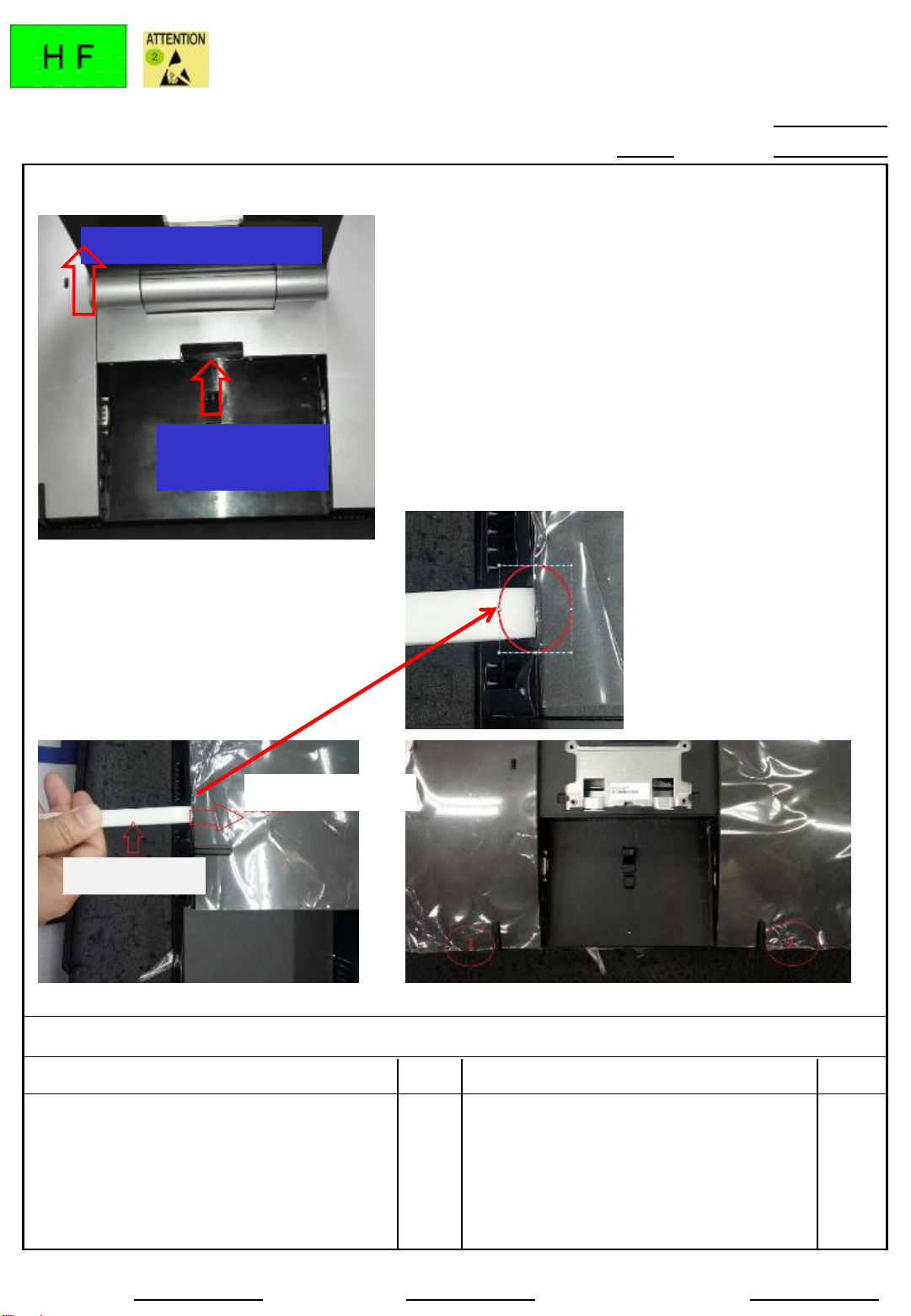

Remove Stand & pull open Rear Cover

1. Take out Stand and put into the material box

(Fig. 1).

Follow the steps as Fig. 1, push the latch

upward, then pull up the hinge.

2. Pull open Rear Cover (Fig. 2, 3).

Follow the steps as Fig. 2 & 3, use the stick

to pull open the region of gap for lever force

to unfix Rear Cover.

Glove Requirements: Half-fingered gloves

Fig. 1

Fig. 2

1(1/1)

2017/5/23

1.00

Plastic stick 1

Fig. 3

Step1: Push the

latch upward

Step2: Pull up the hinge

Plastic stick

Force direction

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

Take out Rear Cover

1. Take out Rear Cover (Fig. 1, 2, 3).

Follow the steps as Fig. illustrated.

Have one hand to hold the system, and the

other hand to pull the edge of Rear Cover for

release

2. Put Rear Cover into the material box.

Glove Requirements: Half-fingered gloves

Fig. 1

2(1/1)

2017/5/23

1.00

Fig. 3

Pull up the two

sides of Rear Cover,

then take out.

Press downward Pull upward

Press downward

Pull upward

Fig. 2

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

3(1/1)

2017/5/23

1.00

Glove Requirements: Full-fingered gloves

Electric Screwdriver (S-6000MS) 1

Bits Type: T15,φ=5mm,L=60mm 1

Take out M/B shielding

Fig. 1

1. Unscrew (Torx Pin-Head ×4) all joints to take

out M/B shielding (Fig. 1).

Torsion: 4.0 ±1.0 kgf.cm

Take the screwdriver vertically to the screw

holes.

The screw holes are marked in red circles.

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

4(1/1)

2017/5/23

1.00

Glove Requirements: Full-fingered gloves

Electric Screwdriver (S-6000MS) 1

Bits Type: T15,φ=5mm,L=60mm 1

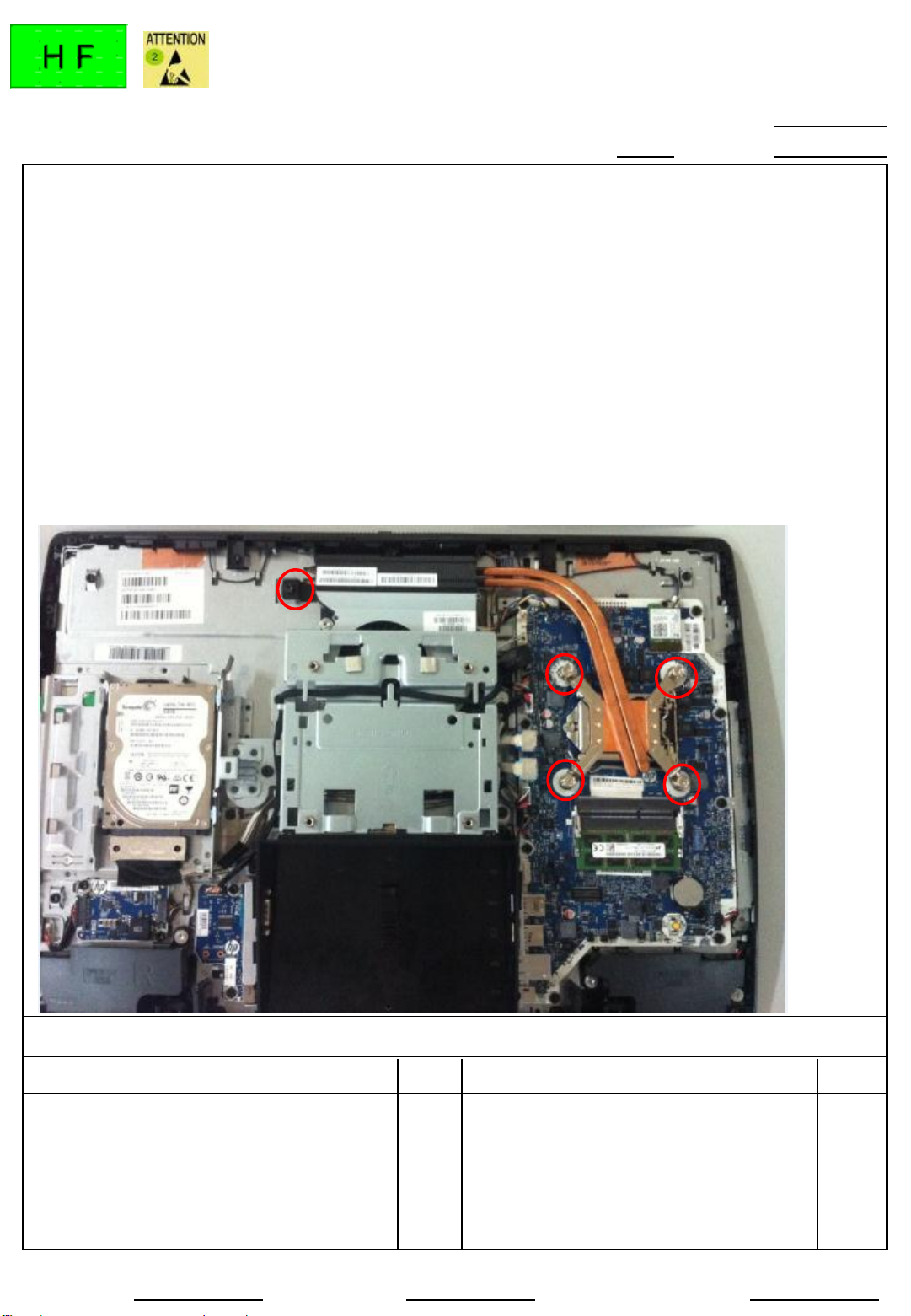

Take out Thermal Module

Fig. 1

1. Unscrew (Torx Pin-Head ×5) all joints to take

out Thermal Module (Fig. 1).

Torsion: 4.0 ±1.0 kgf.cm

Take the screwdriver vertically to the screw

holes.

2. Put Thermal Module into the material box.

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

Take out HDD and ODD

5(1/1)

2017/5/23

1.00

Glove Requirements: Half-finger gloves

1. Take out HDD (Fig. 1).

Pull open the HDD bracket softly to the right,

and push upward HDD to disconnect, then

put it into the material box.

2. Take out ODD (Fig. 2).

Press the latch and push ODD to the left

simultaneously to disconnect, then put ODD

into the material box.

Fig. 1

Fig. 2

Latch

Push

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

6(1/1)

2017/5/23

1.00

Glove Requirements: Half-fingered gloves

Electric Screwdriver (S-3000MS) 1

Bits Type: T15,φ=5mm,L=60mm 1

Take out I/O board

Fig. 2

1. Unscrew (Torx Pin-Head ×2) all joints to take

out I/O board and disconnect I/O cable (Fig.

1, 2).

Torsion: 4.0 ±1.0 kgf.cm

Take the screwdriver vertically to the screw

holes.

Put I/O board and two screws into the

material box.

2. Be careful not to make the pin heads of the

I/O connector are crooked (Fig. 3).

Pull out the I/O cable vertically from the top

of the I/O connector.



Fig. 1

Fig. 3

Standard Operation Procedure

Tabulator：Issue Department：

Xin-Xin Chen NPSU-PPE

Auditor ：

Ethan Lai

Steps：

Document No. : Pyxis400 DISASS’Y SOP Station :

Operation Name : Ver. : Date :

Note: If finding anything uncommon, notice foreman or assistant at once.

Fixture list (Specification) Qty. Fixture list (Specification) Qty.

Take out DDR and CPU

7(1/1)

2017/5/23

1.00

Ion fan 1

CPU DISASS’Y fixture 1

Glove Requirements: Half-finger gloves

1. Take out DDR and put it into the material box

(Fig. 1).

Expand the springs on the both sides of the

DDR socket.

2. Take out CPU illustrated as Fig. 2, then put it

into the tray.

Don’t touch the pin heads of CPU.

Open the bracket by pulling off the link and

take out CPU.

Fig. 1

DDR

2. Open the bracket

by pulling off the link

1. Press the link and

push it to the right

Press the fixture, then

take out CPU vertically

CPU DISASS’Y steps:

Diagonally

consistent

Fig. 2

Autres manuels HP Ordinateur de bureau

HP Media Center m7100 - Desktop PC Fiche technique

HP dx7400 - Microtower PC Manuel utilisateur

HP Pavilion t306cn Manuel utilisateur

HP Pro All-in-One MS216br Comment utiliser

HP Compaq Presario Instructions d'installation

HP Vectra VE 7 Instructions d'installation

HP ProOne 600 G3 21 inch All-in-One Business PC Manuel d'utilisation et d'entretien

HP Compaq dx6050 MT Manuel utilisateur

HP 24 Instructions de montage

HP d325 Series Manuel d'utilisation et d'entretien

HP Net PC 20 Manuel utilisateur

HP Media Center Manuel

HP Pavilion t100 - Desktop PC Manuel

HP Rp5700 - Point of Sale System Manuel utilisateur

HP Pavilion Elite E-500 Manuel utilisateur

HP Brio BA Manuel

HP dx6120 - Microtower PC Manuel d'utilisation et d'entretien

HP Desktop Pro A MT Instructions d'installation

HP Compaq dx7500 Manuel utilisateur

HP Compaq 500B Microtower Guide d'installation

HP Pavilion a200 - Desktop PC Manuel utilisateur

HP dx2300 - Microtower PC Guide de configuration

HP Z200 - Small Form Factor Workstation Manuel utilisateur

HP Pavilion Elite m9040n Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
