HP Kayak XA05 Manuel utilisateur

HP Kayak XA 05xx PC Workstation —

Installing Accessories

In Your HP Desktop PC Workstation

Explains in detail how to install accessories, such as extra memory,

accessory boards, and additional disk drives.

Asdt-in.fm Page 1 Tuesday, March 23, 1999 11:57 AM

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Supported HP Accessories

2English

Supported HP Accessories

Contact your dealer for an up-to-date list of supported accessories.

Main Memory Upgrade DIMM

slots for 100 MHz SDRAM:

- 32 MB SDRAM (D6521A)

- 64 MB SDRAM (D6522A)

- 128 MB SDRAM (D6523A)

- 256 MB SDRAM (D6743A)

Front Access Drives, for example:

- 5.25-inch CD-ROM drive (half height)

- 3.5-inch 1.44 MB floppy disk drive

(one third height)

Internal Mass

Storage Devices

Up to six accessory boards

can be installed:

- One AGP slot (graphics)

- Three 32-bit PCI slots (one used by

SCSI/LAN board on some models)

- One combination PCI or ISA slot

- One 16-bit ISA slot (used by audio

board)

Asdt-in.fm Page 2 Tuesday, March 23, 1999 11:57 AM

English 3

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Removing and Replacing the Cover

WARNING For your safety, never remove the PC Workstation’s cover without first

removing the power cord from the power outlet, and any connection to

a telecommunications network. Always replace the cover on the

PC Workstation before switching it on again.

Removing the Cover

1Switch off the display and computer.

2Disconnect all power cables and any LAN or telecommunications

cable.

3If necessary, unlock the cover using the key on the back panel, and

remove any floppy diskettes from the floppy drive.

4Push the two latches on the sides of the computer upwards.

5Grasp the cover on both sides of the computer, and carefully slide it

forwards and off the computer.

Asdt-in.fm Page 3 Tuesday, March 23, 1999 11:57 AM

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Removing and Replacing the Cover

4English

Replacing the Cover

1Ensure that you have installed all your accessories and that all

internal cables are properly connected and safely routed.

2Lower the cover completely onto the computer (aligning the back of

the cover with the inner back edge of the PC Workstation’s case),

and firmly slide it backwards into place. Ensure that the retaining

latches click into position.

3If required, lock the cover using the key provided.

4Reconnect all the power cables and telecommunications cables.

Align the back of the cover

with the inner back edge of

the PC Workstation’s case.

Ensure that the retaining

latches on either side of

the PC Workstation’s

case click into position.

Asdt-in.fm Page 4 Tuesday, March 23, 1999 11:57 AM

English 5

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Moving the Power Supply

1Disconnect the computer’s power cord and any LAN cable.

2Remove the computer’s cover (refer to page 3).

3Lift the front of the power supply up and move it forwards to

disengage the hinge on the rear.

4Rotate the power supply and lay it upside down on the drive unit.

WARNING To avoid electrical shock, do not open the power supply. There are no

user-serviceable parts inside the power supply unit.

Lift the front of the

power supply up

and forwards.

Asdt-in.fm Page 5 Tuesday, March 23, 1999 11:57 AM

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Moving the Power Supply

6English

Replacing the Power

Supply after Installing

Accessories

1Check that all internal cables are safely routed.

2Rotate the power supply into the computer. Tilt the back of the

power supply unit until it engages with the computer’s case. Adjust

the power supply’s cable to ease replacement of the unit.

3Carefully lower the front of the power supply completely into

the computer, until it clicks into position.

Tilt the back of the power

supply until it engages with

the computer’s case.

Asdt-in.fm Page 6 Tuesday, March 23, 1999 11:57 AM

English 7

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Installing Memory

Main Memory Modules

If you need more main memory to run your application software, you

can install up to 768 MB of memory in three 100 MHz DIMM slots.

Main memory upgrades are available in single non-buffered 32 MB,

64 MB and 128 MB or 256 MB SDRAM memory modules.

CAUTION Static electricity can damage electronic components. Turn off all

equipment. Do not let your clothes touch the accessory.

To equalize the static electricity, rest the accessory bag on top of the

power supply while you are removing the accessory from the bag.

Handle the accessory as little as possible and with car

To install a main memory module:

1Disconnect the computer’s power cord and any LAN or

telecommunications cable.

2Remove the computer’s cover (refer to page 3).

3Press the retaining buttons on each side of the HP UltraFlow airflow

guide and remove it from the PC Workstation’s case.

Lift the HP UtraFlow

airflow guide forwards

and upwards.

Asdt-in.fm Page 7 Tuesday, March 23, 1999 11:57 AM

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Installing Memory

8English

4Remove the fan underneath and place it on top of the power supply.

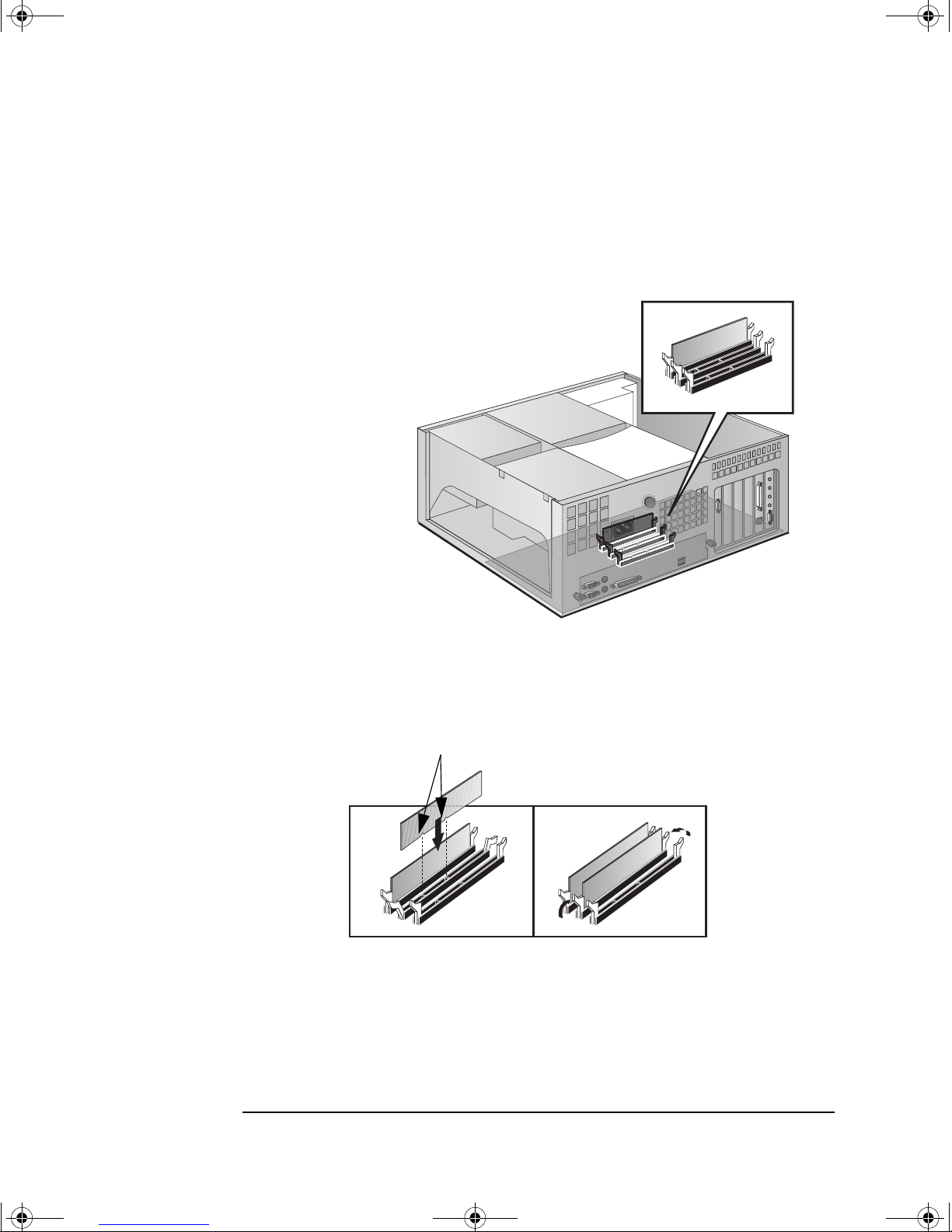

The location of the memory module slots is shown below.

5Slide the memory module into the slot at 90° to the system board

(with the cutouts furthest away from the processor).

Slide the memory module into the

slot at 90oto the system board

Push the module until the

retaining clips click into position

Memory module

cutouts

Asdt-in.fm Page 8 Tuesday, March 23, 1999 11:57 AM

English 9

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Installing Memory

6Firmly press the memory module completely into the connector

until the retaining clips click into position.

7Repeat this procedure for each additional memory module you want

to install.

8Install any other accessories if necessary, then replace all units and

reconnect all cables and power cords. Replace the cover (refer to

page 4).

9Check the HP Summary Screen to verify the new configuration.

Video Adapter

Accessories Available

from Other Sources

Additional accessories, including a video MPEG module, are available

for your video adapter. However, these accessories cannot be ordered

from HP. Contact your dealer for more details about these accessories.

NOTE A video MPEG module is only available if your PC is equipped with the

Matrox Millennium G200 graphics accelerator.

Asdt-in.fm Page 9 Tuesday, March 23, 1999 11:57 AM

HP Kayak XA 05xx PC Workstation — Installing Accessories In Your HP Desktop PC Workstation

Installing Mass Storage Devices

10 English

Installing Mass Storage Devices

Connecting Devices

If you add an IDE Zip drive, hard disk drive, CD-ROM drive, CD-RW

drive, or tape drive, you need to connect it to power and data cables.

The data cables and connectors provided are shown below:

Two IDE data cables each

with two 40-pin connectors

for IDE Drives, such as

CD-ROM Drives, Zip Drives or

Hard Disk Drives.

40-pin connector

Cable with one

connector for

3.5-inch Floppy

Disk Drive

34-pin connector

On selected

models, a 16-bit

External 68-pin

SCSI connector

On selected

models, a 16-bit

SCSI cable with

four 68-pin

connectors.

40-pin connector

Power Cables for

Hard Disk Drives,

Zip Drives, Tape

Drives, CD-RW, and

CD-ROM Drives

Power Cable for

3.5-inch Floppy

Disk Drive

Asdt-in.fm Page 10 Tuesday, March 23, 1999 11:57 AM
