Product End-of-Life Disassembly Instructions
Product Category: Personal Computers
Marketing Name / Model
[List multiple models if applicable.]
HP EliteDesk 800 G2 SFF Business PC
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description Notes
Quantity
of items
included
in product
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA) With a surface greater than 10 sq cm 2
Batteries All types including standard alkaline and lithium coin
or button style batteries 1
Mercury-containing components For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm Includes background illuminated displays with gas
discharge lamps
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height Acbel STD 3
External electrical cables and cords 1
Gas Discharge Lamps
Plastics containing Brominated Flame Retardants
weighing > 25 grams (not including PCBs or PCAs
already listed as a separate item above)
Components and parts containing toner and ink, Include the cartridges, print heads, tubes, vent
E
L-MF877-00 Page 2
Template Revision B
PSG instructions for this template are available at EL-MF877-01
including liquids, semi-liquids (gel/paste) and toner chambers, and service stations.
Components and waste containing asbestos
Components, parts and materials containing
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description Tool Size (if
applicable)
Screwdriver T-15
Micro shear 170II
Screwdriver PH1
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Loose the screw and remove access panel.(see Figure 1 below)
2. Rotate the driver cage form the hook on slide rail.(see Figure 2 below)
3. Disconnect FIO cables from the MB.(see Figure 3-5 below)
4. Disconnect SATA cables from the MB.(see Figure 6 below)
5. Disconnect other PSU cables from the MB.(see Figure 7-11 below)
6. Remove HDD/ODD from chassis.(see Figure 12-20 below)
7. Remove the heatsink from MB.(see Figure 21-24 below)
8. Separate the fan from CPU heatsink.（see Figure 25-26 below）
9. Remove the CPU from the MB.(see Figure 27-28 below)
10. Remove the Memory card from the MB.(see Figure 29 below)
11. Remove the battery from the MB .(see Figure 30 below)
12.Remove M/B from chassis.(see Figure 31-32 below)
13. Remove front panel from chassis.(see Figure 33 below)
14.Remove FIO/Speaker/LED holder from chassis.(see Figure 34-36 below)
15. Remove PSU cover.(see Figure 37-43 below)
16. Disconnect all the cables and remove the Electrolytic Capacitors.(see Figure 44-47 below)
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).
E
L-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01
Figure1pullthehandleandremoveaccesspanel Figure2Rotatethedrivercagefromthehook

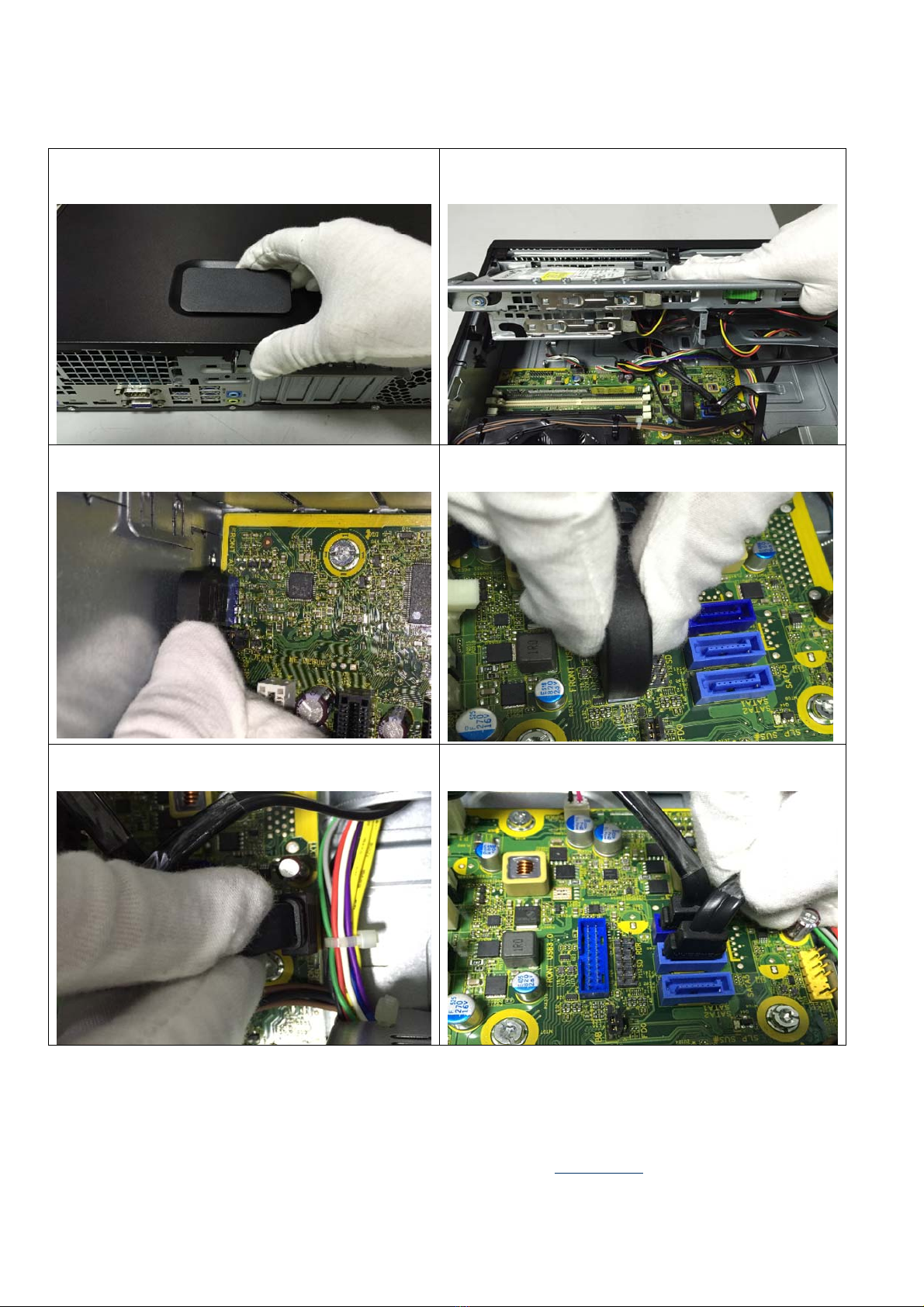

Figure 3 Disconnect FIO Audio cables from MB Figure 4 Disconnect FIO USB3.0 cables from MB
Figure 5 Disconnect FIO USB2.0 cables from MB Figure 6 Disconnect SATA cables from the MB
E
L-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

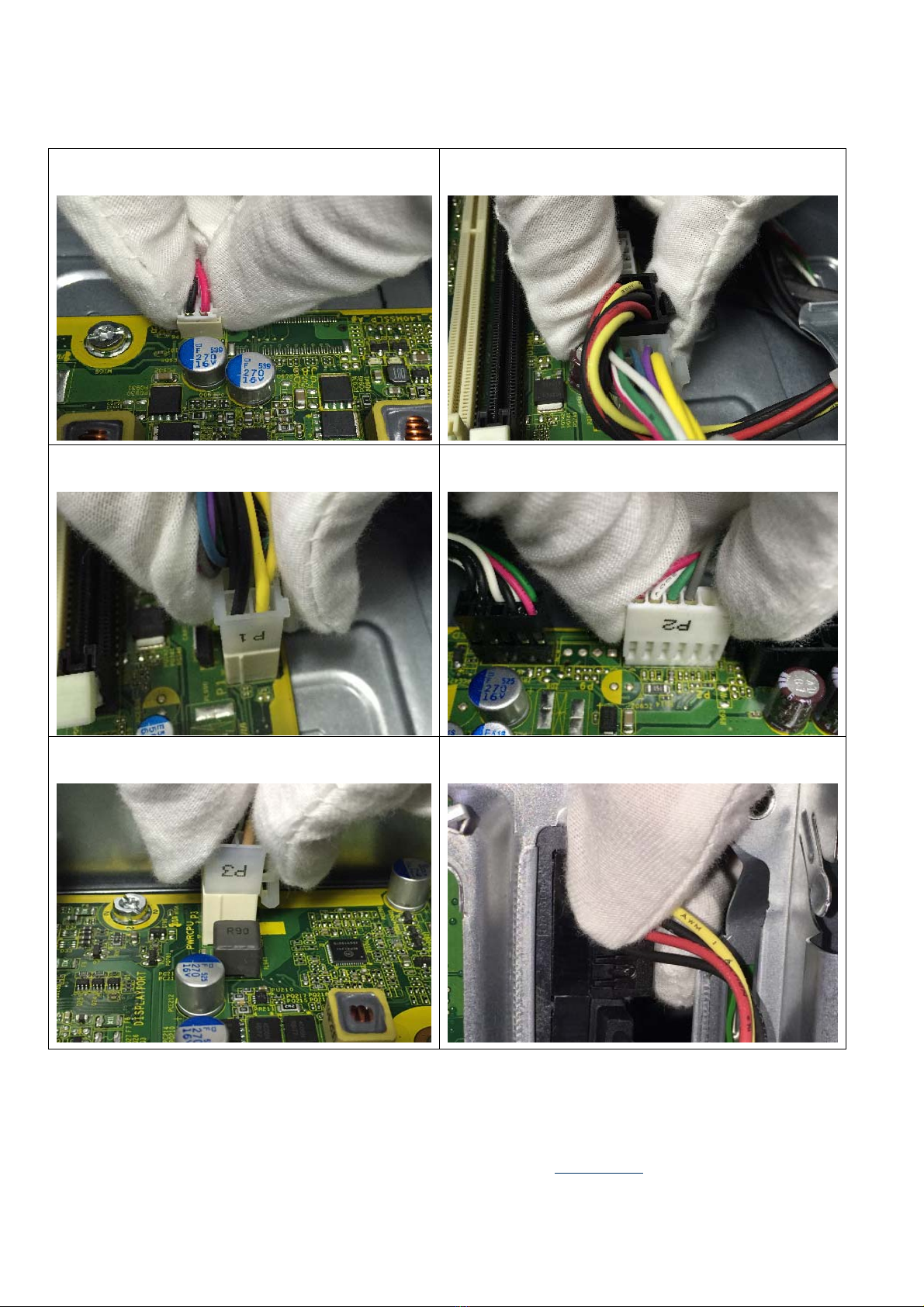

Figure 7 Disconnect Speaker cable from the MB Figure 8 Disconnect ODD/HDD PSU cables from the MB
Figure 9 Disconnect MB PSU cable from the MB Figure 10 Disconnect other PSU cables from the MB
Figure 11 Disconnect CPU Power cable from the MB Figure 12 Disconnect HDD Power cable from HDD
E
L-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

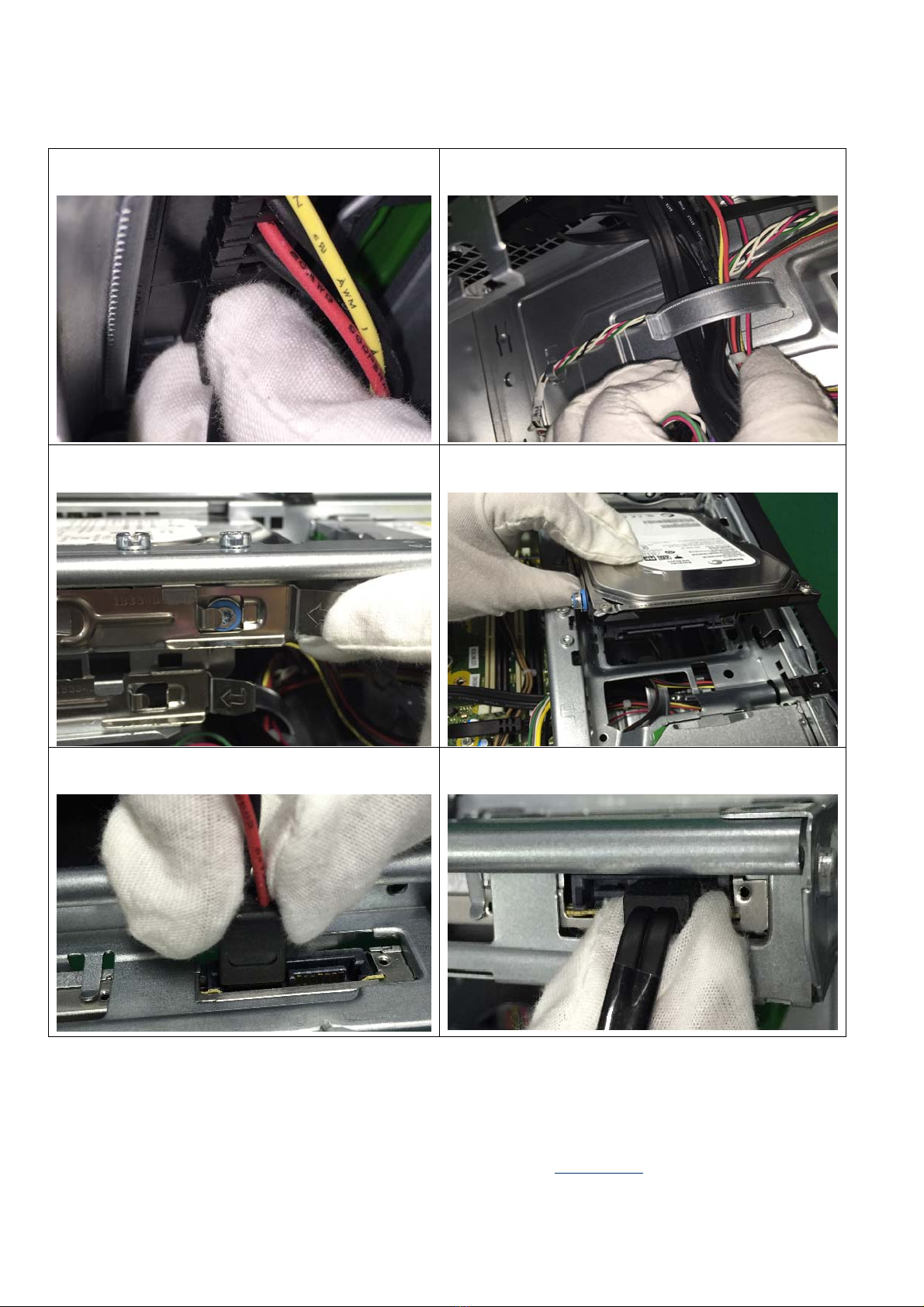

Figure 13 Disconnect SATA cable from HDD Figure 14 Remove the cables from the chassis clip
Figure 15 Press the HDD’s latch on HDD cage Figure 16 Remove the HDD from HDD cage
Figure 17 Disconnect ODD power cable from ODD Figure 18 Disconnect SATA cable from ODD
E
L-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01
Figure 19 Press the ODD’s latch on ODD cage Figure 20 Remove the ODD from ODD cage

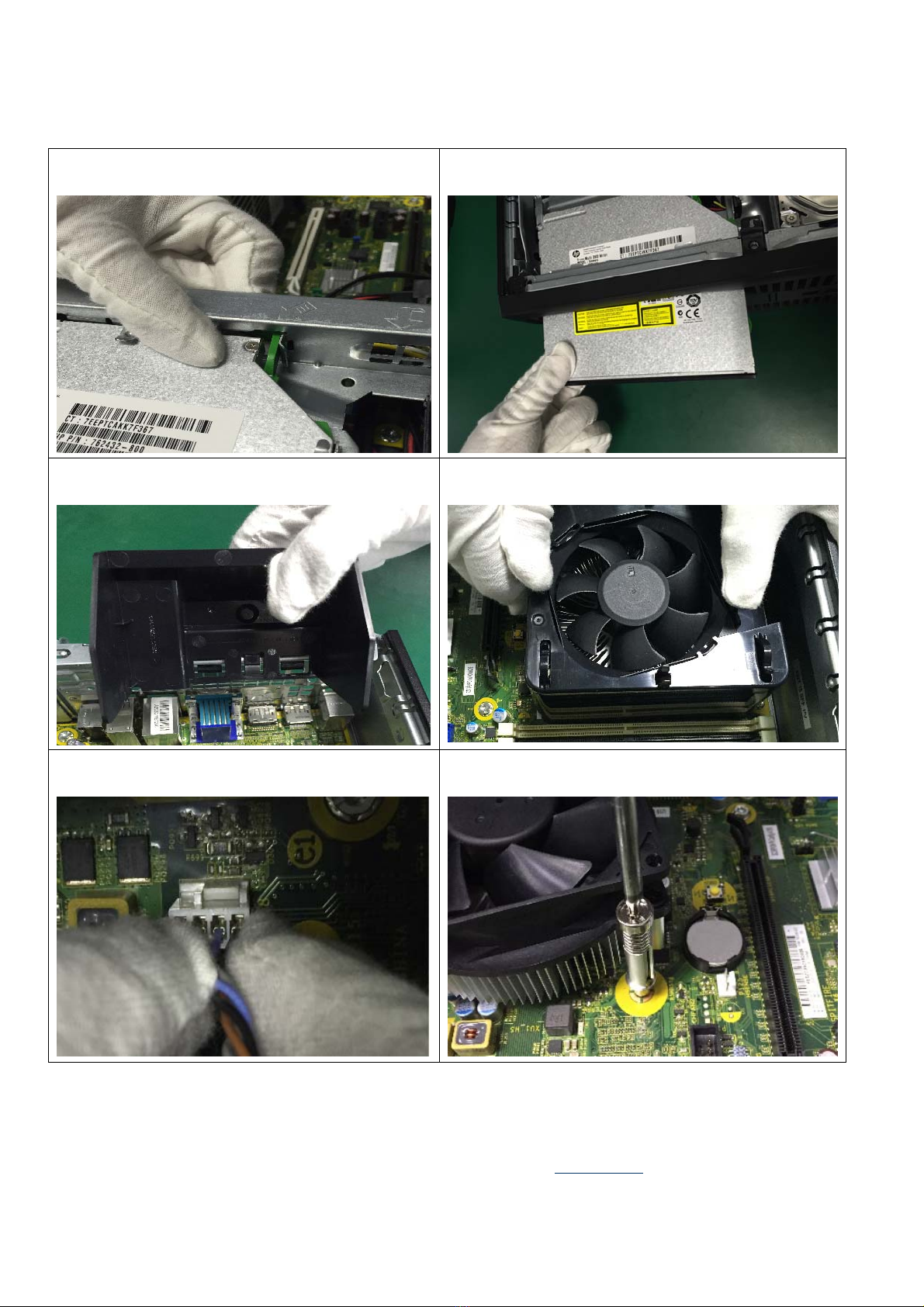

Figure 21 Rotate the Fan duct 01 and remove it Figure 22 press the hook and remove fan duct 02
Figure 23 Disconnect heat sink fan cable from MB Figure 24 Loose the screws and remove heat sink
E
L-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

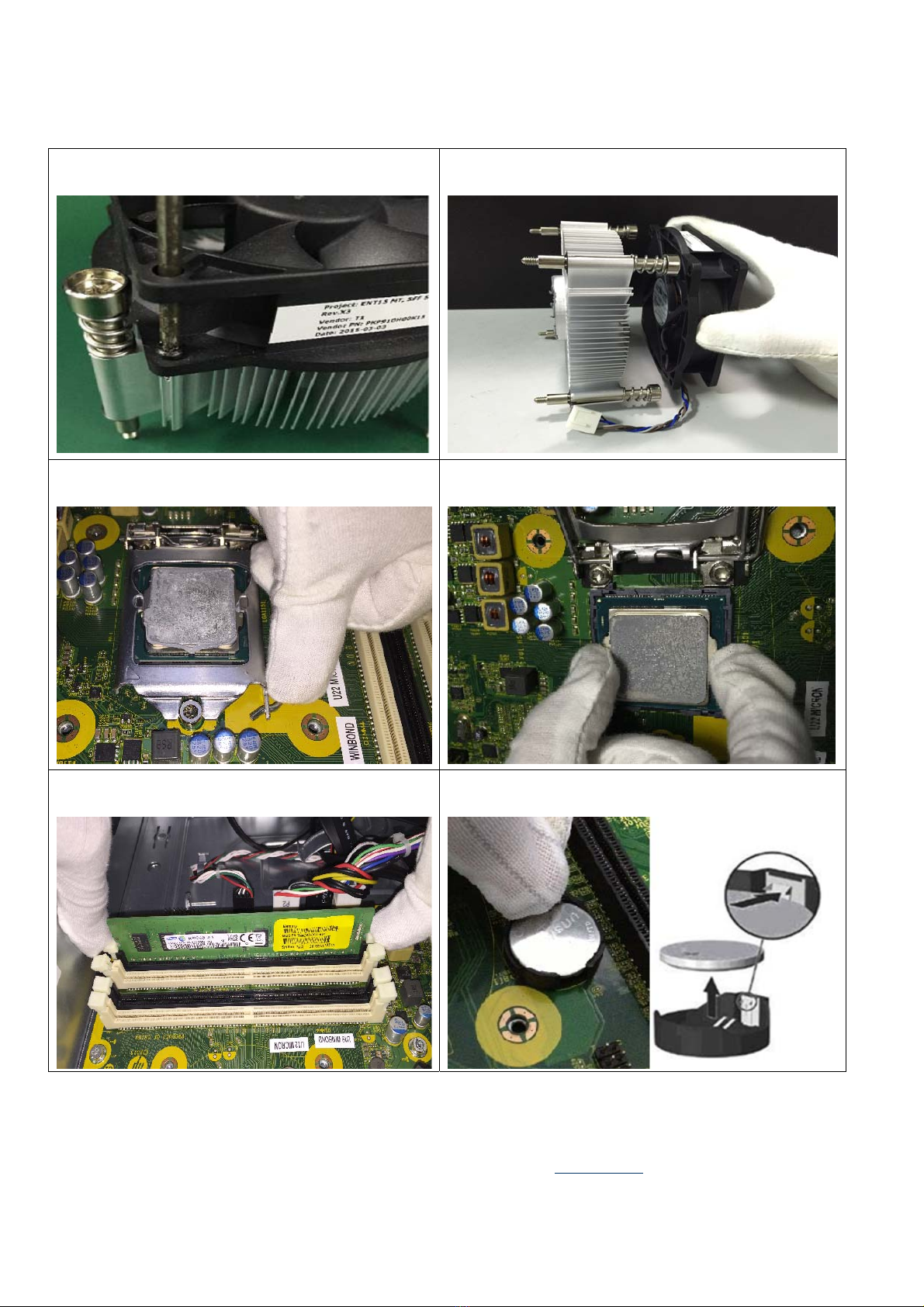

Figure 25 Loose the screws and remove the fan Figure 26 Separate the fan from CPU heat sink
Figure 27 Rotate the handle and open it up Figure 28 Remove the CPU from the board
Figure 29 Remove the Memory card from the board Figure 30 Remove the battery from the system board
E
L-MF877-00 Page 8
Template Revision B
PSG instructions for this template are available at EL-MF877-01

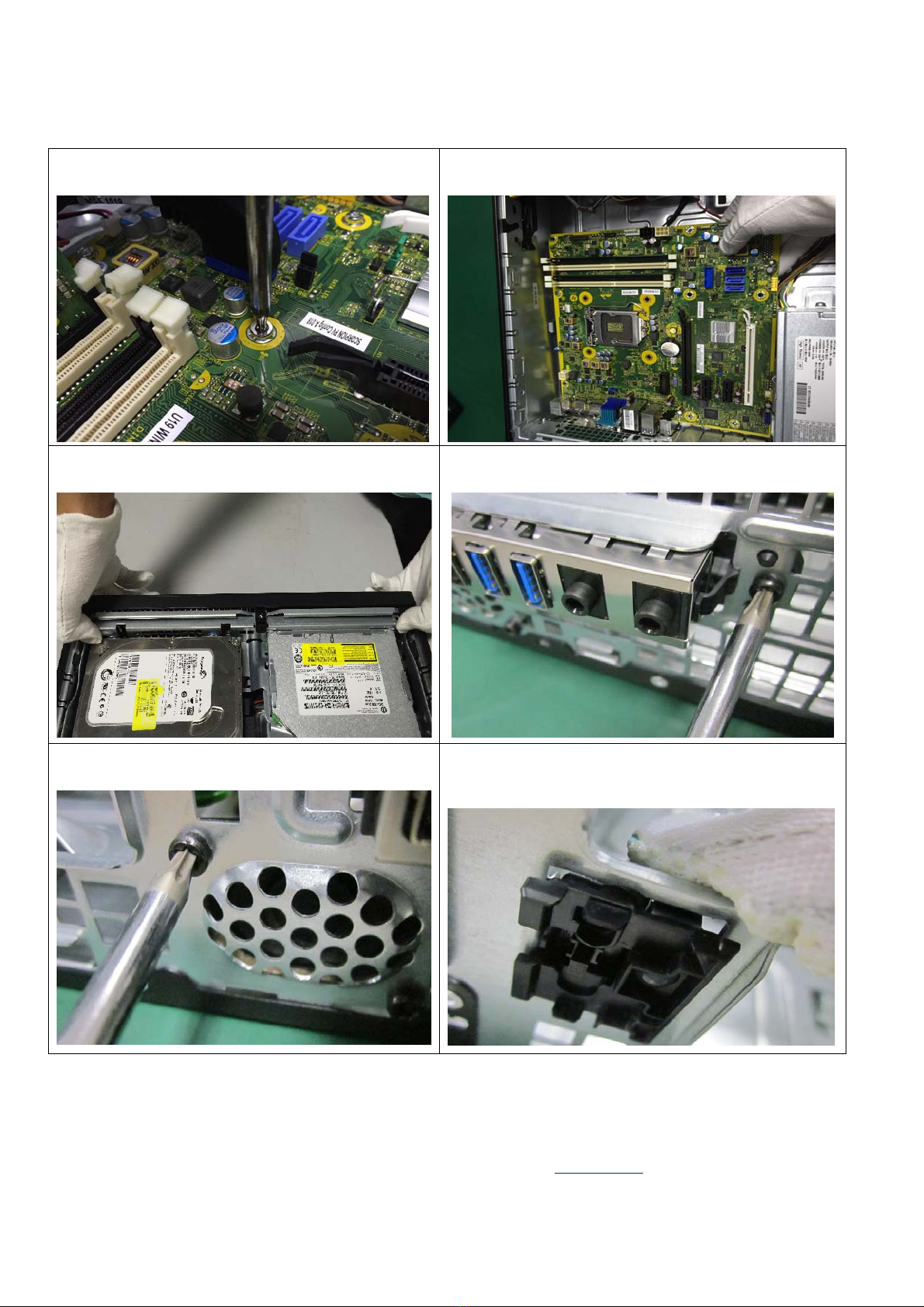

Figure 31 Loose the screws of MB from board Figure 32 Remove MB from chassis
Figure 33 Remove front bezel from chassis Figure 34 Loose the screws of FIO and remove it
Figure 35 Loose the screws of speaker and remove it Figure 36 Remove the holder of LED power cable from
chassis
E
L-MF877-00 Page 9
Template Revision B
PSG instructions for this template are available at EL-MF877-01

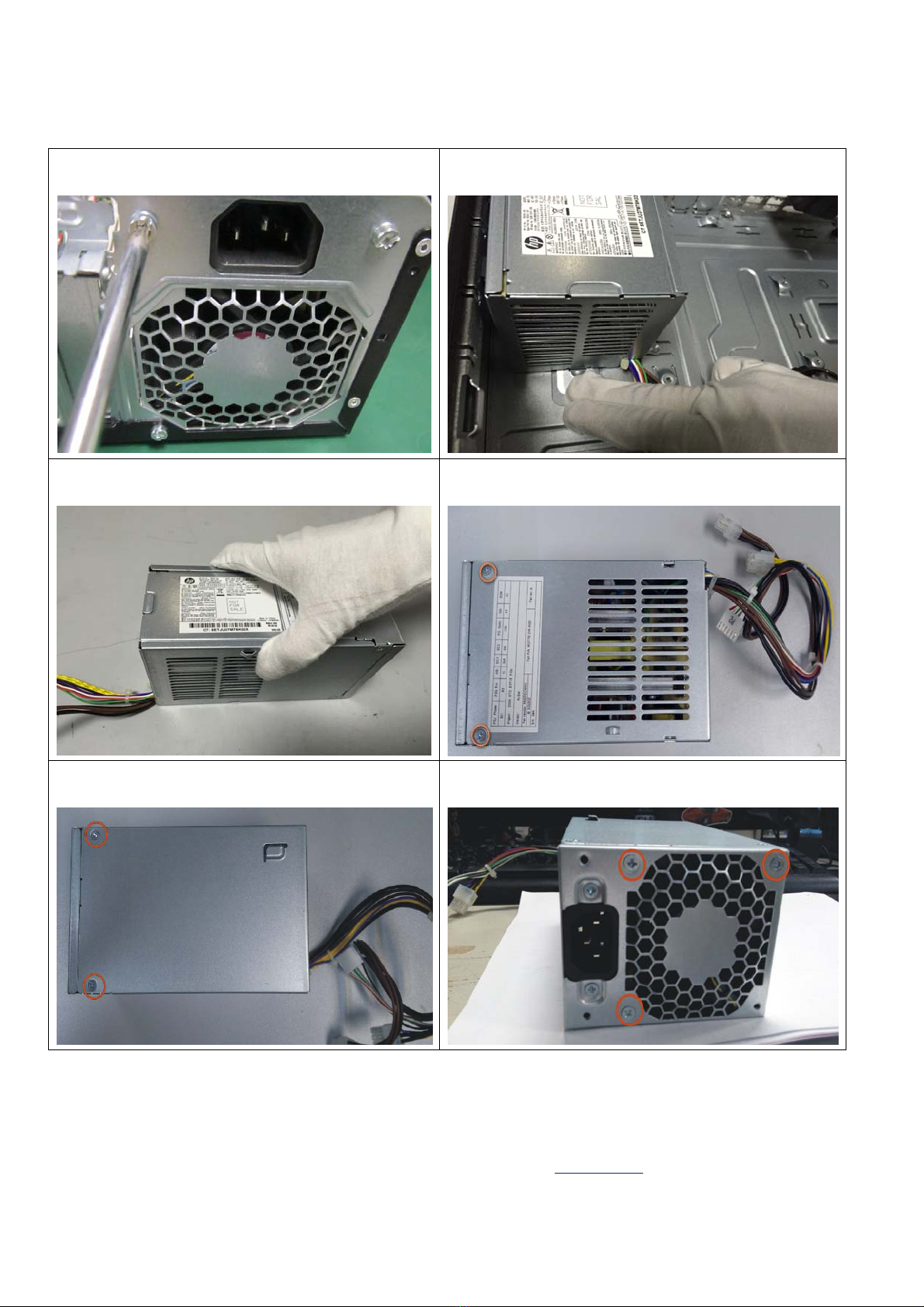

Figure 37 Remove the screws on the PSU chassis Figure 38 Press the PSU’s latch on chassis
Figure 39 Remove the Power supply from chassis Figure 40 Remove screw for top
Figure 41 Remove the screw form the bottom Figure 42 Remove screw for front
E
L-MF877-00 P
age 10
Template Revision B
PSG instructions for this template are available at EL-MF877-01
Figure 43 Remove the screw and open case
When removed only PCBA left
Figure 44 Disconnect the cable-wire from product
Figure 45 Loose the screw of PCBA cable Figure 46 When removed only PCBA left
Figure 47 Show Ele-Cap on PCBA
