HP Dx7300 - Microtower PC Guide d'installation

HP recommends

Windows Vista

Business

Slim Tower

240-watt Active Power Factor Correction (PFC) power supply,

3.5" internal bay

(1) 3.5" external bay for optional HP 16-in-1 Media Card

Reader, diskette drive, or other 3.5" device, (1) 5.25" external

bay for optional optical drive, or other 5.25" device (bay tilts up

for device removal and insertion)

(1) low profile PCI Express x1 slot, (1) low profile PCI Express

x16 slot standard*

Front I/O: (2) USB 2.0, headphone and microphone

Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional serial

port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA, (1) optional

DVI graphics port (available via DVI ADD2 adapter), audio in/out

2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse (PS/2 or

USB)

HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard

Keyboard

(2) low profile PCI slots, (1) low profile PCI Express x1 slot, (1)

low profile PCI Express x16 slot; (2) full-height PCI slots

optional (require PCI riser card)

Monitor (sold separately)

*NOTE

: With PCI riser card option, PCI Express x1 and x16 slots are inaccessible.

QuickSpecs

HP Compaq dx7300 Business PC

Overview

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 1

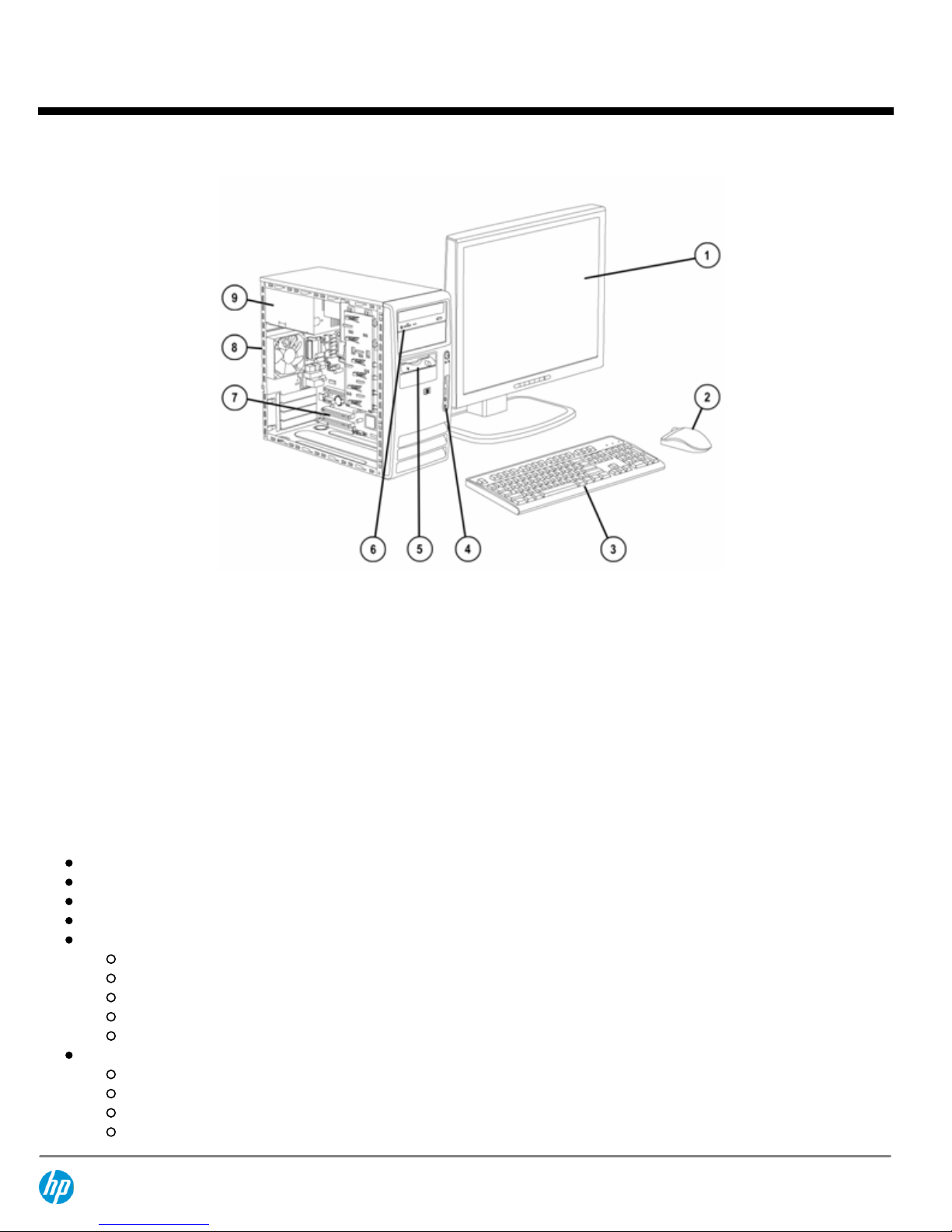

Microtower

Monitor (sold separately)

(2) 5.25" external bays and (2) 3.5" internal bays

2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse (PS/2 or

USB)

(2) full-height PCI slots, (1) full-height PCI Express x1 slot,

(1) full-height PCI Express x16 slot

HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard

Keyboard

Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional serial

port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA, audio in/out,

mic in

Front I/O: (2) USB 2.0, headphone and microphone

365-watt Active Power Factor Correction (PFC) power supply

(2) 3.5" external bays for optional HP 16-in-1 Media Card

Reader, diskette drive, or other 3.5" device

At A Glance

Designed for customers desiring the latest Intel technology and maximum upgradeability

Created using industry leading Design for Environment standards. Upgradeable, recyclable and energy efficient.

Intel® Q965 Express chipset and Intel Graphics Media Accelerator 3000 integrated graphics

Intel Core™ 2 Duo Processors, Intel Pentium D Processors, Intel Pentium 4 Processors, Intel Celeron D Processors

Value-added software on select models

HP Software Agent

Altiris Deployment Solution Agent

Symantec AntiVirus 10.0 with 60 day Live Update Subscription

HP Insight Diagnostics software

Microsoft Office 2007

Value-added software available for free download from the Web (

http://www.hp.com/go/easydeploy

)

HP Client Configuration Manager, Basic Edition

HP Client Manager for Altiris

Altiris Out-of-Band Management Solution

HP SoftPaq Download Manager

QuickSpecs

HP Compaq dx7300 Business PC

Overview

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 2

HP System Software Manager

HP Client Catalog for Microsoft SMS

Verdiem Surveyor remote power management agent

HP BIOS for better security, manageability and software image stability

Tailored HP Factory Express deployment and lifecycle services available

(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)

Protected by HP Services, including standard warranties ranging from 90-0-0 to 3-3-3 (terms and conditions vary by country;

certain restrictions and exclusions apply)

Security

Redundant Array of Independent Disks (RAID) 1 configurations to protect data against hardware failures

HP Backup and Recovery Manager to protect data against software corruption or incompatibilities due to patching or

upgrades

Tool-less serviceability features for easier upgrades and repairs

Choice of professional chassis form factors to accommodate the desired mix between expandability and size

NOTE:

All models and features may not be available in all countries.

QuickSpecs

HP Compaq dx7300 Business PC

Overview

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 3

Model Key and Example

NOTE:

This diagram is an example that illustrates how to read the model number. It is not intended to give every available

configuration choice specified in the body of this document and may include references to modules that are out of date and no longer

available.

QuickSpecs

HP Compaq dx7300 Business PC

Configurable Components - Select Models (localized by Regions)

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 4

Operating System

–

One of the following

Preinstalled

Genuine Windows Vista Business 32*

Genuine Windows Vista Home Basic 32*

Genuine Windows XP Professional SP2

Genuine Windows XP Home SP2

FreeDOS

Supported

Genuine Windows 2000

* Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download

the tool, visit

http://www.windowsvista.com/upgradeadvisor

NOTE:

Drivers for Windows Vista are continually being made available for download from

http://www.hp.com

Value-added Software

(on

select models; not included

with FreeDOS)

Altiris Deployment Solution Agent

Microsoft Office 2007 Basic

HP Software Agent

Microsoft Office 2007 Personal

HP Insight Diagnostics (on documentation CD)

Microsoft Office 2007 Professional

Computer Setup Utility

Microsoft Office 2007 Small Business

HP Backup and Recovery Manager

Microsoft Works 8.5

Symantec AntiVirus 10.0 with 60 day Live Update

Subscription

Microsoft Internet Explorer with Google Toolbar

PDF Complete

Adobe Acrobat Reader

Value-added Software

(available for free

download from the Web

http://www.hp.com/go/

easydeploy

)

HP Client Configuration Manager, Basic Edition

HP Systems Software Manager

HP Client Manager for Altiris

HP Client Catalog for Microsoft SMS

Altiris Out-of-Band Management Solution

Verdiem Surveyor agent

HP SoftPaq Download Manager

Value-added Services and

Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle Services

Business-to-Business Portals

Tool-less Serviceability

HP Global Series Services

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 5

Service and Support

On-site Warranty and Service

Note 1

: This three-year (3-3-3), limited warranty and service offering delivers

three years of parts, labor and on-site repair. Response time is next business-day

Note 2

and includes free

telephone support

Note 3

24 x 7. Global coverage

Note 2

ensures that any product purchased in one

country and transferred to another non-restricted country will remain fully covered under the original

warranty and service offering. Some countries/regions do not offer one year onsite and labor.

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP

third-party provider, and is not available in certain countries. Global service response times are based on

commercially reasonable best effort and may vary by country.

NOTE 3

: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party

hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

Slim Tower

Microtower

Chassis Dimensions

(H x W x D)

3.95 x 13.3 x 14.9 in

(10.03 x 33.78 x 37.85 cm)

14.4 x 6.88 x 16.55 in

(36.6 x 17.5 x 42 cm)

System weight*

17.18 lb (8.85 kg)

23.22 lb (10.89 kg)

System volume

782.7 sq. in. (12.8 liters)

1640 sq. in. (27.0 liters)

Shipping weight*

25.10 lb (11.39 kg) 31.86 lb (14.45 kg)

Shipping box dimensions

(H x W x D)

12.63 x 18.75 x 20 in

(32.08 x 47.63 x 50.8 cm)

22.25 x 19.63 x 15.13 in

(56.52 x 49.86 x 38.43 cm)

* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.

Power Supply

240W power supply – Active PFC 365W power supply – Active PFC

Ports

USB 2.0

8 (2 front, 6 rear) 8 (2 front, 6 rear)

Serial

1 standard with 2nd optional 1 standard with 2nd optional

Parallel

1 1

PS/2

1 keyboard, 1 mouse

Video

analog for integrated graphics

DVI output

available via ADD2 card, PCI-E x16 card, or PCI card

Support for Multi-Monitor

available via ADD2 card, PCI-E x16 card, or PCI card

Audio

Front – mic and headphone

Rear – line in, line out

Front – mic and headphone

Rear – line in, line out, mic in

NIC (RJ-45)

Integrated Intel 82566DM Gigabit Network Connection Ethernet

Chipset

Intel Q965 Express chipset

X X

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 6

Processor and Speed*

One of the following

Intel Celeron D Processors:

Intel Celeron D 331 Processor (2.66-GHz, 256K L2 cache, 533-MHz FSB)

X X

Intel Celeron D 347 Processor (3.06-GHz, 512K L2 cache, 533-MHz FSB)

X X

Intel Celeron D 352 Processor (3.20-GHz, 512K L2 cache, 533-MHz FSB)

X X

Intel Celeron D 356 HE Processor (3.33-GHz, 512K L2 cache, 533-MHz FSB)

Intel Celeron D 360 Processor (3.46-GHz, 512K L2 cache, 533-MHz FSB)

X X

Intel Pentium 4 Processors with Hyper Threading Technology:

Intel Pentium 4 531 Processor (3.0-GHz, 1-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium 4 541 Processor (3.2-GHz, 1-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium 4 631 Processor (3.0-GHz, 2-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium 4 641 Processor (3.2-GHz, 2-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium 4 651 Processor (3.4-GHz, 2-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium 4 661 Processor (3.6-GHz, 2-MB L2 cache, 800-MHz FSB)

X X

Intel Pentium D Processors:

Intel Pentium D 915 Processor (2.8-GHz, 2x1MB L2 cache, 800-MHz FSB

X X

Intel Pentium D 925 Processor (3.0-GHz, 2x2MB L2 cache, 800-MHz FSB)

X X

Intel Pentium D 935 Processor (3.2-GHz, 2x2MB L2 cache, 800-MHz FSB)

X X

Intel Pentium D 945 Processor (3.4-GHz, 2x2MB L2 cache, 800-MHz FSB)

X X

Intel Core 2 Duo Processors:

Intel Core 2 Duo E4300 Processor (1.80-GHz, 2 MB L2 cache, 800-MHz FSB)

X X

Intel Core 2 Duo E6300 Processor (1.86-GHz, 2 MB L2 cache, 1066-MHz FSB)

X X

Intel Core 2 Duo E6320 Processor (1.86-GHz, 4 MB L2 cache, 1066-MHz FSB)

X X

Intel Core 2 Duo E6400 Processor (2.13-GHz, 2 MB L2 cache, 1066-MHz FSB)

X X

Intel Core 2 Duo E6420 Processor (2.13-GHz, 4 MB L2 cache, 1066-MHz FSB)

X X

Intel Core 2 Duo E6600 Processor (2.40-GHz, 4 MB L2 cache, 1066-MHz FSB)

X X

Intel Core 2 Duo E6700 Processor (2.66-GHz, 4 MB L2 cache, 1066-MHz FSB)

X X

Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family,

not across different processor families.

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 7

Memory

DDR2 SYNCH DRAM NON-ECC MEMORY

Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This

chart does not represent all possible memory configurations. The Intel Q965 Express chipsets support

non-ECC DDR2 PC2-5300 (667-MHz) and PC2-6400 (800-MHz) memory.

CAUTION

: You must shut down the computer and disconnect the power cord before adding or removing

memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules

as long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while

voltage is present may cause irreparable damage to the memory modules or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

For best performance, add the same amount of total memory to each channel and do not mix speeds. For

dual-channel symmetric performance, the total amount of memory in each channel must be equal. If

speeds are mixed, speed will default to the slowest DIMM.

Slim Tower and Microtower

Maximum Memory*

Supports up to 4-GB of DDR2 SYNCH DRAM.

Slot 1 is black and must always be populated. Not all memory

configurations possible are represented below.

NOTE:

Above 3-GB, all memory may not be available due to system resource requirements.

DIMM Size

Slot

Channel A

Channel B

(black)

(white)

512-MB

(dual-channel

symmetric)

256-MB

1-GB

(dual-channel

symmetric)

512-MB

1-GB

(dual-channel

symmetric)

256-MB

512-MB

2-GB

(dual-channel

symmetric)

1-GB

512-MB 512-MB

2-GB

(dual-channel

symmetric)

512-MB 512-MB 512-MB 512-MB

4-GB maximum

(dual-channel symmetric)

1-GB 1-GB 1-GB 1-GB

*NOTE:

The Intel Q965 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability

functions. Management Engine memory is shared with system memory. If the PC contains a single DIMM, 8 MB of memory is pre-

allocated for it at system startup. If the PC contains two DIMMs, 16 MB of memory is pre-allocated. This memory is not made available

to the operating system, just as pre-allocated video memory is not available.

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 8

Memory Configurations

One of the following

512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)

X X

512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 256)

X X

1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)

X X

1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 512)

X X

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)

X X

2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 512)

X X

3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)

X X

4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)

X X

512-MB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (1 x 512)

X X

512-MB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 256)

X X

1-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (1 x 1GB)

X X

1-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 512)

X X

2-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (2 x 1GB)

X X

2-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (4 x 512)

X X

3-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (3 x 1GB)

X X

4-GB DDR2 Synch Dram PC2-5300 (667-MHz) Non ECC (4 x 1GB)

X X

Expandability

PCI slots

2 low-profile (2.5"), length (6.6") standard;

2 full-height (4.2"), length (6.875") via optional riser

card.

NOTE:

With riser card option, PCIe x1 and PCIe x16

slots are not accessible.

2 full-height (4.2"), length (13.4") standard

Max power per slot

25W 25W

PCI Express x16 slot

1 low-profile (2.5"), length (6.6")

1 full-height (4.2"), length (10.5")

Max power per slot

25W 75W

PCI Express x1 slot

1 low profile (2.5"), length (6.6")

1 full-height (4.2"), length (13.4")

Max power per slot

10W 10W

External Bays

2 4

3.5"

1 1

5.25"

1 (length 8.189")

3 (2 – length 8.189", 1 – length 5.71")

Internal 3.5" HDD Bays

1 2

Hard Drive Controller (PCI)

Supported

Serial ATA (support for SATA 1.5-Gb/s and 3.0-Gb/s

hard drives)

Serial ATA (support for SATA 1.5-Gb/s and 3.0-Gb/s

hard drives)

Hard Drive Interfaces

Supported

3 Serial ATA interfaces 4 Serial ATA interfaces

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 9

Slim Tower

Microtower

Storage – Drive Support

Diskette Drive

or PCI Media

Card Reader

(optional)

Storage Drive

Bay

3.5" Serial

ATA Hard

Drives

Diskette Drive

PCI Media

Card Reader

(optional)

Storage Drive

Bay

3.5" Serial

ATA Hard

Drives

Quantity Supported

1121122

Position Supported

, , , ,

Controller

Diskette

Controller or

USB header on

PCI card

SATA SATA

Diskette

Controller

USB header on

PCI card

SATA SATA

QuickSpecs

HP Compaq dx7300 Business PC

Standard Features and Configurable Components

DA - 12583 Worldwide — Version 15 — September 19, 2007

Page 10

Autres manuels pour dx7300 - Microtower PC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Ordinateur de bureau

HP 8000f - Elite Ultra-slim Desktop PC Manuel d'utilisation et d'entretien

HP dc5700 - Microtower PC Manuel utilisateur

HP Compaq dc7100 MT Manuel d'utilisation et d'entretien

HP Z240 Small Form Factor Manuel utilisateur

HP Vectra VLi 8 Manuel utilisateur

HP Compaq 8200 Elite Series Instructions d'utilisation

HP C8000 - Workstation - 0 MB RAM Mise à jour du firmware

HP TouchSmart IQ524 Manuel utilisateur

HP Presario SR1200 - Desktop PC Manuel utilisateur

HP S5220F - Pavilion Slimline - Desktop PC Manuel utilisateur

HP Pavilion a210 Instructions d'installation

HP Compaq dx2100 MT Series Manuel utilisateur

HP A320m - Pavilion - 256 MB RAM Instructions d'installation

HP Vectra N30 Manuel de service

HP 8000 - Elite Convertible Minitower PC Manuel utilisateur

HP Workstation xw6000 Manuel

HP Visualize J5000 Manuel

HP Visualize c100 Manuel utilisateur

HP Pavilion t400 - Desktop PC Instructions d'installation

HP EliteOne 800 G3 Instructions d'installation

HP Pro 3400 Series Manuel

HP A320m - Pavilion - 256 MB RAM Manuel utilisateur

HP Compaq Presario Manuel utilisateur

HP 450 NG Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur

HP dx7300 - Microtower PC Guide d'installation

Manuels Ordinateur de bureau populaires d'autres marques
