Compaq Deskpro EN Series of Personal Computers 1-1

chapter 1

PRODUCT DESCRIPTION

This chapter describes the model offerings and features of the Compaq Deskpro EN Series

of Personal Computers.

✎Throughout this guide, Revised Configuration refers to all models produced

after May 17, 1999.

Compaq Deskpro EN Series of Personal Computers

1-2 Product Description

1.1 Model Overview

The Compaq Deskpro EN Series of Personal Computers is available in configurations

described in the following sections.

Original vs Revised Configuration

Configuration System Board

Spares

Chipset NIC Graphics

Original 162857-001 Intel 440 BX Intel 10/100 ATI Rage Pro Turbo

AGP 1X

ATI Rage Pro Turbo

AGP 2X

Revised 117740-001 Intel 810 Intel PRO/100+ Embedded Intel 3D

Direct AGP

158750-001 Intel 820 Intel PRO/100+ Matrox G400 AGP

ELSA Synergy II AGP

162857-001 Intel 440 BX Intel PRO/100+ ATI Rage Pro Turbo

AGP 1X

ATI Rage Pro Turbo

AGP 2X

1.2 System Design

This section presents a design overview and functional descriptions of the key components

of the Compaq Deskpro EN Series of Personal Computers. All replaceable components

are identified in Chapter 2, and removal and replacement instructions are presented in

Chapters 4 and 5.

Compaq Deskpro EN Series of Personal Computers 1-3

1.2.1 Desktop Design Overview

The desktop models of the Compaq Deskpro EN Series of Personal Computers use a

highly serviceable chassis to house the slide-out system board, expansion card cage,

power supply, and mass storage devices. The expansion card cage houses the expansion

card.

All internal components are accessible when the cover with its integrated front bezel is

removed. The cover assembly is attached to the chassis with Quick Release Cover

Latches; no tools are required to remove the cover assembly.

The system board is easily removed from the chassis after the cover is removed and the

expansion card cage is raised by lifting a pair of top-mounted green levers. Once the

system unit cover has been removed and the expansion card cage raised, there is no need

to remove any other component to access the system board. Details of the disassembly

procedure are found in Chapter 4, “Removal and Replacement Procedures.”

The tilt drive cage is located on the right side of the chassis, directly in front of the power

supply. Tilting the cage allows full service access to the rear of the drives without the need

for any tools. The drive cage accommodates one side-mounted internal hard drive and

provides three bays for external access drives.

The drive cage allows drive installation without the use of rails. Two screws on each side

of the drive are used as guides, and drive release latches are used to secure the drives into

the bays. Extra guide screws (standard and metric thread) are provided on the front of the

chassis, to the left of the drive cage for use when installing additional drives.

The expansion card cage with the riser board mounts at a right angle to the system board.

The riser board is secured to the expansion board cage with three screws. Expansion

boards are installed at a right angle into the riser board. A single screw secures each

expansion board to the expansion board cage.

The power supply is mounted in the right rear corner of the chassis. Embedded clips

located on the bottom of the power supply engage cutouts in the floor of the chassis. The

power supply is held in place by three screws that are installed through the rear panel of

the chassis.

1-4 Product Description

1.2.2 Minitower Design Overview

The minitower models of the Compaq Deskpro EN Series of Personal Computers use a

highly serviceable chassis to house the slide-out system board, expansion board cage,

power supply, and mass storage devices. The expansion board cage houses the expansion

boards.

All internal components are accessible when the access panel and the front bezel are

removed. The access panel is attached to the chassis with three easily removed thumb

screws and the front bezel is attached with tabs.

The system board is easily removed from the chassis after the access panel is removed, the

computer is turned on its side, and the expansion board cage is raised by lifting a pair of

top-mounted green levers. Once the access panel has been removed and the expansion

board cage raised, there is no need to remove any other component to access the system

board. Details of the disassembly procedure are found in Chapter 5, “Removal and

Replacement Procedures.”

The drive cage is located at the top of the chassis, accommodates one internal hard drive,

and provides four bays for external access drives.

The drive cage allows drive installation without the use of rails. Two screws on each side

of the drive are used as guides, and drive release latches are used to secure the drives into

the bays. Extra guide screws (standard and metric thread) are provided on the front of the

chassis for use when installing additional drives.

The expansion board cage with the riser board mounts at a right angle to the system board.

The riser board is secured to the expansion board cage with three screws. Expansion

boards are installed at a right angle into the riser board. A single screw secures each

expansion board to the expansion board cage.

The power supply is mounted in the top rear of the chassis. It is supported by built-in

latches and held in place by three screws that are installed through the rear panel of the

chassis.

Compaq Deskpro EN Series of Personal Computers 1-5

1.3 Preinstalled Software

The computer is shipped with Microsoft Windows 95, Windows 98, or Windows NT 4.0

installed as the operating system, depending on the model.

The following Compaq software is preloaded on the computer:

ROM-based Computer Setup*

Compaq Diagnostics for Windows*

Compaq Support Software and device drivers*

Online Compaq Safety & Comfort Guide (English only)

Power Management with Energy Saver features*

Security Management*

Remote Management Tools*

✎* Part of Intelligent Manageability

1.3.1 Ordering Additional Software

If you plan to run any of the following operating systems on the computer, you must

install the corresponding Compaq device drivers and utilities before attempting to use the

computer:

IBM OS/2

NetWare

A version of Microsoft Windows or Windows NT that is different from the version

included with the computer

There are two methods to order copies of suitable device drivers and utilities:

Order the Support Software CD for Compaq Desktop, Portables, and Workstation

Products. This compact disc contains the latest device drivers, utilities, and

flashable ROM images needed to run MS-DOS, Windows 3.1, Windows 95,

Windows NT Workstation 3.51, IBM OS/2, and NetWare on the Compaq

commercial desktop product.

Download the software from the Compaq World Wide Web site

(www.compaq.com).

The Support Software CD can be purchased in either of two ways:

A single CD-ROM that gives one-time access to the latest support software (North

America only).

A yearly subscription that delivers up to 12 monthly CD-ROMs and provides

continuous access to the latest developments.

✎When calling Compaq to place an order, be sure to have the serial number of the

computer available. The location of the serial number is shown in Section 1.8.

This number is necessary for all purchases.

1-6 Product Description

1.4 Desktop Computer Features

The Compaq Deskpro EN Series of Personal Computers ships with a mouse and keyboard.

A Compaq color monitor or other compatible monitor, which is also required to operate

the computer, does not ship with the computer.

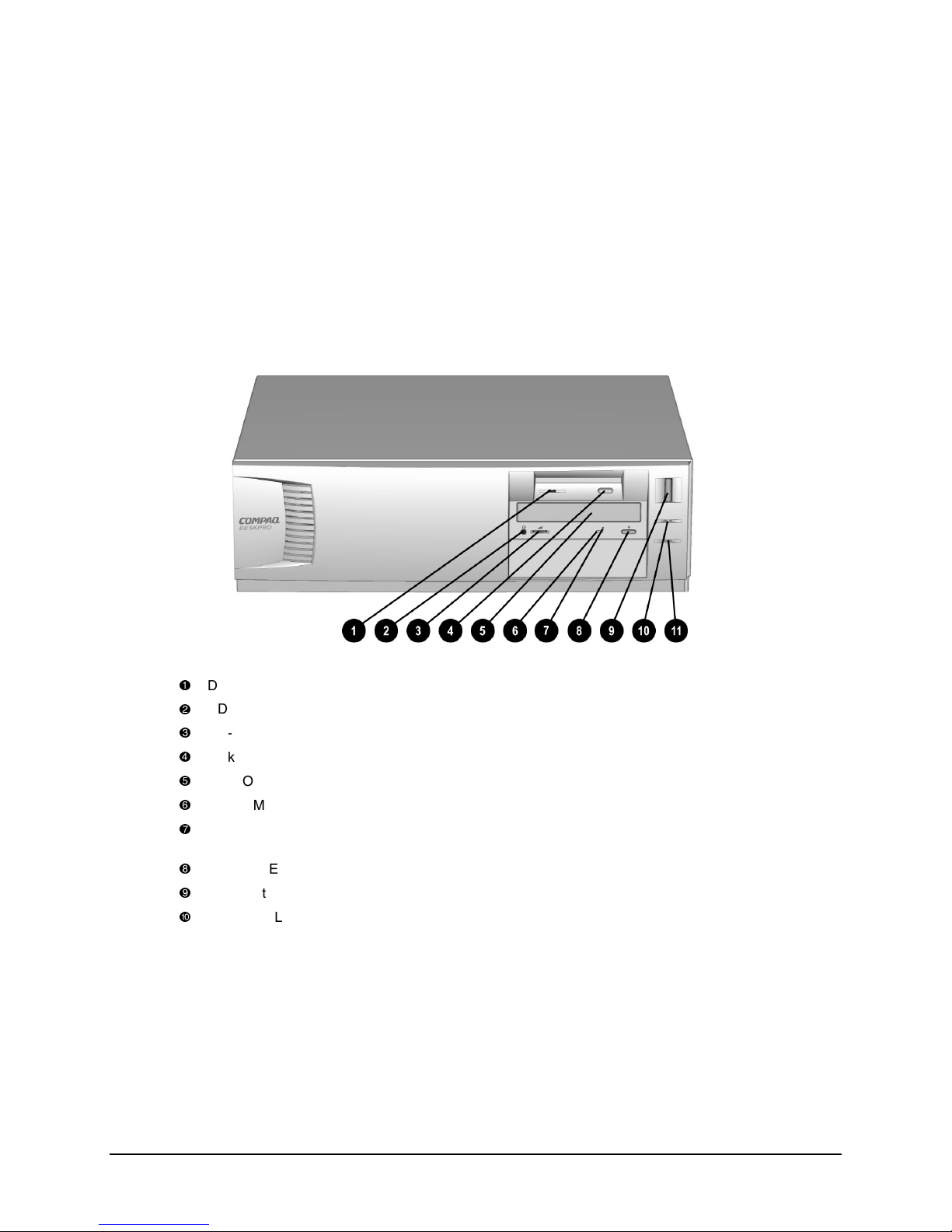

1.4.1 Front Panel Controls and LEDs – All Configurations



Diskette Drive Activity Light—illuminates when the diskette drive is reading or writing.



CD-ROM Headphone Jack



CD-ROM Headphone Volume Control



Diskette Eject Button



CD-ROM Tray



CD-ROM Emergency Eject Socket



CD-ROM Drive Activity Light—illuminates when the CD-ROM drive is reading information from the

compact disc.



CD-ROM Eject Button



Dual-State Power Button



Power-On Light—illuminates when the computer is turned on and blinks (optional) in Energy Saver

Mode.

Drive Activity Light— flashes when an ATAPI device, such as the hard drive, is active.

Compaq Deskpro EN Series of Personal Computers 1-7

1.4.2 Rear Panel Connectors – Original Configuration



Power Cord Connection



Smart Cover Lock



Microphone Connector



Ethernet RJ-45 Connector (some models available without a NIC)



Line-In Audio Connector



Wide UltraSCSI Connector (select models)



Mouse Connector



Monitor Connector



Voltage Select Switch (115V or 230V to match geographical requirements)



Universal Serial Bus (USB) Connectors

Headphone Connector

Line-Out Connector



Keyboard Connector

Parallel Port Connector

Serial Connectors

1-8 Product Description

1.4.3 Rear Panel Connectors – Revised Configuration



Voltage Select Switch (115V or 230V to match geographical requirements)



Smart Cover Lock



Microphone Connector



Ethernet RJ-45 Connector (some models available without a NIC)



Line-In Audio Connector



Wide UltraSCSI Connector (select models)



Mouse Connector



Monitor Connector (For units with system board 117740-001, the Monitor Connectors are located to

the right of the Serial Connectors.)



Product ID Label



Power Cord Connection

Universal Serial Bus (USB) Connectors

Headphone Connector



Line-Out Connector

Keyboard Connector

Parallel Port Connector

Serial Connectors

Compaq Deskpro EN Series of Personal Computers 1-9

1.4.4 Drive Position – All Configurations



Standard 3.5-inch 1.44-MB diskette drive



Optional 5.25-inch CD-ROM drive (half-height) (standard on some models)



Optional 5.25-inch drive (half-height)



Standard 3.5-inch internal hard drive

To verify the type, size, and capacity of the mass storage devices installed in the computer,

run the View System Information (INSPECT) utility available at computer startup.

1-10 Product Description

1.5 Minitower Computer Features

The Compaq Deskpro EN Series of Personal Computers ships with a mouse and keyboard.

A Compaq color monitor or other compatible monitor, which is also required to operate

the computer, does not ship with the computer.

1.5.1 Front Panel Controls and LEDs – All Configurations



Diskette Eject Button



Diskette Drive Activity Light—illuminates when the diskette drive is reading or writing.



CD-ROM Drive Tray



Stereo Headphone Jack



Headphone Volume Control



CD-ROM Emergency Eject Socket



CD-ROM Drive Activity Light—illuminates when the CD-ROM drive is reading information.



CD-ROM Eject Button



Dual-State Power Button



Power-On Light—illuminates when the computer is turned on and blinks (optional) in Energy Saver

Mode.

Drive Activity Light— flashes when an ATAPI device, such as the hard drive, is active.

Autres manuels pour Deskpro EN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Ordinateur de bureau

HP Brio BAx Manuel utilisateur

HP Model 750 - Workstation Manuel utilisateur

HP Pavilion w1000 - Desktop PC Manuel utilisateur

HP Compaq Microtower Business PC dx2300 Instructions d'utilisation

HP TouchSmart IQ500 Comment utiliser

HP Media Center m1100 - Desktop PC Manuel utilisateur

HP Pavilion t267k Manuel utilisateur

HP Media Center m7000 - Desktop PC Fiche technique

HP Brio BA Manuel

HP Brio BA400 Manuel utilisateur

HP Presario 6500 - Desktop PC Mode d’emploi

HP Deskpro 300 Manuel d'utilisation et d'entretien

HP Vectra VE5 4 Manuel

HP Compaq Presario Fiche technique

HP Pavilion u401cl Manuel utilisateur

HP P6210f - Pavilion - 6 GB RAM Manuel d'utilisation et d'entretien

HP Compaq Presario Fiche technique

HP dc72 - Blade Workstation Client Guide de référence rapide

HP Xw8400 - Workstation - 4 GB RAM Manuel utilisateur

HP Brio BA Manuel d'installation et d'exploitation

HP Model 747i - Workstation Guide de référence

HP Compaq Elite 8000 CMT Manuel d'utilisation et d'entretien

HP dx2300 - Microtower PC Manuel d'utilisation et d'entretien

HP Pavilion a400 - Desktop PC Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
