HP Compaq dc5100 Series Instructions de montage

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 1

Appendix 3 Product End-of-Life Disassembly instructions

Product Identification:

Marketing Name / Model Description

HP Compaq Business Desktop dc5100 Series,

version 2 - SFF HP business desktop PC – Small Form Factor

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the

basic instructions for the disassembly of HP products to remove components and materials requiring

selective treatment.

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in

the right column, as applicable.

Item Description

Notes Qty items in

product.

Printed Circuit Boards (PCB) or Printed

Circuit Assemblies (PCA) With a surface greater than 10

square cm 2 (sys bd, power

supply PCA)

Batteries All types including standard

alkaline & lithium coin/button style 1

Mercury containing components For example, mercury in lamps,

display backlights, scanner lamps,

switches, batteries

Liquid Crystal Displays (LCD) with a

surface greater than 100 square cm Includes background illuminated

displays with gas discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (PCB / PCT)

Electrolytic Capacitors / Condensers

measuring greater than 2.5 cm in

diameter or height

External electrical cables and cords PSU, IDE, SATA cables.

Gas Discharge Lamps

Plastics containing Brominated Flame

Retardants

Components and parts containing toner

and ink, including liquids, semi-liquids

(gel/paste) and toner

Include the cartridges, print

heads, tubes, vent chambers, and

service stations.

Components and waste containing

asbestos

Components, parts and materials

containing refractory ceramic fibers

Components, parts and materials

containing radioactive substances

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 2

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a

point where components and materials requiring selective treatment can be removed.

Tool Description Tool Size (if applicable)

Flat blade screwdriver

Phillips screwdriver

Pry bar 6 to 8-inch

Diagonal cutters (dikes)

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials

requiring selective treatment:

SFF CHASSIS IDENTIFICATION

There are two different Small Form Factor chassis types. Use the following information to

determine which chassis you have.

- The Type I chassis uses a drive cage that slides out from the front of the chassis

(see Figure 1 below).

- The Type II chassis uses a drive cage that rotates up from the chassis (see Figure 2 below).

SYSTEM BOARD – Type 1 SFF Chassis

1 To remove the computer cover (see Figure 3 below):

a) Press the buttons on the left and right sides of the computer

b) Slide the computer cover towards the front of the computer until it stops 2 then, lift it

up and off the chassis.

2 Remove all expansion cards, cables, and any other devices connected to the

system board.

3 Remove the fan shroud from the chassis (see Figure 4 below).

4 Slide the drive tray forward and disconnect the drive and power cables from the system

board (see Figure 5 below).

5 If applicable, remove the security clip (see Figure 6 below).

NOTE: The security clip is an optional feature and is not installed on all computers.

6 Rotate the power supply to its upright position (see Figure 7 below).

7 Disconnect the serial port from the system board (see Figure 8 below).

8 Remove the long mounting screw that secures the system board tray to the chassis

(see Figure 9 below).

9 Slide the system board tray assembly toward the front of the chassis, about 1/4 inch, and

then lift the system board up and out of the chassis (see Figure 10 below).

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 3

POWER SUPPLY - Type 1 SFF Chassis

1 If applicable, remove the security clip (see Figure 11 below).

NOTE: The security clip is an optional feature and is not installed on all computers.

2 Rotate the power supply to its upright position.

3 Pull the drive cage forward and disconnect the power cables from all of the drives.

4 Release the power supply cable from the cable retaining clip at the front of the chassis

below the drive cage and from the clip on the side of the chassis in front of the hard

drive.

5 Lift the power supply up and out of the chassis (see Figure 12 below).

SYSTEM BOARD – Type 2 SFF Chassis

1 To remove the computer cover (see Figure 13 below):

a) Press the buttons on the left and right sides of the computer

b) Slide the computer cover towards the front of the computer until it stops 2 then, lift it

up and off the chassis.

2 Remove all expansion cards from the system board.

3 Remove the fan shroud from the chassis (see Figure 14 below).

4 Rotate the drive cage to its full upright position.

5 If applicable, remove the security clip and rotate the power supply to its full upright

position (see Figure 15).

NOTE: The security clip is an optional feature and is not installed on all computers.

6 Disconnect the data and power cables from the system board (see Figure 16 below).

7 Disconnect the serial port from the system board (see Figure 17 below).

8 Disconnect the balance of the cables from the system board.

9 Remove the long mounting screw that secures the system board tray to the chassis

(see Figure 18 below).

10 Slide the system board tray assembly toward the front of the chassis, about 1/4 inch, and

then lift the system board up and out of the chassis (see Figure 19 below).

POWER SUPPLY - Type 2 SFF Chassis

1 If applicable, remove the security clip (see Figure 20 below).

2 Rotate the drive cage up and disconnect the power cables from all of the drives.

3 Release the power supply cable from the cable retaining clips on the bottom of the

chassis under the drive cage.

4 If applicable, disconnect the hood sensor from the system board and remove the sensor

from the power supply (see Figure 21 below).

5 Rotate the power supply to its full upright position, and then lift the power supply straight

up and out of the chassis (see Figure 22 below).

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 4

POWER SUPPLY PRINTED CIRCUIT ASSEMBLY

HP uses two different power supplies from two different vendors in these computers. Use the

following steps to determine which power supply you have and its required disassembly

procedures.

Power supply 1

1 Remove the six screws that secure the covers to the power supply

(see Figures 23 and 24 below).

NOTE: You do not need to remove the screws from the fan guard or the power

connector.

2 Cut the plastic cable clamp that secures the wires to the power supply cover

(see Figure 25 below).

3 Remove the covers from the power supply:

a) Slide the top cover to disengage the clips, and then remove the cover from the

power supply chassis.

b) Lift the side cover from the chassis.

4 Cut the following wires (see Figure 26 below):

- green/yellow wire

- blue and brown wires to the power outlet

- black fan wire (or unplug)

- main mass of wires (to gain access to capacitors)

5 Remove the three screws that secure the PCA to the power supply chassis

(see Figure 27 below).

6 Lift the PCA from the power supply chassis.

Power supply 2

1 Remove the nine screws that secure the covers to the power supply

(see Figures 28 & 29 below).

NOTE: You do not need to remove the screws from the fan guard or the power connector.

2 Cut the two plastic cable clamps that secure the wires to the power supply cover

(see Figure 29 below).

3 Remove the covers from the power supply:

a) Lift the top cover and slide to disengage the clips on the back.

b) Lift the side cover and slide back to disengage the clips on the bottom.

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 5

Power supply 2 (cont)

4 Cut the following wires (see Figure 30 below):

- green wire

- black wire

- white wire to power outlet

- fan wire

- main mass of wires (to gain access to capacitors)

5 Remove the four screws that secure the PCA to the power supply chassis

(see Figure 31 below).

6 Lift the PCA from the power supply chassis.

BATTERY

Locate the battery and battery holder on the system board. Depending on the type of battery

holder on the system board, complete the following instructions to remove the battery:

TYPE 1 BATTERY HOLDER (see Figure 32 below)

Lift the battery out of the holder.

TYPE 2 BATTERY HOLDER (see Figure 33 below)

To release the battery from its holder, squeeze the metal clamp that extends above one edge of

the battery. When the battery pops up, lift it out.

TYPE 3 BATTERY HOLDER (see Figure 34 below)

Pull back on the clip that holds the battery in place, and then remove the battery.

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 6

3.2 ILLUSTRATIONS

Figure 1: Type 1 SFF Chassis Figure 2: Type 2 SFF Chassis

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 7

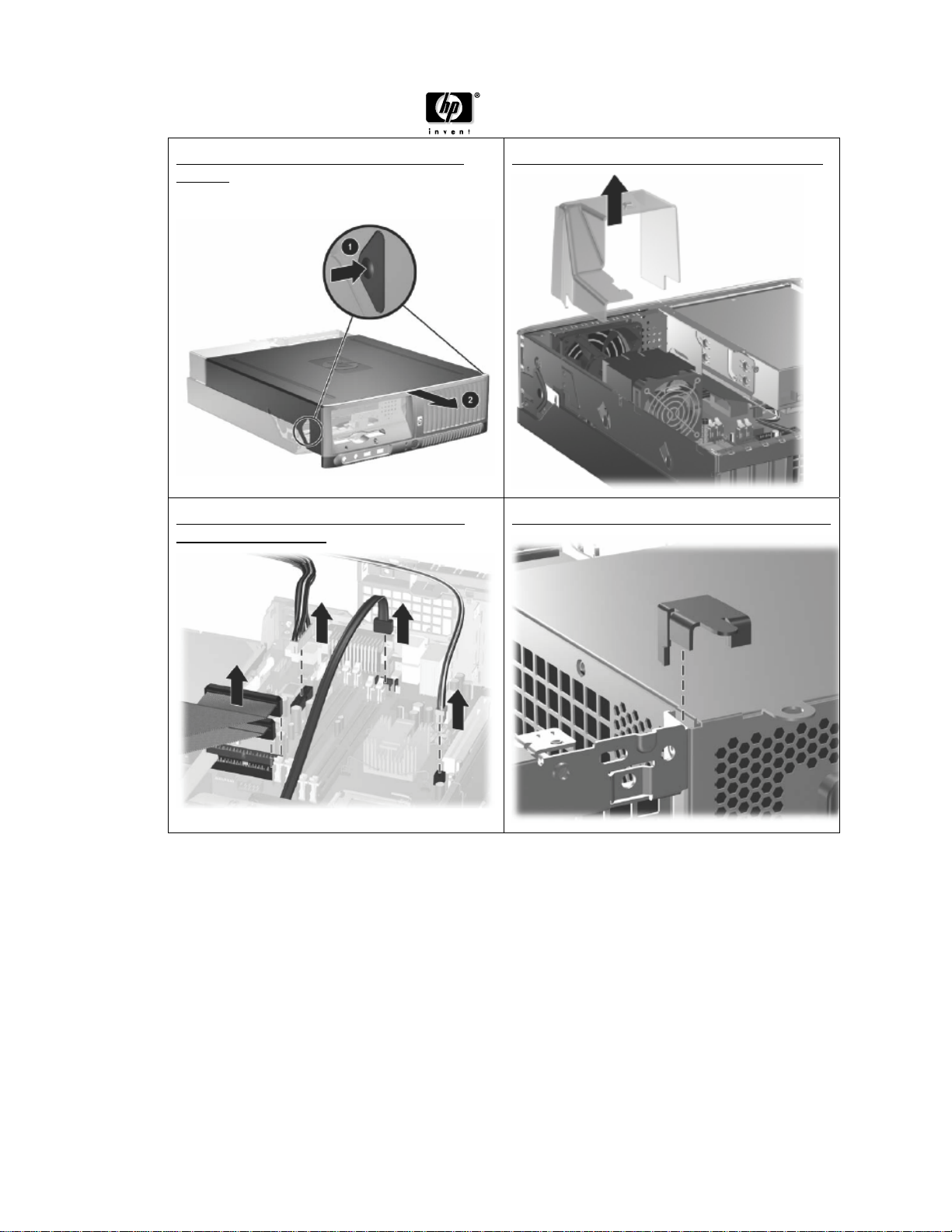

FIGURE 3: Removing the computer cover

(SFF 1)

FIGURE 4: Removing the fan shroud (SFF 1)

FIGURE 5: Disconnecting cables from the

system board (SFF 1) FIGURE 6: Removing the security clip (SFF 1)

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 8

FIGURE 7: Rotating the power supply (SFF 1)

FIGURE 8: Disconnecting the serial port from

the system board (SFF 1)

FIGURE 9:Removing the system board

mounting screw (SFF 1) FIGURE 10: Removing the system board

(SFF 1)

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 9

FIGURE 11: Removing the security clip

(SFF 1) FIGURE 12: Removing the power supply

(SFF 1)

FIGURE 13: Removing the computer cover

(SFF 2)

FIGURE 14: Removing the fan shroud

(SFF 2)

HP-00007-01, Appendix 3 04-Jan-2006

HP Restricted

Page 10

FIGURE 15: Removing the security clip

(SFF 2) FIGURE 16: Disconnecting data and power

cables (SFF 2)

FIGURE 17: Removing the serial port (SFF 2)

FIGURE 18: Removing the long mounting

screw (SFF 2)

Autres manuels HP Ordinateur de bureau

HP Kayak XU Manuel du produit

HP OMEN Obelisk 873 Instructions d'installation

HP Pavilion Elite d5100 - ATX Desktop PC Manuel utilisateur

HP EliteDesk 800 G1 series Instructions d'utilisation

HP m9260f Pavilion Elite Manuel utilisateur

HP 8100 - Elite Convertible Minitower PC Instructions d'utilisation

HP dx2040 - Microtower PC Manuel utilisateur

HP dc7900 - Convertible Minitower PC Manuel d'utilisation et d'entretien

HP Pavilion u6200 - Desktop PC Mode d'emploi

HP Vectra VL 6/xxx - 6 Manuel utilisateur

HP Pavilion t400 - Desktop PC Manuel utilisateur

HP Compaq 500B Microtower Guide d'installation

HP Workstation xw8000 Manuel

HP dc72 - Blade Workstation Client Manuel utilisateur

HP t630 Thin Client Manuel utilisateur

HP Pro 3515 Manuel

HP Xw6400 - Workstation - 4 GB RAM Manuel d'utilisation et d'entretien

HP ProDesk 480 G3 MT Manuel d'utilisation et d'entretien

HP ProDesk 600 G4 Manuel

HP Pavilion w1100 - Desktop PC Manuel utilisateur

HP Vectra VL Manuel utilisateur

HP Brio 71xx Manuel utilisateur

HP ProDesk 405 G1 Manuel utilisateur

HP dx6120 - Microtower PC Manuel d'utilisation et d'entretien

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
