HP Compaq 8200 Elite Series Instructions d'utilisation

HP Compaq 8200 Elite Ultra Slim Desktop Business PC

Optical Disc Drive

Secure Digital (SD) Card Reader (optional)

Rear I/O includes (6) USB 2.0 ports, DisplayPort v1.1a and VGA video interfaces, PS/2 mouse and keyboard ports, RJ-45

network interface, 3.5mm audio in/out jacks

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

2.5” internal hard disk drive bay

135W 87% efficient external Power Adapter or

180W 87% efficient external Power Adapter (when configured with discrete graphics)

HP USDT Tower Stand (optional)

HP Mouse

HP Keyboard

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 1

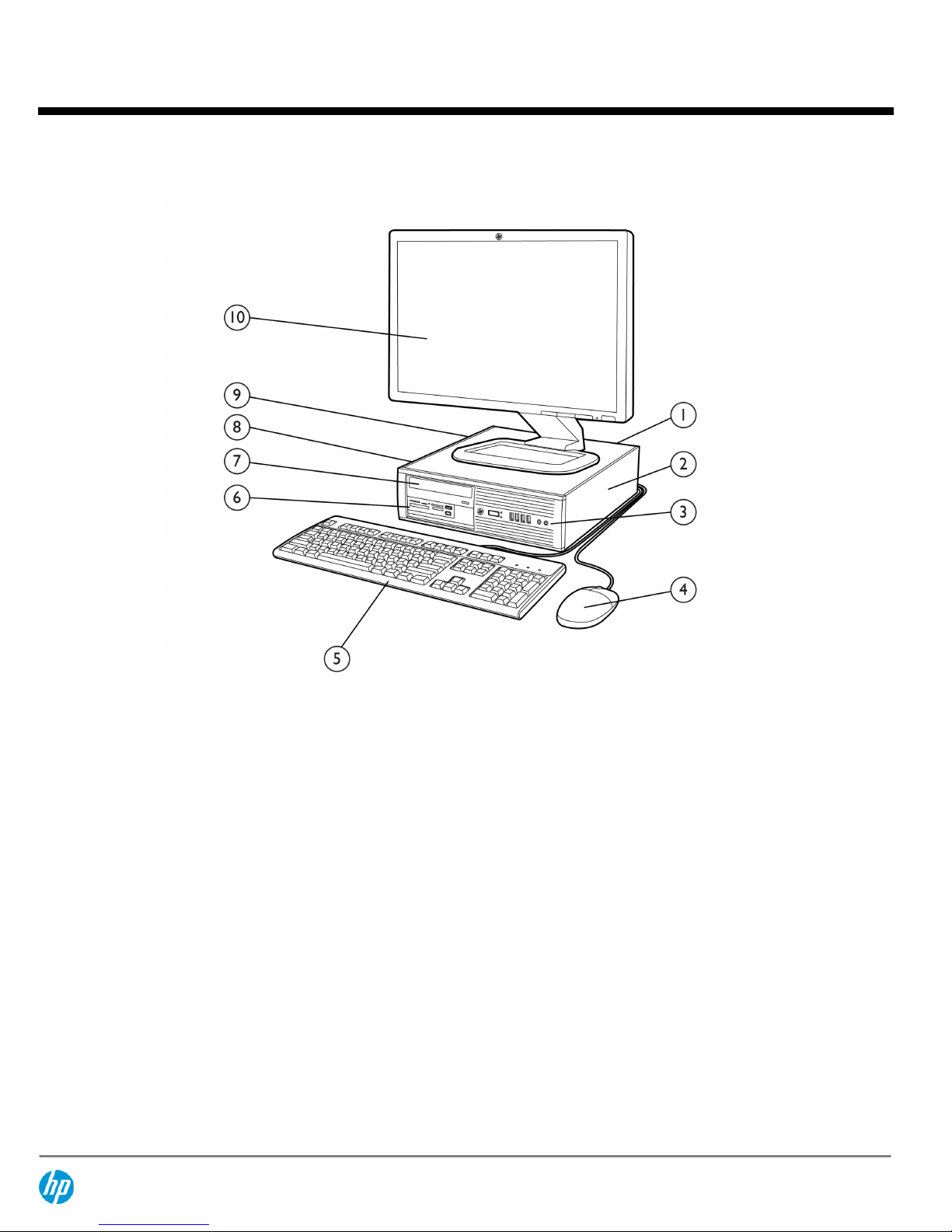

HP Compaq 8200 Elite Small Form Factor Business PC

Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a

and VGA video interfaces, and 3.5mm audio in/out jacks

Low profile expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

HP Mouse

HP Keyboard

3.5” external drive bay supporting a media card reader or a secondary hard disk drive

5.25” external drive bay supporting an optical disk drive

3.5” internal drive bay supporting primary hard disk drive

240W standard or 90% high efficiency Power Supply

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 2

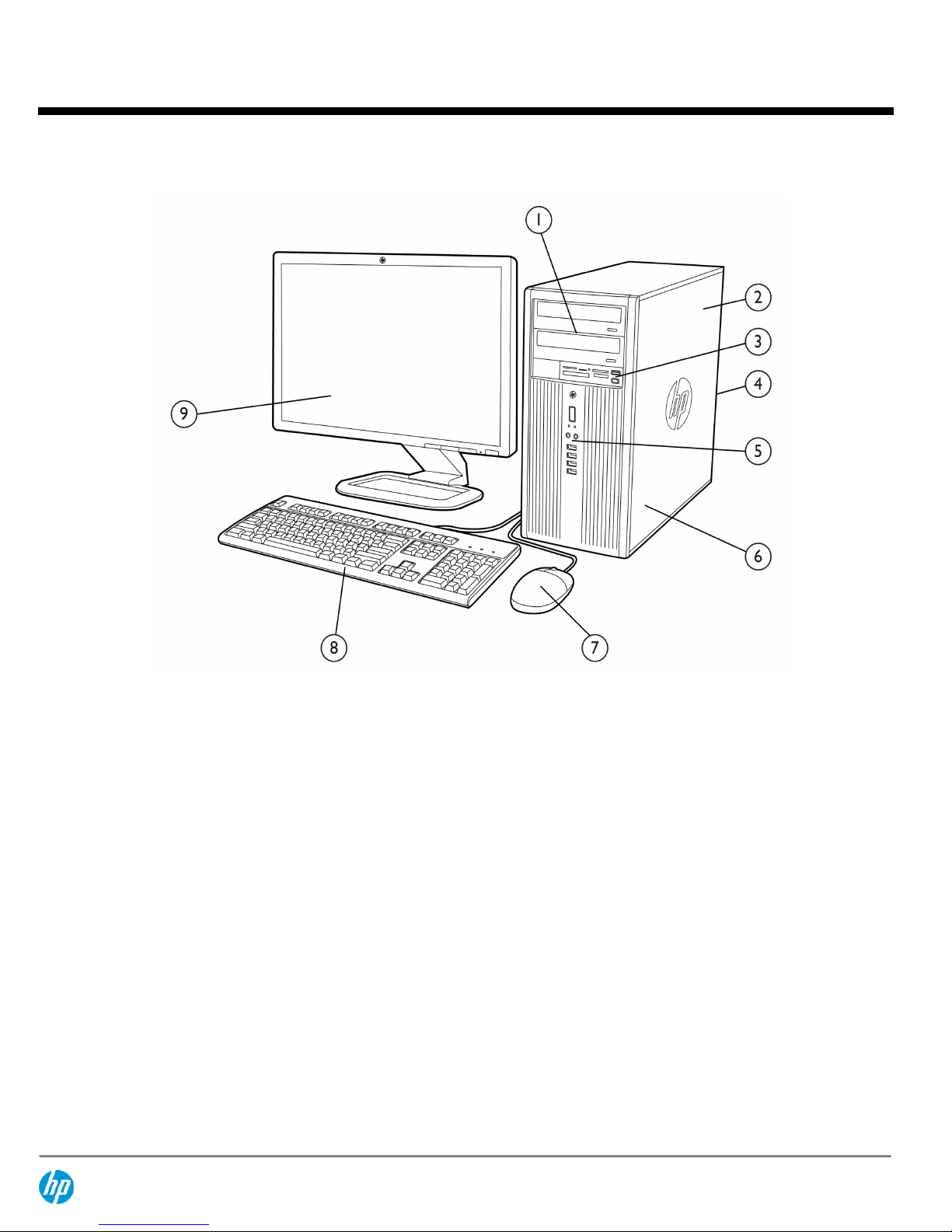

HP Compaq 8200 Elite Microtower Business PC

(2) 5.25” external drive bays supporting optical disk drives or removable hard disk drives; (2) 3.5" internal drive bays

supporting hard disk drives capable of RAID configurations

320W standard or 90% high efficiency Power Supply

3.5” external drive bay supporting the HP Media Card Reader

Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a

and VGA video interfaces, and 3.5mm audio in/out jacks

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

Full height expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics

HP Mouse

HP Keyboard

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 3

HP Compaq 8200 Elite Convertible Minitower Business PC

(3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader

320W standard or 90% high efficiency Power Supply

Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a

and VGA video interfaces, and 3.5mm audio in/out jacks

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

(3) 3.5” internal drive bays supporting multiple hard disk drives capable of RAID configurations

Full height expansion slots include (3) full-length PCI, (1) PCI Express x1, and (2) full-length PCI Express x16 graphics

HP Mouse

HP Keyboard

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 4

At A Glance

Choice of four professional chassis form factors: USDT, SFF, MT, CMT

PC chassis and all internal components and modules are 100% free of brominated flame retardants (BFRs) and Polyvinyl

Chloride (PVC).

UEFI BIOS developed and engineered by HP for better security, manageability and software image stability

Intel Q67 Express chipset supporting Intel 2nd generation Core processors, featuring Intel HD Graphics and vPro Technology

(available with select processors)

Intel 82579LM GbE integrated network connection

DDR3 Synchronous Dynamic Random Access Memory (SDRAM)

Integrated dual independent monitor support via VGA and digital DisplayPort v1.1a video interfaces

Discrete graphics options available for all platforms including the Ultra Slim Desktop (USDT)

SRS Premium Sound audio management software

Standard efficiency or 90% high efficiency energy saving power supplies available on the SFF, MT and CMT models

87% efficient energy saving external power adapter standard with USDT models

ENERGY STAR qualified

SFF, MT and CMT models can be configured with multiple hard disk drives in a RAID array

Guaranteed lengthy purchase lifecycles and image stability

Software image fully compatible across all models and form factors

Created using industry leading Design for Environment standards

Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals

(

http://h10019.www1.hp.com/business-site/index.html

)

Tailored HP Factory Express deployment and lifecycle services available

(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions

and exclusions apply)

Tool-less serviceability features for easier upgrades and repairs

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 5

Operating Systems

Preinstalled

Genuine Windows 7 Home Basic Edition (32-bit)

Genuine Windows 7 Home Premium Edition (32-bit or 64-bit)

Genuine Windows 7 Professional Edition (32-bit or 64-bit)

Genuine Windows 7 Ultimate Edition (32-bit or 64-bit)

FreeLnx

Supported

Genuine Windows XP Professional Edition

Genuine Windows Vista Home Basic

Genuine Windows Vista Business

Genuine Windows Vista Enterprise Edition

Genuine Windows 7 Enterprise Edition

Certified

Novell SUSE Linux Enterprise Desktop 11

†

Red Hat Enterprise Linux 64

††

Certain Windows Vista product features require advanced or additional hardware. Refer to the following web sites for details:

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

www.microsoft.com/windowsvista/getready/capable.mspx

Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the

tool, visit:

www.windowsvista.com/upgradeadvisor

† The following features are not supported by Novell SUSE Linux Enterprise Desktop:

Intel Gigabit CT Desktop NIC

Broadcom NetXtreme Gigabit Ethernet Plus

HP 22-in-1 Media Card Reader

HP ProtectTools

HP Blu-ray Writer playback of commercial movies

DisplayPort video interface

HP 2nd serial port adapter

Power Management features

Systems configured with Linux do not qualify for ENERGY STAR

†† The following features are not supported by Red Hat Enterprise Linux 64:

TPM v1.2 embedded Security Chip

Intel Gigabit CT Desktop NIC

HP Wireless 802.11b/g/n NIC

HP 22-in-1 Media Card Reader

HP Blu-ray Writer

HP FireWire / IEEE 1394 PCI Card

HP 2nd serial port Adapter

HP USB Smart Card (CCID) Keyboard

AMD Radeon HD 6350 Graphics

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 6

NVIDIA Quadro NVS 295 Graphics

Power Management features

Systems configured with Linux do not qualify for ENERGY STAR

Value Added Software

(included with all models; not included when configured with FreeDOS)

HP ProtectTools Security Suite

HP Vision Diagnostics

HP Software Management Agent

PDF Complete Special Edition (trialware)

Computrace for Desktops agent

Microsoft Office Starter Edition 2010

Value Added Software

(included with select models; not included when configured with FreeDOS)

HP Power Assistant v2.0

HP Virtual Rooms

Computer Setup Utility

Corel WinDVD

Roxio Creator Business

HP Direct Connect

Norton Internet Security 2011

Box Online Storage – Unlimited

Norton Internet Security 2012

HP Connect

Microsoft Windows Virtual PC – XP Mode

HP MyRoom

Includes a 60 day subscription for virus definition and minor program revision updates. Internet access required to receive updates.

HP Client Management Solutions

(available for free download from the Internet)

http://www.hp.com/go/easydeploy

HP Client Automation Starter

HP Client Catalog for Microsoft SMS

HP SoftPaq Download Manager

HP Systems Software Manager

Available from your HP Sales Representative or HP Channel Partner

HP Business PC Services and Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle Services

Intel Stable Image Platform Program (SIPP)

Intel Core vPro Processors

Business-to-Business Portals

Trusted Platform Module (TPM) v1.2

HP Global Series Services

TPM module disabled where use is restricted by law.

Service and Support

On-site warranty and service

: This limited warranty and service offering delivers parts, labor and on-site repair for terms up to 5

years. Response time is next business day

and includes free telephone support

24 x 7. Global coverage

ensures any product

purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and

service offering. Some countries/regions do not offer one year onsite and labor.

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 7

Terms and conditions may vary by country. Certain restrictions and exclusions apply

On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not

available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by

country

Technical telephone support applies only to HP configured, HP and HP qualified third party hardware and software. Toll-free calling

and 24 x 7 support may not be available in some countries.

Chipset

Intel Q67 Express

Processor

USDT

SFF/MT/CMT

Intel® Pentium® Processors

Intel Pentium G620 Processor

2.60 GHz, 3M cache, 2 cores/2 threads

Intel HD Graphics

X X

Intel Pentium G630 Processor

2.70 GHz, 3M cache, 2 cores/2 threads

Intel HD Graphics

X X

Intel Pentium G840 Processor

2.80 GHz, 3M cache, 2 cores/2 threads

Intel HD Graphics

X X

Intel Pentium G850 Processor

2.90 GHz, 3M cache, 2 cores/2 threads

Intel HD Graphics

X X

Intel Pentium G860 Processor

3.00 GHz, 3M cache, 2 cores/2 threads

Intel HD Graphics

X X

Intel® 2nd Generation Core™ i3 Processors

Intel Core i3-2100 Processor

3.10 GHz, 3M cache, 2 cores/4 threads

Intel HD Graphics 2000

X X

Intel Core i3-2105 Processor

3.10 GHz, 3M cache, 2 cores/4 threads

Intel HD Graphics 3000

X X

Intel Core i3-2120 Processor

3.30 GHz, 3M cache, 2 cores/4 threads

Intel HD Graphics 2000

X X

Intel Core i3-2130 Processor

3.40 GHz, 3M cache, 2 cores/4 threads

Intel HD Graphics 2000

X X

Intel® 2

Generation Core™ i5 Processors

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 8

Intel Core i5-2400 Processor

3.10 GHz, 6M cache, 4 cores/4 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel Core i5-2400S Processor

2.50 GHz, 6M cache, 4 cores/4 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel Core i5-2500 Processor

3.30 GHz, 6M cache, 4 cores/4 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel Core i5-2500S Processor

2.70 GHz, 6M cache, 4 cores/4 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel® 2

Generation Core™ i7 Processors

Intel Core i7-2600 Processor

3.40 GHz, 8M cache, 4 cores/8 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel Core i7-2600S Processor

2.80 GHz, 8M cache, 4 cores/8 threads

Intel HD Graphics 2000

Intel Stable Image Platform Program (SIPP)

Supports Intel vPro Technology

Intel 2

Generation Core vPro Processors

All HP Compaq 8200 Elite Series models featuring this technology include processors that are part of the Intel 2011 Stable Image

Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq 8200 Elite Series

Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today.

Intel Active Management Technology (AMT) v7.0

– An advanced set of remote management features and functionality which

provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems

regardless of the system's health or power state. AMT 7.0 includes the following advanced management functions:

Power Management (on, off, reset)

Hardware Inventory (includes BIOS and firmware revisions

Hardware Alerting

Agent Presence

System Defense Filters

SOL/IDER

Cisco NAC/SDN Support

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 9

ME Wake-on-LAN

DASH 1.1 compliance

IPv6 Support

Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or alert

triggered connection

Remote Scheduled Maintenance – pre-schedule when the PC connects to the IT or service provider console for maintenance.

Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's

convenient

Remote Alerts – automatically alert IT or service provider if issues arise

Access Monitor – Provides oversight into Intel® AMT actions to support security requirements

PC Alarm Clock

Microsoft NAP Support

Host Base set-up and configuration

Management Engine (ME) firmware roll back

Wireless AMT functionality on Desktop (WoDT)

Enhanced KVM resolution

Redundant Array of Independent Drives (RAID)

Flexible implementation:

DriveLock is supported while in RAID mode. Users can manage the DriveLock password from within F10 Setup. Locked drives will

be displayed as such in the RAID option ROM interface.

Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in Drive

Configuration when switching to RAID mode.

DPS Self Test can be executed on physical hard drives while in RAID mode.

The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.

NOTE:

RAID 1 is the only RAID configuration offered via factory configurations. The pre-configured systems:

Are only available on the SFF, MT and CMT form factors. The USDT does not support RAID as it does not allow for more than one

hard

disk drive.

Are complete RAID systems and have both drives installed. If the CMT is configured with three hard disk drives, the third drive is

would be unpartitioned and not part of the RAID array

Have the necessary Option ROM configuration.

Are pre-loaded and pre-installed with all required Intel software.

Include a preinstalled operating system that is mirrored mode out of the box.

Please refer to the HP White Paper titled “Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks (RAID)

on HP Compaq 8200 Elite Series PCs” at:

http://www.hp.com

for more information and instructions.

System Memory Support

The HP Compaq 8200 Elite Series supports the 2

generation Intel® Core™ processor family. Based on a new PC micro-architecture, the

processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations,

the processor includes an integrated memory controller (IMC). The IMC supports DDR3 protocols with two independent, 64-bit wide

channels each accessing one or two DIMMs.

Two channels of non-ECC unbuffered DDR3 memory with a maximum of two UDIMMs or SODIMMs per channel

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 Worldwide — Version 34 — November 26, 2012

Page 10

Autres manuels pour Compaq 8200 Elite Series

Table des matières

Autres manuels HP Ordinateur de bureau

HP Vectra VE 4/xx Manuel utilisateur

HP Pavilion t388d Manuel utilisateur

HP Xw8200 - Workstation - 1 GB RAM Manuel utilisateur

HP Visualize c100 Manuel utilisateur

HP Vectra VL410 Manuel d'installation et d'exploitation

HP Cisco MDS 9020 - Fabric Switch Manuel utilisateur

HP t505 Instructions de montage

HP Pavilion 442 Manuel utilisateur

HP Pavilion t300 - Desktop PC Manuel utilisateur

HP Pavilion t700 - Desktop PC Manuel utilisateur

HP Compaq d330 DT Manuel d'utilisation et d'entretien

HP ProDesk 400 G7 SFF Manuel

HP ProDesk 600 G1 Tower Guide de configuration

HP TouchSmart 610-1000 Manuel utilisateur

HP Presario SR1200 - Desktop PC Manuel utilisateur

HP EliteDesk 880 G5 Manuel

HP -380467-003 - COMPAQ PRESARIO C300 C500 C700 F500 F700 LAPTOP... Manuel utilisateur

HP Compaq 6000 Pro SFF Manuel utilisateur

HP vc4825T - Thin Client Instructions d'installation

HP Pavilion t400 - Desktop PC Instructions d'installation

HP 742n - Pavilion - 512 MB RAM Manuel technique

HP Rp5700 - Point of Sale System Instructions de montage

HP Compaq t1010 Manuel utilisateur

HP 200 G3 Manuel

Manuels Ordinateur de bureau populaires d'autres marques

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Dell

Dell Alienware Area-51 R4 Manuel utilisateur
