HP Brio BA200 Manuel

Microtower Brios hp brio ba200 3-1

hp brio ba200

models and accessories

Product

Number

Hard

Drive

Video

Controller

Std.

RAM

Multi-

media1

1. All models have an integrated full-duplex PCI audio controller.

Modem/

LAN

OS2

2. Operating system preloaded on these models, as indicated in the table.

Soft-

ware3

3. In addition to the HP Brio pre-loaded software.

Models with Intel Celeron Processor PPGA4package (socket 370) and

66MHz System Bus Speed

4. PPGA=Plastic Pin Grid Array.

433MHz / 128k (CPL: 10/99 )

D9664T 4.3 GB

IDE

Integrated

Direct AGP

8MB

32 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

none W98 Microsoft

Office

20005

5. Word, Excel, SMB Tools preloaded

466MHz / 128k (CPL: 10/99 )

D9665T 8.4 GB

IDE

Integrated

Direct AGP

8MB

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

56K W98 Microsoft

Office

20005

D9666T 4.3 GB

IDE

Integrated

Direct AGP

8MB

32 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

none W98 Microsoft

Office

20005

500MHz / 128k (CPL: 01/00 )

D9667T 10 GB

IDE

Integrated

Direct AGP

8MB

64 MB

SDRAM

100 MHz



Max

IDE

CD-ROM

56K W98 Microsoft

Office

20005

hp brio ba200

3-2 hp brio ba200 Microtower Brios

supported accessories

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6504A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20)

D6505A/T

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503A/T

256-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D9525A/T

Input Devices

HP Windows Keyboard C4735A

HP Standard 2 button Mouse C3751B

HP Scrolling Mouse C4736A/B

HP Cordless Scrolling Mouse C4740A/B

HP Multimedia Keyboard C4742A/B

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

4.3-GB IDE, Ultra ATA/66 Hard Disk Drive D8371A

6.4-GB IDE, Ultra ATA/66 Hard Disk Drive D8372A

8.4-GB IDE, Ultra ATA/66 Hard Disk Drive D8373A

10 GB IDE, Ultra ATA/66 Hard Disk Drive D9623A

13.5-GB IDE, Ultra ATA/66 Hard Disk Drive D8092A

Backup Accessories

HP Colorado 8GB Travan Drive — internal C4387A

hp brio ba200

Microtower Brios hp brio ba200 3-3

Multimedia / Audio Accessories



Max IDE CD-ROM drive D9444A



Max IDE CD-ROM drive (pack of 10) D9445A

HP W95\W98 8x Video DVD-ROM D7521A

HP Amplified Speakers by Labtec — 10WRMS D4545A

HP Amplified Speakers by Labtec — 4WRMS D6861A

HP Amplified Speakers by Labtec — 4WRMS (pack of 4) D6860A

HP Standard headset D8387A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI external fax modem D8384B

HP 10/100 3Com 3C905B-TX RWU D7522A/B

HP 10/100 3Com 3C905B-TX RWU (pack of 10) D7523A/B

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

HP 10/100 Base-T PCI Ethernet Adapter D7508A/B

HP 10/100 Base-T PCI Ethernet Adapter (pack of 10) D7509A/B

HP USB Hub Accessory Kit D6804A

N.B. For manuals and documentation refer to the Brio Support web where PDF files are

available for download at http://www.hp.com/briosupport

hp brio ba200

3-4 hp brio ba200 Microtower Brios

system board, BIOS, and memory

Processor: Celeron PPGA

(Plastic Pin Grid Array)

package with Zero

Insertion Force (ZIF)

socket.

Main Memory:

Two DIMM sockets which support

up to a maximum of 512 MB.

Install 32 MB, 64 MB, 128 MB or 256

MB 100 MHz SDRAM modules.

System Board Jumpers:

See the diagram on the next page.

hp brio ba200

Microtower Brios hp brio ba200 3-5

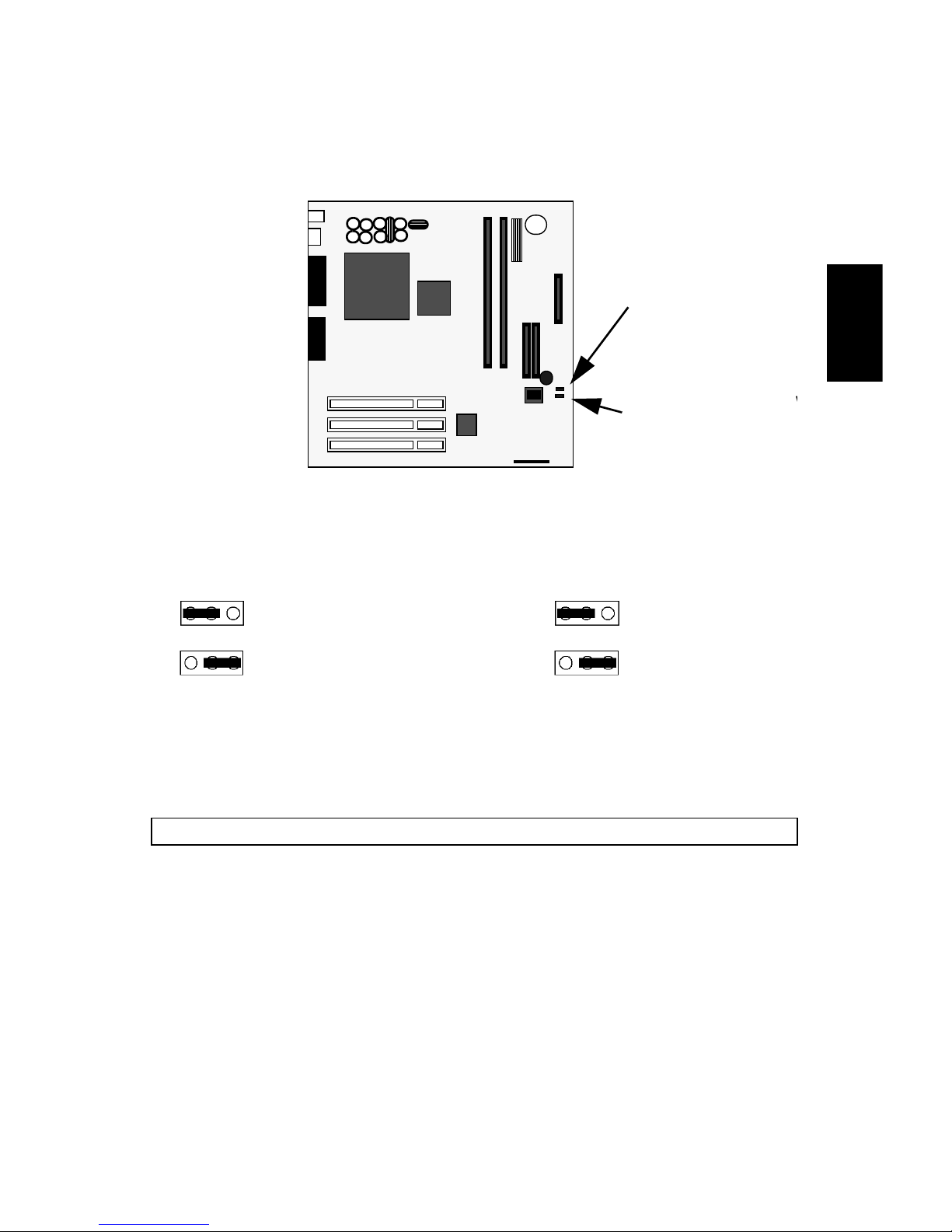

system board jumpers

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/briosupport/

Clear CMOS and Passwords (J-6)

Default Position

Clear CMOS

Clear CMOS and Pass

Jumper Block (J-6)

Clear Passwords

Jumper Block (J-8)

Clear Passwords only (J-8)

Default Position

Clear Passwords

hp brio ba200

3-6 hp brio ba200 Microtower Brios

part numbers

hp brio ba200

Microtower Brios hp brio ba200 3-7

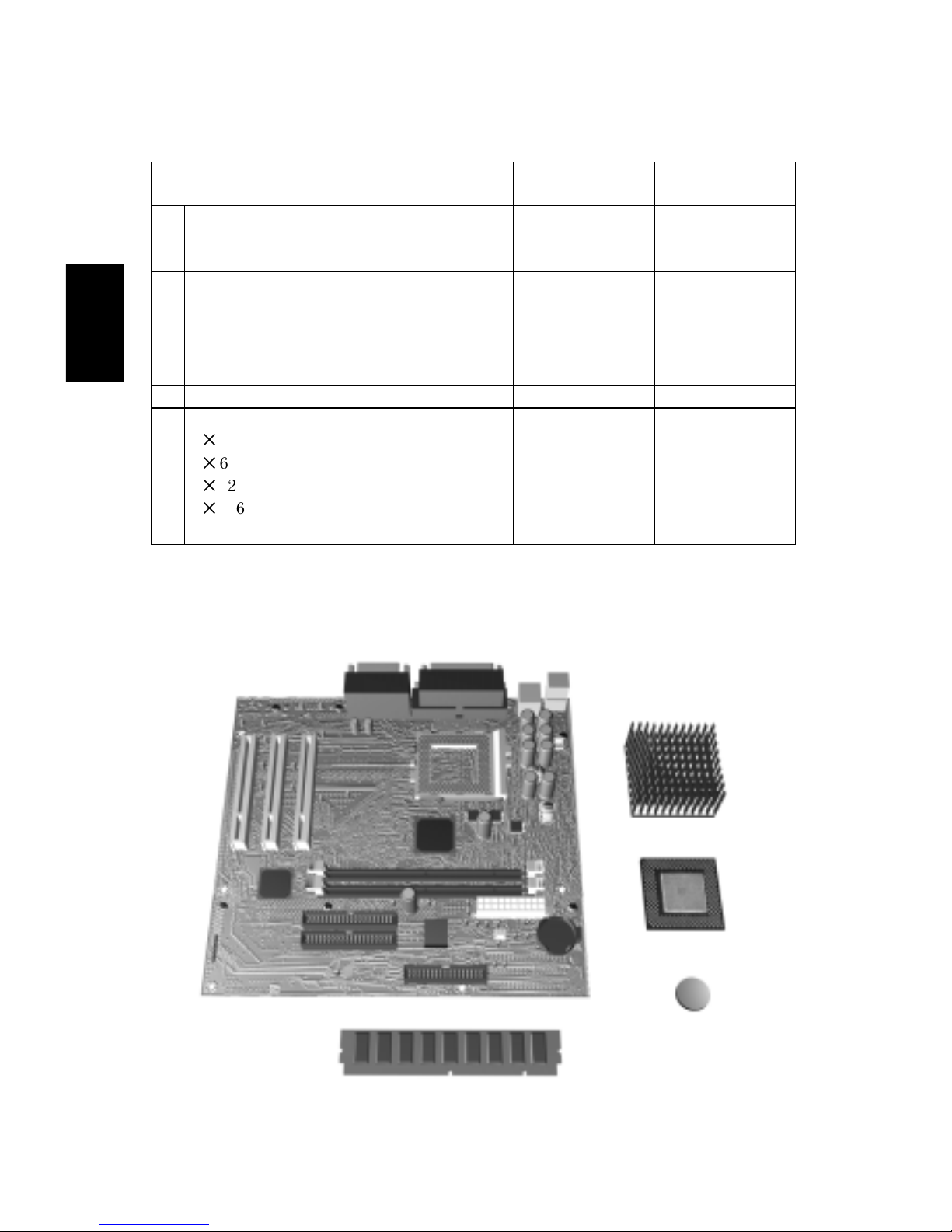

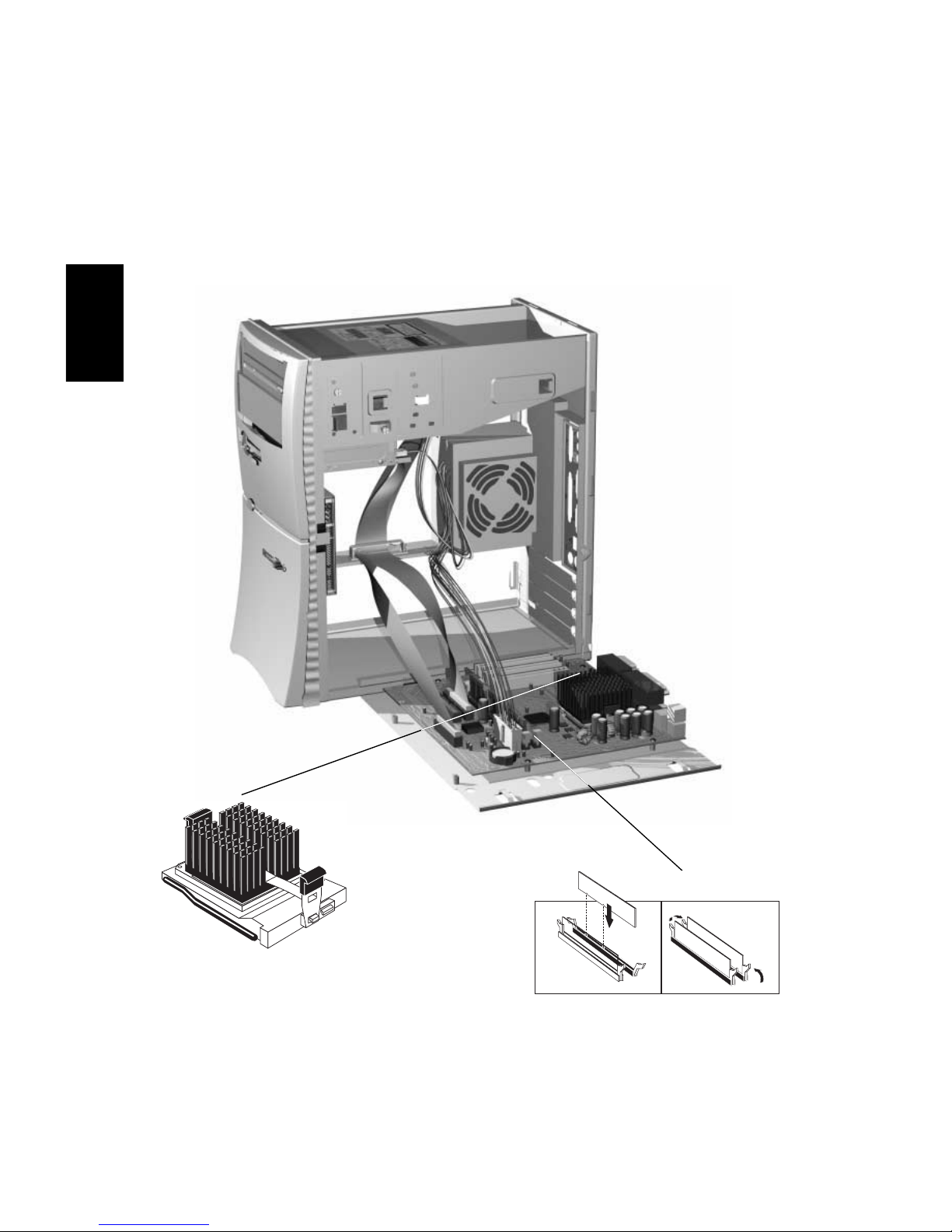

parts list for hp brio ba200 pcs

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis assembly1

1. Includes chassis frame, top cover, front bezel with ON/OFF circuitry, FDD & HDD frames,

I/O Plate.

5064-7483 —

2 Front bezel assembly2

2. Includes front bezel with ON/OFF circuitry, and two 5.25 inch fillers.

5042-4454 —

3 Power supply D9644-63102 —

4 HDD cable 5183-9425 —

5 CD-ROM cable 5183-9426 —

6 FDD cable 5183-9427 —

7 Floppy disk drive (bezel-less) D2035-60391 —

8 IDE hard disk drive

4.3GB

8.4 GB

10 GB

13.5 GB

—

D8604-69001

D8605-69001

D9805-69001

D8998-69001

9 32



Max IDE CD-ROM drive

48X IDE CD-ROM drive

—

D4389-63001

D4385-69021

D4389-69021

10 CD-ROM to audio connector cable 5182-1857 —

11 Scrolling mouse C4736-60101 —

Standard keyboard (not shown) C4744-60101 —

12 Battery type CR2032 1420-0356 —

13 56K PCI Modem D9664-63101

14 Power Cord for US\ Canada (not shown) 8120-1378

15 Telephone Cable for:

US, Canada 5182-5432 —

16 HP Amplified Speakers — 4WRMS

US D6861-63101 —

Argentina D6861-63144 —

HP Amplified Speakers — 10WRMS

US D4545-63101 —

17 System board See PC’s system board parts list

18 Recovery CD-ROM Windows 98\ Windows

953

3. Not shown

5011-8126-EN

hp brio ba200

3-8 hp brio ba200 Microtower Brios

system board parts list for hp brio ba200 pcs

Description Repl.

Part Number

Exchange

Part Number

1 System board:

Brio BA200 system board with SiS super

AGP video controller

— D9664-69002

2 Processors (socket 370):

Intel Celeron 433/66 128KB L2 cache, 370p D8117-63001 —

Intel Celeron 466/66 128KB L2 cache, 370p D8118-63001 —

Intel Celeron 500/66 128KB L2 cache, 370p 5065-0477

Thermal interface material 6040-0939 —

3 Heatsink 1205-2539 —

4 Main memory modules:



32MB, 100 MHz non-ECC SDRAM D6501-63001 —



64MB, 100 MHz non-ECC SDRAM D6502-63001 —



128MB, 100 MHz non-ECC SDRAM D6503-69001 —



256MB, 100 MHz non-ECC SDRAM D9525-63001 —

5 Battery type CR2032: 1420-0356

hp brio ba200

Microtower Brios hp brio ba200 3-9

Notes:

____________________________________________________________________
