Hotpoint VBXR1090DCC Manuel

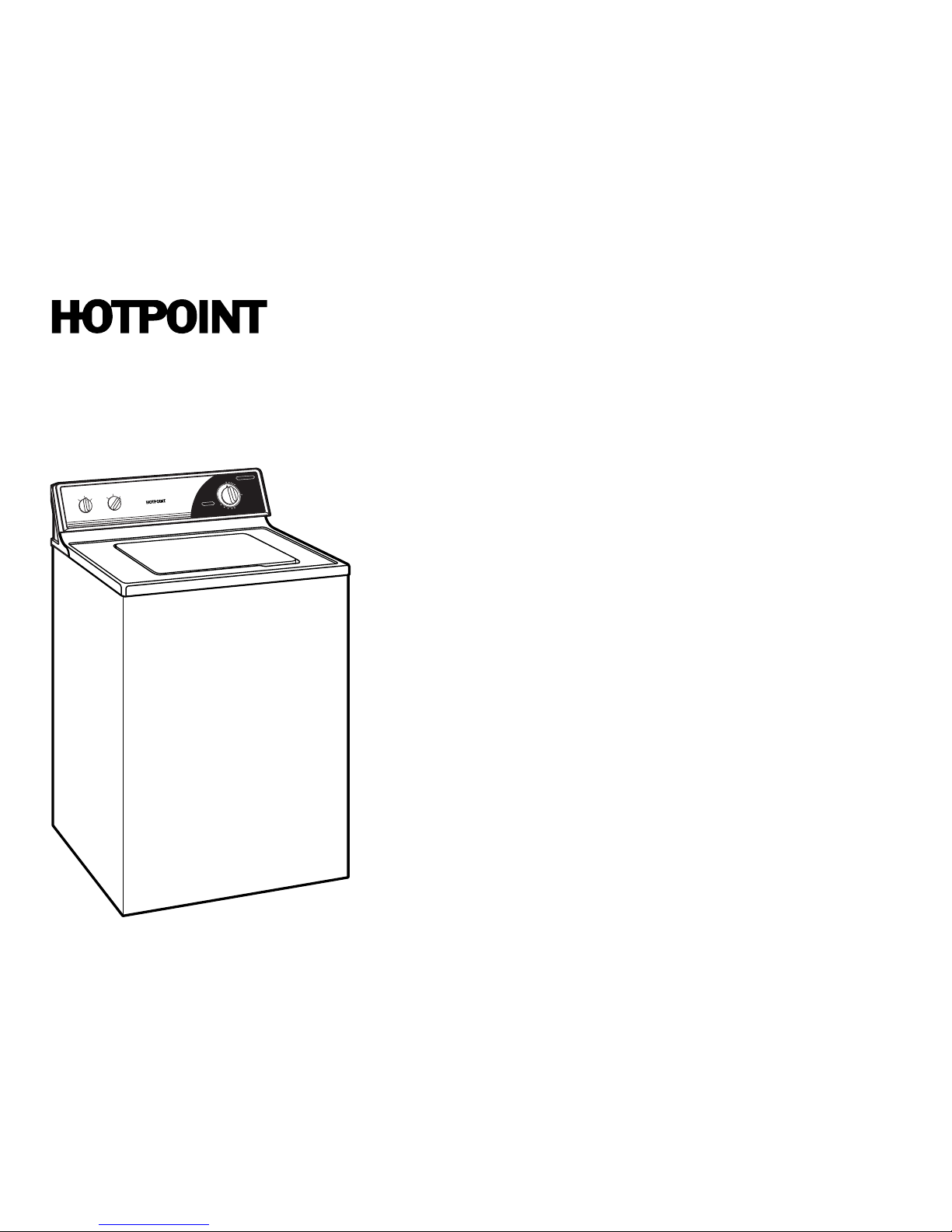

VBXR1090DCC/WW – Hotpoint Extra-Large 2.7 Cu. Ft. Capacity Washer

®

Specification Created 6/03

Washer Dimensions (in inches)

36

25-1/2

42 51

Side View

27

Rear View

Circuit Requirements: An individual, properly-grounded branch circuit,

with a three-prong grounding-type receptacle, protected by a 15 or

20 amp circuit breaker or a time-delay fuse, is required.

Electrical Rating: 115V, 60Hz, 10 Amps

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Washer Note: Washer wall outlet must be located within 36" of

service cord entry. Wall outlet must not be located behind dryer.

R

Listed by

Underwriters

Laboratories

®

Specification Created 6/03

VBXR1090DCC/WW – Hotpoint Extra-Large 2.7 Cu. Ft. Capacity Washer

EXTRA

SMALL

MEDIUM

EXTRA

LARGE

LOADSIZE

COLD/COLD

WARM/COLD

HOT/COLD

TEMPERA

TURE

WARM/RINSELIGHT

WRINKLEFREE

COTTONS

NORMAL

HEAVY

RINSE

&SPIN

EXTRA

HEAVY

LIGHT

NORMAL

HEAVY

EXTRALIGHT

OFF

OFF

Features and Benefits

• Rotary electromechanical controls – Allow fast, easy cycle selection.

• One wash/spin speed – Spins clothes at a consistent speed to remove moisture from clothes.

• Nine wash cycles – Convenient, preprogrammed setting for everyday fabrics.

• Three Water Levels – Minimize water waste.

• Quiet-By-Design™– Engineered for quiet operation.

• Three wash/rinse temperatures – Offer better wash results and longer fabric life.

• Steel Drive Transmission – Provides smooth, quiet operation with all-metal gears.

• Auto Balance Suspension System – Handles the heaviest loads, without banging or walking.

• Model VBXR1090DWW – White on white

• Model VBXR1090DCC – Bisque on bisque
