Hotpoint HTR16ABSL Manuel

Specification Created 1/05

410447

®

HTR16ABS – Hotpoint® 15.6 Cu. Ft. Top-Freezer Refrigerator

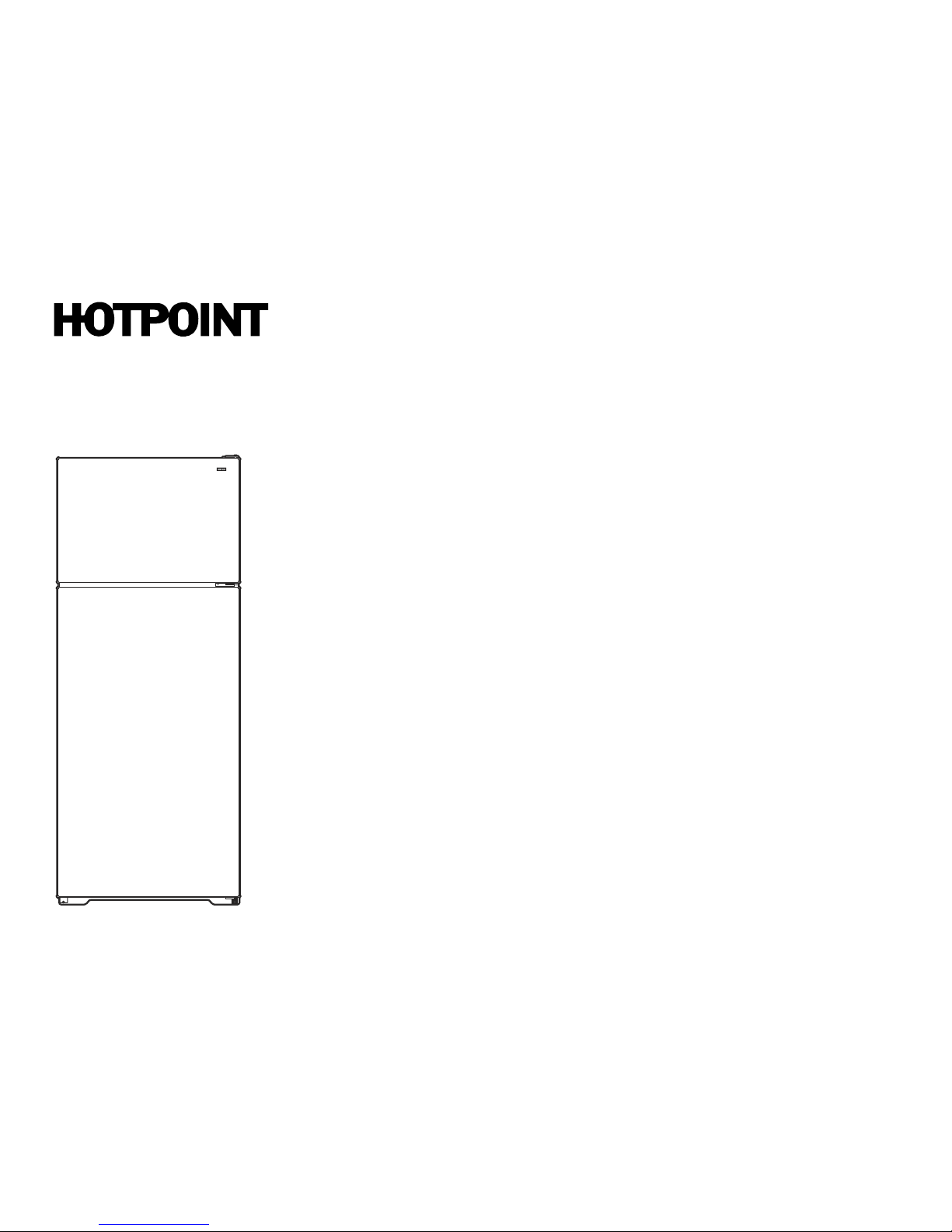

Front View Top View

A

G

E

C

F

'94 TMNF Refer

B

D

H

R

R

Total volume and shelf

area are calculated by

the Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

Note: Before installing, consult installation instructions packed with product

for current dimensional data.

Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you

face the front of the refrigerator, the handle is on your left and the

hinges are on your right.

All Top-Freezer No-Frost Left-Hand Refrigerator Doors: As you

face the front of the refrigerator, the handle is on your right and the

hinges are on your left.

Height to top of hinge (in.) A 61-3/4

Height to top of case (in.) B 61-1/4

Height to mid-freezer (in.) 51-3/8

Case depth without door (in.) C 25-7/8

Case depth less door handle (in.) D 29-1/8

Case depth with door handle (in.) E 29-1/8

Depth with fresh food door open 90° (in.) F 54-7/8

Width (in.) G 28

Width with door open 90° with door handle (in.) H 28-5/8

Each side (in.) 3/4

Top (in.) 1

Back (in.) 1

Air Overall

Clearances Dimensions

Specification Created 1/05

410447

®

Features and Benefits

• Upfront Temperature Controls - Are positioned up front, close at hand, for maximum convenience and

ease of use

• Recessed handles - Color-matched recessed door handles reflects the latest in European style

and appearance

• Adjustable Wire Shelves - Provide strong support and slide out with ease

• Gallon Door Storage - Makes room for milk and any other gallon size containers

• Vegetable/Fruit Crisper - For easy storage of fruits and vegetables

• NeverClean™ Condenser - Condenser coils are encased, so they don’t require cleaning in normal

operating environments

• Deluxe Quiet Design - Significantly reduces operating noise

• Model HTR16ABSWW – White on white

• Model HTR16ABSCC – Bisque on bisque

HTR16ABS – Hotpoint® 15.6 Cu. Ft. Top-Freezer Refrigerator

HTR15ABR / HTR15BBR / HTR16BB

R

HTR17BBR / HTR18ABR

Ce manuel convient aux modèles suivants
