Instructions for Installation and Use

Integrated Fridge / Freezer

Model HM311i

WARNING: This appliance must be earthed.

Fuses

Your appliance comes fitted with a plug and a 13 fuse. If you need to replace the fuse, only

those rated at 13 and ST approved to BS1362 should be used. Correct replacement is

identified by colour coding or the marking on base of plug.

WARNING: Do not use plug unless fuse cover is fitted.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

any here else.

IMPOR AN : WIRES IN HE MAINS LEAD ARE COLOURED IN ACCORDANCE WI H HE

FOLLOWING CODE:

Green/Yellow - Earth

Blue - Neutral

Brown - Live

If you change the plug, the colour of

wires in the mains lead may not

correspond with the colour of the

markings identifying terminals in the

plug.You should therefore wire it as

shown.

Changing the Mains ead

special lead can be ordered from

our Service Department

UK: 08709 066 066 or

Republic of Ireland: 1850 302 220

If you have damaged the existing lead or require a longer one a charge will be made. It is

strongly advised that this work is carried out by a qualified electrician.

CE marking certifies that this appliance conforms to the following EEC directives:-

ow Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility - 89/336/EEC, 92/31/EEC & 93/68/EEC

Electrical Supply

Green and yellow (Earth)

wire to terminal

marked ‘E’,

symboL, or

coloured green

and yellow.

Blue (Neutral)

wire to terminal

marked ‘N’ or

coloured black.

13 ST approved

fuse to BS1362.

Brown (Live)

wire to terminal

marked ‘L’ or

coloured red.

Cord clamp

WARNING: AVOID ACCIDEN S O CHILDREN. WHEN DISCARDING AN OLD FRIDGE OR

FREEZER BE CER AIN O MAKE HE LOCK UNUSABLE. IF POSSIBLE, REMOVE HE DOOR

AND DISCARD SEPERA ELY.

DO NO A EMP O SI ON OP OF YOUR APPLIANCE. I IS NO DESIGNED FOR SUCH

USE AND YOU COULD INJURE YOURSELF OR DAMAGE HE APPLIANCE BY SUCH ABUSE.

IMPORTANT INFORMATION:

●

Do not plug in and switch appliance on at the mains until installation is complete.

●

You may be charged for a service call if a problem with your appliance is caused

by incorrect installation or misuse.

Contents Page

Installation

Choosingalocation 4

Installation 4

Door Reversal 5-6

Mountingtheappliance 7-8

Get to know your Appliance 9-10

Getting your Appliance ready for use

FinalCheck 10

RunningintheCompressor 10

The Controls 11

Storing Food

StoringFresh Food 12

FreezingFresh Food/Procedure 13

StoringFrozenFood 13

DefrostingFrozenFood 13

Caring for your Appliance

Defrosting 14

ChangingtheLightBulb 14

Cleaning 15

Going Away 15

Troubleshooting 16

After Sales Service 17

Guarantee 18

Key Contacts BackCover

Retention of the Instruction Book

ThisInstruction Book mustbe kept handyforreferenceasit contains importantdetails on the

safeandproperuse of the appliance.

If you sell or passthe appliance to someone else,ormovehouseandleaveitbehind,make sure

thisBook is also providedsothenew owner can become familiar withthe appliance and safety

warnings.

694527.qxd 1/31/03 9:18 Page 3

Before Fitting:

Before connecting to the electricity supply

leave the appliance to stand for 2 hours to

allow the cooling system to settle.

Please read through this section before

starting any work.

At the base of the kitchen unit intended for

installing the appliance,there should be at

least 200cm2free space,for adequate air

circulation.

Do not cover the air outlet grille at the top of

the appliance.

Your Integrated Fridge Freezer is designed to

fit into a tall housing as shown (fig 1). It is

vitally important that the appliance is vented

correctly.

Choosing a location:

Your Integrated Fridge Freezer should be

fitted into a kitchen unit space where it is easy

to use.

The power socket should be in a readily

accessible position adjacent to the unit.

Never place the appliance near a heat

emitting device (eg.cooker,radiator,water

heater or similar) and do not expose it to

direct sunlight.In such a position your Fridge

Freezer will have to work harder and will cost

more to run and may be damaged by the

heat. The appliance may be exposed to lower

or higher temperatures but only for short

periods of time and the temperature should

never be lower than 5˚C.

The rear wall of the appliance gets warm

during operation and water evaporates from

the drain pan on the compressor.You must

therefore provide adequate air circulation at

the rear of the appliance.

Installation.

WARNING:THE APPLIANCE SHOULD

ONLY BE INSTALLED BY A QUALIFIED

ELECTRICIAN IN COMPLIANCEWITHTHESE

INSTRUCTIONS,CURRENT STANDARDS

AND REGULATIONS.

Fig.1

A (mm) B (mm) C (mm)

Bottom door Top door Cabinet

846 840 1775-1780

PlinthVentilation

545

694527.qxd 1/31/03 9:18 Page 4

Installation (Door reversal).

1. Top hinge cover of the refrigerator door.

2. Top hinge of the refrigerator door.

3. Top strip.

4. Bottom hinge of the refrigerator door.

5. Top hinge of the freezer door.

6. Washer.

7. Bottom hinge of the freezer door.

8. Bottom hinge filling plug of the freezer

door.

9. Slider guide.

10.Corner cap with a hole.

11.Corner cap without a hole.

694527.qxd 1/31/03 9:18 Page 5

Installation (Door reversal).

If you find that the direction of the door

opening is not convenient,you can reverse it.

The necessary holes on the opposite side of

the cabinet have been made inthe factory and

plugged.

* Remove the top hinge cover of the

refrigerator door.Remove the door by

unscrewing the hinge (the door is

supported only by the bottom hinge) and

remove the hinge washer.

* Unscrew the top strip,move it on the

opposite side of the appliance and fasten

it.

* Unscrew the bottom hinge and washer of

the freezer door and the bottom hinge of

the refrigerator door.

* Remove the corner caps from the door and

reposition them (instead of the one with a

hole insert the one without it,and vice

versa).

* Take off the washer from the bottom hinge

of the freezer door (by turning it in

clockwise),unscrew the bottom hinge

filling plug and screw the bottom hinge

without a plug.

* Insert the filling plug and washer in the

reverse order into the ho;e for the bottom

hinge on the opposite side of the

appliance.

* Put the freezer door on the bottom hinge.

* Turn the bottom hinge of the refrigerator

door by 180˚,insert the hinge and the

washer into the hole of the corner cap on

the freezer door and fasten it.Use the same

procedure for the top hinge of the freezer

door and screw it on the opposite side of

the upper door.Put the washer and the

upper door on the hinge.

* Screw the top hinge of the refrigerator

door and replcae the cover.

* Reposition the slide guides on the

opposite side of both doors.

* Plug the remaining holes with the

decorative caps.

* After you have reversed the door,check if

the magnetic gasket seals correctly.It must

not be creased and must seal all around

the door.

694527.qxd 1/31/03 9:18 Page 6

Mounting the appliance

Before mounting the appliance into the

kitchen uniut,disconnect the power supply

and set the thermostat knob to the OFF (O)

position.

Push the appliance for some 38mm into the

kitchen unit and allow at least 4mm free

space on both sides between the appliance

and the side walls of the kitchen unit.(Fig.1)

Open both doors as wide as possible and put

them together with the door of the kitchen

unit.The proceduere is as follows;

* Fix the slide guides (attached in a plastic

bag along with the screws ST 4,2 x 9,5) to

the edge of the door.Cover the open

holes with the attached cap.

* Put the appliance door and the door of

the kitchen unit (Fig.2).

Insert the slides into the guides and fix

them on the kitchen unit door some

15mm from the edge,using the A4 x 12

screws (Fig.3).

* Remove the slide guides and separate the

appliance door from the door of the

kitchen unit.

* Fix the slides taking care not to move

them (Fig.4).

* Fix the slides to the original position.

* Close the door and check that the gasket

is not creased and the door opens

smoothly

Fig.1

Fig.3

Fig.4

Fig.2

694527.qxd 1/31/03 9:18 Page 7

Mounting the appliance

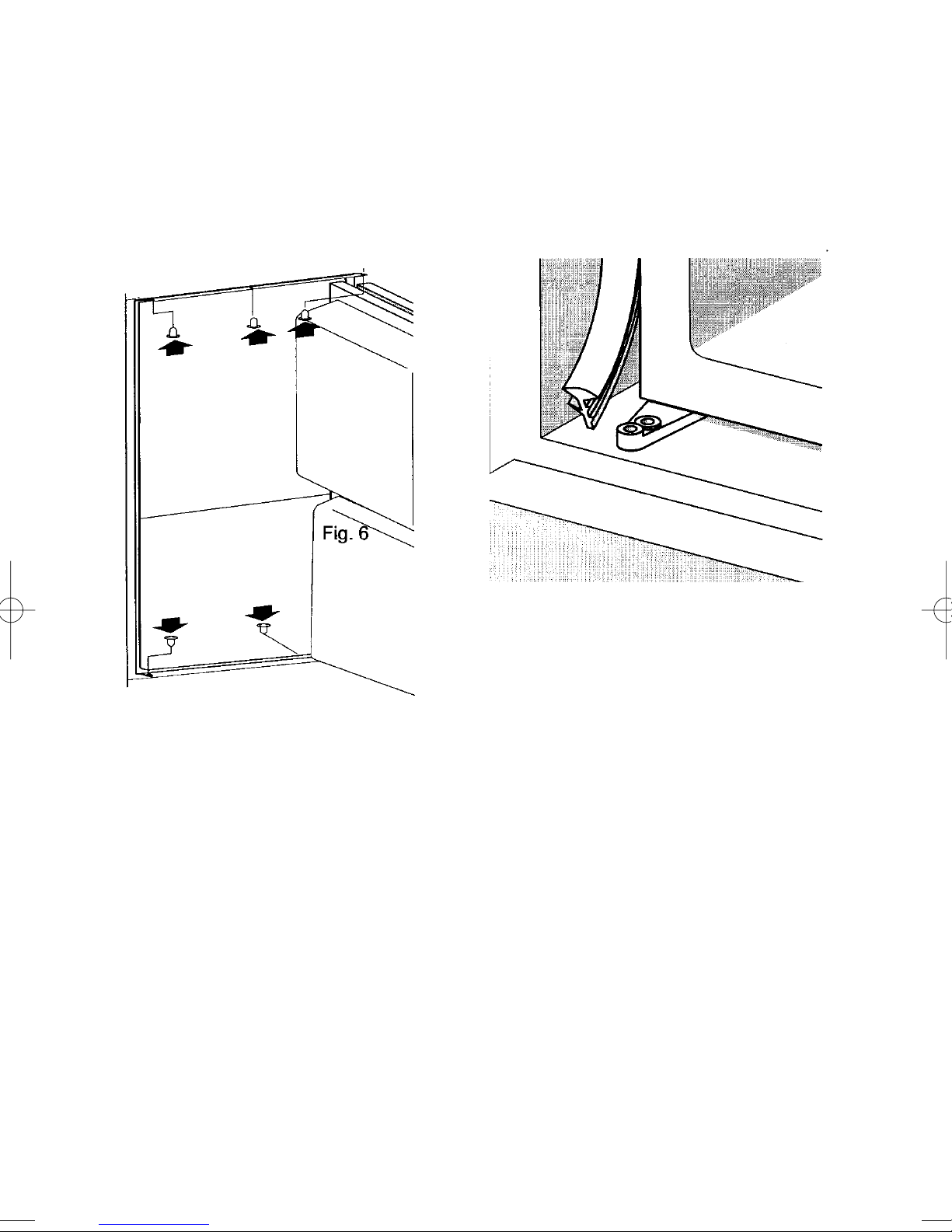

* Fix the appliance into the kitchen unit.On

the upperside,fix the three screws through

the rail and on the lower side with 2 screws

through the lower hinges.Drill holes ¿3 x 5

(Fig.5).

* Seal the gap on the opposite side of the

hinge with the enclosed seal (Fig.6)

Fig.5

Fig.6

694527.qxd 1/31/03 9:18 Page 8

Get to know your Appliance.

WARNING:CHILDREN SHOULD NOT BE

ALLOWEDTO PLAYWITH THE APPLIANCE

ORTAMPERWITH THE CONTROLS.

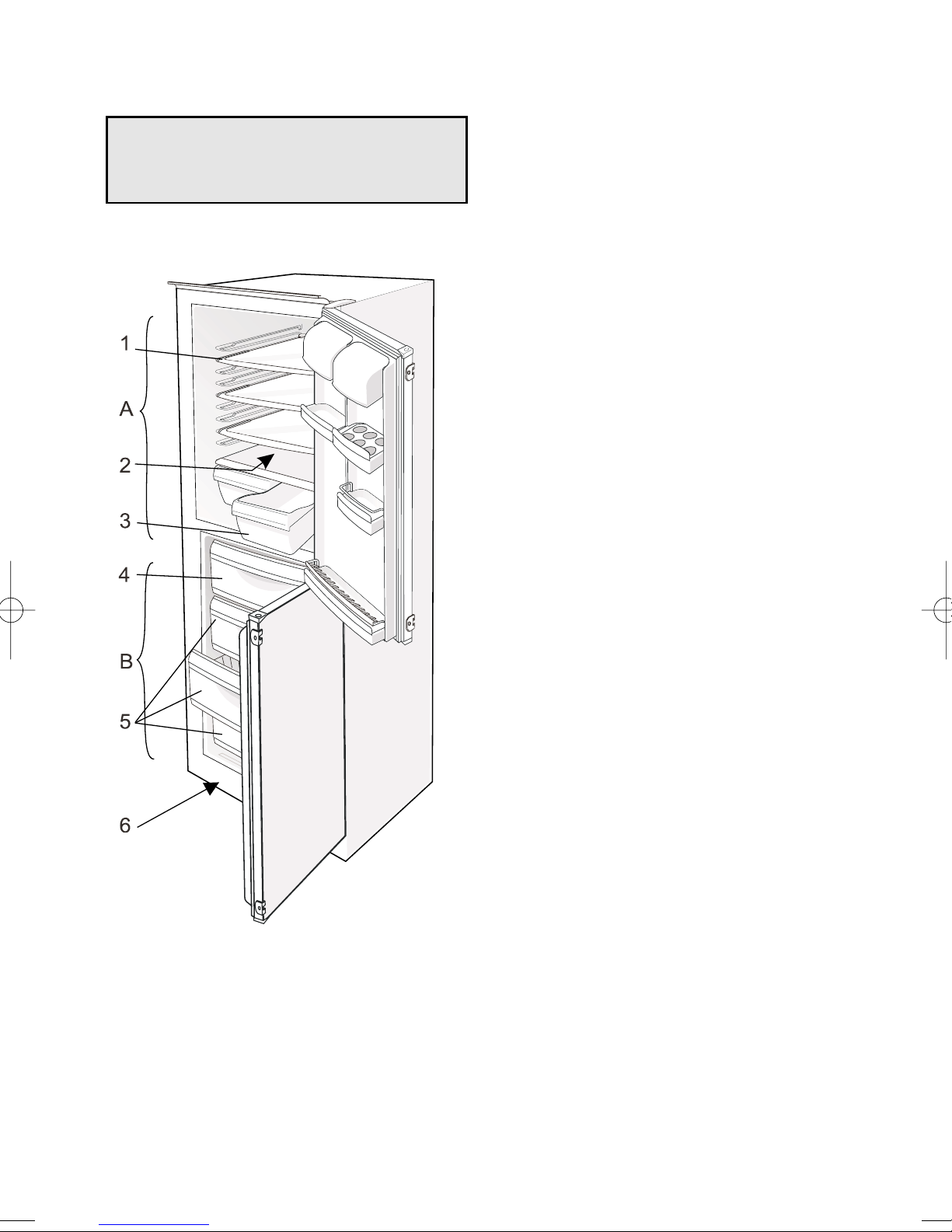

A. 1.Shelf

The shelves are adjustable and can be pulled

out and used on any of the guide slots.They

can also be used in a tilted position to allow

the safe storage of bottles,jars etc.on there

sides.To tilt a shelf,place the back of the shelf

on a lower slot than the front.

2.The defrost water outlet

The interior of the refrigerator is cooled with

a cooling plate incorporated in the rear wall.

Under the plate there is a channel and an

outlet for the defrosted water.

Regularly check the outlet and channel for

food deposits which could clog the drain

hole.If the hole is blocked,use a plastic straw

to clean it out.

3.Fruit and vegetable container

The container is under the glass at the bot-

tom of the refrigerator and is mainly used to

store fruit and vegetables.

The door liner

The door liner consists of various shelves or

holders used for storing eggs,cheese,butter

and yogurt as well as other small packages ,

tubes,cans etc.

The lower shelf is used for storing bottles.

The interior light

The light will come on when the door is

opened.

4.Freezing compartment

This is used for freezing fresh food.

5.Storing compartment

This is used for storing packages of frozen

foods.

6.Defrost water outlet

(see care and cleaning).

Note:

Various accessories (depending on model)

such as;spice container,tube holder or addi-

tional shelves can be bought from authorised

centres

694527.qxd 1/31/03 9:18 Page 9

Getting your Appliance ready for use.

Before connecting to the mains electricity

supply leave the appliance to stand for 2

hours to allow the cooling system to settle.

Clean the appliance,and be thorough,

especially in the interior.(see‘Caring for

your Appliance.

Final Check:

Before you start using your appliance check

that:

- The appliance is level.

- It is thoroughly dry inside.

- There is adequate air circulation.

- Accessories are correctly placed in their

positions.

Running in the Compressor:

Your appliance is operated by a compressor

which switches on and off in order to

maintain the internal temperature.

The compressor requires a running in period

of up to 2 months.During this time it has to

work a little harder and may result in more

noise than usual.

Noise levels are also determined as to the

location of the appliance,what is stored and

where the items are placed,

Whether the compressor is running

or not,it is normal to hear sounds

created by the liquid and gases sealed

within the system.

694527.qxd 1/31/03 9:18 Page 10

Table des matières

Autres manuels Hotpoint Réfrigérateur

Hotpoint

Hotpoint HL161AI Manuel utilisateur

Hotpoint

Hotpoint HTH16BBXLCC - 15.5 cu. Ft. Top-Freezer... Manuel utilisateur

Hotpoint

Hotpoint FFA45W Manuel utilisateur

Hotpoint

Hotpoint HME40N Manuel utilisateur

Hotpoint

Hotpoint FFUQ 20 Series Mode d'emploi

Hotpoint

Hotpoint CTF14 Instructions d'installation

Hotpoint

Hotpoint CSX2D Manuel utilisateur

Hotpoint

Hotpoint HME02GGMWW Mode d'emploi

Hotpoint

Hotpoint HTS17CBTBB - 16.6 cu. Ft. Top-Freezer... Instructions de montage

Hotpoint

Hotpoint E2BY 19 Series Manuel utilisateur

Hotpoint

Hotpoint RLA36 Manuel utilisateur

Hotpoint

Hotpoint HTS18BBEWW Manuel

Hotpoint

Hotpoint HL232I Manuel utilisateur

Hotpoint

Hotpoint FFUXL4D Manuel utilisateur

Hotpoint

Hotpoint HM 3x AA Manuel utilisateur

Hotpoint

Hotpoint SBL series NF Manuel utilisateur

Hotpoint

Hotpoint RLSA175P Manuel utilisateur

Hotpoint

Hotpoint ENXTY 19 FW O3 TK Series Manuel utilisateur

Hotpoint

Hotpoint HTR16BBELWW Guide de l'utilisateur

Hotpoint

Hotpoint HSM25GFTSA - 25.0 cu. Ft. Refrigerator Instructions de montage

Hotpoint

Hotpoint SXBHAE 924 WD Manuel utilisateur

Hotpoint

Hotpoint HTH18GBCCC Manuel

Hotpoint

Hotpoint HME35 Manuel utilisateur

Hotpoint

Hotpoint CTF16 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
