Hotpoint RGB790WEKWW Manuel

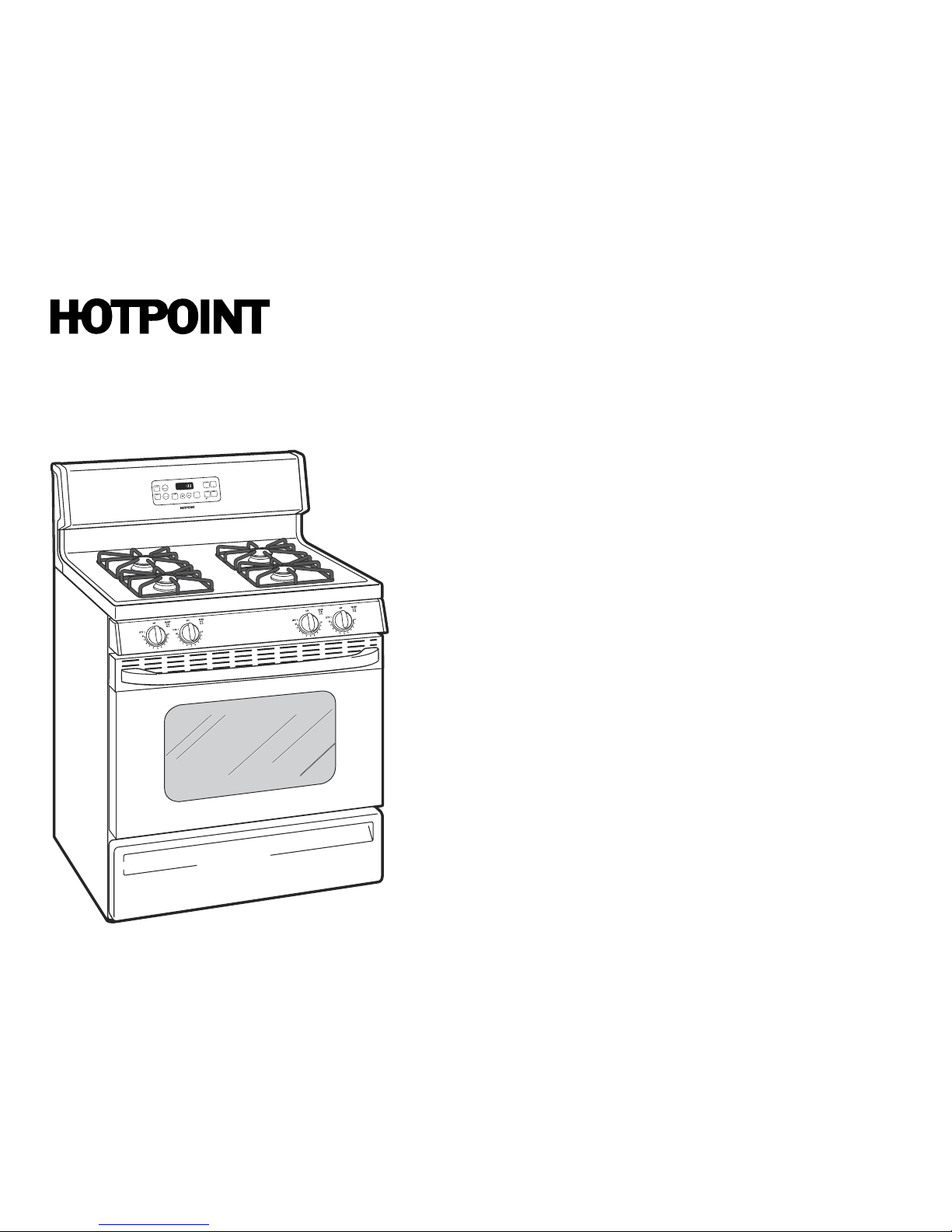

RGB790WEK/CEK/BEK – Hotpoint 30" Free-Standing Gas Range

Dimensions (in inches) 30" Gas Range Installation Information (in inches)

46-1/2

26-1/4*

46-3/8

36±1/4

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical

outlet for GE free-standing gas

range models

Installation Information: Before

installing, consult installation

instructions packed with product

for current dimensional data.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

30" FS Gas Ranges-CL

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

CERTIFIED

* Depth from wall to front

of closed oven door.

Specification Created 9/05

430196

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

RGB790WEK/CEK/BEK – Hotpoint 30" Free-Standing Gas Range

Features and Benefits

• Self Clean Oven – Conveniently cleans the oven cavity without need of scrubbing.

• Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items

at once.

• Sealed Cooktop Burners – Eliminate the space between the burners and the cooktop to

help contain spills and boil over liquids, ensuring easy cleanup.

• Performance Plus Burner – Provides a maximum output of 12,000 BTUs for fast heat-up

and boiling.

• Simmer Burner – Provides low, even heat distribution for delicate foods and sauces.

• All Purpose Burners – Deliver a wide range of heat output ideal for most

cooking requirements.

• EasySet IV Controls – Feature a smooth design that’s easy-to-operate and easy-to-clean.

• Model RGB790WEKWW – White in white

• Model RGB790CEKCC – Bisque on bisque

• Model RGB790BEKBB – Black on black

Specification Created 9/05

430196

RGB790WEK/CEK

BROIL

SELF

CLEAN

OVEN

LIGHT

CLOCK

OVEN CONTROLSTrue Temp

TEMP

NORMAL

HI LO

OFF

KITCHEN

TIMER

ONOFF

BAKESTART

CLEAR

OFF

TIME CONTROLS

COOKING

TIME

ONOFF

AUTOMATIC OVEN

START

TIME

ONOFF
